org.eclipse.swt.graphics

Class FontData

java.lang.Object

org.eclipse.swt.graphics.FontData

public final class FontData
extends java.lang.Object

Instances of this class describe operating system fonts.

For platform-independent behaviour, use the get and set methods corresponding to the following properties:

height

the height of the font in points

name

the face name of the font, which may include the foundry

style

A bitwise combination of NORMAL, ITALIC and BOLD

If extra, platform-dependent functionality is required:

• On Windows, the data member of the FontData corresponds to a Windows LOGFONT structure whose fields may be retrieved and modified.
• On X, the fields of the FontData correspond to the entries in the font's XLFD name and may be retrieved and modified.

Application code does not need to explicitly release the resources managed by each instance when those instances are no longer required, and thus no dispose() method is provided.

See Also:

Font, Sample code and further information

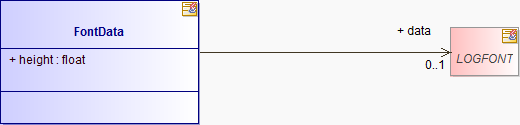

Structure Diagram

Field Summary

Fields

Modifier and Type	Field and Description
(package private) java.lang.String	country The locales of the font
LOGFONT	data A Win32 LOGFONT struct (Warning: This field is platform dependent) IMPORTANT: This field is not part of the SWT public API.
float	height The height of the font data in points (Warning: This field is platform dependent) IMPORTANT: This field is not part of the SWT public API.
(package private) java.lang.String	lang The locales of the font
(package private) java.lang.String	variant The locales of the font

Constructor Summary

Constructors

Constructor and Description
FontData() Constructs a new uninitialized font data.
FontData(LOGFONT data, float height) Constructs a new font data given the Windows LOGFONT that it should represent.
FontData(java.lang.String string) Constructs a new FontData given a string representation in the form generated by the FontData.toString method.
FontData(java.lang.String name, float height, int style)
FontData(java.lang.String name, int height, int style) Constructs a new font data given a font name, the height of the desired font in points, and a font style.

Method Summary

Methods

Modifier and Type	Method and Description
(package private) int	EnumLocalesProc(int lpLocaleString)
boolean	equals(java.lang.Object object) Compares the argument to the receiver, and returns true if they represent the same object using a class specific comparison.
int	getHeight() Returns the height of the receiver in points.
(package private) float	getHeightF()
java.lang.String	getLocale() Returns the locale of the receiver.
java.lang.String	getName() Returns the name of the receiver.
int	getStyle() Returns the style of the receiver which is a bitwise OR of one or more of the SWT constants NORMAL, BOLD and ITALIC.
int	hashCode() Returns an integer hash code for the receiver.
(package private) void	setHeight(float height)
void	setHeight(int height) Sets the height of the receiver.
void	setLocale(java.lang.String locale) Sets the locale of the receiver.
void	setName(java.lang.String name) Sets the name of the receiver.
void	setStyle(int style) Sets the style of the receiver to the argument which must be a bitwise OR of one or more of the SWT constants NORMAL, BOLD and ITALIC.
java.lang.String	toString() Returns a string representation of the receiver which is suitable for constructing an equivalent instance using the FontData(String) constructor.
static FontData	win32_new(LOGFONT data, float height) Invokes platform specific functionality to allocate a new font data.

Methods inherited from class java.lang.Object

clone, finalize, getClass, notify, notifyAll, wait, wait, wait

Field Detail

data

public LOGFONT data

A Win32 LOGFONT struct (Warning: This field is platform dependent)

IMPORTANT: This field is not part of the SWT public API. It is marked public only so that it can be shared within the packages provided by SWT. It is not available on all platforms and should never be accessed from application code.

height

public float height

The height of the font data in points (Warning: This field is platform dependent)

IMPORTANT: This field is not part of the SWT public API. It is marked public only so that it can be shared within the packages provided by SWT. It is not available on all platforms and should never be accessed from application code.

lang

java.lang.String lang

The locales of the font

country

java.lang.String country

The locales of the font

variant

java.lang.String variant

The locales of the font

Constructor Detail

FontData

public FontData()

Constructs a new uninitialized font data.

FontData

FontData(LOGFONT data,
        float height)

Constructs a new font data given the Windows LOGFONT that it should represent.

Parameters:

data - the LOGFONT for the result

FontData

public FontData(java.lang.String string)

Constructs a new FontData given a string representation in the form generated by the FontData.toString method.

Note that the representation varies between platforms, and a FontData can only be created from a string that was generated on the same platform.

Parameters:

string - the string representation of a FontData (must not be null)

Throws:

java.lang.IllegalArgumentException -

• ERROR_NULL_ARGUMENT - if the argument is null
• ERROR_INVALID_ARGUMENT - if the argument does not represent a valid description

See Also:

toString()

FontData

public FontData(java.lang.String name,
        int height,
        int style)

Constructs a new font data given a font name, the height of the desired font in points, and a font style.

Parameters:

name - the name of the font (must not be null)

height - the font height in points

style - a bit or combination of NORMAL, BOLD, ITALIC

Throws:

java.lang.IllegalArgumentException -

• ERROR_NULL_ARGUMENT - when the font name is null
• ERROR_INVALID_ARGUMENT - if the height is negative

FontData

FontData(java.lang.String name,
        float height,
        int style)

Method Detail

equals

public boolean equals(java.lang.Object object)

Compares the argument to the receiver, and returns true if they represent the same object using a class specific comparison.

Overrides:

equals in class java.lang.Object

Parameters:

object - the object to compare with this object

Returns:

true if the object is the same as this object and false otherwise

See Also:

hashCode()

EnumLocalesProc

int EnumLocalesProc(int lpLocaleString)

getHeight

public int getHeight()

Returns the height of the receiver in points.

Returns:

the height of this FontData

See Also:

setHeight(int)

getHeightF

float getHeightF()

getLocale

public java.lang.String getLocale()

Returns the locale of the receiver.

The locale determines which platform character set this font is going to use. Widgets and graphics operations that use this font will convert UNICODE strings to the platform character set of the specified locale.

On platforms where there are multiple character sets for a given language/country locale, the variant portion of the locale will determine the character set.

Returns:

the String representing a Locale object

Since:

3.0

getName

public java.lang.String getName()

Returns the name of the receiver. On platforms that support font foundries, the return value will be the foundry followed by a dash ("-") followed by the face name.

Returns:

the name of this FontData

See Also:

setName(java.lang.String)

getStyle

public int getStyle()

Returns the style of the receiver which is a bitwise OR of one or more of the SWT constants NORMAL, BOLD and ITALIC.

Returns:

the style of this FontData

See Also:

setStyle(int)

hashCode

public int hashCode()

Returns an integer hash code for the receiver. Any two objects that return true when passed to equals must return the same value for this method.

Overrides:

hashCode in class java.lang.Object

Returns:

the receiver's hash

See Also:

equals(java.lang.Object)

setHeight

public void setHeight(int height)

Sets the height of the receiver. The parameter is specified in terms of points, where a point is one seventy-second of an inch.

Parameters:

height - the height of the FontData

Throws:

java.lang.IllegalArgumentException -

• ERROR_INVALID_ARGUMENT - if the height is negative

See Also:

getHeight()

setHeight

void setHeight(float height)

setLocale

public void setLocale(java.lang.String locale)

Sets the locale of the receiver.

The locale determines which platform character set this font is going to use. Widgets and graphics operations that use this font will convert UNICODE strings to the platform character set of the specified locale.

On platforms where there are multiple character sets for a given language/country locale, the variant portion of the locale will determine the character set.

Parameters:

locale - the String representing a Locale object

See Also:

Locale.toString()

setName

public void setName(java.lang.String name)

Sets the name of the receiver.

Some platforms support font foundries. On these platforms, the name of the font specified in setName() may have one of the following forms:

1. a face name (for example, "courier")
2. a foundry followed by a dash ("-") followed by a face name (for example, "adobe-courier")

In either case, the name returned from getName() will include the foundry.

On platforms that do not support font foundries, only the face name (for example, "courier") is used in setName() and getName().

Parameters:

name - the name of the font data (must not be null)

Throws:

java.lang.IllegalArgumentException -

• ERROR_NULL_ARGUMENT - when the font name is null

See Also:

getName()

setStyle

public void setStyle(int style)

Sets the style of the receiver to the argument which must be a bitwise OR of one or more of the SWT constants NORMAL, BOLD and ITALIC. All other style bits are ignored.

Parameters:

style - the new style for this FontData

See Also:

getStyle()

toString

public java.lang.String toString()

Returns a string representation of the receiver which is suitable for constructing an equivalent instance using the FontData(String) constructor.

Overrides:

toString in class java.lang.Object

Returns:

a string representation of the FontData

See Also:

FontData

win32_new

public static FontData win32_new(LOGFONT data,
                 float height)

Invokes platform specific functionality to allocate a new font data.

IMPORTANT: This method is not part of the public API for FontData. It is marked public only so that it can be shared within the packages provided by SWT. It is not available on all platforms, and should never be called from application code.

Parameters:

data - the LOGFONT for the font data

height - the height of the font data

Returns:

a new font data object containing the specified LOGFONT and height
