org.eclipse.swt.graphics

Class ImageData

java.lang.Object

org.eclipse.swt.graphics.ImageData

All Implemented Interfaces:

java.lang.Cloneable, CloneableCompatibility

public final class ImageData
extends java.lang.Object
implements CloneableCompatibility

Instances of this class are device-independent descriptions of images. They are typically used as an intermediate format between loading from or writing to streams and creating an Image.

Note that the public fields x, y, disposalMethod and delayTime are typically only used when the image is in a set of images used for animation.

See Also:

Image, ImageLoader, ImageData snippets, SWT Example: ImageAnalyzer, Sample code and further information

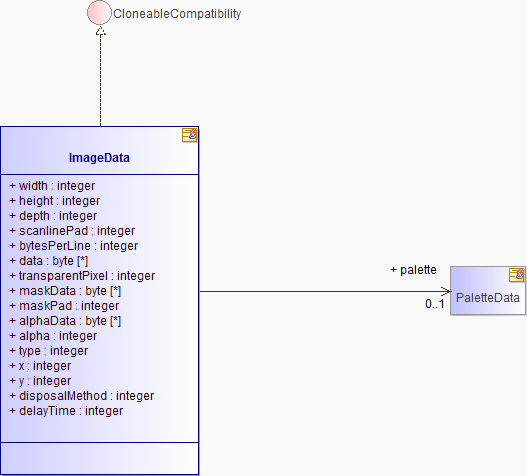

Structure Diagram

Field Summary

Fields

Modifier and Type	Field and Description
int	alpha The global alpha value to be used for every pixel.
(package private) static int	ALPHA_CHANNEL_SEPARATE Alpha mode, values 0 - 255 specify global alpha level
(package private) static int	ALPHA_CHANNEL_SOURCE Alpha mode, values 0 - 255 specify global alpha level
(package private) static int	ALPHA_MASK_INDEX Alpha mode, values 0 - 255 specify global alpha level
(package private) static int	ALPHA_MASK_PACKED Alpha mode, values 0 - 255 specify global alpha level
(package private) static int	ALPHA_MASK_RGB Alpha mode, values 0 - 255 specify global alpha level
(package private) static int	ALPHA_MASK_UNPACKED Alpha mode, values 0 - 255 specify global alpha level
(package private) static int	ALPHA_OPAQUE Alpha mode, values 0 - 255 specify global alpha level
(package private) static int	ALPHA_TRANSPARENT Alpha mode, values 0 - 255 specify global alpha level
byte[]	alphaData The alpha data of the image.
(package private) static byte[][]	ANY_TO_EIGHT Arbitrary channel width data to 8-bit conversion table.
(package private) static int	BLIT_ALPHA Blit operation bits to be OR'ed together to specify the desired operation.
(package private) static int	BLIT_DITHER Blit operation bits to be OR'ed together to specify the desired operation.
(package private) static int	BLIT_SRC Blit operation bits to be OR'ed together to specify the desired operation.
int	bytesPerLine The number of bytes per scanline.
byte[]	data The pixel data of the image.
int	delayTime The time to delay before displaying the next image in an animation (this field corresponds to the GIF89a Delay Time value).
int	depth The color depth of the image, in bits per pixel.
int	disposalMethod A description of how to dispose of the current image before displaying the next.
(package private) static int[][]	DITHER_MATRIX Scaled 8x8 Bayer dither matrix.
int	height The height of the image, in pixels.
(package private) static int	LSB_FIRST Byte and bit order constants.
byte[]	maskData An icon-specific field containing the data from the icon mask.
int	maskPad An icon-specific field containing the scanline pad of the mask.
(package private) static int	MSB_FIRST
(package private) static byte[]	ONE_TO_ONE_MAPPING
PaletteData	palette The color table for the image.
int	scanlinePad The scanline padding.
int	transparentPixel The transparent pixel.
int	type The type of file from which the image was read.
private static int	TYPE_GENERIC_16_LSB Data types (internal)
private static int	TYPE_GENERIC_16_MSB Data types (internal)
private static int	TYPE_GENERIC_24 Data types (internal)
private static int	TYPE_GENERIC_32_LSB Data types (internal)
private static int	TYPE_GENERIC_32_MSB Data types (internal)
private static int	TYPE_GENERIC_8 Data types (internal)
private static int	TYPE_INDEX_1_LSB Data types (internal)
private static int	TYPE_INDEX_1_MSB Data types (internal)
private static int	TYPE_INDEX_2 Data types (internal)
private static int	TYPE_INDEX_4 Data types (internal)
private static int	TYPE_INDEX_8 Data types (internal)
int	width The width of the image, in pixels.
int	x The x coordinate of the top left corner of the image within the logical screen (this field corresponds to the GIF89a Image Left Position value).
int	y The y coordinate of the top left corner of the image within the logical screen (this field corresponds to the GIF89a Image Top Position value).

Constructor Summary

Constructors

Constructor and Description
ImageData() Prevents uninitialized instances from being created outside the package.
ImageData(java.io.InputStream stream) Constructs an ImageData loaded from the specified input stream.
ImageData(int width, int height, int depth, PaletteData palette) Constructs a new, empty ImageData with the given width, height, depth and palette.
ImageData(int width, int height, int depth, PaletteData palette, int scanlinePad, byte[] data) Constructs a new, empty ImageData with the given width, height, depth, palette, scanlinePad and data.
ImageData(int width, int height, int depth, PaletteData palette, int scanlinePad, byte[] data, int maskPad, byte[] maskData, byte[] alphaData, int alpha, int transparentPixel, int type, int x, int y, int disposalMethod, int delayTime) Constructs an image data by giving values for all non-computable fields.
ImageData(java.lang.String filename) Constructs an ImageData loaded from a file with the specified name.

Method Summary

Methods

Modifier and Type	Method and Description
(package private) static void	blit(int op, byte[] srcData, int srcDepth, int srcStride, int srcOrder, int srcX, int srcY, int srcWidth, int srcHeight, byte[] srcReds, byte[] srcGreens, byte[] srcBlues, int alphaMode, byte[] alphaData, int alphaStride, int alphaX, int alphaY, byte[] destData, int destDepth, int destStride, int destOrder, int destX, int destY, int destWidth, int destHeight, byte[] destReds, byte[] destGreens, byte[] destBlues, boolean flipX, boolean flipY) Blits an index palette image into an index palette image.
(package private) static void	blit(int op, byte[] srcData, int srcDepth, int srcStride, int srcOrder, int srcX, int srcY, int srcWidth, int srcHeight, byte[] srcReds, byte[] srcGreens, byte[] srcBlues, int alphaMode, byte[] alphaData, int alphaStride, int alphaX, int alphaY, byte[] destData, int destDepth, int destStride, int destOrder, int destX, int destY, int destWidth, int destHeight, int destRedMask, int destGreenMask, int destBlueMask, boolean flipX, boolean flipY) Blits an index palette image into a direct palette image.
(package private) static void	blit(int op, byte[] srcData, int srcDepth, int srcStride, int srcOrder, int srcX, int srcY, int srcWidth, int srcHeight, int srcRedMask, int srcGreenMask, int srcBlueMask, int alphaMode, byte[] alphaData, int alphaStride, int alphaX, int alphaY, byte[] destData, int destDepth, int destStride, int destOrder, int destX, int destY, int destWidth, int destHeight, byte[] destReds, byte[] destGreens, byte[] destBlues, boolean flipX, boolean flipY) Blits a direct palette image into an index palette image.
(package private) static void	blit(int op, byte[] srcData, int srcDepth, int srcStride, int srcOrder, int srcX, int srcY, int srcWidth, int srcHeight, int srcRedMask, int srcGreenMask, int srcBlueMask, int alphaMode, byte[] alphaData, int alphaStride, int alphaX, int alphaY, byte[] destData, int destDepth, int destStride, int destOrder, int destX, int destY, int destWidth, int destHeight, int destRedMask, int destGreenMask, int destBlueMask, boolean flipX, boolean flipY) Blits a direct palette image into a direct palette image.
(package private) static void	buildDitheredGradientChannel(int from, int to, int steps, int bandWidth, int bandHeight, boolean vertical, byte[] bitmapData, int dp, int bytesPerLine, int bits)
(package private) static void	buildPreciseGradientChannel(int from, int to, int steps, int bandWidth, int bandHeight, boolean vertical, byte[] bitmapData, int dp, int bytesPerLine)
(package private) static PaletteData	bwPalette() Returns a palette with 2 colors: black & white.
(package private) static byte[]	checkData(byte[] data)
java.lang.Object	clone() Returns a new instance of the same class as the receiver, whose slots have been filled in with copies of the values in the slots of the receiver.
(package private) static int	closestMatch(int depth, byte red, byte green, byte blue, int redMask, int greenMask, int blueMask, byte[] reds, byte[] greens, byte[] blues) Finds the closest match.
(package private) ImageData	colorMaskImage(int pixel)
(package private) static ImageData	convertMask(ImageData mask)
(package private) static byte[]	convertPad(byte[] data, int width, int height, int depth, int pad, int newPad)
(package private) static ImageData	createGradientBand(int width, int height, boolean vertical, RGB fromRGB, RGB toRGB, int redBits, int greenBits, int blueBits) Creates an ImageData containing one band's worth of a gradient filled block.
(package private) static void	fillGradientRectangle(GC gc, Device device, int x, int y, int width, int height, boolean vertical, RGB fromRGB, RGB toRGB, int redBits, int greenBits, int blueBits) Renders a gradient onto a GC.
int	getAlpha(int x, int y) Returns the alpha value at offset x in scanline y in the receiver's alpha data.
void	getAlphas(int x, int y, int getWidth, byte[] alphas, int startIndex) Returns getWidth alpha values starting at offset x in scanline y in the receiver's alpha data starting at startIndex.
(package private) int	getByteOrder() Returns the byte order of the receiver.
(package private) static byte	getChannelField(int data, int mask) Extracts a field from packed RGB data given a mask for that field.
(package private) static int	getChannelShift(int mask) Computes the required channel shift from a mask.
(package private) static int	getChannelWidth(int mask, int shift) Computes the required channel width (depth) from a mask.
(package private) static int	getMSBOffset(int mask) Gets the offset of the most significant bit for the given mask.
int	getPixel(int x, int y) Returns the pixel value at offset x in scanline y in the receiver's data.
void	getPixels(int x, int y, int getWidth, byte[] pixels, int startIndex) Returns getWidth pixel values starting at offset x in scanline y in the receiver's data starting at startIndex.
void	getPixels(int x, int y, int getWidth, int[] pixels, int startIndex) Returns getWidth pixel values starting at offset x in scanline y in the receiver's data starting at startIndex.
RGB[]	getRGBs() Returns an array of RGBs which comprise the indexed color table of the receiver, or null if the receiver has a direct color model.
ImageData	getTransparencyMask() Returns an ImageData which specifies the transparency mask information for the receiver.
int	getTransparencyType() Returns the image transparency type, which will be one of SWT.TRANSPARENCY_NONE, SWT.TRANSPARENCY_MASK, SWT.TRANSPARENCY_PIXEL or SWT.TRANSPARENCY_ALPHA.
static ImageData	internal_new(int width, int height, int depth, PaletteData palette, int scanlinePad, byte[] data, int maskPad, byte[] maskData, byte[] alphaData, int alpha, int transparentPixel, int type, int x, int y, int disposalMethod, int delayTime) Invokes internal SWT functionality to create a new instance of this class.
ImageData	scaledTo(int width, int height) Returns a copy of the receiver which has been stretched or shrunk to the specified size.
(package private) void	setAllFields(int width, int height, int depth, int scanlinePad, int bytesPerLine, byte[] data, PaletteData palette, int transparentPixel, byte[] maskData, int maskPad, byte[] alphaData, int alpha, int type, int x, int y, int disposalMethod, int delayTime) Initializes all fields in the receiver.
void	setAlpha(int x, int y, int alpha) Sets the alpha value at offset x in scanline y in the receiver's alpha data.
void	setAlphas(int x, int y, int putWidth, byte[] alphas, int startIndex) Sets the alpha values starting at offset x in scanline y in the receiver's alpha data to the values from the array alphas starting at startIndex.
void	setPixel(int x, int y, int pixelValue) Sets the pixel value at offset x in scanline y in the receiver's data.
void	setPixels(int x, int y, int putWidth, byte[] pixels, int startIndex) Sets the pixel values starting at offset x in scanline y in the receiver's data to the values from the array pixels starting at startIndex.
void	setPixels(int x, int y, int putWidth, int[] pixels, int startIndex) Sets the pixel values starting at offset x in scanline y in the receiver's data to the values from the array pixels starting at startIndex.

Methods inherited from class java.lang.Object

equals, finalize, getClass, hashCode, notify, notifyAll, toString, wait, wait, wait

Field Detail

width

public int width

The width of the image, in pixels.

height

public int height

The height of the image, in pixels.

depth

public int depth

The color depth of the image, in bits per pixel.

Note that a depth of 8 or less does not necessarily mean that the image is palette indexed, or conversely that a depth greater than 8 means that the image is direct color. Check the associated PaletteData's isDirect field for such determinations.

scanlinePad

public int scanlinePad

The scanline padding.

If one scanline of the image is not a multiple of this number, it will be padded with zeros until it is.

bytesPerLine

public int bytesPerLine

The number of bytes per scanline.

This is a multiple of the scanline padding.

data

public byte[] data

The pixel data of the image.

Note that for 16 bit depth images the pixel data is stored in least significant byte order; however, for 24bit and 32bit depth images the pixel data is stored in most significant byte order.

palette

public PaletteData palette

The color table for the image.

transparentPixel

public int transparentPixel

The transparent pixel.

Pixels with this value are transparent.

The default is -1 which means 'no transparent pixel'.

maskData

public byte[] maskData

An icon-specific field containing the data from the icon mask.

This is a 1 bit bitmap stored with the most significant bit first. The number of bytes per scanline is '((width + 7) / 8 + (maskPad - 1)) / maskPad * maskPad'.

The default is null which means 'no transparency mask'.

maskPad

public int maskPad

An icon-specific field containing the scanline pad of the mask.

If one scanline of the transparency mask is not a multiple of this number, it will be padded with zeros until it is.

alphaData

public byte[] alphaData

The alpha data of the image.

Every pixel can have an alpha blending value that varies from 0, meaning fully transparent, to 255 meaning fully opaque. The number of bytes per scanline is 'width'.

alpha

public int alpha

The global alpha value to be used for every pixel.

If this value is set, the alphaData field is ignored and when the image is rendered each pixel will be blended with the background an amount proportional to this value.

The default is -1 which means 'no global alpha value'

type

public int type

The type of file from which the image was read. It is expressed as one of the following values:

IMAGE_BMP

Windows BMP file format, no compression

IMAGE_BMP_RLE

Windows BMP file format, RLE compression if appropriate

IMAGE_GIF

GIF file format

IMAGE_ICO

Windows ICO file format

IMAGE_JPEG

JPEG file format

IMAGE_PNG

PNG file format

x

public int x

The x coordinate of the top left corner of the image within the logical screen (this field corresponds to the GIF89a Image Left Position value).

y

public int y

The y coordinate of the top left corner of the image within the logical screen (this field corresponds to the GIF89a Image Top Position value).

disposalMethod

public int disposalMethod

A description of how to dispose of the current image before displaying the next. It is expressed as one of the following values:

DM_UNSPECIFIED

disposal method not specified

DM_FILL_NONE

do nothing - leave the image in place

DM_FILL_BACKGROUND

fill with the background color

DM_FILL_PREVIOUS

restore the previous picture

(this field corresponds to the GIF89a Disposal Method value)

delayTime

public int delayTime

The time to delay before displaying the next image in an animation (this field corresponds to the GIF89a Delay Time value).

ANY_TO_EIGHT

static final byte[][] ANY_TO_EIGHT

Arbitrary channel width data to 8-bit conversion table.

ONE_TO_ONE_MAPPING

static final byte[] ONE_TO_ONE_MAPPING

DITHER_MATRIX

static final int[][] DITHER_MATRIX

Scaled 8x8 Bayer dither matrix.

BLIT_SRC

static final int BLIT_SRC

Blit operation bits to be OR'ed together to specify the desired operation.

See Also:

Constant Field Values

BLIT_ALPHA

static final int BLIT_ALPHA

Blit operation bits to be OR'ed together to specify the desired operation.

See Also:

Constant Field Values

BLIT_DITHER

static final int BLIT_DITHER

Blit operation bits to be OR'ed together to specify the desired operation.

See Also:

Constant Field Values

ALPHA_OPAQUE

static final int ALPHA_OPAQUE

Alpha mode, values 0 - 255 specify global alpha level

See Also:

Constant Field Values

ALPHA_TRANSPARENT

static final int ALPHA_TRANSPARENT

Alpha mode, values 0 - 255 specify global alpha level

See Also:

Constant Field Values

ALPHA_CHANNEL_SEPARATE

static final int ALPHA_CHANNEL_SEPARATE

Alpha mode, values 0 - 255 specify global alpha level

See Also:

Constant Field Values

ALPHA_CHANNEL_SOURCE

static final int ALPHA_CHANNEL_SOURCE

Alpha mode, values 0 - 255 specify global alpha level

See Also:

Constant Field Values

ALPHA_MASK_UNPACKED

static final int ALPHA_MASK_UNPACKED

Alpha mode, values 0 - 255 specify global alpha level

See Also:

Constant Field Values

ALPHA_MASK_PACKED

static final int ALPHA_MASK_PACKED

Alpha mode, values 0 - 255 specify global alpha level

See Also:

Constant Field Values

ALPHA_MASK_INDEX

static final int ALPHA_MASK_INDEX

Alpha mode, values 0 - 255 specify global alpha level

See Also:

Constant Field Values

ALPHA_MASK_RGB

static final int ALPHA_MASK_RGB

Alpha mode, values 0 - 255 specify global alpha level

See Also:

Constant Field Values

LSB_FIRST

static final int LSB_FIRST

Byte and bit order constants.

See Also:

Constant Field Values

MSB_FIRST

static final int MSB_FIRST

See Also:

Constant Field Values

TYPE_GENERIC_8

private static final int TYPE_GENERIC_8

Data types (internal)

See Also:

Constant Field Values

TYPE_GENERIC_16_MSB

private static final int TYPE_GENERIC_16_MSB

Data types (internal)

See Also:

Constant Field Values

TYPE_GENERIC_16_LSB

private static final int TYPE_GENERIC_16_LSB

Data types (internal)

See Also:

Constant Field Values

TYPE_GENERIC_24

private static final int TYPE_GENERIC_24

Data types (internal)

See Also:

Constant Field Values

TYPE_GENERIC_32_MSB

private static final int TYPE_GENERIC_32_MSB

Data types (internal)

See Also:

Constant Field Values

TYPE_GENERIC_32_LSB

private static final int TYPE_GENERIC_32_LSB

Data types (internal)

See Also:

Constant Field Values

TYPE_INDEX_8

private static final int TYPE_INDEX_8

Data types (internal)

See Also:

Constant Field Values

TYPE_INDEX_4

private static final int TYPE_INDEX_4

Data types (internal)

See Also:

Constant Field Values

TYPE_INDEX_2

private static final int TYPE_INDEX_2

Data types (internal)

See Also:

Constant Field Values

TYPE_INDEX_1_MSB

private static final int TYPE_INDEX_1_MSB

Data types (internal)

See Also:

Constant Field Values

TYPE_INDEX_1_LSB

private static final int TYPE_INDEX_1_LSB

Data types (internal)

See Also:

Constant Field Values

Constructor Detail

ImageData

public ImageData(int width,
         int height,
         int depth,
         PaletteData palette)

Constructs a new, empty ImageData with the given width, height, depth and palette. The data will be initialized to an (all zero) array of the appropriate size.

Parameters:

width - the width of the image

height - the height of the image

depth - the depth of the image

palette - the palette of the image (must not be null)

Throws:

java.lang.IllegalArgumentException -

• ERROR_INVALID_ARGUMENT - if the width or height is zero or negative, or if the depth is not one of 1, 2, 4, 8, 16, 24 or 32
• ERROR_NULL_ARGUMENT - if the palette is null

ImageData

public ImageData(int width,
         int height,
         int depth,
         PaletteData palette,
         int scanlinePad,
         byte[] data)

Constructs a new, empty ImageData with the given width, height, depth, palette, scanlinePad and data.

Parameters:

width - the width of the image

height - the height of the image

depth - the depth of the image

palette - the palette of the image

scanlinePad - the padding of each line, in bytes

data - the data of the image

Throws:

java.lang.IllegalArgumentException -

• ERROR_INVALID_ARGUMENT - if the width or height is zero or negative, or if the depth is not one of 1, 2, 4, 8, 16, 24 or 32, or the data array is too small to contain the image data
• ERROR_NULL_ARGUMENT - if the palette or data is null
• ERROR_CANNOT_BE_ZERO - if the scanlinePad is zero

ImageData

public ImageData(java.io.InputStream stream)

Constructs an ImageData loaded from the specified input stream. Throws an error if an error occurs while loading the image, or if the image has an unsupported type. Application code is still responsible for closing the input stream.

This constructor is provided for convenience when loading a single image only. If the stream contains multiple images, only the first one will be loaded. To load multiple images, use ImageLoader.load().

This constructor may be used to load a resource as follows:

     static ImageData loadImageData (Class clazz, String string) {
          InputStream stream = clazz.getResourceAsStream (string);
          if (stream == null) return null;
          ImageData imageData = null;
          try {
               imageData = new ImageData (stream);
          } catch (SWTException ex) {
          } finally {
               try {
                    stream.close ();
               } catch (IOException ex) {}
          }
          return imageData;
     }


Parameters:

stream - the input stream to load the image from (must not be null)

Throws:

java.lang.IllegalArgumentException -

• ERROR_NULL_ARGUMENT - if the stream is null

SWTException -

• ERROR_IO - if an IO error occurs while reading from the stream
• ERROR_INVALID_IMAGE - if the image stream contains invalid data
• ERROR_UNSUPPORTED_FORMAT - if the image stream contains an unrecognized format

See Also:

ImageLoader.load(InputStream)

ImageData

public ImageData(java.lang.String filename)

Constructs an ImageData loaded from a file with the specified name. Throws an error if an error occurs loading the image, or if the image has an unsupported type.

This constructor is provided for convenience when loading a single image only. If the file contains multiple images, only the first one will be loaded. To load multiple images, use ImageLoader.load().

Parameters:

filename - the name of the file to load the image from (must not be null)

Throws:

java.lang.IllegalArgumentException -

• ERROR_NULL_ARGUMENT - if the file name is null

SWTException -

• ERROR_IO - if an IO error occurs while reading from the file
• ERROR_INVALID_IMAGE - if the image file contains invalid data
• ERROR_UNSUPPORTED_FORMAT - if the image file contains an unrecognized format

ImageData

ImageData()

Prevents uninitialized instances from being created outside the package.

ImageData

ImageData(int width,
         int height,
         int depth,
         PaletteData palette,
         int scanlinePad,
         byte[] data,
         int maskPad,
         byte[] maskData,
         byte[] alphaData,
         int alpha,
         int transparentPixel,
         int type,
         int x,
         int y,
         int disposalMethod,
         int delayTime)

Constructs an image data by giving values for all non-computable fields.

This method is for internal use, and is not described further.

Method Detail

setAllFields

void setAllFields(int width,
                int height,
                int depth,
                int scanlinePad,
                int bytesPerLine,
                byte[] data,
                PaletteData palette,
                int transparentPixel,
                byte[] maskData,
                int maskPad,
                byte[] alphaData,
                int alpha,
                int type,
                int x,
                int y,
                int disposalMethod,
                int delayTime)

Initializes all fields in the receiver. This method must be called by all public constructors to ensure that all fields are initialized for a new ImageData object. If a new field is added to the class, then it must be added to this method.

This method is for internal use, and is not described further.

internal_new

public static ImageData internal_new(int width,
                     int height,
                     int depth,
                     PaletteData palette,
                     int scanlinePad,
                     byte[] data,
                     int maskPad,
                     byte[] maskData,
                     byte[] alphaData,
                     int alpha,
                     int transparentPixel,
                     int type,
                     int x,
                     int y,
                     int disposalMethod,
                     int delayTime)

Invokes internal SWT functionality to create a new instance of this class.

IMPORTANT: This method is not part of the public API for ImageData. It is marked public only so that it can be shared within the packages provided by SWT. It is subject to change without notice, and should never be called from application code.

This method is for internal use, and is not described further.

colorMaskImage

ImageData colorMaskImage(int pixel)

checkData

static byte[] checkData(byte[] data)

clone

public java.lang.Object clone()

Returns a new instance of the same class as the receiver, whose slots have been filled in with copies of the values in the slots of the receiver. That is, the returned object is a deep copy of the receiver.

Overrides:

clone in class java.lang.Object

Returns:

a copy of the receiver.

getAlpha

public int getAlpha(int x,
           int y)

Returns the alpha value at offset x in scanline y in the receiver's alpha data. The alpha value is between 0 (transparent) and 255 (opaque).

Parameters:

x - the x coordinate of the pixel to get the alpha value of

y - the y coordinate of the pixel to get the alpha value of

Returns:

the alpha value at the given coordinates

Throws:

java.lang.IllegalArgumentException -

• ERROR_INVALID_ARGUMENT - if either argument is out of range

getAlphas

public void getAlphas(int x,
             int y,
             int getWidth,
             byte[] alphas,
             int startIndex)

Returns getWidth alpha values starting at offset x in scanline y in the receiver's alpha data starting at startIndex. The alpha values are unsigned, between (byte)0 (transparent) and (byte)255 (opaque).

Parameters:

x - the x position of the pixel to begin getting alpha values

y - the y position of the pixel to begin getting alpha values

getWidth - the width of the data to get

alphas - the buffer in which to put the alpha values

startIndex - the offset into the image to begin getting alpha values

Throws:

java.lang.IndexOutOfBoundsException - if getWidth is too large

java.lang.IllegalArgumentException -

• ERROR_NULL_ARGUMENT - if pixels is null
• ERROR_INVALID_ARGUMENT - if x or y is out of bounds
• ERROR_INVALID_ARGUMENT - if getWidth is negative

getPixel

public int getPixel(int x,
           int y)

Returns the pixel value at offset x in scanline y in the receiver's data.

Parameters:

x - the x position of the pixel to get

y - the y position of the pixel to get

Returns:

the pixel at the given coordinates

Throws:

java.lang.IllegalArgumentException -

• ERROR_INVALID_ARGUMENT - if either argument is out of bounds

SWTException -

• ERROR_UNSUPPORTED_DEPTH if the depth is not one of 1, 2, 4, 8, 16, 24 or 32

getPixels

public void getPixels(int x,
             int y,
             int getWidth,
             byte[] pixels,
             int startIndex)

Returns getWidth pixel values starting at offset x in scanline y in the receiver's data starting at startIndex.

Parameters:

x - the x position of the first pixel to get

y - the y position of the first pixel to get

getWidth - the width of the data to get

pixels - the buffer in which to put the pixels

startIndex - the offset into the byte array to begin storing pixels

Throws:

java.lang.IndexOutOfBoundsException - if getWidth is too large

java.lang.IllegalArgumentException -

• ERROR_NULL_ARGUMENT - if pixels is null
• ERROR_INVALID_ARGUMENT - if x or y is out of bounds
• ERROR_INVALID_ARGUMENT - if getWidth is negative

SWTException -

• ERROR_UNSUPPORTED_DEPTH - if the depth is not one of 1, 2, 4 or 8 (For higher depths, use the int[] version of this method.)

getPixels

public void getPixels(int x,
             int y,
             int getWidth,
             int[] pixels,
             int startIndex)

Returns getWidth pixel values starting at offset x in scanline y in the receiver's data starting at startIndex.

Parameters:

x - the x position of the first pixel to get

y - the y position of the first pixel to get

getWidth - the width of the data to get

pixels - the buffer in which to put the pixels

startIndex - the offset into the buffer to begin storing pixels

Throws:

java.lang.IndexOutOfBoundsException - if getWidth is too large

java.lang.IllegalArgumentException -

• ERROR_NULL_ARGUMENT - if pixels is null
• ERROR_INVALID_ARGUMENT - if x or y is out of bounds
• ERROR_INVALID_ARGUMENT - if getWidth is negative

SWTException -

• ERROR_UNSUPPORTED_DEPTH - if the depth is not one of 1, 2, 4, 8, 16, 24 or 32

getRGBs

public RGB[] getRGBs()

Returns an array of RGBs which comprise the indexed color table of the receiver, or null if the receiver has a direct color model.

Returns:

the RGB values for the image or null if direct color

See Also:

PaletteData.getRGBs()

getTransparencyMask

public ImageData getTransparencyMask()

Returns an ImageData which specifies the transparency mask information for the receiver. If the receiver has no transparency or is not an icon, returns an opaque mask.

Returns:

the transparency mask

getTransparencyType

public int getTransparencyType()

Returns the image transparency type, which will be one of SWT.TRANSPARENCY_NONE, SWT.TRANSPARENCY_MASK, SWT.TRANSPARENCY_PIXEL or SWT.TRANSPARENCY_ALPHA.

Returns:

the receiver's transparency type

getByteOrder

int getByteOrder()

Returns the byte order of the receiver.

Returns:

MSB_FIRST or LSB_FIRST

scaledTo

public ImageData scaledTo(int width,
                 int height)

Returns a copy of the receiver which has been stretched or shrunk to the specified size. If either the width or height is negative, the resulting image will be inverted in the associated axis.

Parameters:

width - the width of the new ImageData

height - the height of the new ImageData

Returns:

a scaled copy of the image

setAlpha

public void setAlpha(int x,
            int y,
            int alpha)

Sets the alpha value at offset x in scanline y in the receiver's alpha data. The alpha value must be between 0 (transparent) and 255 (opaque).

Parameters:

x - the x coordinate of the alpha value to set

y - the y coordinate of the alpha value to set

alpha - the value to set the alpha to

Throws:

java.lang.IllegalArgumentException -

• ERROR_INVALID_ARGUMENT - if x or y is out of bounds

setAlphas

public void setAlphas(int x,
             int y,
             int putWidth,
             byte[] alphas,
             int startIndex)

Sets the alpha values starting at offset x in scanline y in the receiver's alpha data to the values from the array alphas starting at startIndex. The alpha values must be between (byte)0 (transparent) and (byte)255 (opaque)

Parameters:

x - the x coordinate of the pixel to being setting the alpha values

y - the y coordinate of the pixel to being setting the alpha values

putWidth - the width of the alpha values to set

alphas - the alpha values to set

startIndex - the index at which to begin setting

Throws:

java.lang.IndexOutOfBoundsException - if putWidth is too large

java.lang.IllegalArgumentException -

• ERROR_NULL_ARGUMENT - if pixels is null
• ERROR_INVALID_ARGUMENT - if x or y is out of bounds
• ERROR_INVALID_ARGUMENT - if putWidth is negative

setPixel

public void setPixel(int x,
            int y,
            int pixelValue)

Sets the pixel value at offset x in scanline y in the receiver's data.

Parameters:

x - the x coordinate of the pixel to set

y - the y coordinate of the pixel to set

pixelValue - the value to set the pixel to

Throws:

java.lang.IllegalArgumentException -

• ERROR_INVALID_ARGUMENT - if x or y is out of bounds

SWTException -

• ERROR_UNSUPPORTED_DEPTH if the depth is not one of 1, 2, 4, 8, 16, 24 or 32

setPixels

public void setPixels(int x,
             int y,
             int putWidth,
             byte[] pixels,
             int startIndex)

Sets the pixel values starting at offset x in scanline y in the receiver's data to the values from the array pixels starting at startIndex.

Parameters:

x - the x position of the pixel to set

y - the y position of the pixel to set

putWidth - the width of the pixels to set

pixels - the pixels to set

startIndex - the index at which to begin setting

Throws:

java.lang.IndexOutOfBoundsException - if putWidth is too large

java.lang.IllegalArgumentException -

• ERROR_NULL_ARGUMENT - if pixels is null
• ERROR_INVALID_ARGUMENT - if x or y is out of bounds
• ERROR_INVALID_ARGUMENT - if putWidth is negative

SWTException -

• ERROR_UNSUPPORTED_DEPTH if the depth is not one of 1, 2, 4, 8 (For higher depths, use the int[] version of this method.)

setPixels

public void setPixels(int x,
             int y,
             int putWidth,
             int[] pixels,
             int startIndex)

Sets the pixel values starting at offset x in scanline y in the receiver's data to the values from the array pixels starting at startIndex.

Parameters:

x - the x position of the pixel to set

y - the y position of the pixel to set

putWidth - the width of the pixels to set

pixels - the pixels to set

startIndex - the index at which to begin setting

Throws:

java.lang.IndexOutOfBoundsException - if putWidth is too large

java.lang.IllegalArgumentException -

• ERROR_NULL_ARGUMENT - if pixels is null
• ERROR_INVALID_ARGUMENT - if x or y is out of bounds
• ERROR_INVALID_ARGUMENT - if putWidth is negative

SWTException -

• ERROR_UNSUPPORTED_DEPTH if the depth is not one of 1, 2, 4, 8, 16, 24 or 32

bwPalette

static PaletteData bwPalette()

Returns a palette with 2 colors: black & white.

getMSBOffset

static int getMSBOffset(int mask)

Gets the offset of the most significant bit for the given mask.

closestMatch

static int closestMatch(int depth,
               byte red,
               byte green,
               byte blue,
               int redMask,
               int greenMask,
               int blueMask,
               byte[] reds,
               byte[] greens,
               byte[] blues)

Finds the closest match.

convertMask

static final ImageData convertMask(ImageData mask)

convertPad

static final byte[] convertPad(byte[] data,
                int width,
                int height,
                int depth,
                int pad,
                int newPad)

blit

static void blit(int op,
        byte[] srcData,
        int srcDepth,
        int srcStride,
        int srcOrder,
        int srcX,
        int srcY,
        int srcWidth,
        int srcHeight,
        int srcRedMask,
        int srcGreenMask,
        int srcBlueMask,
        int alphaMode,
        byte[] alphaData,
        int alphaStride,
        int alphaX,
        int alphaY,
        byte[] destData,
        int destDepth,
        int destStride,
        int destOrder,
        int destX,
        int destY,
        int destWidth,
        int destHeight,
        int destRedMask,
        int destGreenMask,
        int destBlueMask,
        boolean flipX,
        boolean flipY)

Blits a direct palette image into a direct palette image.

Note: When the source and destination depth, order and masks are pairwise equal and the blitter operation is BLIT_SRC, the masks are ignored. Hence when not changing the image data format, 0 may be specified for the masks.

Parameters:

op - the blitter operation: a combination of BLIT_xxx flags (see BLIT_xxx constants)

srcData - the source byte array containing image data

srcDepth - the source depth: one of 8, 16, 24, 32

srcStride - the source number of bytes per line

srcOrder - the source byte ordering: one of MSB_FIRST or LSB_FIRST; ignored if srcDepth is not 16 or 32

srcX - the top-left x-coord of the source blit region

srcY - the top-left y-coord of the source blit region

srcWidth - the width of the source blit region

srcHeight - the height of the source blit region

srcRedMask - the source red channel mask

srcGreenMask - the source green channel mask

srcBlueMask - the source blue channel mask

alphaMode - the alpha blending or mask mode, may be an integer 0-255 for global alpha; ignored if BLIT_ALPHA not specified in the blitter operations (see ALPHA_MODE_xxx constants)

alphaData - the alpha blending or mask data, varies depending on the value of alphaMode and sometimes ignored

alphaStride - the alpha data number of bytes per line

alphaX - the top-left x-coord of the alpha blit region

alphaY - the top-left y-coord of the alpha blit region

destData - the destination byte array containing image data

destDepth - the destination depth: one of 8, 16, 24, 32

destStride - the destination number of bytes per line

destOrder - the destination byte ordering: one of MSB_FIRST or LSB_FIRST; ignored if destDepth is not 16 or 32

destX - the top-left x-coord of the destination blit region

destY - the top-left y-coord of the destination blit region

destWidth - the width of the destination blit region

destHeight - the height of the destination blit region

destRedMask - the destination red channel mask

destGreenMask - the destination green channel mask

destBlueMask - the destination blue channel mask

flipX - if true the resulting image is flipped along the vertical axis

flipY - if true the resulting image is flipped along the horizontal axis

blit

static void blit(int op,
        byte[] srcData,
        int srcDepth,
        int srcStride,
        int srcOrder,
        int srcX,
        int srcY,
        int srcWidth,
        int srcHeight,
        byte[] srcReds,
        byte[] srcGreens,
        byte[] srcBlues,
        int alphaMode,
        byte[] alphaData,
        int alphaStride,
        int alphaX,
        int alphaY,
        byte[] destData,
        int destDepth,
        int destStride,
        int destOrder,
        int destX,
        int destY,
        int destWidth,
        int destHeight,
        byte[] destReds,
        byte[] destGreens,
        byte[] destBlues,
        boolean flipX,
        boolean flipY)

Blits an index palette image into an index palette image.

Note: The source and destination red, green, and blue arrays may be null if no alpha blending or dither is to be performed.

Parameters:

op - the blitter operation: a combination of BLIT_xxx flags (see BLIT_xxx constants)

srcData - the source byte array containing image data

srcDepth - the source depth: one of 1, 2, 4, 8

srcStride - the source number of bytes per line

srcOrder - the source byte ordering: one of MSB_FIRST or LSB_FIRST; ignored if srcDepth is not 1

srcX - the top-left x-coord of the source blit region

srcY - the top-left y-coord of the source blit region

srcWidth - the width of the source blit region

srcHeight - the height of the source blit region

srcReds - the source palette red component intensities

srcGreens - the source palette green component intensities

srcBlues - the source palette blue component intensities

alphaMode - the alpha blending or mask mode, may be an integer 0-255 for global alpha; ignored if BLIT_ALPHA not specified in the blitter operations (see ALPHA_MODE_xxx constants)

alphaData - the alpha blending or mask data, varies depending on the value of alphaMode and sometimes ignored

alphaStride - the alpha data number of bytes per line

alphaX - the top-left x-coord of the alpha blit region

alphaY - the top-left y-coord of the alpha blit region

destData - the destination byte array containing image data

destDepth - the destination depth: one of 1, 2, 4, 8

destStride - the destination number of bytes per line

destOrder - the destination byte ordering: one of MSB_FIRST or LSB_FIRST; ignored if destDepth is not 1

destX - the top-left x-coord of the destination blit region

destY - the top-left y-coord of the destination blit region

destWidth - the width of the destination blit region

destHeight - the height of the destination blit region

destReds - the destination palette red component intensities

destGreens - the destination palette green component intensities

destBlues - the destination palette blue component intensities

flipX - if true the resulting image is flipped along the vertical axis

flipY - if true the resulting image is flipped along the horizontal axis

blit

static void blit(int op,
        byte[] srcData,
        int srcDepth,
        int srcStride,
        int srcOrder,
        int srcX,
        int srcY,
        int srcWidth,
        int srcHeight,
        byte[] srcReds,
        byte[] srcGreens,
        byte[] srcBlues,
        int alphaMode,
        byte[] alphaData,
        int alphaStride,
        int alphaX,
        int alphaY,
        byte[] destData,
        int destDepth,
        int destStride,
        int destOrder,
        int destX,
        int destY,
        int destWidth,
        int destHeight,
        int destRedMask,
        int destGreenMask,
        int destBlueMask,
        boolean flipX,
        boolean flipY)

Blits an index palette image into a direct palette image.

Note: The source and destination masks and palettes must always be fully specified.

Parameters:

op - the blitter operation: a combination of BLIT_xxx flags (see BLIT_xxx constants)

srcData - the source byte array containing image data

srcDepth - the source depth: one of 1, 2, 4, 8

srcStride - the source number of bytes per line

srcOrder - the source byte ordering: one of MSB_FIRST or LSB_FIRST; ignored if srcDepth is not 1

srcX - the top-left x-coord of the source blit region

srcY - the top-left y-coord of the source blit region

srcWidth - the width of the source blit region

srcHeight - the height of the source blit region

srcReds - the source palette red component intensities

srcGreens - the source palette green component intensities

srcBlues - the source palette blue component intensities

alphaMode - the alpha blending or mask mode, may be an integer 0-255 for global alpha; ignored if BLIT_ALPHA not specified in the blitter operations (see ALPHA_MODE_xxx constants)

alphaData - the alpha blending or mask data, varies depending on the value of alphaMode and sometimes ignored

alphaStride - the alpha data number of bytes per line

alphaX - the top-left x-coord of the alpha blit region

alphaY - the top-left y-coord of the alpha blit region

destData - the destination byte array containing image data

destDepth - the destination depth: one of 8, 16, 24, 32

destStride - the destination number of bytes per line

destOrder - the destination byte ordering: one of MSB_FIRST or LSB_FIRST; ignored if destDepth is not 16 or 32

destX - the top-left x-coord of the destination blit region

destY - the top-left y-coord of the destination blit region

destWidth - the width of the destination blit region

destHeight - the height of the destination blit region

destRedMask - the destination red channel mask

destGreenMask - the destination green channel mask

destBlueMask - the destination blue channel mask

flipX - if true the resulting image is flipped along the vertical axis

flipY - if true the resulting image is flipped along the horizontal axis

blit

static void blit(int op,
        byte[] srcData,
        int srcDepth,
        int srcStride,
        int srcOrder,
        int srcX,
        int srcY,
        int srcWidth,
        int srcHeight,
        int srcRedMask,
        int srcGreenMask,
        int srcBlueMask,
        int alphaMode,
        byte[] alphaData,
        int alphaStride,
        int alphaX,
        int alphaY,
        byte[] destData,
        int destDepth,
        int destStride,
        int destOrder,
        int destX,
        int destY,
        int destWidth,
        int destHeight,
        byte[] destReds,
        byte[] destGreens,
        byte[] destBlues,
        boolean flipX,
        boolean flipY)

Blits a direct palette image into an index palette image.

Note: The source and destination masks and palettes must always be fully specified.

Parameters:

op - the blitter operation: a combination of BLIT_xxx flags (see BLIT_xxx constants)

srcData - the source byte array containing image data

srcDepth - the source depth: one of 8, 16, 24, 32

srcStride - the source number of bytes per line

srcOrder - the source byte ordering: one of MSB_FIRST or LSB_FIRST; ignored if srcDepth is not 16 or 32

srcX - the top-left x-coord of the source blit region

srcY - the top-left y-coord of the source blit region

srcWidth - the width of the source blit region

srcHeight - the height of the source blit region

srcRedMask - the source red channel mask

srcGreenMask - the source green channel mask

srcBlueMask - the source blue channel mask

alphaMode - the alpha blending or mask mode, may be an integer 0-255 for global alpha; ignored if BLIT_ALPHA not specified in the blitter operations (see ALPHA_MODE_xxx constants)

alphaData - the alpha blending or mask data, varies depending on the value of alphaMode and sometimes ignored

alphaStride - the alpha data number of bytes per line

alphaX - the top-left x-coord of the alpha blit region

alphaY - the top-left y-coord of the alpha blit region

destData - the destination byte array containing image data

destDepth - the destination depth: one of 1, 2, 4, 8

destStride - the destination number of bytes per line

destOrder - the destination byte ordering: one of MSB_FIRST or LSB_FIRST; ignored if destDepth is not 1

destX - the top-left x-coord of the destination blit region

destY - the top-left y-coord of the destination blit region

destWidth - the width of the destination blit region

destHeight - the height of the destination blit region

destReds - the destination palette red component intensities

destGreens - the destination palette green component intensities

destBlues - the destination palette blue component intensities

flipX - if true the resulting image is flipped along the vertical axis

flipY - if true the resulting image is flipped along the horizontal axis

getChannelShift

static int getChannelShift(int mask)

Computes the required channel shift from a mask.

getChannelWidth

static int getChannelWidth(int mask,
                  int shift)

Computes the required channel width (depth) from a mask.

getChannelField

static byte getChannelField(int data,
                   int mask)

Extracts a field from packed RGB data given a mask for that field.

createGradientBand

static ImageData createGradientBand(int width,
                           int height,
                           boolean vertical,
                           RGB fromRGB,
                           RGB toRGB,
                           int redBits,
                           int greenBits,
                           int blueBits)

Creates an ImageData containing one band's worth of a gradient filled block. If vertical is true, the band must be tiled horizontally to fill a region, otherwise it must be tiled vertically.

Parameters:

width - the width of the region to be filled

height - the height of the region to be filled

vertical - if true sweeps from top to bottom, else sweeps from left to right

fromRGB - the color to start with

toRGB - the color to end with

redBits - the number of significant red bits, 0 for palette modes

greenBits - the number of significant green bits, 0 for palette modes

blueBits - the number of significant blue bits, 0 for palette modes

Returns:

the new ImageData

buildPreciseGradientChannel

static final void buildPreciseGradientChannel(int from,
                               int to,
                               int steps,
                               int bandWidth,
                               int bandHeight,
                               boolean vertical,
                               byte[] bitmapData,
                               int dp,
                               int bytesPerLine)

buildDitheredGradientChannel

static final void buildDitheredGradientChannel(int from,
                                int to,
                                int steps,
                                int bandWidth,
                                int bandHeight,
                                boolean vertical,
                                byte[] bitmapData,
                                int dp,
                                int bytesPerLine,
                                int bits)

fillGradientRectangle

static void fillGradientRectangle(GC gc,
                         Device device,
                         int x,
                         int y,
                         int width,
                         int height,
                         boolean vertical,
                         RGB fromRGB,
                         RGB toRGB,
                         int redBits,
                         int greenBits,
                         int blueBits)

Renders a gradient onto a GC.

This is a GC helper.

Parameters:

gc - the GC to render the gradient onto

device - the device the GC belongs to

x - the top-left x coordinate of the region to be filled

y - the top-left y coordinate of the region to be filled

width - the width of the region to be filled

height - the height of the region to be filled

vertical - if true sweeps from top to bottom, else sweeps from left to right

fromRGB - the color to start with

toRGB - the color to end with

redBits - the number of significant red bits, 0 for palette modes

greenBits - the number of significant green bits, 0 for palette modes

blueBits - the number of significant blue bits, 0 for palette modes
