org.eclipse.swt.widgets

Class TouchSource

java.lang.Object

org.eclipse.swt.widgets.TouchSource

public final class TouchSource
extends java.lang.Object

Instances of this class represent sources of touch input that generate Touch objects. They also provide information about the input source, which is important for interpreting the information in the Touch object.

Instances of this class can be marked as direct or indirect:

• When an instance is direct, the touch source is a touch-sensitive digitizer surface such as a tablet or a touch screen. There is a one-to-one mapping between a touch point and a location in a window.
• When an instance is indirect (more precisely, not direct), the touch source is a track pad or other device that normally moves the cursor, but is also able to interpret multiple touches on its surface. In this case there is not a one-to-one mapping between the location of the touch on the device and a location on the display because the user can remove their finger or stylus and touch another part of the device and resume what they were doing.

Since:

3.7

See Also:

Touch, Sample code and further information

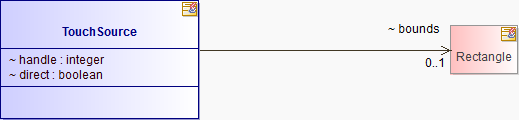

Structure Diagram

Field Summary

Fields

Modifier and Type	Field and Description
(package private) Rectangle	bounds
(package private) boolean	direct
(package private) int	handle

Constructor Summary

Constructors

Constructor and Description
TouchSource(int handle, boolean direct, Rectangle bounds) Constructs a new touch source from the given inputs.

Method Summary

Methods

Modifier and Type	Method and Description
Rectangle	getBounds() Returns the bounding rectangle of the device.
boolean	isDirect() Returns the type of touch input this source generates, true for direct or false for indirect.
java.lang.String	toString() Returns a string containing a concise, human-readable description of the receiver.

Methods inherited from class java.lang.Object

clone, equals, finalize, getClass, hashCode, notify, notifyAll, wait, wait, wait

Field Detail

handle

int handle

direct

boolean direct

bounds

Rectangle bounds

Constructor Detail

TouchSource

TouchSource(int handle,
           boolean direct,
           Rectangle bounds)

Constructs a new touch source from the given inputs.

Parameters:

direct - Is the touch source direct or indirect?

height - height of the source in pixels.

width - width of the source in pixels.

Method Detail

isDirect

public boolean isDirect()

Returns the type of touch input this source generates, true for direct or false for indirect.

Returns:

true if the input source is direct, or false otherwise

getBounds

public Rectangle getBounds()

Returns the bounding rectangle of the device. For a direct source, this corresponds to the bounds of the display device in pixels. For an indirect source, this contains the size of the device in pixels.

Note that the x and y values may not necessarily be 0 if the TouchSource is a direct source.

Returns:

the bounding rectangle of the input source

toString

public java.lang.String toString()

Returns a string containing a concise, human-readable description of the receiver.

Overrides:

toString in class java.lang.Object

Returns:

a string representation of the event
