org.eclipse.swt.widgets

Class TrayItem

java.lang.Object

org.eclipse.swt.widgets.Widget

org.eclipse.swt.widgets.Item

org.eclipse.swt.widgets.TrayItem

public class TrayItem
extends Item

Instances of this class represent icons that can be placed on the system tray or task bar status area.

Styles:

(none)

Events:

DefaultSelection, MenuDetect, Selection

IMPORTANT: This class is not intended to be subclassed.

Since:

3.0

See Also:

Tray, TrayItem snippets, Sample code and further information

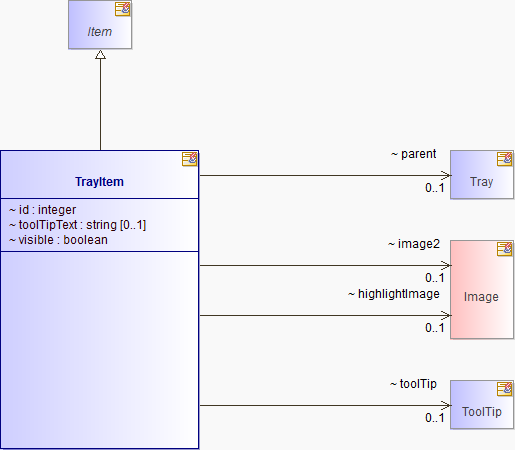

Structure Diagram

Field Summary

Fields

Modifier and Type	Field and Description
(package private) Image	highlightImage
(package private) int	id
(package private) Image	image2
(package private) Tray	parent
(package private) ToolTip	toolTip
(package private) java.lang.String	toolTipText
(package private) boolean	visible

Fields inherited from class org.eclipse.swt.widgets.Item

image, text

Fields inherited from class org.eclipse.swt.widgets.Widget

CANVAS, data, DEFAULT_HEIGHT, DEFAULT_WIDTH, DISABLED, display, DISPOSE_SENT, DISPOSED, DRAG_DETECT, DRAW_BACKGROUND, eventTable, FOREIGN_HANDLE, HIDDEN, IGNORE_WM_CHANGEUISTATE, KEYED_DATA, LAYOUT_CHANGED, LAYOUT_CHILD, LAYOUT_NEEDED, MAJOR, MINOR, MOVE_DEFERRED, MOVE_OCCURRED, PARENT_BACKGROUND, RELEASED, RESIZE_DEFERRED, RESIZE_OCCURRED, SKIN_NEEDED, state, style, THEME_BACKGROUND, TRACK_MOUSE

Constructor Summary

Constructors

Constructor and Description
TrayItem(Tray parent, int style) Constructs a new instance of this class given its parent (which must be a Tray) and a style value describing its behavior and appearance.

Method Summary

Methods

Modifier and Type	Method and Description
void	addMenuDetectListener(MenuDetectListener listener) Adds the listener to the collection of listeners who will be notified when the platform-specific context menu trigger has occurred, by sending it one of the messages defined in the MenuDetectListener interface.
void	addSelectionListener(SelectionListener listener) Adds the listener to the collection of listeners who will be notified when the receiver is selected by the user, by sending it one of the messages defined in the SelectionListener interface.
protected void	checkSubclass() Checks that this class can be subclassed.
(package private) void	createWidget()
(package private) void	destroyWidget() Destroys the widget in the operating system and releases the widget's handle.
Image	getHighlightImage() Returns the receiver's highlight image if it has one, or null if it does not.
Tray	getParent() Returns the receiver's parent, which must be a Tray.
ToolTip	getToolTip() Returns the receiver's tool tip, or null if it has not been set.
java.lang.String	getToolTipText() Returns the receiver's tool tip text, or null if it has not been set.
boolean	getVisible() Returns true if the receiver is visible and false otherwise.
(package private) int	messageProc(int hwnd, int msg, int wParam, int lParam)
(package private) void	recreate()
(package private) void	releaseHandle()
(package private) void	releaseWidget()
void	removeMenuDetectListener(MenuDetectListener listener) Removes the listener from the collection of listeners who will be notified when the platform-specific context menu trigger has occurred.
void	removeSelectionListener(SelectionListener listener) Removes the listener from the collection of listeners who will be notified when the receiver is selected by the user.
void	setHighlightImage(Image image) Sets the receiver's highlight image.
void	setImage(Image image) Sets the receiver's image.
void	setToolTip(ToolTip toolTip) Sets the receiver's tool tip to the argument, which may be null indicating that no tool tip should be shown.
void	setToolTipText(java.lang.String string) Sets the receiver's tool tip text to the argument, which may be null indicating that the default tool tip for the control will be shown.
void	setVisible(boolean visible) Makes the receiver visible if the argument is true, and makes it invisible otherwise.

Methods inherited from class org.eclipse.swt.widgets.Item

getImage, getNameText, getText, setText

Methods inherited from class org.eclipse.swt.widgets.Widget

_addListener, addDisposeListener, addListener, callWindowProc, checkBits, checkOpened, checkOrientation, checkParent, checkWidget, DeferWindowPos, dispose, dragDetect, error, filters, findItem, fixMnemonic, fixMnemonic, getData, getData, getDisplay, getListeners, getMenu, getName, getStyle, hooks, isDisposed, isListening, isValidSubclass, isValidThread, mapEvent, new_GC, notifyListeners, postEvent, postEvent, release, releaseChildren, releaseParent, removeDisposeListener, removeListener, removeListener, reskin, reskinChildren, reskinWidget, sendDragEvent, sendDragEvent, sendEvent, sendEvent, sendEvent, sendEvent, sendFocusEvent, sendKeyEvent, sendKeyEvent, sendMouseEvent, sendMouseEvent, sendMouseWheelEvent, sendSelectionEvent, sendSelectionEvent, setData, setData, setInputState, setKeyState, setLocationMask, setTabGroupFocus, setTabItemFocus, SetWindowPos, showMenu, showMenu, toString, updateMenuLocation, wmCaptureChanged, wmChar, wmContextMenu, wmIMEChar, wmKeyDown, wmKeyUp, wmKillFocus, wmLButtonDblClk, wmLButtonDown, wmLButtonUp, wmMButtonDblClk, wmMButtonDown, wmMButtonUp, wmMouseHover, wmMouseHWheel, wmMouseLeave, wmMouseMove, wmMouseWheel, wmNCPaint, wmPaint, wmPrint, wmRButtonDblClk, wmRButtonDown, wmRButtonUp, wmSetFocus, wmSysChar, wmSysKeyDown, wmSysKeyUp, wmXButtonDblClk, wmXButtonDown, wmXButtonUp

Methods inherited from class java.lang.Object

clone, equals, finalize, getClass, hashCode, notify, notifyAll, wait, wait, wait

Field Detail

parent

Tray parent

id

int id


Image image2

highlightImage

Image highlightImage

toolTip

ToolTip toolTip

toolTipText

java.lang.String toolTipText

visible

boolean visible

Constructor Detail

TrayItem

public TrayItem(Tray parent,
        int style)

Constructs a new instance of this class given its parent (which must be a Tray) and a style value describing its behavior and appearance. The item is added to the end of the items maintained by its parent.

The style value is either one of the style constants defined in class SWT which is applicable to instances of this class, or must be built by bitwise OR'ing together (that is, using the int "|" operator) two or more of those SWT style constants. The class description lists the style constants that are applicable to the class. Style bits are also inherited from superclasses.

Parameters:

parent - a composite control which will be the parent of the new instance (cannot be null)

style - the style of control to construct

Throws:

java.lang.IllegalArgumentException -

• ERROR_NULL_ARGUMENT - if the parent is null

SWTException -

• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the parent
• ERROR_INVALID_SUBCLASS - if this class is not an allowed subclass

See Also:

SWT, Widget.checkSubclass(), Widget.getStyle()

Method Detail

addSelectionListener

public void addSelectionListener(SelectionListener listener)

Adds the listener to the collection of listeners who will be notified when the receiver is selected by the user, by sending it one of the messages defined in the SelectionListener interface.

widgetSelected is called when the receiver is selected widgetDefaultSelected is called when the receiver is double-clicked

Parameters:

listener - the listener which should be notified when the receiver is selected by the user

Throws:

java.lang.IllegalArgumentException -

• ERROR_NULL_ARGUMENT - if the listener is null

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

See Also:

SelectionListener, removeSelectionListener(org.eclipse.swt.events.SelectionListener), SelectionEvent

addMenuDetectListener

public void addMenuDetectListener(MenuDetectListener listener)

Adds the listener to the collection of listeners who will be notified when the platform-specific context menu trigger has occurred, by sending it one of the messages defined in the MenuDetectListener interface.

Parameters:

listener - the listener which should be notified

Throws:

java.lang.IllegalArgumentException -

• ERROR_NULL_ARGUMENT - if the listener is null

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

Since:

3.3

See Also:

MenuDetectListener, removeMenuDetectListener(org.eclipse.swt.events.MenuDetectListener)

checkSubclass

protected void checkSubclass()

Description copied from class: Widget

Checks that this class can be subclassed.

The SWT class library is intended to be subclassed only at specific, controlled points (most notably, Composite and Canvas when implementing new widgets). This method enforces this rule unless it is overridden.

IMPORTANT: By providing an implementation of this method that allows a subclass of a class which does not normally allow subclassing to be created, the implementer agrees to be fully responsible for the fact that any such subclass will likely fail between SWT releases and will be strongly platform specific. No support is provided for user-written classes which are implemented in this fashion.

The ability to subclass outside of the allowed SWT classes is intended purely to enable those not on the SWT development team to implement patches in order to get around specific limitations in advance of when those limitations can be addressed by the team. Subclassing should not be attempted without an intimate and detailed understanding of the hierarchy.

Overrides:

checkSubclass in class Item

createWidget

void createWidget()

destroyWidget

void destroyWidget()

Description copied from class: Widget

Destroys the widget in the operating system and releases the widget's handle. If the widget does not have a handle, this method may hide the widget, mark the widget as destroyed or do nothing, depending on the widget.

When a widget is destroyed in the operating system, its descendants are also destroyed by the operating system. This means that it is only necessary to call destroyWidget on the root of the widget tree.

This method is called after releaseWidget().

See also releaseChild(), releaseWidget() and releaseHandle().

Overrides:

destroyWidget in class Widget

See Also:

Widget.dispose()

getHighlightImage

public Image getHighlightImage()

Returns the receiver's highlight image if it has one, or null if it does not.

Returns:

the receiver's highlight image

Throws:

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

Since:

3.8

getParent

public Tray getParent()

Returns the receiver's parent, which must be a Tray.

Returns:

the receiver's parent

Throws:

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

Since:

3.2

getToolTip

public ToolTip getToolTip()

Returns the receiver's tool tip, or null if it has not been set.

Returns:

the receiver's tool tip text

Throws:

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

Since:

3.2

getToolTipText

public java.lang.String getToolTipText()

Returns the receiver's tool tip text, or null if it has not been set.

Returns:

the receiver's tool tip text

Throws:

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

getVisible

public boolean getVisible()

Returns true if the receiver is visible and false otherwise.

Returns:

the receiver's visibility

Throws:

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

messageProc

int messageProc(int hwnd,
              int msg,
              int wParam,
              int lParam)

recreate

void recreate()

releaseHandle

void releaseHandle()

Overrides:

releaseHandle in class Widget

releaseWidget

void releaseWidget()

Overrides:

releaseWidget in class Item

removeSelectionListener

public void removeSelectionListener(SelectionListener listener)

Removes the listener from the collection of listeners who will be notified when the receiver is selected by the user.

Parameters:

listener - the listener which should no longer be notified

Throws:

java.lang.IllegalArgumentException -

• ERROR_NULL_ARGUMENT - if the listener is null

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

See Also:

SelectionListener, addSelectionListener(org.eclipse.swt.events.SelectionListener)

removeMenuDetectListener

public void removeMenuDetectListener(MenuDetectListener listener)

Removes the listener from the collection of listeners who will be notified when the platform-specific context menu trigger has occurred.

Parameters:

listener - the listener which should no longer be notified

Throws:

java.lang.IllegalArgumentException -

• ERROR_NULL_ARGUMENT - if the listener is null

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

Since:

3.3

See Also:

MenuDetectListener, addMenuDetectListener(org.eclipse.swt.events.MenuDetectListener)

setHighlightImage

public void setHighlightImage(Image image)

Sets the receiver's highlight image.

Parameters:

image - the new highlight image

Throws:

java.lang.IllegalArgumentException -

• ERROR_INVALID_ARGUMENT - if the image has been disposed

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

Since:

3.8

setImage

public void setImage(Image image)

Sets the receiver's image.

Overrides:

setImage in class Item

Parameters:

image - the new image

Throws:

java.lang.IllegalArgumentException -

• ERROR_INVALID_ARGUMENT - if the image has been disposed

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

setToolTip

public void setToolTip(ToolTip toolTip)

Sets the receiver's tool tip to the argument, which may be null indicating that no tool tip should be shown.

Parameters:

toolTip - the new tool tip (or null)

Throws:

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

Since:

3.2

setToolTipText

public void setToolTipText(java.lang.String string)

Sets the receiver's tool tip text to the argument, which may be null indicating that the default tool tip for the control will be shown. For a control that has a default tool tip, such as the Tree control on Windows, setting the tool tip text to an empty string replaces the default, causing no tool tip text to be shown.

The mnemonic indicator (character '&') is not displayed in a tool tip. To display a single '&' in the tool tip, the character '&' can be escaped by doubling it in the string.

Parameters:

string - the new tool tip text (or null)

Throws:

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

setVisible

public void setVisible(boolean visible)

Makes the receiver visible if the argument is true, and makes it invisible otherwise.

Parameters:

visible - the new visibility state

Throws:

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver
