A profiles is the parent of the extensions. Therefore we need a profile to declare the stereotypes.

To create a profile:

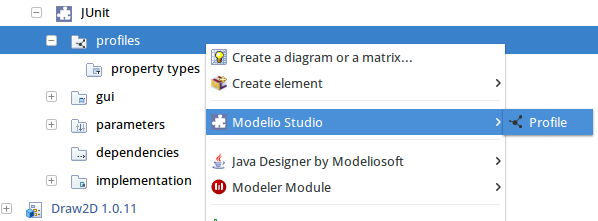

  1. Right-click on "Junit dev module profile profilecontainer16 profiles" to open its contextual menu, then select "image Modelio Studio" –> "image profile"
    Junit dev module profile JUnit sample Modelio3.4 create profile

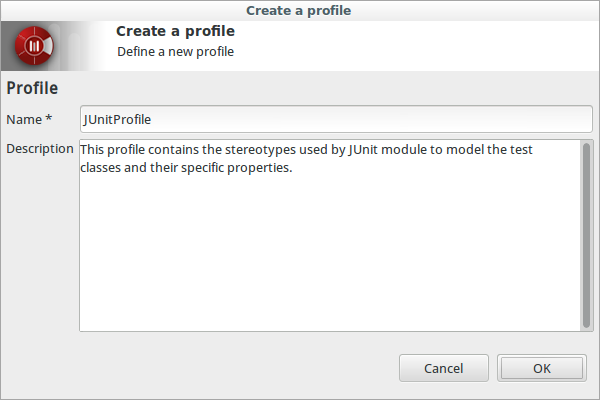

  2. In the "Create a profile" dialog box

  3. Enter JUnitProfile as the name of the profile
    Note: By convention the profile name should end with Profile

  4. Enter the following text for the description:
    This profile contains the stereotypes used by JUnit module to model the test classes and their specific properties.

  5. Click on ‘OK’ to create the profile
    Junit dev module profile Createaprofile dialogbox
