MessageEnd
Represents what can occur at the end of a Message.
A MessageEnd is an abstract NamedElement that represents what can occur at the end of a Message. Subclasses of MessageEnd define the specific semantics appropriate to the concept they represent.

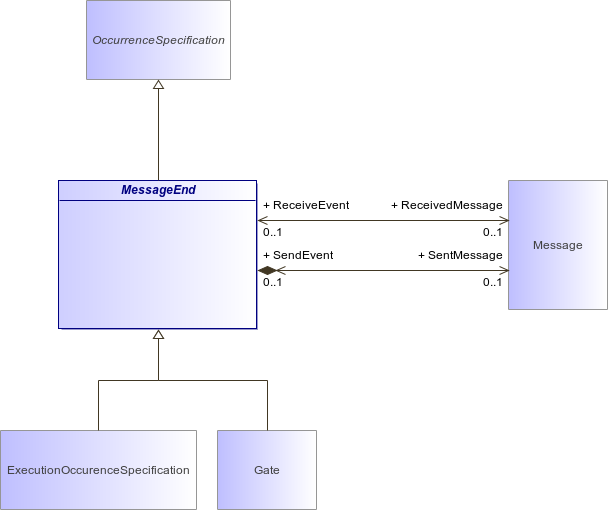

: MessageEnd (architecture_autodiagram)
Figure 154 : MessageEnd (architecture_autodiagram)
MessageEndOccurrenceSpecificationMessageExecutionOccurenceSpecificationGate
Association
Description
ReceivedMessage : Message [0..1]
SentMessage : Message [0..1]
Message sent.
