OccurrenceSpecification
Basic semantic unit of Interaction.
An OccurrenceSpecification is the basic semantic unit of Interactions. The sequences of occurrences specified by them are the meanings of Interactions. OccurrenceSpecifications are ordered along a Lifeline.

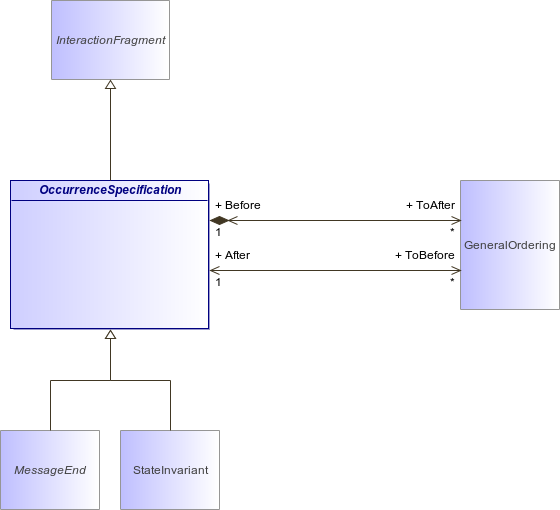

: OccurrenceSpecification (architecture_autodiagram)
Figure 155 : OccurrenceSpecification (architecture_autodiagram)
OccurrenceSpecificationInteractionFragmentGeneralOrderingMessageEndStateInvariant
Association
Description
ToAfter : GeneralOrdering [0..*]
NOT TO DOCUMENT : References the GeneralOrderings that specify EventOcurrences that must occur after this OccurrenceSpecification.
ToBefore : GeneralOrdering [0..*]
