MatrixValueDefinition
Definition of a matrix value. References an external java processor able to compute a matrix value and to modify it.
: Class Architecture Diagram (automatic)

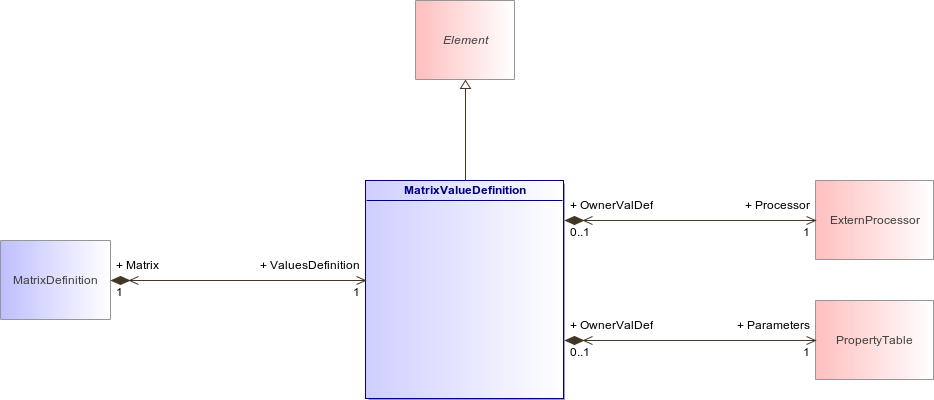

Figure 259 : Class Architecture Diagram (automatic)
MatrixValueDefinitionElementMatrixDefinitionExternProcessorPropertyTable
Association
Description
Processor : ExternProcessor [1..1]
External java processor that displays and edit matrix values.
Parameters : PropertyTable [1..1]
Parameters to pass to the external processor.
Matrix : MatrixDefinition [1..1]
Matrix owner
