ResourceType
: ResourceType (architecture_autodiagram)

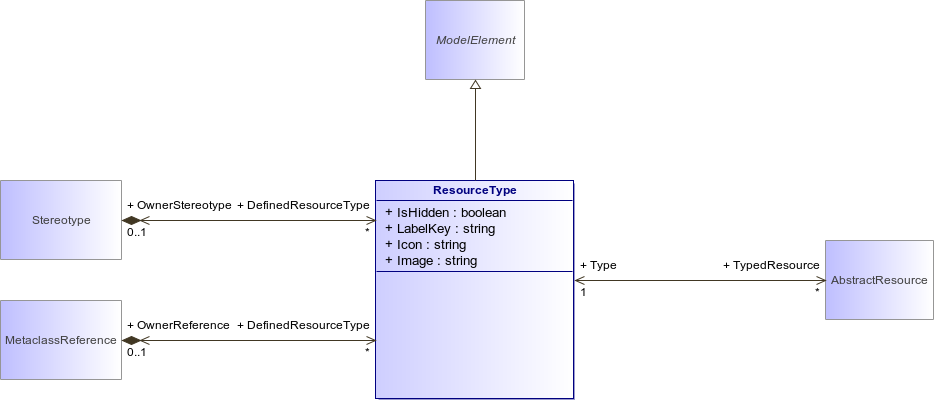

Figure 284 : ResourceType (architecture_autodiagram)
ResourceTypeModelElementStereotypeMetaclassReferenceAbstractResource
Attribute
Description
boolean IsHidden [1..1]

Indicates whether or not this resource will be visible for manual addition/suppression by the user.

string LabelKey [1..1]
The label key used to look into module resources for the translated label.
string Icon [1..1]
Optional icon for the browser and diagram
string Image [1..1]
Big image for the diagram in image mode.
Association
Description
OwnerStereotype : Stereotype [0..1]
OwnerReference : MetaclassReference [0..1]
TypedResource : AbstractResource [0..*]
