UML/BPMN Metamodel
Definition of the TaggedValues permitted for a given metaclass.
TagTypes are defined in MDA Modeler projects. TagTypes cannot be created using the Java / Jython language. They belong at metalevel, and are not structured at model level.

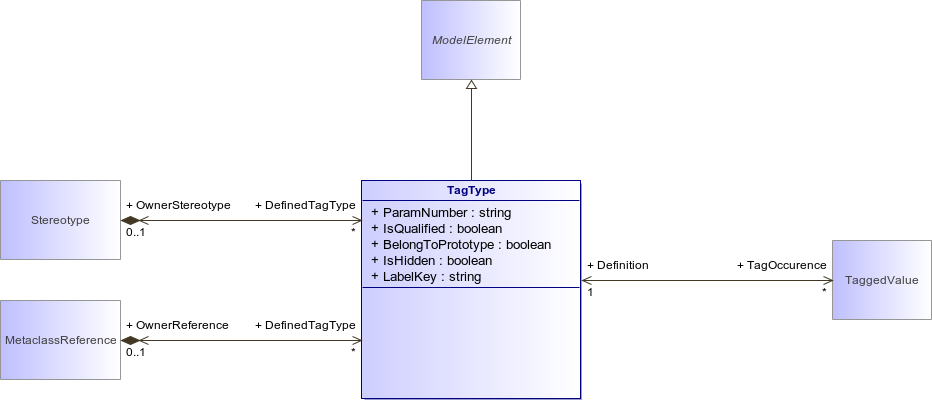

Figure 287 : TagType (architecture_autodiagram)
Attribute | Description |
|---|---|
string ParamNumber [1..1] | Number of parameters an occurrence may have. |
boolean IsQualified [1..1] | Determines whether or not an occurrence (TaggedValue) has a qualifier. |
boolean BelongToPrototype [1..1] | Determines whether or not a TagType occurrence belongs to the signature. For example, the TagType * that defines a pointer declaration in C++ belongs to the prototype of operations. |
boolean IsHidden [1..1] | Indicates whether or not this tag type will be visible for manual addition/suppression by the user. |
string LabelKey [1..1] | The tag type label key used to look into module resources for the translated stereotype label. |
Association | Description |
|---|---|
