TaggedValue
Attachment of a piece of information to a ModelElement.
In Modelio, TaggedValues can have parameters, and must comply with TagTypes that define which kind of TaggedValues may exist. TaggedValues belong to their annotated ModelElement, or to their annotated Note.
: TaggedValue (architecture_autodiagram)

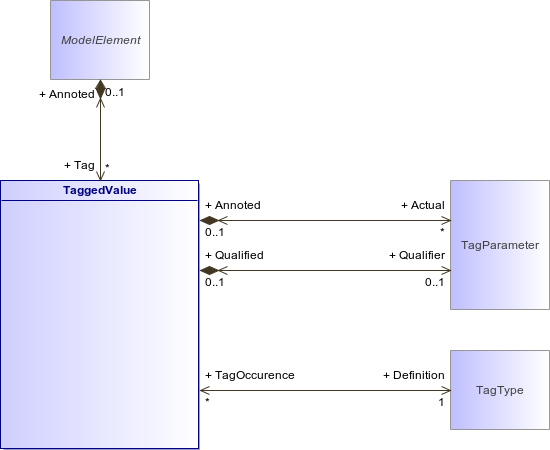

Figure 288 : TaggedValue (architecture_autodiagram)
TaggedValueModelElementTagParameterTagType
Association
Description
Actual : TagParameter [0..*]
Parameters of the TaggedValue.
Qualifier : TagParameter [0..1]
Current Qualifier of the TaggedValue. A qualifier is a parameter that is placed in first place Tag:Qualifier (Parameters).
Definition : TagType [1..1]
Determines the TagType that is the model of the current TaggedValue.
Annoted : ModelElement [0..1]
