BpmnArtifact
BPMN provides modelers with the capability of showing additional information about a Process that is not directly related to the Sequence Flow or Message Flow of the Process. At this point, BPMN provides three (3) standard Artifacts: Associations, Groups, and Text Annotations
: BpmnArtifact (architecture_autodiagram)

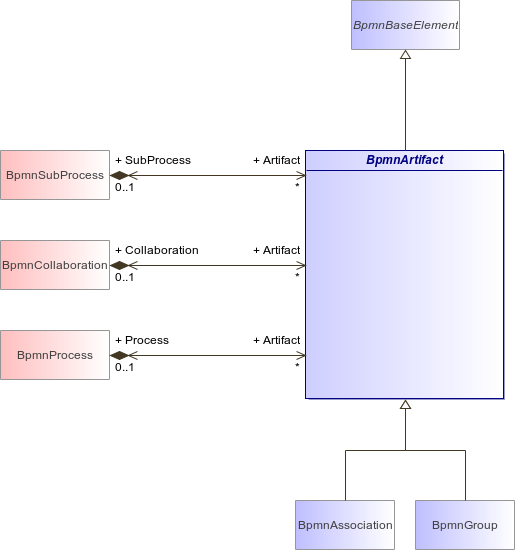

Figure 72 : BpmnArtifact (architecture_autodiagram)
BpmnArtifactBpmnBaseElementBpmnSubProcessBpmnCollaborationBpmnProcessBpmnAssociationBpmnGroup
Association
Description
SubProcess : BpmnSubProcess [0..1]
Collaboration : BpmnCollaboration [0..1]
Process : BpmnProcess [0..1]
