BpmnFlowNode
FlowNodes represent nodes interconnected using sequence flows or message flows. Ownership FlowNodes belong to a FlowElementContainer or a sub process
: BpmnFlowNode (architecture_autodiagram)

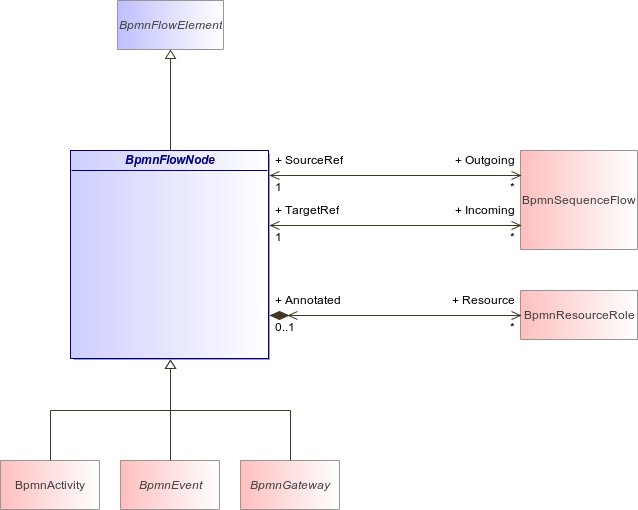

Figure 76 : BpmnFlowNode (architecture_autodiagram)
BpmnFlowNodeBpmnFlowElementBpmnSequenceFlowBpmnResourceRoleBpmnActivityBpmnEventBpmnGateway
Association
Description
Outgoing : BpmnSequenceFlow [0..*]
Resource : BpmnResourceRole [0..*]
Incoming : BpmnSequenceFlow [0..*]
