The aim of this automatic diagram is to show where a class is situated within its inheritance graph.

Contents

  • Class C itself.

  • C’s parent classes and interfaces.

  • The classes derived from C.

  • The implementation and inheritance links.

Applicable elements

Inheritance diagrams can be created on any Classifier.

Layout

  • Class C is placed in the center of the diagram.

  • C’s parent classes and interface:

    • are placed above C.

    • are viewed in "simple" mode.

    • are exactly the same size and are horizontally aligned.

  • C’s child classes and interface:

    • are placed below C.

    • are viewed in "simple" mode.

    • are exactly the same size and are horizontally aligned.

Note: All elements present in this diagram have a specific associated style.

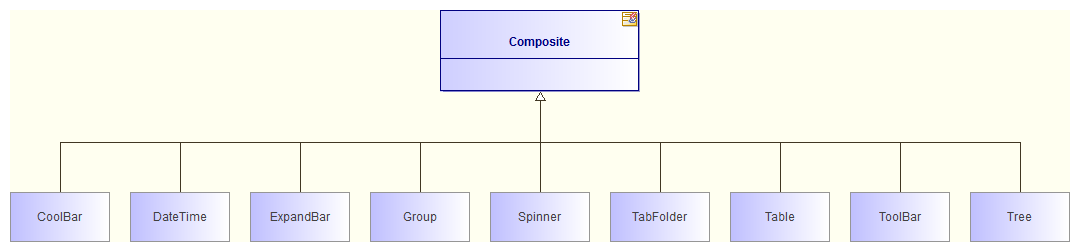

Example
