This command is applicable to high-level elements (Package, Component, Analyst Container, ArchiMate folder, etc.)

This browser will display all the workflow elements sorted by current state. It can be used to select them and change their state.

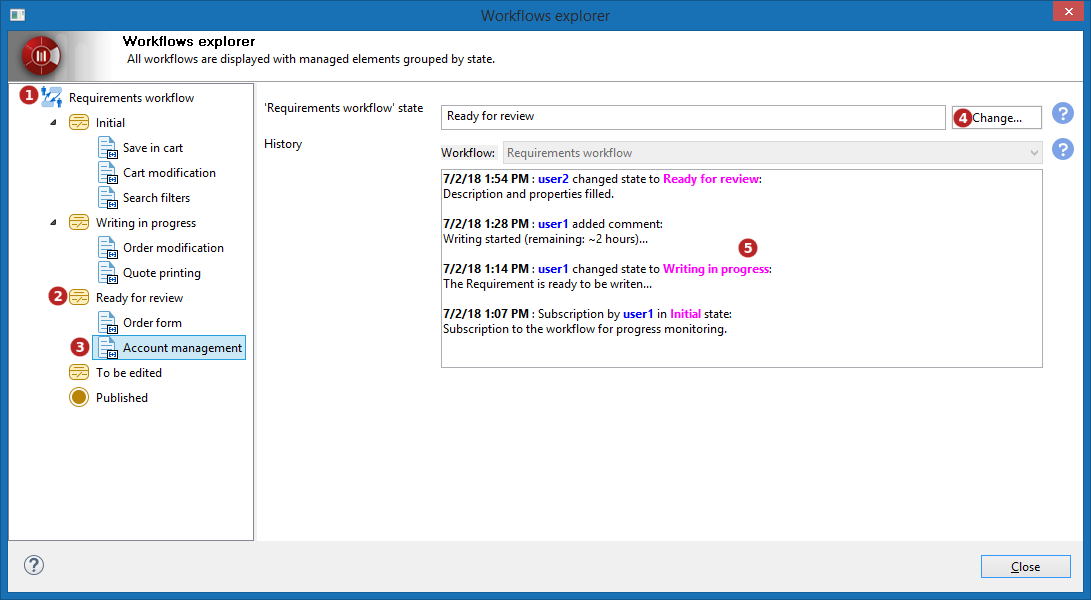

To display the workflow browser, select an eligible element and run the " workflow_16.png Workflow > Show workflow explorer…​" command:


  1. Select a workflow

  2. Select a workflow state

  3. Select an element in that state

  4. Click on the 'Change…​' button and change the state of the selected element

  5. Selected element state changes history reminder.
