org.eclipse.swt.dnd

Class TableDragSourceEffect

java.lang.Object

org.eclipse.swt.dnd.DragSourceAdapter

org.eclipse.swt.dnd.DragSourceEffect

org.eclipse.swt.dnd.TableDragSourceEffect

All Implemented Interfaces:

java.util.EventListener, DragSourceListener, SWTEventListener

public class TableDragSourceEffect
extends DragSourceEffect

This class provides default implementations to display a source image when a drag is initiated from a Table.

Classes that wish to provide their own source image for a Table can extend the TableDragSourceEffect class, override the TableDragSourceEffect.dragStart method and set the field DragSourceEvent.image with their own image.

Subclasses that override any methods of this class must call the corresponding super method to get the default drag source effect implementation.

Since:

3.3

See Also:

DragSourceEffect, DragSourceEvent, Sample code and further information

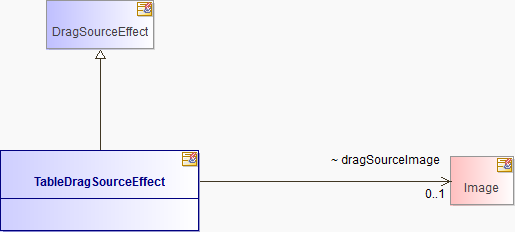

Structure Diagram

Field Summary

Fields

Modifier and Type	Field and Description
(package private) Image	dragSourceImage

Fields inherited from class org.eclipse.swt.dnd.DragSourceEffect

control

Constructor Summary

Constructors

Constructor and Description
TableDragSourceEffect(Table table) Creates a new TableDragSourceEffect to handle drag effect from the specified Table.

Method Summary

Methods

Modifier and Type	Method and Description
void	dragFinished(DragSourceEvent event) This implementation of dragFinished disposes the image that was created in TableDragSourceEffect.dragStart.
void	dragStart(DragSourceEvent event) This implementation of dragStart will create a default image that will be used during the drag.
(package private) Image	getDragSourceImage(DragSourceEvent event)

Methods inherited from class org.eclipse.swt.dnd.DragSourceEffect

getControl

Methods inherited from class org.eclipse.swt.dnd.DragSourceAdapter

dragSetData

Methods inherited from class java.lang.Object

clone, equals, finalize, getClass, hashCode, notify, notifyAll, toString, wait, wait, wait

Field Detail

dragSourceImage

Image dragSourceImage

Constructor Detail

TableDragSourceEffect

public TableDragSourceEffect(Table table)

Creates a new TableDragSourceEffect to handle drag effect from the specified Table.

Parameters:

table - the Table that the user clicks on to initiate the drag

Method Detail

dragFinished

public void dragFinished(DragSourceEvent event)

This implementation of dragFinished disposes the image that was created in TableDragSourceEffect.dragStart. Subclasses that override this method should call super.dragFinished(event) to dispose the image in the default implementation.

Specified by:

dragFinished in interface DragSourceListener

Overrides:

dragFinished in class DragSourceAdapter

Parameters:

event - the information associated with the drag finished event

See Also:

DragSourceEvent

dragStart

public void dragStart(DragSourceEvent event)

This implementation of dragStart will create a default image that will be used during the drag. The image should be disposed when the drag is completed in the TableDragSourceEffect.dragFinished method. Subclasses that override this method should call super.dragStart(event) to use the image from the default implementation.

Specified by:

dragStart in interface DragSourceListener

Overrides:

dragStart in class DragSourceAdapter

Parameters:

event - the information associated with the drag start event

See Also:

DragSourceEvent

getDragSourceImage

Image getDragSourceImage(DragSourceEvent event)
