org.eclipse.swt.printing

Class PrintDialog

java.lang.Object

org.eclipse.swt.widgets.Dialog

org.eclipse.swt.printing.PrintDialog

public class PrintDialog
extends Dialog

Instances of this class allow the user to select a printer and various print-related parameters prior to starting a print job.

IMPORTANT: This class is not intended to be subclassed.

See Also:

Printing snippets, SWT Example: ControlExample, Dialog tab, Sample code and further information

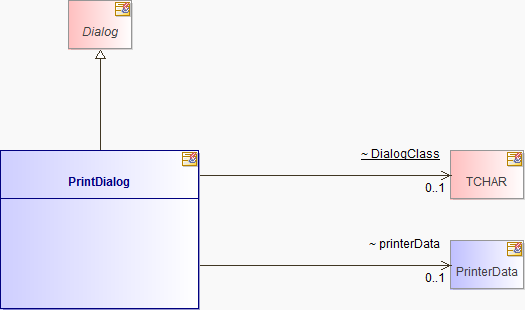

Structure Diagram

Field Summary

Fields

Modifier and Type	Field and Description
(package private) static TCHAR	DialogClass
(package private) PrinterData	printerData

Constructor Summary

Constructors

Constructor and Description
PrintDialog(Shell parent) Constructs a new instance of this class given only its parent.
PrintDialog(Shell parent, int style) Constructs a new instance of this class given its parent and a style value describing its behavior and appearance.

Method Summary

Methods

Modifier and Type	Method and Description
(package private) static int	checkBits(int style, int int0, int int1, int int2, int int3, int int4, int int5)
(package private) static int	checkStyle(Shell parent, int style)
protected void	checkSubclass() Checks that this class can be subclassed.
int	getEndPage() Returns the end page setting that the user selected before pressing OK in the dialog.
PrinterData	getPrinterData() Returns the printer data that will be used when the dialog is opened.
boolean	getPrintToFile() Returns the 'Print to file' setting that the user selected before pressing OK in the dialog.
int	getScope() Returns the print job scope that the user selected before pressing OK in the dialog.
int	getStartPage() Returns the start page setting that the user selected before pressing OK in the dialog.
PrinterData	open() Makes the receiver visible and brings it to the front of the display.
void	setEndPage(int endPage) Sets the end page that the user will see when the dialog is opened.
void	setPrinterData(PrinterData data) Sets the printer data that will be used when the dialog is opened.
void	setPrintToFile(boolean printToFile) Sets the 'Print to file' setting that the user will see when the dialog is opened.
void	setScope(int scope) Sets the scope of the print job.
void	setStartPage(int startPage) Sets the start page that the user will see when the dialog is opened.

Methods inherited from class org.eclipse.swt.widgets.Dialog

getParent, getStyle, getText, setText

Methods inherited from class java.lang.Object

clone, equals, finalize, getClass, hashCode, notify, notifyAll, toString, wait, wait, wait

Field Detail

DialogClass

static final TCHAR DialogClass

printerData

PrinterData printerData

Constructor Detail

PrintDialog

public PrintDialog(Shell parent)

Constructs a new instance of this class given only its parent.

Parameters:

parent - a composite control which will be the parent of the new instance (cannot be null)

Throws:

java.lang.IllegalArgumentException -

• ERROR_NULL_ARGUMENT - if the parent is null

SWTException -

• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the parent
• ERROR_INVALID_SUBCLASS - if this class is not an allowed subclass

See Also:

SWT, Widget.checkSubclass(), Widget.getStyle()

PrintDialog

public PrintDialog(Shell parent,
           int style)

Constructs a new instance of this class given its parent and a style value describing its behavior and appearance.

The style value is either one of the style constants defined in class SWT which is applicable to instances of this class, or must be built by bitwise OR'ing together (that is, using the int "|" operator) two or more of those SWT style constants. The class description lists the style constants that are applicable to the class. Style bits are also inherited from superclasses.

Parameters:

parent - a composite control which will be the parent of the new instance (cannot be null)

style - the style of control to construct

Throws:

java.lang.IllegalArgumentException -

• ERROR_NULL_ARGUMENT - if the parent is null

SWTException -

• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the parent
• ERROR_INVALID_SUBCLASS - if this class is not an allowed subclass

See Also:

SWT, Widget.checkSubclass(), Widget.getStyle()

Method Detail

checkBits

static int checkBits(int style,
            int int0,
            int int1,
            int int2,
            int int3,
            int int4,
            int int5)

checkStyle

static int checkStyle(Shell parent,
             int style)

setPrinterData

public void setPrinterData(PrinterData data)

Sets the printer data that will be used when the dialog is opened.

Setting the printer data to null is equivalent to resetting all data fields to their default values.

Parameters:

data - the data that will be used when the dialog is opened or null to use default data

Since:

3.4

getPrinterData

public PrinterData getPrinterData()

Returns the printer data that will be used when the dialog is opened.

Returns:

the data that will be used when the dialog is opened

Since:

3.4

getScope

public int getScope()

Returns the print job scope that the user selected before pressing OK in the dialog. This will be one of the following values:

PrinterData.ALL_PAGES

Print all pages in the current document

PrinterData.PAGE_RANGE

Print the range of pages specified by startPage and endPage

PrinterData.SELECTION

Print the current selection

Returns:

the scope setting that the user selected

setScope

public void setScope(int scope)

Sets the scope of the print job. The user will see this setting when the dialog is opened. This can have one of the following values:

PrinterData.ALL_PAGES

Print all pages in the current document

PrinterData.PAGE_RANGE

Print the range of pages specified by startPage and endPage

PrinterData.SELECTION

Print the current selection

Parameters:

scope - the scope setting when the dialog is opened

getStartPage

public int getStartPage()

Returns the start page setting that the user selected before pressing OK in the dialog.

This value can be from 1 to the maximum number of pages for the platform. Note that it is only valid if the scope is PrinterData.PAGE_RANGE.

Returns:

the start page setting that the user selected

setStartPage

public void setStartPage(int startPage)

Sets the start page that the user will see when the dialog is opened.

This value can be from 1 to the maximum number of pages for the platform. Note that it is only valid if the scope is PrinterData.PAGE_RANGE.

Parameters:

startPage - the startPage setting when the dialog is opened

getEndPage

public int getEndPage()

Returns the end page setting that the user selected before pressing OK in the dialog.

This value can be from 1 to the maximum number of pages for the platform. Note that it is only valid if the scope is PrinterData.PAGE_RANGE.

Returns:

the end page setting that the user selected

setEndPage

public void setEndPage(int endPage)

Sets the end page that the user will see when the dialog is opened.

This value can be from 1 to the maximum number of pages for the platform. Note that it is only valid if the scope is PrinterData.PAGE_RANGE.

Parameters:

endPage - the end page setting when the dialog is opened

getPrintToFile

public boolean getPrintToFile()

Returns the 'Print to file' setting that the user selected before pressing OK in the dialog.

Returns:

the 'Print to file' setting that the user selected

setPrintToFile

public void setPrintToFile(boolean printToFile)

Sets the 'Print to file' setting that the user will see when the dialog is opened.

Parameters:

printToFile - the 'Print to file' setting when the dialog is opened

checkSubclass

protected void checkSubclass()

Description copied from class: Dialog

Checks that this class can be subclassed.

IMPORTANT: See the comment in Widget.checkSubclass().

Overrides:

checkSubclass in class Dialog

See Also:

Widget.checkSubclass()

open

public PrinterData open()

Makes the receiver visible and brings it to the front of the display.

Returns:

a printer data object describing the desired print job parameters, or null if the dialog was canceled, no printers were found, or an error occurred

Throws:

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver
