PrinterData

java.lang.Object
- org.eclipse.swt.graphics.DeviceData
- - org.eclipse.swt.printing.PrinterData

```
public final class PrinterData
extends DeviceData
```
Instances of this class are descriptions of a print job in terms of the printer, and the scope and type of printing that is desired. For example, the number of pages and copies can be specified, as well as whether or not the print job should go to a file.
Application code does not need to explicitly release the resources managed by each instance when those instances are no longer required, and thus no dispose() method is provided.

See Also:
Printer, Printer.getPrinterList(), PrintDialog.open(), Printing snippets, Sample code and further information

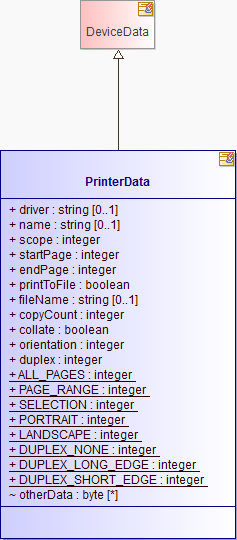

- Structure Diagram

Field Summary

Fields
Modifier and Type	Field and Description
`static int`	`ALL_PAGES` `scope` field value indicating that all pages should be printed
`boolean`	`collate` whether or not the printer should collate the printed paper Note that this field may be controlled by the printer driver.
`int`	`copyCount` the number of copies to print.
`java.lang.String`	`driver` the printer driver On Windows systems, this is the name of the driver (often "winspool").
`int`	`duplex` Single-sided or double-sided printing, expressed as one of the following values: `SWT.DEFAULT` the default duplex value for the printer `DUPLEX_NONE` single-sided printing `DUPLEX_LONG_EDGE` double-sided printing as if bound on the long edge `DUPLEX_SHORT_EDGE` double-sided printing as if bound on the short edge The default value is `SWT.DEFAULT`, meaning do not set a value; use the printer's default duplex setting.
`static int`	`DUPLEX_LONG_EDGE` `duplex` field value indicating double-sided printing for binding on the long edge.
`static int`	`DUPLEX_NONE` `duplex` field value indicating single-sided printing.
`static int`	`DUPLEX_SHORT_EDGE` `duplex` field value indicating double-sided printing for binding on the short edge.
`int`	`endPage` the end page of a page range, used when scope is PAGE_RANGE.
`java.lang.String`	`fileName` the name of the file to print to if printToFile is true.
`static int`	`LANDSCAPE` `orientation` field value indicating landscape paper orientation
`java.lang.String`	`name` the name of the printer On Windows systems, this is the name of the 'device'.
`int`	`orientation` The orientation of the paper, which can be either PORTRAIT or LANDSCAPE.
`(package private) byte[]`	`otherData` private, platform-specific data On Windows, this contains a copy of the DEVMODE struct returned from the `PrintDialog`.
`static int`	`PAGE_RANGE` `scope` field value indicating that the range of pages specified by startPage and endPage should be printed
`static int`	`PORTRAIT` `orientation` field value indicating portrait paper orientation
`boolean`	`printToFile` whether or not the print job should go to a file
`int`	`scope` the scope of the print job, expressed as one of the following values: `ALL_PAGES` Print all pages in the current document `PAGE_RANGE` Print the range of pages specified by startPage and endPage `SELECTION` Print the current selection
`static int`	`SELECTION` `scope` field value indicating that the current selection should be printed
`int`	`startPage` the start page of a page range, used when scope is PAGE_RANGE.

Fields inherited from class org.eclipse.swt.graphics.DeviceData
debug, errors, objects, tracking

Constructor Summary

Constructors
Constructor and Description
`PrinterData()` Constructs an instance of this class that can be used to print to the default printer.
`PrinterData(java.lang.String driver, java.lang.String name)` Constructs an instance of this class with the given printer driver and printer name.

Method Summary

Methods
Modifier and Type Method and Description

java.lang.String toString()
Returns a string containing a concise, human-readable description of the receiver.
- Methods inherited from class java.lang.Object
  clone, equals, finalize, getClass, hashCode, notify, notifyAll, wait, wait, wait

Methods
Modifier and Type	Method and Description
`java.lang.String`	`toString()` Returns a string containing a concise, human-readable description of the receiver.

- Field Detail
  - driver
```
public java.lang.String driver
```
    the printer driver On Windows systems, this is the name of the driver (often "winspool"). On Mac OSX, this is the destination type ("Printer", "Fax", "File", or "Preview"). On X/Window systems, this is the name of a display connection to the Xprt server (the default is ":1"). On GTK+, this is the backend type name (eg. GtkPrintBackendCups).
  - name
```
public java.lang.String name
```
    the name of the printer On Windows systems, this is the name of the 'device'. On Mac OSX, X/Window systems, and GTK+, this is the printer's 'name'.
  - scope
```
public int scope
```
    the scope of the print job, expressed as one of the following values:

    ALL_PAGES

    Print all pages in the current document

    PAGE_RANGE

    Print the range of pages specified by startPage and endPage

    SELECTION

    Print the current selection
  - startPage
```
public int startPage
```
    the start page of a page range, used when scope is PAGE_RANGE. This value can be from 1 to the maximum number of pages for the platform.
  - endPage
```
public int endPage
```
    the end page of a page range, used when scope is PAGE_RANGE. This value can be from 1 to the maximum number of pages for the platform.
  - printToFile
```
public boolean printToFile
```
    whether or not the print job should go to a file
  - fileName
```
public java.lang.String fileName
```
    the name of the file to print to if printToFile is true. Note that this field is ignored if printToFile is false.
  - copyCount
```
public int copyCount
```
    the number of copies to print. Note that this field may be controlled by the printer driver In other words, the printer itself may be capable of printing multiple copies, and if so, the value of this field will always be 1.
  - collate
```
public boolean collate
```
    whether or not the printer should collate the printed paper Note that this field may be controlled by the printer driver. In other words, the printer itself may be capable of doing the collation, and if so, the value of this field will always be false.
  - orientation
```
public int orientation
```
    The orientation of the paper, which can be either PORTRAIT or LANDSCAPE.

    Since:

    3.5
  - duplex
```
public int duplex
```
    Single-sided or double-sided printing, expressed as one of the following values:

    SWT.DEFAULT

    the default duplex value for the printer

    DUPLEX_NONE

    single-sided printing

    DUPLEX_LONG_EDGE

    double-sided printing as if bound on the long edge

    DUPLEX_SHORT_EDGE

    double-sided printing as if bound on the short edge

    The default value is SWT.DEFAULT, meaning do not set a value; use the printer's default duplex setting. A printer's default value is typically single-sided, however it can default to double-sided in order to save paper.

    Since:

    3.7
  - ALL_PAGES
```
public static final int ALL_PAGES
```
    scope field value indicating that all pages should be printed

    See Also:
    Constant Field Values
  - PAGE_RANGE
```
public static final int PAGE_RANGE
```
    scope field value indicating that the range of pages specified by startPage and endPage should be printed

    See Also:
    Constant Field Values
  - SELECTION
```
public static final int SELECTION
```
    scope field value indicating that the current selection should be printed

    See Also:
    Constant Field Values
  - PORTRAIT
```
public static final int PORTRAIT
```
    orientation field value indicating portrait paper orientation

    Since:

    3.5

    See Also:
    Constant Field Values
  - LANDSCAPE
```
public static final int LANDSCAPE
```
    orientation field value indicating landscape paper orientation

    Since:

    3.5

    See Also:
    Constant Field Values
  - DUPLEX_NONE
```
public static final int DUPLEX_NONE
```
    duplex field value indicating single-sided printing.
    This is also known as simplex printing.

    Since:

    3.7

    See Also:
    Constant Field Values
  - DUPLEX_LONG_EDGE
```
public static final int DUPLEX_LONG_EDGE
```
    duplex field value indicating double-sided printing for binding on the long edge.
    For portrait orientation, the long edge is vertical. For landscape orientation, the long edge is horizontal.
    This is also known as duplex printing.

    Since:

    3.7

    See Also:
    Constant Field Values
  - DUPLEX_SHORT_EDGE
```
public static final int DUPLEX_SHORT_EDGE
```
    duplex field value indicating double-sided printing for binding on the short edge.
    For portrait orientation, the short edge is horizontal. For landscape orientation, the short edge is vertical.
    This is also known as duplex tumble printing.

    Since:

    3.7

    See Also:
    Constant Field Values
  - otherData
```
byte[] otherData
```
    private, platform-specific data On Windows, this contains a copy of the DEVMODE struct returned from the PrintDialog. On GTK, this contains a copy of the print_settings and page_setup returned from the PrintDialog. On OS X Carbon, this contains a copy of the PrintSettings and PageFormat returned from the PrintDialog. This field is not currently used on the X/Window System.
- Constructor Detail
  - PrinterData
```
public PrinterData()
```
    Constructs an instance of this class that can be used to print to the default printer.

    See Also:
    Printer.getDefaultPrinterData()
  - PrinterData
```
public PrinterData(java.lang.String driver,
           java.lang.String name)
```
    Constructs an instance of this class with the given printer driver and printer name.

    Parameters:
    driver - the printer driver for the printer
    name - the name of the printer
    See Also:
    driver, name
- Method Detail
  - toString
```
public java.lang.String toString()
```
    Returns a string containing a concise, human-readable description of the receiver.

    Overrides:

    toString in class java.lang.Object

    Returns:
    a string representation of the receiver
