org.eclipse.swt.widgets

Class Scrollable

java.lang.Object

org.eclipse.swt.widgets.Widget

org.eclipse.swt.widgets.Control

org.eclipse.swt.widgets.Scrollable

All Implemented Interfaces:

Drawable

Direct Known Subclasses:

Composite, List, Text

public abstract class Scrollable
extends Control

This class is the abstract superclass of all classes which represent controls that have standard scroll bars.

Styles:

H_SCROLL, V_SCROLL

Events:

(none)

IMPORTANT: This class is intended to be subclassed only within the SWT implementation.

See Also:

Sample code and further information

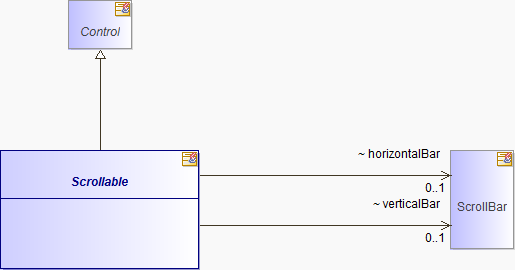

Structure Diagram

Field Summary

Fields

Modifier and Type	Field and Description
(package private) ScrollBar	horizontalBar
(package private) ScrollBar	verticalBar

Fields inherited from class org.eclipse.swt.widgets.Control

accessible, background, backgroundImage, cursor, drawCount, font, foreground, handle, layoutData, menu, parent, region, toolTipText

Fields inherited from class org.eclipse.swt.widgets.Widget

CANVAS, data, DEFAULT_HEIGHT, DEFAULT_WIDTH, DISABLED, display, DISPOSE_SENT, DISPOSED, DRAG_DETECT, DRAW_BACKGROUND, eventTable, FOREIGN_HANDLE, HIDDEN, IGNORE_WM_CHANGEUISTATE, KEYED_DATA, LAYOUT_CHANGED, LAYOUT_CHILD, LAYOUT_NEEDED, MAJOR, MINOR, MOVE_DEFERRED, MOVE_OCCURRED, PARENT_BACKGROUND, RELEASED, RESIZE_DEFERRED, RESIZE_OCCURRED, SKIN_NEEDED, state, style, THEME_BACKGROUND, TRACK_MOUSE

Constructor Summary

Constructors

Constructor and Description
Scrollable() Prevents uninitialized instances from being created outside the package.
Scrollable(Composite parent, int style) Constructs a new instance of this class given its parent and a style value describing its behavior and appearance.

Method Summary

Methods

Modifier and Type	Method and Description
(package private) int	callWindowProc(int hwnd, int msg, int wParam, int lParam)
Rectangle	computeTrim(int x, int y, int width, int height) Given a desired client area for the receiver (as described by the arguments), returns the bounding rectangle which would be required to produce that client area.
(package private) ScrollBar	createScrollBar(int type)
(package private) void	createWidget()
(package private) void	destroyScrollBar(int type)
Rectangle	getClientArea() Returns a rectangle which describes the area of the receiver which is capable of displaying data (that is, not covered by the "trimmings").
ScrollBar	getHorizontalBar() Returns the receiver's horizontal scroll bar if it has one, and null if it does not.
int	getScrollbarsMode() Returns the mode of the receiver's scrollbars.
ScrollBar	getVerticalBar() Returns the receiver's vertical scroll bar if it has one, and null if it does not.
(package private) void	releaseChildren(boolean destroy)
(package private) void	reskinChildren(int flags)
(package private) int	scrolledHandle()
(package private) int	widgetExtStyle()
(package private) int	widgetStyle()
(package private) TCHAR	windowClass()
(package private) int	windowProc()
(package private) LRESULT	WM_HSCROLL(int wParam, int lParam)
(package private) LRESULT	WM_MOUSEWHEEL(int wParam, int lParam)
(package private) LRESULT	WM_SIZE(int wParam, int lParam)
(package private) LRESULT	WM_VSCROLL(int wParam, int lParam)
(package private) LRESULT	wmNCPaint(int hwnd, int wParam, int lParam)
(package private) LRESULT	wmScroll(ScrollBar bar, boolean update, int hwnd, int msg, int wParam, int lParam)
(package private) LRESULT	wmScrollWheel(boolean update, int wParam, int lParam)

Methods inherited from class org.eclipse.swt.widgets.Control

addControlListener, addDragDetectListener, addFocusListener, addGestureListener, addHelpListener, addKeyListener, addMenuDetectListener, addMouseListener, addMouseMoveListener, addMouseTrackListener, addMouseWheelListener, addPaintListener, addTouchListener, addTraverseListener, binarySearch, borderHandle, checkBackground, checkBorder, checkBuffered, checkComposited, checkGesture, checkHandle, checkMirrored, computeSize, computeSize, computeTabGroup, computeTabList, computeTabRoot, createHandle, defaultBackground, defaultFont, defaultForeground, deregister, destroyWidget, dragDetect, dragDetect, dragDetect, drawBackground, drawBackground, drawBackground, drawImageBackground, drawThemeBackground, enableDrag, enableWidget, fillBackground, fillImageBackground, fillThemeBackground, findBackgroundControl, findBrush, findCursor, findImageControl, findMenus, findMnemonic, findThemeControl, fixChildren, fixFocus, forceFocus, forceResize, getAccessible, getBackground, getBackgroundImage, getBackgroundPixel, getBorderWidth, getBounds, getClipboardText, getCodePage, getCursor, getDragDetect, getDrawing, getEnabled, getFont, getForeground, getForegroundPixel, getLayoutData, getLocation, getMenu, getMonitor, getOrientation, getParent, getPath, getRegion, getShell, getSize, getToolTipText, getTouchEnabled, getVisible, hasCursor, hasFocus, internal_dispose_GC, internal_new_GC, isActive, isEnabled, isFocusAncestor, isFocusControl, isReparentable, isShowing, isTabGroup, isTabItem, isVisible, mapEvent, markLayout, menuShell, mnemonicHit, mnemonicMatch, moveAbove, moveBelow, new_Accessible, new_GC, pack, pack, print, printWidget, redraw, redraw, redraw, redrawChildren, register, releaseHandle, releaseParent, releaseWidget, removeControlListener, removeDragDetectListener, removeFocusListener, removeGestureListener, removeHelpListener, removeKeyListener, removeMenuDetectListener, removeMouseListener, removeMouseMoveListener, removeMouseTrackListener, removeMouseWheelListener, removePaintListener, removeTouchListener, removeTraverseListener, sendFocusEvent, sendGestureEvent, sendMove, sendResize, sendTouchEvent, setBackground, setBackground, setBackgroundImage, setBackgroundImage, setBackgroundPixel, setBounds, setBounds, setBounds, setBounds, setCapture, setCursor, setCursor, setDefaultFont, setDragDetect, setEnabled, setFocus, setFont, setForeground, setForegroundPixel, setLayoutData, setLocation, setLocation, setMenu, setOrientation, setParent, setRadioFocus, setRadioSelection, setRedraw, setRegion, setSavedFocus, setSize, setSize, setTabItemFocus, setToolTipText, setToolTipText, setTouchEnabled, setVisible, showWidget, sort, subclass, toControl, toControl, toDisplay, toDisplay, topHandle, translateAccelerator, translateMnemonic, translateMnemonic, translateTraversal, traverse, traverse, traverse, traverse, traverse, traverseEscape, traverseGroup, traverseItem, traverseMnemonic, traversePage, traverseReturn, unsubclass, update, update, updateBackgroundColor, updateBackgroundImage, updateBackgroundMode, updateFont, updateImages, updateLayout, updateOrientation, widgetCreateStruct, widgetParent, windowProc, WM_ACTIVATE, WM_CAPTURECHANGED, WM_CHANGEUISTATE, WM_CHAR, WM_CLEAR, WM_CLOSE, WM_COMMAND, WM_CONTEXTMENU, WM_CTLCOLOR, WM_CUT, WM_DESTROY, WM_DRAWITEM, WM_ENDSESSION, WM_ENTERIDLE, WM_ERASEBKGND, WM_GESTURE, WM_GETDLGCODE, WM_GETFONT, WM_GETMINMAXINFO, WM_GETOBJECT, WM_HELP, WM_HOTKEY, WM_IME_CHAR, WM_IME_COMPOSITION_START, WM_IME_COMPOSITION, WM_IME_ENDCOMPOSITION, WM_INITMENUPOPUP, WM_INPUTLANGCHANGE, WM_KEYDOWN, WM_KEYUP, WM_KILLFOCUS, WM_LBUTTONDBLCLK, WM_LBUTTONDOWN, WM_LBUTTONUP, WM_MBUTTONDBLCLK, WM_MBUTTONDOWN, WM_MBUTTONUP, WM_MEASUREITEM, WM_MENUCHAR, WM_MENUSELECT, WM_MOUSEACTIVATE, WM_MOUSEHOVER, WM_MOUSEHWHEEL, WM_MOUSELEAVE, WM_MOUSEMOVE, WM_MOVE, WM_NCACTIVATE, WM_NCCALCSIZE, WM_NCHITTEST, WM_NCLBUTTONDOWN, WM_NCPAINT, WM_NOTIFY, WM_PAINT, WM_PALETTECHANGED, WM_PARENTNOTIFY, WM_PASTE, WM_PRINT, WM_PRINTCLIENT, WM_QUERYENDSESSION, WM_QUERYNEWPALETTE, WM_QUERYOPEN, WM_RBUTTONDBLCLK, WM_RBUTTONDOWN, WM_RBUTTONUP, WM_SETCURSOR, WM_SETFOCUS, WM_SETFONT, WM_SETREDRAW, WM_SETTINGCHANGE, WM_SHOWWINDOW, WM_SYSCHAR, WM_SYSCOLORCHANGE, WM_SYSCOMMAND, WM_SYSKEYDOWN, WM_SYSKEYUP, WM_TABLET_FLICK, WM_TIMER, WM_TOUCH, WM_UNDO, WM_UNINITMENUPOPUP, WM_UPDATEUISTATE, WM_WINDOWPOSCHANGED, WM_WINDOWPOSCHANGING, WM_XBUTTONDBLCLK, WM_XBUTTONDOWN, WM_XBUTTONUP, wmColorChild, wmCommandChild, wmDrawChild, wmMeasureChild, wmNotify, wmNotifyChild, wmScrollChild

Methods inherited from class org.eclipse.swt.widgets.Widget

_addListener, addDisposeListener, addListener, checkBits, checkOpened, checkOrientation, checkParent, checkSubclass, checkWidget, DeferWindowPos, dispose, dragDetect, error, filters, findItem, fixMnemonic, fixMnemonic, getData, getData, getDisplay, getListeners, getName, getNameText, getStyle, hooks, isDisposed, isListening, isValidSubclass, isValidThread, notifyListeners, postEvent, postEvent, release, removeDisposeListener, removeListener, removeListener, reskin, reskinWidget, sendDragEvent, sendDragEvent, sendEvent, sendEvent, sendEvent, sendEvent, sendKeyEvent, sendKeyEvent, sendMouseEvent, sendMouseEvent, sendMouseWheelEvent, sendSelectionEvent, sendSelectionEvent, setData, setData, setInputState, setKeyState, setLocationMask, setTabGroupFocus, SetWindowPos, showMenu, showMenu, toString, updateMenuLocation, wmCaptureChanged, wmChar, wmContextMenu, wmIMEChar, wmKeyDown, wmKeyUp, wmKillFocus, wmLButtonDblClk, wmLButtonDown, wmLButtonUp, wmMButtonDblClk, wmMButtonDown, wmMButtonUp, wmMouseHover, wmMouseHWheel, wmMouseLeave, wmMouseMove, wmMouseWheel, wmPaint, wmPrint, wmRButtonDblClk, wmRButtonDown, wmRButtonUp, wmSetFocus, wmSysChar, wmSysKeyDown, wmSysKeyUp, wmXButtonDblClk, wmXButtonDown, wmXButtonUp

Methods inherited from class java.lang.Object

clone, equals, finalize, getClass, hashCode, notify, notifyAll, wait, wait, wait

Field Detail

horizontalBar

ScrollBar horizontalBar

verticalBar

ScrollBar verticalBar

Constructor Detail

Scrollable

Scrollable()

Prevents uninitialized instances from being created outside the package.

Scrollable

public Scrollable(Composite parent,
          int style)

Constructs a new instance of this class given its parent and a style value describing its behavior and appearance.

The style value is either one of the style constants defined in class SWT which is applicable to instances of this class, or must be built by bitwise OR'ing together (that is, using the int "|" operator) two or more of those SWT style constants. The class description lists the style constants that are applicable to the class. Style bits are also inherited from superclasses.

Parameters:

parent - a composite control which will be the parent of the new instance (cannot be null)

style - the style of control to construct

Throws:

java.lang.IllegalArgumentException -

• ERROR_NULL_ARGUMENT - if the parent is null

SWTException -

• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the parent
• ERROR_INVALID_SUBCLASS - if this class is not an allowed subclass

See Also:

SWT.H_SCROLL, SWT.V_SCROLL, Widget.checkSubclass(), Widget.getStyle()

Method Detail

callWindowProc

int callWindowProc(int hwnd,
                 int msg,
                 int wParam,
                 int lParam)

Overrides:

callWindowProc in class Widget

computeTrim

public Rectangle computeTrim(int x,
                    int y,
                    int width,
                    int height)

Given a desired client area for the receiver (as described by the arguments), returns the bounding rectangle which would be required to produce that client area.

In other words, it returns a rectangle such that, if the receiver's bounds were set to that rectangle, the area of the receiver which is capable of displaying data (that is, not covered by the "trimmings") would be the rectangle described by the arguments (relative to the receiver's parent).

Parameters:

x - the desired x coordinate of the client area

y - the desired y coordinate of the client area

width - the desired width of the client area

height - the desired height of the client area

Returns:

the required bounds to produce the given client area

Throws:

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

See Also:

getClientArea()

createScrollBar

ScrollBar createScrollBar(int type)

createWidget

void createWidget()

Overrides:

createWidget in class Control

destroyScrollBar

void destroyScrollBar(int type)

getClientArea

public Rectangle getClientArea()

Returns a rectangle which describes the area of the receiver which is capable of displaying data (that is, not covered by the "trimmings").

Returns:

the client area

Throws:

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

See Also:

computeTrim(int, int, int, int)

getHorizontalBar

public ScrollBar getHorizontalBar()

Returns the receiver's horizontal scroll bar if it has one, and null if it does not.

Returns:

the horizontal scroll bar (or null)

Throws:

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

getScrollbarsMode

public int getScrollbarsMode()

Returns the mode of the receiver's scrollbars. This will be bitwise OR of one or more of the constants defined in class SWT.

SWT.SCROLLBAR_OVERLAY - if receiver uses overlay scrollbars SWT.NONE - otherwise

Returns:

the mode of scrollbars

Throws:

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

Since:

3.8

See Also:

SWT.SCROLLBAR_OVERLAY

getVerticalBar

public ScrollBar getVerticalBar()

Returns the receiver's vertical scroll bar if it has one, and null if it does not.

Returns:

the vertical scroll bar (or null)

Throws:

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

releaseChildren

void releaseChildren(boolean destroy)

Overrides:

releaseChildren in class Widget

reskinChildren

void reskinChildren(int flags)

Overrides:

reskinChildren in class Widget

scrolledHandle

int scrolledHandle()

widgetExtStyle

int widgetExtStyle()

Overrides:

widgetExtStyle in class Control

widgetStyle

int widgetStyle()

Overrides:

widgetStyle in class Control

windowClass

TCHAR windowClass()

Specified by:

windowClass in class Control

windowProc

int windowProc()

Specified by:

windowProc in class Control

WM_HSCROLL

LRESULT WM_HSCROLL(int wParam,
                 int lParam)

Overrides:

WM_HSCROLL in class Control

WM_MOUSEWHEEL

LRESULT WM_MOUSEWHEEL(int wParam,
                    int lParam)

Overrides:

WM_MOUSEWHEEL in class Control

WM_SIZE

LRESULT WM_SIZE(int wParam,
              int lParam)

Overrides:

WM_SIZE in class Control

WM_VSCROLL

LRESULT WM_VSCROLL(int wParam,
                 int lParam)

Overrides:

WM_VSCROLL in class Control

wmNCPaint

LRESULT wmNCPaint(int hwnd,
                int wParam,
                int lParam)

Overrides:

wmNCPaint in class Widget

wmScrollWheel

LRESULT wmScrollWheel(boolean update,
                    int wParam,
                    int lParam)

wmScroll

LRESULT wmScroll(ScrollBar bar,
               boolean update,
               int hwnd,
               int msg,
               int wParam,
               int lParam)
