org.eclipse.swt.widgets

Class Control

java.lang.Object

org.eclipse.swt.widgets.Widget

org.eclipse.swt.widgets.Control

All Implemented Interfaces:

Drawable

Direct Known Subclasses:

Button, Label, Link, ProgressBar, Sash, Scale, Scrollable, Slider

public abstract class Control
extends Widget
implements Drawable

Control is the abstract superclass of all windowed user interface classes.

Styles:

BORDER

LEFT_TO_RIGHT, RIGHT_TO_LEFT

Events:

DragDetect, FocusIn, FocusOut, Help, KeyDown, KeyUp, MenuDetect, MouseDoubleClick, MouseDown, MouseEnter, MouseExit, MouseHover, MouseUp, MouseMove, MouseWheel, MouseHorizontalWheel, MouseVerticalWheel, Move, Paint, Resize, Traverse

Only one of LEFT_TO_RIGHT or RIGHT_TO_LEFT may be specified.

IMPORTANT: This class is intended to be subclassed only within the SWT implementation.

See Also:

Control snippets, SWT Example: ControlExample, Sample code and further information

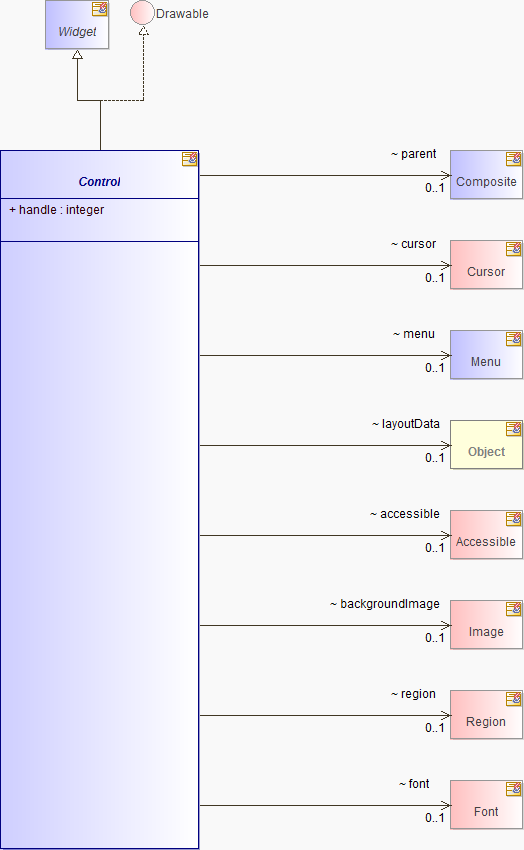

Structure Diagram

Field Summary

Fields

Modifier and Type	Field and Description
(package private) Accessible	accessible
(package private) int	background
(package private) Image	backgroundImage
(package private) Cursor	cursor
(package private) int	drawCount
(package private) Font	font
(package private) int	foreground
int	handle the handle to the OS resource (Warning: This field is platform dependent) IMPORTANT: This field is not part of the SWT public API.
(package private) java.lang.Object	layoutData
(package private) Menu	menu
(package private) Composite	parent
(package private) Region	region
(package private) java.lang.String	toolTipText

Fields inherited from class org.eclipse.swt.widgets.Widget

CANVAS, data, DEFAULT_HEIGHT, DEFAULT_WIDTH, DISABLED, display, DISPOSE_SENT, DISPOSED, DRAG_DETECT, DRAW_BACKGROUND, eventTable, FOREIGN_HANDLE, HIDDEN, IGNORE_WM_CHANGEUISTATE, KEYED_DATA, LAYOUT_CHANGED, LAYOUT_CHILD, LAYOUT_NEEDED, MAJOR, MINOR, MOVE_DEFERRED, MOVE_OCCURRED, PARENT_BACKGROUND, RELEASED, RESIZE_DEFERRED, RESIZE_OCCURRED, SKIN_NEEDED, state, style, THEME_BACKGROUND, TRACK_MOUSE

Constructor Summary

Constructors

Constructor and Description
Control() Prevents uninitialized instances from being created outside the package.
Control(Composite parent, int style) Constructs a new instance of this class given its parent and a style value describing its behavior and appearance.

Method Summary

Methods

Modifier and Type	Method and Description
void	addControlListener(ControlListener listener) Adds the listener to the collection of listeners who will be notified when the control is moved or resized, by sending it one of the messages defined in the ControlListener interface.
void	addDragDetectListener(DragDetectListener listener) Adds the listener to the collection of listeners who will be notified when a drag gesture occurs, by sending it one of the messages defined in the DragDetectListener interface.
void	addFocusListener(FocusListener listener) Adds the listener to the collection of listeners who will be notified when the control gains or loses focus, by sending it one of the messages defined in the FocusListener interface.
void	addGestureListener(GestureListener listener) Adds the listener to the collection of listeners who will be notified when gesture events are generated for the control, by sending it one of the messages defined in the GestureListener interface.
void	addHelpListener(HelpListener listener) Adds the listener to the collection of listeners who will be notified when help events are generated for the control, by sending it one of the messages defined in the HelpListener interface.
void	addKeyListener(KeyListener listener) Adds the listener to the collection of listeners who will be notified when keys are pressed and released on the system keyboard, by sending it one of the messages defined in the KeyListener interface.
void	addMenuDetectListener(MenuDetectListener listener) Adds the listener to the collection of listeners who will be notified when the platform-specific context menu trigger has occurred, by sending it one of the messages defined in the MenuDetectListener interface.
void	addMouseListener(MouseListener listener) Adds the listener to the collection of listeners who will be notified when mouse buttons are pressed and released, by sending it one of the messages defined in the MouseListener interface.
void	addMouseMoveListener(MouseMoveListener listener) Adds the listener to the collection of listeners who will be notified when the mouse moves, by sending it one of the messages defined in the MouseMoveListener interface.
void	addMouseTrackListener(MouseTrackListener listener) Adds the listener to the collection of listeners who will be notified when the mouse passes or hovers over controls, by sending it one of the messages defined in the MouseTrackListener interface.
void	addMouseWheelListener(MouseWheelListener listener) Adds the listener to the collection of listeners who will be notified when the mouse wheel is scrolled, by sending it one of the messages defined in the MouseWheelListener interface.
void	addPaintListener(PaintListener listener) Adds the listener to the collection of listeners who will be notified when the receiver needs to be painted, by sending it one of the messages defined in the PaintListener interface.
void	addTouchListener(TouchListener listener) Adds the listener to the collection of listeners who will be notified when touch events occur, by sending it one of the messages defined in the TouchListener interface.
void	addTraverseListener(TraverseListener listener) Adds the listener to the collection of listeners who will be notified when traversal events occur, by sending it one of the messages defined in the TraverseListener interface.
(package private) int	binarySearch(int[] indices, int start, int end, int index)
(package private) int	borderHandle()
(package private) void	checkBackground()
(package private) void	checkBorder()
(package private) void	checkBuffered()
(package private) void	checkComposited()
(package private) void	checkGesture()
(package private) boolean	checkHandle(int hwnd)
(package private) void	checkMirrored()
Point	computeSize(int wHint, int hHint) Returns the preferred size of the receiver.
Point	computeSize(int wHint, int hHint, boolean changed) Returns the preferred size of the receiver.
(package private) Widget	computeTabGroup()
(package private) Widget[]	computeTabList()
(package private) Control	computeTabRoot()
(package private) void	createHandle()
(package private) void	createWidget()
(package private) int	defaultBackground()
(package private) int	defaultFont()
(package private) int	defaultForeground()
(package private) void	deregister()
(package private) void	destroyWidget() Destroys the widget in the operating system and releases the widget's handle.
boolean	dragDetect(Event event) Detects a drag and drop gesture.
(package private) boolean	dragDetect(int button, int count, int stateMask, int x, int y)
boolean	dragDetect(MouseEvent event) Detects a drag and drop gesture.
(package private) void	drawBackground(int hDC)
(package private) void	drawBackground(int hDC, RECT rect)
(package private) void	drawBackground(int hDC, RECT rect, int pixel, int tx, int ty)
(package private) void	drawImageBackground(int hDC, int hwnd, int hBitmap, RECT rect, int tx, int ty)
(package private) void	drawThemeBackground(int hDC, int hwnd, RECT rect)
(package private) void	enableDrag(boolean enabled)
(package private) void	enableWidget(boolean enabled)
(package private) void	fillBackground(int hDC, int pixel, RECT rect)
(package private) void	fillImageBackground(int hDC, Control control, RECT rect, int tx, int ty)
(package private) void	fillThemeBackground(int hDC, Control control, RECT rect)
(package private) Control	findBackgroundControl()
(package private) int	findBrush(int value, int lbStyle)
(package private) Cursor	findCursor()
(package private) Control	findImageControl()
(package private) Menu[]	findMenus(Control control)
(package private) char	findMnemonic(java.lang.String string)
(package private) Control	findThemeControl()
(package private) void	fixChildren(Shell newShell, Shell oldShell, Decorations newDecorations, Decorations oldDecorations, Menu[] menus)
(package private) void	fixFocus(Control focusControl)
boolean	forceFocus() Forces the receiver to have the keyboard focus, causing all keyboard events to be delivered to it.
(package private) void	forceResize()
Accessible	getAccessible() Returns the accessible object for the receiver.
Color	getBackground() Returns the receiver's background color.
Image	getBackgroundImage() Returns the receiver's background image.
(package private) int	getBackgroundPixel()
int	getBorderWidth() Returns the receiver's border width.
Rectangle	getBounds() Returns a rectangle describing the receiver's size and location relative to its parent (or its display if its parent is null), unless the receiver is a shell.
(package private) java.lang.String	getClipboardText()
(package private) int	getCodePage()
Cursor	getCursor() Returns the receiver's cursor, or null if it has not been set.
boolean	getDragDetect() Returns true if the receiver is detecting drag gestures, and false otherwise.
(package private) boolean	getDrawing()
boolean	getEnabled() Returns true if the receiver is enabled, and false otherwise.
Font	getFont() Returns the font that the receiver will use to paint textual information.
Color	getForeground() Returns the foreground color that the receiver will use to draw.
(package private) int	getForegroundPixel()
java.lang.Object	getLayoutData() Returns layout data which is associated with the receiver.
Point	getLocation() Returns a point describing the receiver's location relative to its parent (or its display if its parent is null), unless the receiver is a shell.
Menu	getMenu() Returns the receiver's pop up menu if it has one, or null if it does not.
Monitor	getMonitor() Returns the receiver's monitor.
int	getOrientation() Returns the orientation of the receiver, which will be one of the constants SWT.LEFT_TO_RIGHT or SWT.RIGHT_TO_LEFT.
Composite	getParent() Returns the receiver's parent, which must be a Composite or null when the receiver is a shell that was created with null or a display for a parent.
(package private) Control[]	getPath()
Region	getRegion() Returns the region that defines the shape of the control, or null if the control has the default shape.
Shell	getShell() Returns the receiver's shell.
Point	getSize() Returns a point describing the receiver's size.
java.lang.String	getToolTipText() Returns the receiver's tool tip text, or null if it has not been set.
boolean	getTouchEnabled() Returns true if this control is set to send touch events, or false if it is set to send gesture events instead.
boolean	getVisible() Returns true if the receiver is visible, and false otherwise.
(package private) boolean	hasCursor()
(package private) boolean	hasFocus()
void	internal_dispose_GC(int hDC, GCData data) Invokes platform specific functionality to dispose a GC handle.
int	internal_new_GC(GCData data) Invokes platform specific functionality to allocate a new GC handle.
(package private) boolean	isActive()
boolean	isEnabled() Returns true if the receiver is enabled and all ancestors up to and including the receiver's nearest ancestor shell are enabled.
(package private) boolean	isFocusAncestor(Control control)
boolean	isFocusControl() Returns true if the receiver has the user-interface focus, and false otherwise.
boolean	isReparentable() Returns true if the underlying operating system supports this reparenting, otherwise false
(package private) boolean	isShowing()
(package private) boolean	isTabGroup()
(package private) boolean	isTabItem()
boolean	isVisible() Returns true if the receiver is visible and all ancestors up to and including the receiver's nearest ancestor shell are visible.
(package private) void	mapEvent(int hwnd, Event event)
(package private) void	markLayout(boolean changed, boolean all)
(package private) Decorations	menuShell()
(package private) boolean	mnemonicHit(char key)
(package private) boolean	mnemonicMatch(char key)
void	moveAbove(Control control) Moves the receiver above the specified control in the drawing order.
void	moveBelow(Control control) Moves the receiver below the specified control in the drawing order.
(package private) Accessible	new_Accessible(Control control)
(package private) GC	new_GC(GCData data)
void	pack() Causes the receiver to be resized to its preferred size.
void	pack(boolean changed) Causes the receiver to be resized to its preferred size.
boolean	print(GC gc) Prints the receiver and all children.
(package private) void	printWidget(int hwnd, int hdc, GC gc)
void	redraw() Causes the entire bounds of the receiver to be marked as needing to be redrawn.
(package private) void	redraw(boolean all)
void	redraw(int x, int y, int width, int height, boolean all) Causes the rectangular area of the receiver specified by the arguments to be marked as needing to be redrawn.
(package private) boolean	redrawChildren()
(package private) void	register()
(package private) void	releaseHandle()
(package private) void	releaseParent()
(package private) void	releaseWidget()
void	removeControlListener(ControlListener listener) Removes the listener from the collection of listeners who will be notified when the control is moved or resized.
void	removeDragDetectListener(DragDetectListener listener) Removes the listener from the collection of listeners who will be notified when a drag gesture occurs.
void	removeFocusListener(FocusListener listener) Removes the listener from the collection of listeners who will be notified when the control gains or loses focus.
void	removeGestureListener(GestureListener listener) Removes the listener from the collection of listeners who will be notified when gesture events are generated for the control.
void	removeHelpListener(HelpListener listener) Removes the listener from the collection of listeners who will be notified when the help events are generated for the control.
void	removeKeyListener(KeyListener listener) Removes the listener from the collection of listeners who will be notified when keys are pressed and released on the system keyboard.
void	removeMenuDetectListener(MenuDetectListener listener) Removes the listener from the collection of listeners who will be notified when the platform-specific context menu trigger has occurred.
void	removeMouseListener(MouseListener listener) Removes the listener from the collection of listeners who will be notified when mouse buttons are pressed and released.
void	removeMouseMoveListener(MouseMoveListener listener) Removes the listener from the collection of listeners who will be notified when the mouse moves.
void	removeMouseTrackListener(MouseTrackListener listener) Removes the listener from the collection of listeners who will be notified when the mouse passes or hovers over controls.
void	removeMouseWheelListener(MouseWheelListener listener) Removes the listener from the collection of listeners who will be notified when the mouse wheel is scrolled.
void	removePaintListener(PaintListener listener) Removes the listener from the collection of listeners who will be notified when the receiver needs to be painted.
void	removeTouchListener(TouchListener listener) Removes the listener from the collection of listeners who will be notified when touch events occur.
void	removeTraverseListener(TraverseListener listener) Removes the listener from the collection of listeners who will be notified when traversal events occur.
(package private) boolean	sendFocusEvent(int type)
(package private) boolean	sendGestureEvent(GESTUREINFO gi)
(package private) void	sendMove()
(package private) void	sendResize()
(package private) void	sendTouchEvent(TOUCHINPUT[] touchInput)
(package private) void	setBackground()
void	setBackground(Color color) Sets the receiver's background color to the color specified by the argument, or to the default system color for the control if the argument is null.
void	setBackgroundImage(Image image) Sets the receiver's background image to the image specified by the argument, or to the default system color for the control if the argument is null.
(package private) void	setBackgroundImage(int hBitmap)
(package private) void	setBackgroundPixel(int pixel)
void	setBounds(int x, int y, int width, int height) Sets the receiver's size and location to the rectangular area specified by the arguments.
(package private) void	setBounds(int x, int y, int width, int height, int flags)
(package private) void	setBounds(int x, int y, int width, int height, int flags, boolean defer)
void	setBounds(Rectangle rect) Sets the receiver's size and location to the rectangular area specified by the argument.
void	setCapture(boolean capture) If the argument is true, causes the receiver to have all mouse events delivered to it until the method is called with false as the argument.
(package private) void	setCursor()
void	setCursor(Cursor cursor) Sets the receiver's cursor to the cursor specified by the argument, or to the default cursor for that kind of control if the argument is null.
(package private) void	setDefaultFont()
void	setDragDetect(boolean dragDetect) Sets the receiver's drag detect state.
void	setEnabled(boolean enabled) Enables the receiver if the argument is true, and disables it otherwise.
boolean	setFocus() Causes the receiver to have the keyboard focus, such that all keyboard events will be delivered to it.
void	setFont(Font font) Sets the font that the receiver will use to paint textual information to the font specified by the argument, or to the default font for that kind of control if the argument is null.
void	setForeground(Color color) Sets the receiver's foreground color to the color specified by the argument, or to the default system color for the control if the argument is null.
(package private) void	setForegroundPixel(int pixel)
void	setLayoutData(java.lang.Object layoutData) Sets the layout data associated with the receiver to the argument.
void	setLocation(int x, int y) Sets the receiver's location to the point specified by the arguments which are relative to the receiver's parent (or its display if its parent is null), unless the receiver is a shell.
void	setLocation(Point location) Sets the receiver's location to the point specified by the arguments which are relative to the receiver's parent (or its display if its parent is null), unless the receiver is a shell.
void	setMenu(Menu menu) Sets the receiver's pop up menu to the argument.
void	setOrientation(int orientation) Sets the orientation of the receiver, which must be one of the constants SWT.LEFT_TO_RIGHT or SWT.RIGHT_TO_LEFT.
boolean	setParent(Composite parent) Changes the parent of the widget to be the one provided if the underlying operating system supports this feature.
(package private) boolean	setRadioFocus(boolean tabbing)
(package private) boolean	setRadioSelection(boolean value)
void	setRedraw(boolean redraw) If the argument is false, causes subsequent drawing operations in the receiver to be ignored.
void	setRegion(Region region) Sets the shape of the control to the region specified by the argument.
(package private) boolean	setSavedFocus()
void	setSize(int width, int height) Sets the receiver's size to the point specified by the arguments.
void	setSize(Point size) Sets the receiver's size to the point specified by the argument.
(package private) boolean	setTabItemFocus()
(package private) void	setToolTipText(Shell shell, java.lang.String string)
void	setToolTipText(java.lang.String string) Sets the receiver's tool tip text to the argument, which may be null indicating that the default tool tip for the control will be shown.
void	setTouchEnabled(boolean enabled) Sets whether this control should send touch events (by default controls do not).
void	setVisible(boolean visible) Marks the receiver as visible if the argument is true, and marks it invisible otherwise.
(package private) void	showWidget(boolean visible)
(package private) void	sort(int[] items)
(package private) void	subclass()
Point	toControl(int x, int y) Returns a point which is the result of converting the argument, which is specified in display relative coordinates, to coordinates relative to the receiver.
Point	toControl(Point point) Returns a point which is the result of converting the argument, which is specified in display relative coordinates, to coordinates relative to the receiver.
Point	toDisplay(int x, int y) Returns a point which is the result of converting the argument, which is specified in coordinates relative to the receiver, to display relative coordinates.
Point	toDisplay(Point point) Returns a point which is the result of converting the argument, which is specified in coordinates relative to the receiver, to display relative coordinates.
(package private) int	topHandle()
(package private) boolean	translateAccelerator(MSG msg)
(package private) boolean	translateMnemonic(Event event, Control control)
(package private) boolean	translateMnemonic(MSG msg)
(package private) boolean	translateTraversal(MSG msg)
(package private) boolean	traverse(Event event)
boolean	traverse(int traversal) Based on the argument, perform one of the expected platform traversal action.
(package private) boolean	traverse(int traversal, char character, int keyCode, int keyLocation, int stateMask, boolean doit)
boolean	traverse(int traversal, Event event) Performs a platform traversal action corresponding to a KeyDown event.
boolean	traverse(int traversal, KeyEvent event) Performs a platform traversal action corresponding to a KeyDown event.
(package private) boolean	traverseEscape()
(package private) boolean	traverseGroup(boolean next)
(package private) boolean	traverseItem(boolean next)
(package private) boolean	traverseMnemonic(char key)
(package private) boolean	traversePage(boolean next)
(package private) boolean	traverseReturn()
(package private) void	unsubclass()
void	update() Forces all outstanding paint requests for the widget to be processed before this method returns.
(package private) void	update(boolean all)
(package private) void	updateBackgroundColor()
(package private) void	updateBackgroundImage()
(package private) void	updateBackgroundMode()
(package private) void	updateFont(Font oldFont, Font newFont)
(package private) void	updateImages()
(package private) void	updateLayout(boolean resize, boolean all)
(package private) void	updateOrientation()
(package private) CREATESTRUCT	widgetCreateStruct()
(package private) int	widgetExtStyle()
(package private) int	widgetParent()
(package private) int	widgetStyle()
(package private) abstract TCHAR	windowClass()
(package private) abstract int	windowProc()
(package private) int	windowProc(int hwnd, int msg, int wParam, int lParam)
(package private) LRESULT	WM_ACTIVATE(int wParam, int lParam)
(package private) LRESULT	WM_CAPTURECHANGED(int wParam, int lParam)
(package private) LRESULT	WM_CHANGEUISTATE(int wParam, int lParam)
(package private) LRESULT	WM_CHAR(int wParam, int lParam)
(package private) LRESULT	WM_CLEAR(int wParam, int lParam)
(package private) LRESULT	WM_CLOSE(int wParam, int lParam)
(package private) LRESULT	WM_COMMAND(int wParam, int lParam)
(package private) LRESULT	WM_CONTEXTMENU(int wParam, int lParam)
(package private) LRESULT	WM_CTLCOLOR(int wParam, int lParam)
(package private) LRESULT	WM_CUT(int wParam, int lParam)
(package private) LRESULT	WM_DESTROY(int wParam, int lParam)
(package private) LRESULT	WM_DRAWITEM(int wParam, int lParam)
(package private) LRESULT	WM_ENDSESSION(int wParam, int lParam)
(package private) LRESULT	WM_ENTERIDLE(int wParam, int lParam)
(package private) LRESULT	WM_ERASEBKGND(int wParam, int lParam)
(package private) LRESULT	WM_GESTURE(int wParam, int lParam)
(package private) LRESULT	WM_GETDLGCODE(int wParam, int lParam)
(package private) LRESULT	WM_GETFONT(int wParam, int lParam)
(package private) LRESULT	WM_GETMINMAXINFO(int wParam, int lParam)
(package private) LRESULT	WM_GETOBJECT(int wParam, int lParam)
(package private) LRESULT	WM_HELP(int wParam, int lParam)
(package private) LRESULT	WM_HOTKEY(int wParam, int lParam)
(package private) LRESULT	WM_HSCROLL(int wParam, int lParam)
(package private) LRESULT	WM_IME_CHAR(int wParam, int lParam)
(package private) LRESULT	WM_IME_COMPOSITION_START(int wParam, int lParam)
(package private) LRESULT	WM_IME_COMPOSITION(int wParam, int lParam)
(package private) LRESULT	WM_IME_ENDCOMPOSITION(int wParam, int lParam)
(package private) LRESULT	WM_INITMENUPOPUP(int wParam, int lParam)
(package private) LRESULT	WM_INPUTLANGCHANGE(int wParam, int lParam)
(package private) LRESULT	WM_KEYDOWN(int wParam, int lParam)
(package private) LRESULT	WM_KEYUP(int wParam, int lParam)
(package private) LRESULT	WM_KILLFOCUS(int wParam, int lParam)
(package private) LRESULT	WM_LBUTTONDBLCLK(int wParam, int lParam)
(package private) LRESULT	WM_LBUTTONDOWN(int wParam, int lParam)
(package private) LRESULT	WM_LBUTTONUP(int wParam, int lParam)
(package private) LRESULT	WM_MBUTTONDBLCLK(int wParam, int lParam)
(package private) LRESULT	WM_MBUTTONDOWN(int wParam, int lParam)
(package private) LRESULT	WM_MBUTTONUP(int wParam, int lParam)
(package private) LRESULT	WM_MEASUREITEM(int wParam, int lParam)
(package private) LRESULT	WM_MENUCHAR(int wParam, int lParam)
(package private) LRESULT	WM_MENUSELECT(int wParam, int lParam)
(package private) LRESULT	WM_MOUSEACTIVATE(int wParam, int lParam)
(package private) LRESULT	WM_MOUSEHOVER(int wParam, int lParam)
(package private) LRESULT	WM_MOUSEHWHEEL(int wParam, int lParam)
(package private) LRESULT	WM_MOUSELEAVE(int wParam, int lParam)
(package private) LRESULT	WM_MOUSEMOVE(int wParam, int lParam)
(package private) LRESULT	WM_MOUSEWHEEL(int wParam, int lParam)
(package private) LRESULT	WM_MOVE(int wParam, int lParam)
(package private) LRESULT	WM_NCACTIVATE(int wParam, int lParam)
(package private) LRESULT	WM_NCCALCSIZE(int wParam, int lParam)
(package private) LRESULT	WM_NCHITTEST(int wParam, int lParam)
(package private) LRESULT	WM_NCLBUTTONDOWN(int wParam, int lParam)
(package private) LRESULT	WM_NCPAINT(int wParam, int lParam)
(package private) LRESULT	WM_NOTIFY(int wParam, int lParam)
(package private) LRESULT	WM_PAINT(int wParam, int lParam)
(package private) LRESULT	WM_PALETTECHANGED(int wParam, int lParam)
(package private) LRESULT	WM_PARENTNOTIFY(int wParam, int lParam)
(package private) LRESULT	WM_PASTE(int wParam, int lParam)
(package private) LRESULT	WM_PRINT(int wParam, int lParam)
(package private) LRESULT	WM_PRINTCLIENT(int wParam, int lParam)
(package private) LRESULT	WM_QUERYENDSESSION(int wParam, int lParam)
(package private) LRESULT	WM_QUERYNEWPALETTE(int wParam, int lParam)
(package private) LRESULT	WM_QUERYOPEN(int wParam, int lParam)
(package private) LRESULT	WM_RBUTTONDBLCLK(int wParam, int lParam)
(package private) LRESULT	WM_RBUTTONDOWN(int wParam, int lParam)
(package private) LRESULT	WM_RBUTTONUP(int wParam, int lParam)
(package private) LRESULT	WM_SETCURSOR(int wParam, int lParam)
(package private) LRESULT	WM_SETFOCUS(int wParam, int lParam)
(package private) LRESULT	WM_SETFONT(int wParam, int lParam)
(package private) LRESULT	WM_SETREDRAW(int wParam, int lParam)
(package private) LRESULT	WM_SETTINGCHANGE(int wParam, int lParam)
(package private) LRESULT	WM_SHOWWINDOW(int wParam, int lParam)
(package private) LRESULT	WM_SIZE(int wParam, int lParam)
(package private) LRESULT	WM_SYSCHAR(int wParam, int lParam)
(package private) LRESULT	WM_SYSCOLORCHANGE(int wParam, int lParam)
(package private) LRESULT	WM_SYSCOMMAND(int wParam, int lParam)
(package private) LRESULT	WM_SYSKEYDOWN(int wParam, int lParam)
(package private) LRESULT	WM_SYSKEYUP(int wParam, int lParam)
(package private) LRESULT	WM_TABLET_FLICK(int wParam, int lParam)
(package private) LRESULT	WM_TIMER(int wParam, int lParam)
(package private) LRESULT	WM_TOUCH(int wParam, int lParam)
(package private) LRESULT	WM_UNDO(int wParam, int lParam)
(package private) LRESULT	WM_UNINITMENUPOPUP(int wParam, int lParam)
(package private) LRESULT	WM_UPDATEUISTATE(int wParam, int lParam)
(package private) LRESULT	WM_VSCROLL(int wParam, int lParam)
(package private) LRESULT	WM_WINDOWPOSCHANGED(int wParam, int lParam)
(package private) LRESULT	WM_WINDOWPOSCHANGING(int wParam, int lParam)
(package private) LRESULT	WM_XBUTTONDBLCLK(int wParam, int lParam)
(package private) LRESULT	WM_XBUTTONDOWN(int wParam, int lParam)
(package private) LRESULT	WM_XBUTTONUP(int wParam, int lParam)
(package private) LRESULT	wmColorChild(int wParam, int lParam)
(package private) LRESULT	wmCommandChild(int wParam, int lParam)
(package private) LRESULT	wmDrawChild(int wParam, int lParam)
(package private) LRESULT	wmMeasureChild(int wParam, int lParam)
(package private) LRESULT	wmNotify(NMHDR hdr, int wParam, int lParam)
(package private) LRESULT	wmNotifyChild(NMHDR hdr, int wParam, int lParam)
(package private) LRESULT	wmScrollChild(int wParam, int lParam)

Methods inherited from class org.eclipse.swt.widgets.Widget

_addListener, addDisposeListener, addListener, callWindowProc, checkBits, checkOpened, checkOrientation, checkParent, checkSubclass, checkWidget, DeferWindowPos, dispose, dragDetect, error, filters, findItem, fixMnemonic, fixMnemonic, getData, getData, getDisplay, getListeners, getName, getNameText, getStyle, hooks, isDisposed, isListening, isValidSubclass, isValidThread, notifyListeners, postEvent, postEvent, release, releaseChildren, removeDisposeListener, removeListener, removeListener, reskin, reskinChildren, reskinWidget, sendDragEvent, sendDragEvent, sendEvent, sendEvent, sendEvent, sendEvent, sendKeyEvent, sendKeyEvent, sendMouseEvent, sendMouseEvent, sendMouseWheelEvent, sendSelectionEvent, sendSelectionEvent, setData, setData, setInputState, setKeyState, setLocationMask, setTabGroupFocus, SetWindowPos, showMenu, showMenu, toString, updateMenuLocation, wmCaptureChanged, wmChar, wmContextMenu, wmIMEChar, wmKeyDown, wmKeyUp, wmKillFocus, wmLButtonDblClk, wmLButtonDown, wmLButtonUp, wmMButtonDblClk, wmMButtonDown, wmMButtonUp, wmMouseHover, wmMouseHWheel, wmMouseLeave, wmMouseMove, wmMouseWheel, wmNCPaint, wmPaint, wmPrint, wmRButtonDblClk, wmRButtonDown, wmRButtonUp, wmSetFocus, wmSysChar, wmSysKeyDown, wmSysKeyUp, wmXButtonDblClk, wmXButtonDown, wmXButtonUp

Methods inherited from class java.lang.Object

clone, equals, finalize, getClass, hashCode, notify, notifyAll, wait, wait, wait

Field Detail

handle

public int handle

the handle to the OS resource (Warning: This field is platform dependent)

IMPORTANT: This field is not part of the SWT public API. It is marked public only so that it can be shared within the packages provided by SWT. It is not available on all platforms and should never be accessed from application code.

parent

Composite parent

cursor

Cursor cursor

menu

Menu menu

toolTipText

java.lang.String toolTipText

layoutData

java.lang.Object layoutData

accessible

Accessible accessible

backgroundImage

Image backgroundImage

region

Region region

font

Font font

drawCount

int drawCount

foreground

int foreground

background

int background

Constructor Detail

Control

Control()

Prevents uninitialized instances from being created outside the package.

Control

public Control(Composite parent,
       int style)

Constructs a new instance of this class given its parent and a style value describing its behavior and appearance.

The style value is either one of the style constants defined in class SWT which is applicable to instances of this class, or must be built by bitwise OR'ing together (that is, using the int "|" operator) two or more of those SWT style constants. The class description lists the style constants that are applicable to the class. Style bits are also inherited from superclasses.

Parameters:

parent - a composite control which will be the parent of the new instance (cannot be null)

style - the style of control to construct

Throws:

java.lang.IllegalArgumentException -

• ERROR_NULL_ARGUMENT - if the parent is null

SWTException -

• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the parent
• ERROR_INVALID_SUBCLASS - if this class is not an allowed subclass

See Also:

SWT.BORDER, SWT.LEFT_TO_RIGHT, SWT.RIGHT_TO_LEFT, Widget.checkSubclass(), Widget.getStyle()

Method Detail

addControlListener

public void addControlListener(ControlListener listener)

Adds the listener to the collection of listeners who will be notified when the control is moved or resized, by sending it one of the messages defined in the ControlListener interface.

Parameters:

listener - the listener which should be notified

Throws:

java.lang.IllegalArgumentException -

• ERROR_NULL_ARGUMENT - if the listener is null

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

See Also:

ControlListener, removeControlListener(org.eclipse.swt.events.ControlListener)

addDragDetectListener

public void addDragDetectListener(DragDetectListener listener)

Adds the listener to the collection of listeners who will be notified when a drag gesture occurs, by sending it one of the messages defined in the DragDetectListener interface.

Parameters:

listener - the listener which should be notified

Throws:

java.lang.IllegalArgumentException -

• ERROR_NULL_ARGUMENT - if the listener is null

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

Since:

3.3

See Also:

DragDetectListener, removeDragDetectListener(org.eclipse.swt.events.DragDetectListener)

addFocusListener

public void addFocusListener(FocusListener listener)

Adds the listener to the collection of listeners who will be notified when the control gains or loses focus, by sending it one of the messages defined in the FocusListener interface.

Parameters:

listener - the listener which should be notified

Throws:

java.lang.IllegalArgumentException -

• ERROR_NULL_ARGUMENT - if the listener is null

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

See Also:

FocusListener, removeFocusListener(org.eclipse.swt.events.FocusListener)

addGestureListener

public void addGestureListener(GestureListener listener)

Adds the listener to the collection of listeners who will be notified when gesture events are generated for the control, by sending it one of the messages defined in the GestureListener interface.

NOTE: If setTouchEnabled(true) has previously been invoked on the receiver then setTouchEnabled(false) must be invoked on it to specify that gesture events should be sent instead of touch events.

Parameters:

listener - the listener which should be notified

Throws:

java.lang.IllegalArgumentException -

• ERROR_NULL_ARGUMENT - if the listener is null

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

Since:

3.7

See Also:

GestureListener, removeGestureListener(org.eclipse.swt.events.GestureListener), setTouchEnabled(boolean)

addHelpListener

public void addHelpListener(HelpListener listener)

Adds the listener to the collection of listeners who will be notified when help events are generated for the control, by sending it one of the messages defined in the HelpListener interface.

Parameters:

listener - the listener which should be notified

Throws:

java.lang.IllegalArgumentException -

• ERROR_NULL_ARGUMENT - if the listener is null

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

See Also:

HelpListener, removeHelpListener(org.eclipse.swt.events.HelpListener)

addKeyListener

public void addKeyListener(KeyListener listener)

Adds the listener to the collection of listeners who will be notified when keys are pressed and released on the system keyboard, by sending it one of the messages defined in the KeyListener interface.

When a key listener is added to a control, the control will take part in widget traversal. By default, all traversal keys (such as the tab key and so on) are delivered to the control. In order for a control to take part in traversal, it should listen for traversal events. Otherwise, the user can traverse into a control but not out. Note that native controls such as table and tree implement key traversal in the operating system. It is not necessary to add traversal listeners for these controls, unless you want to override the default traversal.

Parameters:

listener - the listener which should be notified

Throws:

java.lang.IllegalArgumentException -

• ERROR_NULL_ARGUMENT - if the listener is null

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

See Also:

KeyListener, removeKeyListener(org.eclipse.swt.events.KeyListener)

addMenuDetectListener

public void addMenuDetectListener(MenuDetectListener listener)

Adds the listener to the collection of listeners who will be notified when the platform-specific context menu trigger has occurred, by sending it one of the messages defined in the MenuDetectListener interface.

Parameters:

listener - the listener which should be notified

Throws:

java.lang.IllegalArgumentException -

• ERROR_NULL_ARGUMENT - if the listener is null

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

Since:

3.3

See Also:

MenuDetectListener, removeMenuDetectListener(org.eclipse.swt.events.MenuDetectListener)

addMouseListener

public void addMouseListener(MouseListener listener)

Adds the listener to the collection of listeners who will be notified when mouse buttons are pressed and released, by sending it one of the messages defined in the MouseListener interface.

Parameters:

listener - the listener which should be notified

Throws:

java.lang.IllegalArgumentException -

• ERROR_NULL_ARGUMENT - if the listener is null

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

See Also:

MouseListener, removeMouseListener(org.eclipse.swt.events.MouseListener)

addMouseTrackListener

public void addMouseTrackListener(MouseTrackListener listener)

Adds the listener to the collection of listeners who will be notified when the mouse passes or hovers over controls, by sending it one of the messages defined in the MouseTrackListener interface.

Parameters:

listener - the listener which should be notified

Throws:

java.lang.IllegalArgumentException -

• ERROR_NULL_ARGUMENT - if the listener is null

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

See Also:

MouseTrackListener, removeMouseTrackListener(org.eclipse.swt.events.MouseTrackListener)

addMouseMoveListener

public void addMouseMoveListener(MouseMoveListener listener)

Adds the listener to the collection of listeners who will be notified when the mouse moves, by sending it one of the messages defined in the MouseMoveListener interface.

Parameters:

listener - the listener which should be notified

Throws:

java.lang.IllegalArgumentException -

• ERROR_NULL_ARGUMENT - if the listener is null

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

See Also:

MouseMoveListener, removeMouseMoveListener(org.eclipse.swt.events.MouseMoveListener)

addMouseWheelListener

public void addMouseWheelListener(MouseWheelListener listener)

Adds the listener to the collection of listeners who will be notified when the mouse wheel is scrolled, by sending it one of the messages defined in the MouseWheelListener interface.

Parameters:

listener - the listener which should be notified

Throws:

java.lang.IllegalArgumentException -

• ERROR_NULL_ARGUMENT - if the listener is null

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

Since:

3.3

See Also:

MouseWheelListener, removeMouseWheelListener(org.eclipse.swt.events.MouseWheelListener)

addPaintListener

public void addPaintListener(PaintListener listener)

Adds the listener to the collection of listeners who will be notified when the receiver needs to be painted, by sending it one of the messages defined in the PaintListener interface.

Parameters:

listener - the listener which should be notified

Throws:

java.lang.IllegalArgumentException -

• ERROR_NULL_ARGUMENT - if the listener is null

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

See Also:

PaintListener, removePaintListener(org.eclipse.swt.events.PaintListener)

addTouchListener

public void addTouchListener(TouchListener listener)

Adds the listener to the collection of listeners who will be notified when touch events occur, by sending it one of the messages defined in the TouchListener interface.

NOTE: You must also call setTouchEnabled(true) to specify that touch events should be sent, which will cause gesture events to not be sent.

Parameters:

listener - the listener which should be notified

Throws:

java.lang.IllegalArgumentException -

• ERROR_NULL_ARGUMENT - if the listener is null

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

Since:

3.7

See Also:

TouchListener, removeTouchListener(org.eclipse.swt.events.TouchListener), setTouchEnabled(boolean)

addTraverseListener

public void addTraverseListener(TraverseListener listener)

Adds the listener to the collection of listeners who will be notified when traversal events occur, by sending it one of the messages defined in the TraverseListener interface.

Parameters:

listener - the listener which should be notified

Throws:

java.lang.IllegalArgumentException -

• ERROR_NULL_ARGUMENT - if the listener is null

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

See Also:

TraverseListener, removeTraverseListener(org.eclipse.swt.events.TraverseListener)

binarySearch

int binarySearch(int[] indices,
               int start,
               int end,
               int index)

borderHandle

int borderHandle()

checkBackground

void checkBackground()

checkBorder

void checkBorder()

checkBuffered

void checkBuffered()

checkComposited

void checkComposited()

checkHandle

boolean checkHandle(int hwnd)

checkMirrored

void checkMirrored()

computeSize

public Point computeSize(int wHint,
                int hHint)

Returns the preferred size of the receiver.

The preferred size of a control is the size that it would best be displayed at. The width hint and height hint arguments allow the caller to ask a control questions such as "Given a particular width, how high does the control need to be to show all of the contents?" To indicate that the caller does not wish to constrain a particular dimension, the constant SWT.DEFAULT is passed for the hint.

Parameters:

wHint - the width hint (can be SWT.DEFAULT)

hHint - the height hint (can be SWT.DEFAULT)

Returns:

the preferred size of the control

Throws:

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

See Also:

Layout, getBorderWidth(), getBounds(), getSize(), pack(boolean), "computeTrim, getClientArea for controls that implement them"

computeSize

public Point computeSize(int wHint,
                int hHint,
                boolean changed)

Returns the preferred size of the receiver.

The preferred size of a control is the size that it would best be displayed at. The width hint and height hint arguments allow the caller to ask a control questions such as "Given a particular width, how high does the control need to be to show all of the contents?" To indicate that the caller does not wish to constrain a particular dimension, the constant SWT.DEFAULT is passed for the hint.

If the changed flag is true, it indicates that the receiver's contents have changed, therefore any caches that a layout manager containing the control may have been keeping need to be flushed. When the control is resized, the changed flag will be false, so layout manager caches can be retained.

Parameters:

wHint - the width hint (can be SWT.DEFAULT)

hHint - the height hint (can be SWT.DEFAULT)

changed - true if the control's contents have changed, and false otherwise

Returns:

the preferred size of the control.

Throws:

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

See Also:

Layout, getBorderWidth(), getBounds(), getSize(), pack(boolean), "computeTrim, getClientArea for controls that implement them"

computeTabGroup

Widget computeTabGroup()

computeTabRoot

Control computeTabRoot()

computeTabList

Widget[] computeTabList()

createHandle

void createHandle()

checkGesture

void checkGesture()

createWidget

void createWidget()

defaultBackground

int defaultBackground()

defaultFont

int defaultFont()

defaultForeground

int defaultForeground()

deregister

void deregister()

destroyWidget

void destroyWidget()

Description copied from class: Widget

Destroys the widget in the operating system and releases the widget's handle. If the widget does not have a handle, this method may hide the widget, mark the widget as destroyed or do nothing, depending on the widget.

When a widget is destroyed in the operating system, its descendants are also destroyed by the operating system. This means that it is only necessary to call destroyWidget on the root of the widget tree.

This method is called after releaseWidget().

See also releaseChild(), releaseWidget() and releaseHandle().

Overrides:

destroyWidget in class Widget

See Also:

Widget.dispose()

dragDetect

public boolean dragDetect(Event event)

Detects a drag and drop gesture. This method is used to detect a drag gesture when called from within a mouse down listener.

By default, a drag is detected when the gesture occurs anywhere within the client area of a control. Some controls, such as tables and trees, override this behavior. In addition to the operating system specific drag gesture, they require the mouse to be inside an item. Custom widget writers can use setDragDetect to disable the default detection, listen for mouse down, and then call dragDetect() from within the listener to conditionally detect a drag.

Parameters:

event - the mouse down event

Returns:

true if the gesture occurred, and false otherwise.

Throws:

java.lang.IllegalArgumentException -

• ERROR_NULL_ARGUMENT if the event is null

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

Since:

3.3

See Also:

DragDetectListener, addDragDetectListener(org.eclipse.swt.events.DragDetectListener), getDragDetect(), setDragDetect(boolean)

dragDetect

public boolean dragDetect(MouseEvent event)

Detects a drag and drop gesture. This method is used to detect a drag gesture when called from within a mouse down listener.

By default, a drag is detected when the gesture occurs anywhere within the client area of a control. Some controls, such as tables and trees, override this behavior. In addition to the operating system specific drag gesture, they require the mouse to be inside an item. Custom widget writers can use setDragDetect to disable the default detection, listen for mouse down, and then call dragDetect() from within the listener to conditionally detect a drag.

Parameters:

event - the mouse down event

Returns:

true if the gesture occurred, and false otherwise.

Throws:

java.lang.IllegalArgumentException -

• ERROR_NULL_ARGUMENT if the event is null

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

Since:

3.3

See Also:

DragDetectListener, addDragDetectListener(org.eclipse.swt.events.DragDetectListener), getDragDetect(), setDragDetect(boolean)

dragDetect

boolean dragDetect(int button,
                 int count,
                 int stateMask,
                 int x,
                 int y)

drawBackground

void drawBackground(int hDC)

drawBackground

void drawBackground(int hDC,
                  RECT rect)

drawBackground

void drawBackground(int hDC,
                  RECT rect,
                  int pixel,
                  int tx,
                  int ty)

drawImageBackground

void drawImageBackground(int hDC,
                       int hwnd,
                       int hBitmap,
                       RECT rect,
                       int tx,
                       int ty)

drawThemeBackground

void drawThemeBackground(int hDC,
                       int hwnd,
                       RECT rect)

enableDrag

void enableDrag(boolean enabled)

enableWidget

void enableWidget(boolean enabled)

fillBackground

void fillBackground(int hDC,
                  int pixel,
                  RECT rect)

fillImageBackground

void fillImageBackground(int hDC,
                       Control control,
                       RECT rect,
                       int tx,
                       int ty)

fillThemeBackground

void fillThemeBackground(int hDC,
                       Control control,
                       RECT rect)

findBackgroundControl

Control findBackgroundControl()

findBrush

int findBrush(int value,
            int lbStyle)

findCursor

Cursor findCursor()

findImageControl

Control findImageControl()

findThemeControl

Control findThemeControl()

findMenus

Menu[] findMenus(Control control)

findMnemonic

char findMnemonic(java.lang.String string)

fixChildren

void fixChildren(Shell newShell,
               Shell oldShell,
               Decorations newDecorations,
               Decorations oldDecorations,
               Menu[] menus)

fixFocus

void fixFocus(Control focusControl)

forceFocus

public boolean forceFocus()

Forces the receiver to have the keyboard focus, causing all keyboard events to be delivered to it.

Returns:

true if the control got focus, and false if it was unable to.

Throws:

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

See Also:

setFocus()

forceResize

void forceResize()

getAccessible

public Accessible getAccessible()

Returns the accessible object for the receiver.

If this is the first time this object is requested, then the object is created and returned. The object returned by getAccessible() does not need to be disposed.

Returns:

the accessible object

Throws:

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

Since:

2.0

See Also:

Accessible.addAccessibleListener(org.eclipse.swt.accessibility.AccessibleListener), Accessible.addAccessibleControlListener(org.eclipse.swt.accessibility.AccessibleControlListener)

getBackground

public Color getBackground()

Returns the receiver's background color.

Note: This operation is a hint and may be overridden by the platform. For example, on some versions of Windows the background of a TabFolder, is a gradient rather than a solid color.

Returns:

the background color

Throws:

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

getBackgroundImage

public Image getBackgroundImage()

Returns the receiver's background image.

Returns:

the background image

Throws:

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

Since:

3.2

getBackgroundPixel

int getBackgroundPixel()

getBorderWidth

public int getBorderWidth()

Returns the receiver's border width.

Returns:

the border width

Throws:

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

getBounds

public Rectangle getBounds()

Returns a rectangle describing the receiver's size and location relative to its parent (or its display if its parent is null), unless the receiver is a shell. In this case, the location is relative to the display.

Returns:

the receiver's bounding rectangle

Throws:

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

getCodePage

int getCodePage()

getClipboardText

java.lang.String getClipboardText()

getCursor

public Cursor getCursor()

Returns the receiver's cursor, or null if it has not been set.

When the mouse pointer passes over a control its appearance is changed to match the control's cursor.

Returns:

the receiver's cursor or null

Throws:

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

Since:

3.3

getDragDetect

public boolean getDragDetect()

Returns true if the receiver is detecting drag gestures, and false otherwise.

Returns:

the receiver's drag detect state

Throws:

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

Since:

3.3

getDrawing

boolean getDrawing()

getEnabled

public boolean getEnabled()

Returns true if the receiver is enabled, and false otherwise. A disabled control is typically not selectable from the user interface and draws with an inactive or "grayed" look.

Returns:

the receiver's enabled state

Throws:

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

See Also:

isEnabled()

getFont

public Font getFont()

Returns the font that the receiver will use to paint textual information.

Returns:

the receiver's font

Throws:

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

getForeground

public Color getForeground()

Returns the foreground color that the receiver will use to draw.

Returns:

the receiver's foreground color

Throws:

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

getForegroundPixel

int getForegroundPixel()

getLayoutData

public java.lang.Object getLayoutData()

Returns layout data which is associated with the receiver.

Returns:

the receiver's layout data

Throws:

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

getLocation

public Point getLocation()

Returns a point describing the receiver's location relative to its parent (or its display if its parent is null), unless the receiver is a shell. In this case, the point is relative to the display.

Returns:

the receiver's location

Throws:

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

getMenu

public Menu getMenu()

Returns the receiver's pop up menu if it has one, or null if it does not. All controls may optionally have a pop up menu that is displayed when the user requests one for the control. The sequence of key strokes, button presses and/or button releases that are used to request a pop up menu is platform specific.

Overrides:

getMenu in class Widget

Returns:

the receiver's menu

Throws:

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

getMonitor

public Monitor getMonitor()

Returns the receiver's monitor.

Returns:

the receiver's monitor

Throws:

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

Since:

3.0

getOrientation

public int getOrientation()

Returns the orientation of the receiver, which will be one of the constants SWT.LEFT_TO_RIGHT or SWT.RIGHT_TO_LEFT.

Returns:

the orientation style

Throws:

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

Since:

3.7

getParent

public Composite getParent()

Returns the receiver's parent, which must be a Composite or null when the receiver is a shell that was created with null or a display for a parent.

Returns:

the receiver's parent

Throws:

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

getPath

Control[] getPath()

getRegion

public Region getRegion()

Returns the region that defines the shape of the control, or null if the control has the default shape.

Returns:

the region that defines the shape of the shell (or null)

Throws:

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

Since:

3.4

getShell

public Shell getShell()

Returns the receiver's shell. For all controls other than shells, this simply returns the control's nearest ancestor shell. Shells return themselves, even if they are children of other shells.

Returns:

the receiver's shell

Throws:

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

See Also:

getParent()

getSize

public Point getSize()

Returns a point describing the receiver's size. The x coordinate of the result is the width of the receiver. The y coordinate of the result is the height of the receiver.

Returns:

the receiver's size

Throws:

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

getToolTipText

public java.lang.String getToolTipText()

Returns the receiver's tool tip text, or null if it has not been set.

Returns:

the receiver's tool tip text

Throws:

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

getTouchEnabled

public boolean getTouchEnabled()

Returns true if this control is set to send touch events, or false if it is set to send gesture events instead. This method also returns false if a touch-based input device is not detected (this can be determined with Display#getTouchEnabled()). Use setTouchEnabled(boolean) to switch the events that a control sends between touch events and gesture events.

Returns:

true if the control is set to send touch events, or false otherwise

Throws:

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

Since:

3.7

See Also:

setTouchEnabled(boolean), Display.getTouchEnabled()

getVisible

public boolean getVisible()

Returns true if the receiver is visible, and false otherwise.

If one of the receiver's ancestors is not visible or some other condition makes the receiver not visible, this method may still indicate that it is considered visible even though it may not actually be showing.

Returns:

the receiver's visibility state

Throws:

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

hasCursor

boolean hasCursor()

hasFocus

boolean hasFocus()

internal_new_GC

public int internal_new_GC(GCData data)

Invokes platform specific functionality to allocate a new GC handle.

IMPORTANT: This method is not part of the public API for Control. It is marked public only so that it can be shared within the packages provided by SWT. It is not available on all platforms, and should never be called from application code.

Specified by:

internal_new_GC in interface Drawable

Parameters:

data - the platform specific GC data

Returns:

the platform specific GC handle

internal_dispose_GC

public void internal_dispose_GC(int hDC,
                       GCData data)

Invokes platform specific functionality to dispose a GC handle.

IMPORTANT: This method is not part of the public API for Control. It is marked public only so that it can be shared within the packages provided by SWT. It is not available on all platforms, and should never be called from application code.

Specified by:

internal_dispose_GC in interface Drawable

Parameters:

hDC - the platform specific GC handle

data - the platform specific GC data

isActive

boolean isActive()

isEnabled

public boolean isEnabled()

Returns true if the receiver is enabled and all ancestors up to and including the receiver's nearest ancestor shell are enabled. Otherwise, false is returned. A disabled control is typically not selectable from the user interface and draws with an inactive or "grayed" look.

Returns:

the receiver's enabled state

Throws:

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

See Also:

getEnabled()

isFocusControl

public boolean isFocusControl()

Returns true if the receiver has the user-interface focus, and false otherwise.

Returns:

the receiver's focus state

Throws:

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

isFocusAncestor

boolean isFocusAncestor(Control control)

isReparentable

public boolean isReparentable()

Returns true if the underlying operating system supports this reparenting, otherwise false

Returns:

true if the widget can be reparented, otherwise false

Throws:

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

isShowing

boolean isShowing()

isTabGroup

boolean isTabGroup()

isTabItem

boolean isTabItem()

isVisible

public boolean isVisible()

Returns true if the receiver is visible and all ancestors up to and including the receiver's nearest ancestor shell are visible. Otherwise, false is returned.

Returns:

the receiver's visibility state

Throws:

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

See Also:

getVisible()

mapEvent

void mapEvent(int hwnd,
            Event event)

Overrides:

mapEvent in class Widget

markLayout

void markLayout(boolean changed,
              boolean all)

menuShell

Decorations menuShell()

mnemonicHit

boolean mnemonicHit(char key)

mnemonicMatch

boolean mnemonicMatch(char key)

moveAbove

public void moveAbove(Control control)

Moves the receiver above the specified control in the drawing order. If the argument is null, then the receiver is moved to the top of the drawing order. The control at the top of the drawing order will not be covered by other controls even if they occupy intersecting areas.

Parameters:

control - the sibling control (or null)

Throws:

java.lang.IllegalArgumentException -

• ERROR_INVALID_ARGUMENT - if the control has been disposed

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

See Also:

moveBelow(org.eclipse.swt.widgets.Control), Composite.getChildren()

moveBelow

public void moveBelow(Control control)

Moves the receiver below the specified control in the drawing order. If the argument is null, then the receiver is moved to the bottom of the drawing order. The control at the bottom of the drawing order will be covered by all other controls which occupy intersecting areas.

Parameters:

control - the sibling control (or null)

Throws:

java.lang.IllegalArgumentException -

• ERROR_INVALID_ARGUMENT - if the control has been disposed

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

See Also:

moveAbove(org.eclipse.swt.widgets.Control), Composite.getChildren()

new_Accessible

Accessible new_Accessible(Control control)

new_GC

GC new_GC(GCData data)

Overrides:

new_GC in class Widget

pack

public void pack()

Causes the receiver to be resized to its preferred size. For a composite, this involves computing the preferred size from its layout, if there is one.

Throws:

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

See Also:

computeSize(int, int, boolean)

pack

public void pack(boolean changed)

Causes the receiver to be resized to its preferred size. For a composite, this involves computing the preferred size from its layout, if there is one.

If the changed flag is true, it indicates that the receiver's contents have changed, therefore any caches that a layout manager containing the control may have been keeping need to be flushed. When the control is resized, the changed flag will be false, so layout manager caches can be retained.

Parameters:

changed - whether or not the receiver's contents have changed

Throws:

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

See Also:

computeSize(int, int, boolean)

print

public boolean print(GC gc)

Prints the receiver and all children.

Parameters:

gc - the gc where the drawing occurs

Returns:

true if the operation was successful and false otherwise

Throws:

java.lang.IllegalArgumentException -

• ERROR_NULL_ARGUMENT - if the gc is null
• ERROR_INVALID_ARGUMENT - if the gc has been disposed

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

Since:

3.4

printWidget

void printWidget(int hwnd,
               int hdc,
               GC gc)

redraw

public void redraw()

Causes the entire bounds of the receiver to be marked as needing to be redrawn. The next time a paint request is processed, the control will be completely painted, including the background.

Throws:

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

See Also:

update(), PaintListener, SWT.Paint, SWT.NO_BACKGROUND, SWT.NO_REDRAW_RESIZE, SWT.NO_MERGE_PAINTS, SWT.DOUBLE_BUFFERED

redraw

void redraw(boolean all)

redraw

public void redraw(int x,
          int y,
          int width,
          int height,
          boolean all)

Causes the rectangular area of the receiver specified by the arguments to be marked as needing to be redrawn. The next time a paint request is processed, that area of the receiver will be painted, including the background. If the all flag is true, any children of the receiver which intersect with the specified area will also paint their intersecting areas. If the all flag is false, the children will not be painted.

Parameters:

x - the x coordinate of the area to draw

y - the y coordinate of the area to draw

width - the width of the area to draw

height - the height of the area to draw

all - true if children should redraw, and false otherwise

Throws:

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

See Also:

update(), PaintListener, SWT.Paint, SWT.NO_BACKGROUND, SWT.NO_REDRAW_RESIZE, SWT.NO_MERGE_PAINTS, SWT.DOUBLE_BUFFERED

redrawChildren

boolean redrawChildren()

register

void register()

releaseHandle

void releaseHandle()

Overrides:

releaseHandle in class Widget

releaseParent

void releaseParent()

Overrides:

releaseParent in class Widget

releaseWidget

void releaseWidget()

Overrides:

releaseWidget in class Widget

removeControlListener

public void removeControlListener(ControlListener listener)

Removes the listener from the collection of listeners who will be notified when the control is moved or resized.

Parameters:

listener - the listener which should no longer be notified

Throws:

java.lang.IllegalArgumentException -

• ERROR_NULL_ARGUMENT - if the listener is null

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

See Also:

ControlListener, addControlListener(org.eclipse.swt.events.ControlListener)

removeDragDetectListener

public void removeDragDetectListener(DragDetectListener listener)

Removes the listener from the collection of listeners who will be notified when a drag gesture occurs.

Parameters:

listener - the listener which should no longer be notified

Throws:

java.lang.IllegalArgumentException -

• ERROR_NULL_ARGUMENT - if the listener is null

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

Since:

3.3

See Also:

DragDetectListener, addDragDetectListener(org.eclipse.swt.events.DragDetectListener)

removeFocusListener

public void removeFocusListener(FocusListener listener)

Removes the listener from the collection of listeners who will be notified when the control gains or loses focus.

Parameters:

listener - the listener which should no longer be notified

Throws:

java.lang.IllegalArgumentException -

• ERROR_NULL_ARGUMENT - if the listener is null

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

See Also:

FocusListener, addFocusListener(org.eclipse.swt.events.FocusListener)

removeGestureListener

public void removeGestureListener(GestureListener listener)

Removes the listener from the collection of listeners who will be notified when gesture events are generated for the control.

Parameters:

listener - the listener which should no longer be notified

Throws:

java.lang.IllegalArgumentException -

• ERROR_NULL_ARGUMENT - if the listener is null

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

Since:

3.7

See Also:

GestureListener, addGestureListener(org.eclipse.swt.events.GestureListener)

removeHelpListener

public void removeHelpListener(HelpListener listener)

Removes the listener from the collection of listeners who will be notified when the help events are generated for the control.

Parameters:

listener - the listener which should no longer be notified

Throws:

java.lang.IllegalArgumentException -

• ERROR_NULL_ARGUMENT - if the listener is null

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

See Also:

HelpListener, addHelpListener(org.eclipse.swt.events.HelpListener)

removeKeyListener

public void removeKeyListener(KeyListener listener)

Removes the listener from the collection of listeners who will be notified when keys are pressed and released on the system keyboard.

Parameters:

listener - the listener which should no longer be notified

Throws:

java.lang.IllegalArgumentException -

• ERROR_NULL_ARGUMENT - if the listener is null

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

See Also:

KeyListener, addKeyListener(org.eclipse.swt.events.KeyListener)

removeMenuDetectListener

public void removeMenuDetectListener(MenuDetectListener listener)

Removes the listener from the collection of listeners who will be notified when the platform-specific context menu trigger has occurred.

Parameters:

listener - the listener which should no longer be notified

Throws:

java.lang.IllegalArgumentException -

• ERROR_NULL_ARGUMENT - if the listener is null

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

Since:

3.3

See Also:

MenuDetectListener, addMenuDetectListener(org.eclipse.swt.events.MenuDetectListener)

removeMouseTrackListener

public void removeMouseTrackListener(MouseTrackListener listener)

Removes the listener from the collection of listeners who will be notified when the mouse passes or hovers over controls.

Parameters:

listener - the listener which should no longer be notified

Throws:

java.lang.IllegalArgumentException -

• ERROR_NULL_ARGUMENT - if the listener is null

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

See Also:

MouseTrackListener, addMouseTrackListener(org.eclipse.swt.events.MouseTrackListener)

removeMouseListener

public void removeMouseListener(MouseListener listener)

Removes the listener from the collection of listeners who will be notified when mouse buttons are pressed and released.

Parameters:

listener - the listener which should no longer be notified

Throws:

java.lang.IllegalArgumentException -

• ERROR_NULL_ARGUMENT - if the listener is null

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

See Also:

MouseListener, addMouseListener(org.eclipse.swt.events.MouseListener)

removeMouseMoveListener

public void removeMouseMoveListener(MouseMoveListener listener)

Removes the listener from the collection of listeners who will be notified when the mouse moves.

Parameters:

listener - the listener which should no longer be notified

Throws:

java.lang.IllegalArgumentException -

• ERROR_NULL_ARGUMENT - if the listener is null

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

See Also:

MouseMoveListener, addMouseMoveListener(org.eclipse.swt.events.MouseMoveListener)

removeMouseWheelListener

public void removeMouseWheelListener(MouseWheelListener listener)

Removes the listener from the collection of listeners who will be notified when the mouse wheel is scrolled.

Parameters:

listener - the listener which should no longer be notified

Throws:

java.lang.IllegalArgumentException -

• ERROR_NULL_ARGUMENT - if the listener is null

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

Since:

3.3

See Also:

MouseWheelListener, addMouseWheelListener(org.eclipse.swt.events.MouseWheelListener)

removePaintListener

public void removePaintListener(PaintListener listener)

Removes the listener from the collection of listeners who will be notified when the receiver needs to be painted.

Parameters:

listener - the listener which should no longer be notified

Throws:

java.lang.IllegalArgumentException -

• ERROR_NULL_ARGUMENT - if the listener is null

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

See Also:

PaintListener, addPaintListener(org.eclipse.swt.events.PaintListener)

removeTouchListener

public void removeTouchListener(TouchListener listener)

Removes the listener from the collection of listeners who will be notified when touch events occur.

Parameters:

listener - the listener which should no longer be notified

Throws:

java.lang.IllegalArgumentException -

• ERROR_NULL_ARGUMENT - if the listener is null

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

Since:

3.7

See Also:

TouchListener, addTouchListener(org.eclipse.swt.events.TouchListener)

removeTraverseListener

public void removeTraverseListener(TraverseListener listener)

Removes the listener from the collection of listeners who will be notified when traversal events occur.

Parameters:

listener - the listener which should no longer be notified

Throws:

java.lang.IllegalArgumentException -

• ERROR_NULL_ARGUMENT - if the listener is null

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

See Also:

TraverseListener, addTraverseListener(org.eclipse.swt.events.TraverseListener)

showWidget

void showWidget(boolean visible)

sendFocusEvent

boolean sendFocusEvent(int type)

Overrides:

sendFocusEvent in class Widget

sendGestureEvent

boolean sendGestureEvent(GESTUREINFO gi)

sendMove

void sendMove()

sendResize

void sendResize()

sendTouchEvent

void sendTouchEvent(TOUCHINPUT[] touchInput)

setBackground

void setBackground()

setBackground

public void setBackground(Color color)

Sets the receiver's background color to the color specified by the argument, or to the default system color for the control if the argument is null.

Note: This operation is a hint and may be overridden by the platform. For example, on Windows the background of a Button cannot be changed.

Parameters:

color - the new color (or null)

Throws:

java.lang.IllegalArgumentException -

• ERROR_INVALID_ARGUMENT - if the argument has been disposed

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

setBackgroundImage

public void setBackgroundImage(Image image)

Sets the receiver's background image to the image specified by the argument, or to the default system color for the control if the argument is null. The background image is tiled to fill the available space.

Note: This operation is a hint and may be overridden by the platform. For example, on Windows the background of a Button cannot be changed.

Parameters:

image - the new image (or null)

Throws:

java.lang.IllegalArgumentException -

• ERROR_INVALID_ARGUMENT - if the argument has been disposed
• ERROR_INVALID_ARGUMENT - if the argument is not a bitmap

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

Since:

3.2

setBackgroundImage

void setBackgroundImage(int hBitmap)

setBackgroundPixel

void setBackgroundPixel(int pixel)

setBounds

public void setBounds(int x,
             int y,
             int width,
             int height)

Sets the receiver's size and location to the rectangular area specified by the arguments. The x and y arguments are relative to the receiver's parent (or its display if its parent is null), unless the receiver is a shell. In this case, the x and y arguments are relative to the display.

Note: Attempting to set the width or height of the receiver to a negative number will cause that value to be set to zero instead.

Parameters:

x - the new x coordinate for the receiver

y - the new y coordinate for the receiver

width - the new width for the receiver

height - the new height for the receiver

Throws:

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

setBounds

void setBounds(int x,
             int y,
             int width,
             int height,
             int flags)

setBounds

void setBounds(int x,
             int y,
             int width,
             int height,
             int flags,
             boolean defer)

setBounds

public void setBounds(Rectangle rect)

Sets the receiver's size and location to the rectangular area specified by the argument. The x and y fields of the rectangle are relative to the receiver's parent (or its display if its parent is null).

Note: Attempting to set the width or height of the receiver to a negative number will cause that value to be set to zero instead.

Parameters:

rect - the new bounds for the receiver

Throws:

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

setCapture

public void setCapture(boolean capture)

If the argument is true, causes the receiver to have all mouse events delivered to it until the method is called with false as the argument. Note that on some platforms, a mouse button must currently be down for capture to be assigned.

Parameters:

capture - true to capture the mouse, and false to release it

Throws:

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

setCursor

void setCursor()

setCursor

public void setCursor(Cursor cursor)

Sets the receiver's cursor to the cursor specified by the argument, or to the default cursor for that kind of control if the argument is null.

When the mouse pointer passes over a control its appearance is changed to match the control's cursor.

Parameters:

cursor - the new cursor (or null)

Throws:

java.lang.IllegalArgumentException -

• ERROR_INVALID_ARGUMENT - if the argument has been disposed

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

setDefaultFont

void setDefaultFont()

setDragDetect

public void setDragDetect(boolean dragDetect)

Sets the receiver's drag detect state. If the argument is true, the receiver will detect drag gestures, otherwise these gestures will be ignored.

Parameters:

dragDetect - the new drag detect state

Throws:

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

Since:

3.3

setEnabled

public void setEnabled(boolean enabled)

Enables the receiver if the argument is true, and disables it otherwise. A disabled control is typically not selectable from the user interface and draws with an inactive or "grayed" look.

Parameters:

enabled - the new enabled state

Throws:

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

setFocus

public boolean setFocus()

Causes the receiver to have the keyboard focus, such that all keyboard events will be delivered to it. Focus reassignment will respect applicable platform constraints.

Returns:

true if the control got focus, and false if it was unable to.

Throws:

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

See Also:

forceFocus()

setFont

public void setFont(Font font)

Sets the font that the receiver will use to paint textual information to the font specified by the argument, or to the default font for that kind of control if the argument is null.

Parameters:

font - the new font (or null)

Throws:

java.lang.IllegalArgumentException -

• ERROR_INVALID_ARGUMENT - if the argument has been disposed

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

setForeground

public void setForeground(Color color)

Sets the receiver's foreground color to the color specified by the argument, or to the default system color for the control if the argument is null.

Note: This operation is a hint and may be overridden by the platform.

Parameters:

color - the new color (or null)

Throws:

java.lang.IllegalArgumentException -

• ERROR_INVALID_ARGUMENT - if the argument has been disposed

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

setForegroundPixel

void setForegroundPixel(int pixel)

setLayoutData

public void setLayoutData(java.lang.Object layoutData)

Sets the layout data associated with the receiver to the argument.

Parameters:

layoutData - the new layout data for the receiver.

Throws:

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

setLocation

public void setLocation(int x,
               int y)

Sets the receiver's location to the point specified by the arguments which are relative to the receiver's parent (or its display if its parent is null), unless the receiver is a shell. In this case, the point is relative to the display.

Parameters:

x - the new x coordinate for the receiver

y - the new y coordinate for the receiver

Throws:

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

setLocation

public void setLocation(Point location)

Sets the receiver's location to the point specified by the arguments which are relative to the receiver's parent (or its display if its parent is null), unless the receiver is a shell. In this case, the point is relative to the display.

Parameters:

location - the new location for the receiver

Throws:

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

setMenu

public void setMenu(Menu menu)

Sets the receiver's pop up menu to the argument. All controls may optionally have a pop up menu that is displayed when the user requests one for the control. The sequence of key strokes, button presses and/or button releases that are used to request a pop up menu is platform specific.

Note: Disposing of a control that has a pop up menu will dispose of the menu. To avoid this behavior, set the menu to null before the control is disposed.

Parameters:

menu - the new pop up menu

Throws:

java.lang.IllegalArgumentException -

• ERROR_MENU_NOT_POP_UP - the menu is not a pop up menu
• ERROR_INVALID_PARENT - if the menu is not in the same widget tree
• ERROR_INVALID_ARGUMENT - if the menu has been disposed

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

setOrientation

public void setOrientation(int orientation)

Sets the orientation of the receiver, which must be one of the constants SWT.LEFT_TO_RIGHT or SWT.RIGHT_TO_LEFT.

Parameters:

orientation - new orientation style

Throws:

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

Since:

3.7

setRadioFocus

boolean setRadioFocus(boolean tabbing)

setRadioSelection

boolean setRadioSelection(boolean value)

setRedraw

public void setRedraw(boolean redraw)

If the argument is false, causes subsequent drawing operations in the receiver to be ignored. No drawing of any kind can occur in the receiver until the flag is set to true. Graphics operations that occurred while the flag was false are lost. When the flag is set to true, the entire widget is marked as needing to be redrawn. Nested calls to this method are stacked.

Note: This operation is a hint and may not be supported on some platforms or for some widgets.

Parameters:

redraw - the new redraw state

Throws:

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

See Also:

redraw(int, int, int, int, boolean), update()

setRegion

public void setRegion(Region region)

Sets the shape of the control to the region specified by the argument. When the argument is null, the default shape of the control is restored.

Parameters:

region - the region that defines the shape of the control (or null)

Throws:

java.lang.IllegalArgumentException -

• ERROR_INVALID_ARGUMENT - if the region has been disposed

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

Since:

3.4

setSavedFocus

boolean setSavedFocus()

setSize

public void setSize(int width,
           int height)

Sets the receiver's size to the point specified by the arguments.

Note: Attempting to set the width or height of the receiver to a negative number will cause that value to be set to zero instead.

Parameters:

width - the new width for the receiver

height - the new height for the receiver

Throws:

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

setSize

public void setSize(Point size)

Sets the receiver's size to the point specified by the argument.

Note: Attempting to set the width or height of the receiver to a negative number will cause them to be set to zero instead.

Parameters:

size - the new size for the receiver

Throws:

java.lang.IllegalArgumentException -

• ERROR_NULL_ARGUMENT - if the point is null

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

setTabItemFocus

boolean setTabItemFocus()

Overrides:

setTabItemFocus in class Widget

setToolTipText

public void setToolTipText(java.lang.String string)

Sets the receiver's tool tip text to the argument, which may be null indicating that the default tool tip for the control will be shown. For a control that has a default tool tip, such as the Tree control on Windows, setting the tool tip text to an empty string replaces the default, causing no tool tip text to be shown.

The mnemonic indicator (character '&') is not displayed in a tool tip. To display a single '&' in the tool tip, the character '&' can be escaped by doubling it in the string.

Parameters:

string - the new tool tip text (or null)

Throws:

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

setToolTipText

void setToolTipText(Shell shell,
                  java.lang.String string)

setTouchEnabled

public void setTouchEnabled(boolean enabled)

Sets whether this control should send touch events (by default controls do not). Setting this to false causes the receiver to send gesture events instead. No exception is thrown if a touch-based input device is not detected (this can be determined with Display#getTouchEnabled()).

Parameters:

enabled - the new touch-enabled state

Throws:

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

Since:

3.7

See Also:

Display.getTouchEnabled()

setVisible

public void setVisible(boolean visible)

Marks the receiver as visible if the argument is true, and marks it invisible otherwise.

If one of the receiver's ancestors is not visible or some other condition makes the receiver not visible, marking it visible may not actually cause it to be displayed.

Parameters:

visible - the new visibility state

Throws:

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

sort

void sort(int[] items)

subclass

void subclass()

toControl

public Point toControl(int x,
              int y)

Returns a point which is the result of converting the argument, which is specified in display relative coordinates, to coordinates relative to the receiver.

Parameters:

x - the x coordinate to be translated

y - the y coordinate to be translated

Returns:

the translated coordinates

Throws:

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

Since:

2.1

toControl

public Point toControl(Point point)

Returns a point which is the result of converting the argument, which is specified in display relative coordinates, to coordinates relative to the receiver.

Parameters:

point - the point to be translated (must not be null)

Returns:

the translated coordinates

Throws:

java.lang.IllegalArgumentException -

• ERROR_NULL_ARGUMENT - if the point is null

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

toDisplay

public Point toDisplay(int x,
              int y)

Returns a point which is the result of converting the argument, which is specified in coordinates relative to the receiver, to display relative coordinates.

Parameters:

x - the x coordinate to be translated

y - the y coordinate to be translated

Returns:

the translated coordinates

Throws:

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

Since:

2.1

toDisplay

public Point toDisplay(Point point)

Returns a point which is the result of converting the argument, which is specified in coordinates relative to the receiver, to display relative coordinates.

Parameters:

point - the point to be translated (must not be null)

Returns:

the translated coordinates

Throws:

java.lang.IllegalArgumentException -

• ERROR_NULL_ARGUMENT - if the point is null

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

topHandle

int topHandle()

translateAccelerator

boolean translateAccelerator(MSG msg)

translateMnemonic

boolean translateMnemonic(Event event,
                        Control control)

translateMnemonic

boolean translateMnemonic(MSG msg)

translateTraversal

boolean translateTraversal(MSG msg)

traverse

boolean traverse(Event event)

traverse

public boolean traverse(int traversal)

Based on the argument, perform one of the expected platform traversal action. The argument should be one of the constants: SWT.TRAVERSE_ESCAPE, SWT.TRAVERSE_RETURN, SWT.TRAVERSE_TAB_NEXT, SWT.TRAVERSE_TAB_PREVIOUS, SWT.TRAVERSE_ARROW_NEXT, SWT.TRAVERSE_ARROW_PREVIOUS, SWT.TRAVERSE_PAGE_NEXT and SWT.TRAVERSE_PAGE_PREVIOUS.

Parameters:

traversal - the type of traversal

Returns:

true if the traversal succeeded

Throws:

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

traverse

public boolean traverse(int traversal,
               Event event)

Performs a platform traversal action corresponding to a KeyDown event.

Valid traversal values are SWT.TRAVERSE_NONE, SWT.TRAVERSE_MNEMONIC, SWT.TRAVERSE_ESCAPE, SWT.TRAVERSE_RETURN, SWT.TRAVERSE_TAB_NEXT, SWT.TRAVERSE_TAB_PREVIOUS, SWT.TRAVERSE_ARROW_NEXT, SWT.TRAVERSE_ARROW_PREVIOUS, SWT.TRAVERSE_PAGE_NEXT and SWT.TRAVERSE_PAGE_PREVIOUS. If traversal is SWT.TRAVERSE_NONE then the Traverse event is created with standard values based on the KeyDown event. If traversal is one of the other traversal constants then the Traverse event is created with this detail, and its doit is taken from the KeyDown event.

Parameters:

traversal - the type of traversal, or SWT.TRAVERSE_NONE to compute this from event

event - the KeyDown event

Returns:

true if the traversal succeeded

Throws:

java.lang.IllegalArgumentException -

• ERROR_NULL_ARGUMENT if the event is null

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

Since:

3.6

traverse

public boolean traverse(int traversal,
               KeyEvent event)

Performs a platform traversal action corresponding to a KeyDown event.

Valid traversal values are SWT.TRAVERSE_NONE, SWT.TRAVERSE_MNEMONIC, SWT.TRAVERSE_ESCAPE, SWT.TRAVERSE_RETURN, SWT.TRAVERSE_TAB_NEXT, SWT.TRAVERSE_TAB_PREVIOUS, SWT.TRAVERSE_ARROW_NEXT, SWT.TRAVERSE_ARROW_PREVIOUS, SWT.TRAVERSE_PAGE_NEXT and SWT.TRAVERSE_PAGE_PREVIOUS. If traversal is SWT.TRAVERSE_NONE then the Traverse event is created with standard values based on the KeyDown event. If traversal is one of the other traversal constants then the Traverse event is created with this detail, and its doit is taken from the KeyDown event.

Parameters:

traversal - the type of traversal, or SWT.TRAVERSE_NONE to compute this from event

event - the KeyDown event

Returns:

true if the traversal succeeded

Throws:

java.lang.IllegalArgumentException -

• ERROR_NULL_ARGUMENT if the event is null

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

Since:

3.6

traverse

boolean traverse(int traversal,
               char character,
               int keyCode,
               int keyLocation,
               int stateMask,
               boolean doit)

traverseEscape

boolean traverseEscape()

traverseGroup

boolean traverseGroup(boolean next)

traverseItem

boolean traverseItem(boolean next)

traverseMnemonic

boolean traverseMnemonic(char key)

traversePage

boolean traversePage(boolean next)

traverseReturn

boolean traverseReturn()

unsubclass

void unsubclass()

update

public void update()

Forces all outstanding paint requests for the widget to be processed before this method returns. If there are no outstanding paint request, this method does nothing.

Note: This method does not cause a redraw.

Throws:

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

See Also:

redraw(), redraw(int, int, int, int, boolean), PaintListener, SWT.Paint

update

void update(boolean all)

updateBackgroundColor

void updateBackgroundColor()

updateBackgroundImage

void updateBackgroundImage()

updateBackgroundMode

void updateBackgroundMode()

updateFont

void updateFont(Font oldFont,
              Font newFont)

updateImages

void updateImages()

updateLayout

void updateLayout(boolean resize,
                boolean all)

updateOrientation

void updateOrientation()

widgetCreateStruct

CREATESTRUCT widgetCreateStruct()

widgetExtStyle

int widgetExtStyle()

widgetParent

int widgetParent()

widgetStyle

int widgetStyle()

setParent

public boolean setParent(Composite parent)

Changes the parent of the widget to be the one provided if the underlying operating system supports this feature. Returns true if the parent is successfully changed.

Parameters:

parent - the new parent for the control.

Returns:

true if the parent is changed and false otherwise.

Throws:

java.lang.IllegalArgumentException -

• ERROR_INVALID_ARGUMENT - if the argument has been disposed
• ERROR_NULL_ARGUMENT - if the parent is null

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

windowClass

abstract TCHAR windowClass()

windowProc

abstract int windowProc()

windowProc

int windowProc(int hwnd,
             int msg,
             int wParam,
             int lParam)

WM_ACTIVATE

LRESULT WM_ACTIVATE(int wParam,
                  int lParam)

WM_CAPTURECHANGED

LRESULT WM_CAPTURECHANGED(int wParam,
                        int lParam)

WM_CHANGEUISTATE

LRESULT WM_CHANGEUISTATE(int wParam,
                       int lParam)

WM_CHAR

LRESULT WM_CHAR(int wParam,
              int lParam)

WM_CLEAR

LRESULT WM_CLEAR(int wParam,
               int lParam)

WM_CLOSE

LRESULT WM_CLOSE(int wParam,
               int lParam)

WM_COMMAND

LRESULT WM_COMMAND(int wParam,
                 int lParam)

WM_CONTEXTMENU

LRESULT WM_CONTEXTMENU(int wParam,
                     int lParam)

WM_CTLCOLOR

LRESULT WM_CTLCOLOR(int wParam,
                  int lParam)

WM_CUT

LRESULT WM_CUT(int wParam,
             int lParam)

WM_DESTROY

LRESULT WM_DESTROY(int wParam,
                 int lParam)

WM_DRAWITEM

LRESULT WM_DRAWITEM(int wParam,
                  int lParam)

WM_ENDSESSION

LRESULT WM_ENDSESSION(int wParam,
                    int lParam)

WM_ENTERIDLE

LRESULT WM_ENTERIDLE(int wParam,
                   int lParam)

WM_ERASEBKGND

LRESULT WM_ERASEBKGND(int wParam,
                    int lParam)

WM_GESTURE

LRESULT WM_GESTURE(int wParam,
                 int lParam)

WM_GETDLGCODE

LRESULT WM_GETDLGCODE(int wParam,
                    int lParam)

WM_GETFONT

LRESULT WM_GETFONT(int wParam,
                 int lParam)

WM_GETOBJECT

LRESULT WM_GETOBJECT(int wParam,
                   int lParam)

WM_GETMINMAXINFO

LRESULT WM_GETMINMAXINFO(int wParam,
                       int lParam)

WM_HOTKEY

LRESULT WM_HOTKEY(int wParam,
                int lParam)

WM_HELP

LRESULT WM_HELP(int wParam,
              int lParam)

WM_HSCROLL

LRESULT WM_HSCROLL(int wParam,
                 int lParam)

WM_IME_CHAR

LRESULT WM_IME_CHAR(int wParam,
                  int lParam)

WM_IME_COMPOSITION

LRESULT WM_IME_COMPOSITION(int wParam,
                         int lParam)

WM_IME_COMPOSITION_START

LRESULT WM_IME_COMPOSITION_START(int wParam,
                               int lParam)

WM_IME_ENDCOMPOSITION

LRESULT WM_IME_ENDCOMPOSITION(int wParam,
                            int lParam)

WM_UNINITMENUPOPUP

LRESULT WM_UNINITMENUPOPUP(int wParam,
                         int lParam)

WM_INITMENUPOPUP

LRESULT WM_INITMENUPOPUP(int wParam,
                       int lParam)

WM_INPUTLANGCHANGE

LRESULT WM_INPUTLANGCHANGE(int wParam,
                         int lParam)

WM_KEYDOWN

LRESULT WM_KEYDOWN(int wParam,
                 int lParam)

WM_KEYUP

LRESULT WM_KEYUP(int wParam,
               int lParam)

WM_KILLFOCUS

LRESULT WM_KILLFOCUS(int wParam,
                   int lParam)

WM_LBUTTONDBLCLK

LRESULT WM_LBUTTONDBLCLK(int wParam,
                       int lParam)

WM_LBUTTONDOWN

LRESULT WM_LBUTTONDOWN(int wParam,
                     int lParam)

WM_LBUTTONUP

LRESULT WM_LBUTTONUP(int wParam,
                   int lParam)

WM_MBUTTONDBLCLK

LRESULT WM_MBUTTONDBLCLK(int wParam,
                       int lParam)

WM_MBUTTONDOWN

LRESULT WM_MBUTTONDOWN(int wParam,
                     int lParam)

WM_MBUTTONUP

LRESULT WM_MBUTTONUP(int wParam,
                   int lParam)

WM_MEASUREITEM

LRESULT WM_MEASUREITEM(int wParam,
                     int lParam)

WM_MENUCHAR

LRESULT WM_MENUCHAR(int wParam,
                  int lParam)

WM_MENUSELECT

LRESULT WM_MENUSELECT(int wParam,
                    int lParam)

WM_MOUSEACTIVATE

LRESULT WM_MOUSEACTIVATE(int wParam,
                       int lParam)

WM_MOUSEHOVER

LRESULT WM_MOUSEHOVER(int wParam,
                    int lParam)

WM_MOUSELEAVE

LRESULT WM_MOUSELEAVE(int wParam,
                    int lParam)

WM_MOUSEMOVE

LRESULT WM_MOUSEMOVE(int wParam,
                   int lParam)

WM_MOUSEWHEEL

LRESULT WM_MOUSEWHEEL(int wParam,
                    int lParam)

WM_MOUSEHWHEEL

LRESULT WM_MOUSEHWHEEL(int wParam,
                     int lParam)

WM_MOVE

LRESULT WM_MOVE(int wParam,
              int lParam)

WM_NCACTIVATE

LRESULT WM_NCACTIVATE(int wParam,
                    int lParam)

WM_NCCALCSIZE

LRESULT WM_NCCALCSIZE(int wParam,
                    int lParam)

WM_NCHITTEST

LRESULT WM_NCHITTEST(int wParam,
                   int lParam)

WM_NCLBUTTONDOWN

LRESULT WM_NCLBUTTONDOWN(int wParam,
                       int lParam)

WM_NCPAINT

LRESULT WM_NCPAINT(int wParam,
                 int lParam)

WM_NOTIFY

LRESULT WM_NOTIFY(int wParam,
                int lParam)

WM_PAINT

LRESULT WM_PAINT(int wParam,
               int lParam)

WM_PALETTECHANGED

LRESULT WM_PALETTECHANGED(int wParam,
                        int lParam)

WM_PARENTNOTIFY

LRESULT WM_PARENTNOTIFY(int wParam,
                      int lParam)

WM_PASTE

LRESULT WM_PASTE(int wParam,
               int lParam)

WM_PRINT

LRESULT WM_PRINT(int wParam,
               int lParam)

WM_PRINTCLIENT

LRESULT WM_PRINTCLIENT(int wParam,
                     int lParam)

WM_QUERYENDSESSION

LRESULT WM_QUERYENDSESSION(int wParam,
                         int lParam)

WM_QUERYNEWPALETTE

LRESULT WM_QUERYNEWPALETTE(int wParam,
                         int lParam)

WM_QUERYOPEN

LRESULT WM_QUERYOPEN(int wParam,
                   int lParam)

WM_RBUTTONDBLCLK

LRESULT WM_RBUTTONDBLCLK(int wParam,
                       int lParam)

WM_RBUTTONDOWN

LRESULT WM_RBUTTONDOWN(int wParam,
                     int lParam)

WM_RBUTTONUP

LRESULT WM_RBUTTONUP(int wParam,
                   int lParam)

WM_SETCURSOR

LRESULT WM_SETCURSOR(int wParam,
                   int lParam)

WM_SETFOCUS

LRESULT WM_SETFOCUS(int wParam,
                  int lParam)

WM_SETTINGCHANGE

LRESULT WM_SETTINGCHANGE(int wParam,
                       int lParam)

WM_SETFONT

LRESULT WM_SETFONT(int wParam,
                 int lParam)

WM_SETREDRAW

LRESULT WM_SETREDRAW(int wParam,
                   int lParam)

WM_SHOWWINDOW

LRESULT WM_SHOWWINDOW(int wParam,
                    int lParam)

WM_SIZE

LRESULT WM_SIZE(int wParam,
              int lParam)

WM_SYSCHAR

LRESULT WM_SYSCHAR(int wParam,
                 int lParam)

WM_SYSCOLORCHANGE

LRESULT WM_SYSCOLORCHANGE(int wParam,
                        int lParam)

WM_SYSCOMMAND

LRESULT WM_SYSCOMMAND(int wParam,
                    int lParam)

WM_SYSKEYDOWN

LRESULT WM_SYSKEYDOWN(int wParam,
                    int lParam)

WM_SYSKEYUP

LRESULT WM_SYSKEYUP(int wParam,
                  int lParam)

WM_TABLET_FLICK

LRESULT WM_TABLET_FLICK(int wParam,
                      int lParam)

WM_TOUCH

LRESULT WM_TOUCH(int wParam,
               int lParam)

WM_TIMER

LRESULT WM_TIMER(int wParam,
               int lParam)

WM_UNDO

LRESULT WM_UNDO(int wParam,
              int lParam)

WM_UPDATEUISTATE

LRESULT WM_UPDATEUISTATE(int wParam,
                       int lParam)

WM_VSCROLL

LRESULT WM_VSCROLL(int wParam,
                 int lParam)

WM_WINDOWPOSCHANGED

LRESULT WM_WINDOWPOSCHANGED(int wParam,
                          int lParam)

WM_WINDOWPOSCHANGING

LRESULT WM_WINDOWPOSCHANGING(int wParam,
                           int lParam)

WM_XBUTTONDBLCLK

LRESULT WM_XBUTTONDBLCLK(int wParam,
                       int lParam)

WM_XBUTTONDOWN

LRESULT WM_XBUTTONDOWN(int wParam,
                     int lParam)

WM_XBUTTONUP

LRESULT WM_XBUTTONUP(int wParam,
                   int lParam)

wmColorChild

LRESULT wmColorChild(int wParam,
                   int lParam)

wmCommandChild

LRESULT wmCommandChild(int wParam,
                     int lParam)

wmDrawChild

LRESULT wmDrawChild(int wParam,
                  int lParam)

wmMeasureChild

LRESULT wmMeasureChild(int wParam,
                     int lParam)

wmNotify

LRESULT wmNotify(NMHDR hdr,
               int wParam,
               int lParam)

wmNotifyChild

LRESULT wmNotifyChild(NMHDR hdr,
                    int wParam,
                    int lParam)

wmScrollChild

LRESULT wmScrollChild(int wParam,
                    int lParam)
