4.1 Block "ThePlant"
from Package Overview.Global System.Structure

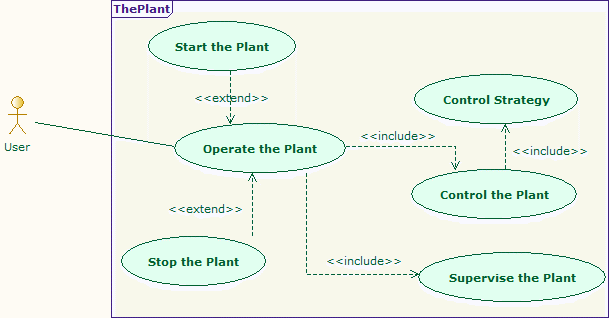

ThePlant usecase diagram
Figure 5 ThePlant usecase diagram
UserStart the PlantOperate the PlantControl StrategyControl the PlantStop the PlantSupervise the PlantThePlant
Table 1 Associations of Block "ThePlant"
Name
Description
->ControlSubSystem : [1..*] ControlSubSystem
->PhysicalSubSystem : [1..*] PhysicalSubSystem
->SupervisorySubSystem : [1..*] SupervisorySubSystem
