org.eclipse.swt.custom

Class TableTree

java.lang.Object

org.eclipse.swt.widgets.Widget

org.eclipse.swt.widgets.Control

org.eclipse.swt.widgets.Scrollable

org.eclipse.swt.widgets.Composite

org.eclipse.swt.custom.TableTree

All Implemented Interfaces:

Drawable

Deprecated.

As of 3.1 use Tree, TreeItem and TreeColumn

public class TableTree
extends Composite

A TableTree is a selectable user interface object that displays a hierarchy of items, and issues notification when an item is selected. A TableTree may be single or multi select.

The item children that may be added to instances of this class must be of type TableTreeItem.

Note that although this class is a subclass of Composite, it does not make sense to add Control children to it, or set a layout on it.

Styles:

SINGLE, MULTI, CHECK, FULL_SELECTION

Events:

Selection, DefaultSelection, Collapse, Expand

Note: Only one of the styles SINGLE, and MULTI may be specified.

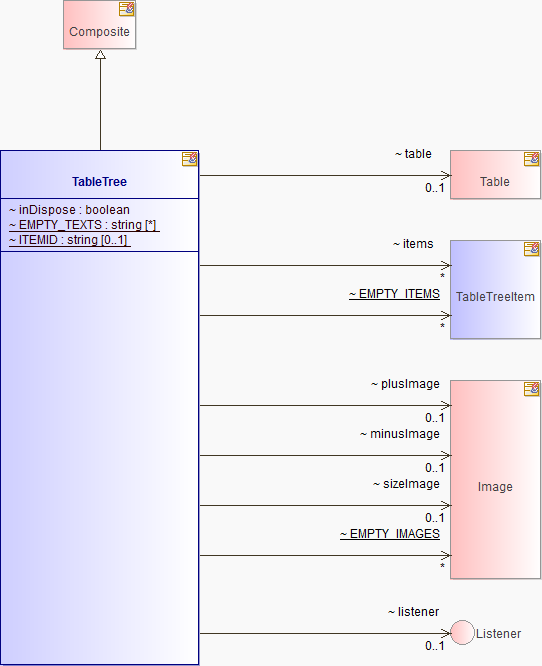

Structure Diagram

Field Summary

Fields

Modifier and Type	Field and Description
(package private) static Image[]	EMPTY_IMAGES Deprecated.
(package private) static TableTreeItem[]	EMPTY_ITEMS Deprecated.
(package private) static java.lang.String[]	EMPTY_TEXTS Deprecated.
(package private) boolean	inDispose Deprecated.
(package private) static java.lang.String	ITEMID Deprecated.
(package private) TableTreeItem[]	items Deprecated.
(package private) Listener	listener Deprecated.
(package private) Image	minusImage Deprecated.
(package private) Image	plusImage Deprecated.
(package private) Image	sizeImage Deprecated.
(package private) Table	table Deprecated.

Fields inherited from class org.eclipse.swt.widgets.Control

handle

Constructor Summary

Constructors

Constructor and Description
TableTree(Composite parent, int style) Deprecated. Constructs a new instance of this class given its parent and a style value describing its behavior and appearance.

Method Summary

Methods

Modifier and Type	Method and Description
(package private) int	addItem(TableTreeItem item, int index) Deprecated.
void	addSelectionListener(SelectionListener listener) Deprecated. Adds the listener to the collection of listeners who will be notified when the user changes the receiver's selection, by sending it one of the messages defined in the SelectionListener interface.
void	addTreeListener(TreeListener listener) Deprecated. Adds the listener to the collection of listeners who will be notified when an item in the receiver is expanded or collapsed by sending it one of the messages defined in the TreeListener interface.
private static int	checkStyle(int style) Deprecated.
Point	computeSize(int wHint, int hHint, boolean changed) Deprecated. Returns the preferred size of the receiver.
Rectangle	computeTrim(int x, int y, int width, int height) Deprecated. Given a desired client area for the receiver (as described by the arguments), returns the bounding rectangle which would be required to produce that client area.
(package private) void	createImages() Deprecated.
void	deselectAll() Deprecated. Deselects all items.
(package private) void	expandItem(TableTreeItem item) Deprecated.
Color	getBackground() Deprecated. Returns the receiver's background color.
Rectangle	getClientArea() Deprecated. Returns a rectangle which describes the area of the receiver which is capable of displaying data (that is, not covered by the "trimmings").
Font	getFont() Deprecated. Returns the font that the receiver will use to paint textual information.
Color	getForeground() Deprecated. Returns the foreground color that the receiver will use to draw.
TableTreeItem	getItem(int index) Deprecated. Returns the item at the given, zero-relative index in the receiver.
TableTreeItem	getItem(Point point) Deprecated. Returns the item at the given point in the receiver or null if no such item exists.
(package private) TableTreeItem	getItem(TableItem tableItem) Deprecated.
int	getItemCount() Deprecated. Gets the number of items.
int	getItemHeight() Deprecated. Gets the height of one item.
TableTreeItem[]	getItems() Deprecated. Gets the items.
(package private) Image	getMinusImage() Deprecated.
(package private) Image	getPlusImage() Deprecated.
TableTreeItem[]	getSelection() Deprecated. Gets the selected items.
int	getSelectionCount() Deprecated. Gets the number of selected items.
int	getStyle() Deprecated. Returns the receiver's style information.
Table	getTable() Deprecated. Returns the underlying Table control.
int	indexOf(TableTreeItem item) Deprecated. Gets the index of an item.
(package private) void	onDispose(Event e) Deprecated.
(package private) void	onFocusIn(Event e) Deprecated.
(package private) void	onKeyDown(Event e) Deprecated.
(package private) void	onMouseDown(Event event) Deprecated.
(package private) void	onResize(Event e) Deprecated.
(package private) void	onSelection(Event e) Deprecated.
void	removeAll() Deprecated. Removes all items.
(package private) void	removeItem(TableTreeItem item) Deprecated.
void	removeSelectionListener(SelectionListener listener) Deprecated. Removes the listener from the collection of listeners who will be notified when the user changes the receiver's selection.
void	removeTreeListener(TreeListener listener) Deprecated. Removes the listener from the collection of listeners who will be notified when items in the receiver are expanded or collapsed.
void	selectAll() Deprecated. Selects all of the items in the receiver.
void	setBackground(Color color) Deprecated. Sets the receiver's background color to the color specified by the argument, or to the default system color for the control if the argument is null.
void	setEnabled(boolean enabled) Deprecated. Enables the receiver if the argument is true, and disables it otherwise.
void	setFont(Font font) Deprecated. Sets the font that the receiver will use to paint textual information to the font specified by the argument, or to the default font for that kind of control if the argument is null.
void	setForeground(Color color) Deprecated. Sets the receiver's foreground color to the color specified by the argument, or to the default system color for the control if the argument is null.
void	setMenu(Menu menu) Deprecated. Sets the receiver's pop up menu to the argument.
void	setSelection(TableTreeItem[] items) Deprecated. Sets the receiver's selection to be the given array of items.
void	setToolTipText(java.lang.String string) Deprecated. Sets the receiver's tool tip text to the argument, which may be null indicating that the default tool tip for the control will be shown.
void	showItem(TableTreeItem item) Deprecated. Shows the item.
void	showSelection() Deprecated. Shows the selection.

Methods inherited from class org.eclipse.swt.widgets.Composite

changed, checkSubclass, drawBackground, getBackgroundMode, getChildren, getLayout, getLayoutDeferred, getTabList, isLayoutDeferred, layout, layout, layout, layout, layout, setBackgroundMode, setFocus, setLayout, setLayoutDeferred, setTabList

Methods inherited from class org.eclipse.swt.widgets.Scrollable

getHorizontalBar, getScrollbarsMode, getVerticalBar

Methods inherited from class org.eclipse.swt.widgets.Control

addControlListener, addDragDetectListener, addFocusListener, addGestureListener, addHelpListener, addKeyListener, addMenuDetectListener, addMouseListener, addMouseMoveListener, addMouseTrackListener, addMouseWheelListener, addPaintListener, addTouchListener, addTraverseListener, computeSize, dragDetect, dragDetect, forceFocus, getAccessible, getBackgroundImage, getBorderWidth, getBounds, getCursor, getDragDetect, getEnabled, getLayoutData, getLocation, getMenu, getMonitor, getOrientation, getParent, getRegion, getShell, getSize, getToolTipText, getTouchEnabled, getVisible, internal_dispose_GC, internal_new_GC, isEnabled, isFocusControl, isReparentable, isVisible, moveAbove, moveBelow, pack, pack, print, redraw, redraw, removeControlListener, removeDragDetectListener, removeFocusListener, removeGestureListener, removeHelpListener, removeKeyListener, removeMenuDetectListener, removeMouseListener, removeMouseMoveListener, removeMouseTrackListener, removeMouseWheelListener, removePaintListener, removeTouchListener, removeTraverseListener, setBackgroundImage, setBounds, setBounds, setCapture, setCursor, setDragDetect, setLayoutData, setLocation, setLocation, setOrientation, setParent, setRedraw, setRegion, setSize, setSize, setTouchEnabled, setVisible, toControl, toControl, toDisplay, toDisplay, traverse, traverse, traverse, update

Methods inherited from class org.eclipse.swt.widgets.Widget

addDisposeListener, addListener, checkWidget, dispose, getData, getData, getDisplay, getListeners, isDisposed, isListening, notifyListeners, removeDisposeListener, removeListener, removeListener, reskin, setData, setData, toString

Methods inherited from class java.lang.Object

clone, equals, finalize, getClass, hashCode, notify, notifyAll, wait, wait, wait

Field Detail

table

Table table

Deprecated.

items

TableTreeItem[] items

Deprecated.

plusImage

Image plusImage

Deprecated.

minusImage

Image minusImage

Deprecated.

sizeImage

Image sizeImage

Deprecated.

listener

Listener listener

Deprecated.

inDispose

boolean inDispose

Deprecated.

EMPTY_ITEMS

static final TableTreeItem[] EMPTY_ITEMS

Deprecated.

EMPTY_TEXTS

static final java.lang.String[] EMPTY_TEXTS

Deprecated.

EMPTY_IMAGES

static final Image[] EMPTY_IMAGES

Deprecated.

ITEMID

static final java.lang.String ITEMID

Deprecated.

See Also:

Constant Field Values

Constructor Detail

TableTree

public TableTree(Composite parent,
         int style)

Deprecated.

Constructs a new instance of this class given its parent and a style value describing its behavior and appearance.

The style value is either one of the style constants defined in class SWT which is applicable to instances of this class, or must be built by bitwise OR'ing together (that is, using the int "|" operator) two or more of those SWT style constants. The class description lists the style constants that are applicable to the class. Style bits are also inherited from superclasses.

Parameters:

parent - a widget which will be the parent of the new instance (cannot be null)

style - the style of widget to construct

Throws:

java.lang.IllegalArgumentException -

• ERROR_NULL_ARGUMENT - if the parent is null

SWTException -

• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the parent

See Also:

SWT.SINGLE, SWT.MULTI, SWT.CHECK, SWT.FULL_SELECTION, getStyle()

Method Detail

addItem

int addItem(TableTreeItem item,
          int index)

Deprecated.

addSelectionListener

public void addSelectionListener(SelectionListener listener)

Deprecated.

Adds the listener to the collection of listeners who will be notified when the user changes the receiver's selection, by sending it one of the messages defined in the SelectionListener interface.

When widgetSelected is called, the item field of the event object is valid. If the receiver has SWT.CHECK style set and the check selection changes, the event object detail field contains the value SWT.CHECK. widgetDefaultSelected is typically called when an item is double-clicked. The item field of the event object is valid for default selection, but the detail field is not used.

Parameters:

listener - the listener which should be notified when the user changes the receiver's selection

Throws:

java.lang.IllegalArgumentException -

• ERROR_NULL_ARGUMENT - if the listener is null

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

See Also:

SelectionListener, removeSelectionListener(org.eclipse.swt.events.SelectionListener), SelectionEvent

addTreeListener

public void addTreeListener(TreeListener listener)

Deprecated.

Adds the listener to the collection of listeners who will be notified when an item in the receiver is expanded or collapsed by sending it one of the messages defined in the TreeListener interface.

Parameters:

listener - the listener which should be notified

Throws:

java.lang.IllegalArgumentException -

• ERROR_NULL_ARGUMENT - if the listener is null

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

See Also:

TreeListener, removeTreeListener(org.eclipse.swt.events.TreeListener)

checkStyle

private static int checkStyle(int style)

Deprecated.

computeSize

public Point computeSize(int wHint,
                int hHint,
                boolean changed)

Deprecated.

Description copied from class: Control

Returns the preferred size of the receiver.

The preferred size of a control is the size that it would best be displayed at. The width hint and height hint arguments allow the caller to ask a control questions such as "Given a particular width, how high does the control need to be to show all of the contents?" To indicate that the caller does not wish to constrain a particular dimension, the constant SWT.DEFAULT is passed for the hint.

If the changed flag is true, it indicates that the receiver's contents have changed, therefore any caches that a layout manager containing the control may have been keeping need to be flushed. When the control is resized, the changed flag will be false, so layout manager caches can be retained.

Overrides:

computeSize in class Composite

Parameters:

wHint - the width hint (can be SWT.DEFAULT)

hHint - the height hint (can be SWT.DEFAULT)

changed - true if the control's contents have changed, and false otherwise

Returns:

the preferred size of the control.

See Also:

Layout, Control.getBorderWidth(), Control.getBounds(), Control.getSize(), Control.pack(boolean), "computeTrim, getClientArea for controls that implement them"

computeTrim

public Rectangle computeTrim(int x,
                    int y,
                    int width,
                    int height)

Deprecated.

Description copied from class: Scrollable

Given a desired client area for the receiver (as described by the arguments), returns the bounding rectangle which would be required to produce that client area.

In other words, it returns a rectangle such that, if the receiver's bounds were set to that rectangle, the area of the receiver which is capable of displaying data (that is, not covered by the "trimmings") would be the rectangle described by the arguments (relative to the receiver's parent).

Overrides:

computeTrim in class Scrollable

Parameters:

x - the desired x coordinate of the client area

y - the desired y coordinate of the client area

width - the desired width of the client area

height - the desired height of the client area

Returns:

the required bounds to produce the given client area

See Also:

Scrollable.getClientArea()

deselectAll

public void deselectAll()

Deprecated.

Deselects all items.

If an item is selected, it is deselected. If an item is not selected, it remains unselected.

Throws:

SWTException -

• ERROR_THREAD_INVALID_ACCESS when called from the wrong thread
• ERROR_WIDGET_DISPOSED when the widget has been disposed

expandItem

void expandItem(TableTreeItem item)

Deprecated.

getBackground

public Color getBackground()

Deprecated.

Description copied from class: Control

Returns the receiver's background color.

Note: This operation is a hint and may be overridden by the platform. For example, on some versions of Windows the background of a TabFolder, is a gradient rather than a solid color.

Overrides:

getBackground in class Control

Returns:

the background color

getClientArea

public Rectangle getClientArea()

Deprecated.

Description copied from class: Scrollable

Returns a rectangle which describes the area of the receiver which is capable of displaying data (that is, not covered by the "trimmings").

Overrides:

getClientArea in class Scrollable

Returns:

the client area

See Also:

Scrollable.computeTrim(int, int, int, int)

getForeground

public Color getForeground()

Deprecated.

Description copied from class: Control

Returns the foreground color that the receiver will use to draw.

Overrides:

getForeground in class Control

Returns:

the receiver's foreground color

getFont

public Font getFont()

Deprecated.

Description copied from class: Control

Returns the font that the receiver will use to paint textual information.

Overrides:

getFont in class Control

Returns:

the receiver's font

getItemCount

public int getItemCount()

Deprecated.

Gets the number of items.

Returns:

the number of items in the widget

getItemHeight

public int getItemHeight()

Deprecated.

Gets the height of one item.

This operation will fail if the height of one item could not be queried from the OS.

Returns:

the height of one item in the widget

Throws:

SWTException -

• ERROR_THREAD_INVALID_ACCESS when called from the wrong thread
• ERROR_WIDGET_DISPOSED when the widget has been disposed

getItems

public TableTreeItem[] getItems()

Deprecated.

Gets the items.

Returns:

the items in the widget

getSelection

public TableTreeItem[] getSelection()

Deprecated.

Gets the selected items.

This operation will fail if the selected items cannot be queried from the OS.

Returns:

the selected items in the widget

Throws:

SWTException -

• ERROR_THREAD_INVALID_ACCESS when called from the wrong thread
• ERROR_WIDGET_DISPOSED when the widget has been disposed

getSelectionCount

public int getSelectionCount()

Deprecated.

Gets the number of selected items.

This operation will fail if the number of selected items cannot be queried from the OS.

Returns:

the number of selected items in the widget

Throws:

SWTException -

• ERROR_THREAD_INVALID_ACCESS when called from the wrong thread
• ERROR_WIDGET_DISPOSED when the widget has been disposed

getStyle

public int getStyle()

Deprecated.

Description copied from class: Widget

Returns the receiver's style information.

Note that the value which is returned by this method may not match the value which was provided to the constructor when the receiver was created. This can occur when the underlying operating system does not support a particular combination of requested styles. For example, if the platform widget used to implement a particular SWT widget always has scroll bars, the result of calling this method would always have the SWT.H_SCROLL and SWT.V_SCROLL bits set.

Overrides:

getStyle in class Widget

Returns:

the style bits

getTable

public Table getTable()

Deprecated.

Returns the underlying Table control.

Returns:

the underlying Table control

createImages

void createImages()

Deprecated.

getPlusImage

Image getPlusImage()

Deprecated.

getMinusImage

Image getMinusImage()

Deprecated.

indexOf

public int indexOf(TableTreeItem item)

Deprecated.

Gets the index of an item.

The widget is searched starting at 0 until an item is found that is equal to the search item. If no item is found, -1 is returned. Indexing is zero based. This index is relative to the parent only.

Parameters:

item - the search item

Returns:

the index of the item or -1

onDispose

void onDispose(Event e)

Deprecated.

onResize

void onResize(Event e)

Deprecated.

onSelection

void onSelection(Event e)

Deprecated.

getItem

public TableTreeItem getItem(int index)

Deprecated.

Returns the item at the given, zero-relative index in the receiver. Throws an exception if the index is out of range.

Parameters:

index - the index of the item to return

Returns:

the item at the given index

Throws:

java.lang.IllegalArgumentException -

• ERROR_INVALID_RANGE - if the index is not between 0 and the number of elements in the list minus 1 (inclusive)

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

Since:

3.1

getItem

public TableTreeItem getItem(Point point)

Deprecated.

Returns the item at the given point in the receiver or null if no such item exists. The point is in the coordinate system of the receiver.

Parameters:

point - the point used to locate the item

Returns:

the item at the given point

Throws:

java.lang.IllegalArgumentException -

• ERROR_NULL_ARGUMENT - if the point is null

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

getItem

TableTreeItem getItem(TableItem tableItem)

Deprecated.

onFocusIn

void onFocusIn(Event e)

Deprecated.

onKeyDown

void onKeyDown(Event e)

Deprecated.

onMouseDown

void onMouseDown(Event event)

Deprecated.

removeAll

public void removeAll()

Deprecated.

Removes all items.

This operation will fail when an item could not be removed in the OS.

Throws:

SWTException -

• ERROR_THREAD_INVALID_ACCESS when called from the wrong thread
• ERROR_WIDGET_DISPOSED when the widget has been disposed

removeItem

void removeItem(TableTreeItem item)

Deprecated.

removeSelectionListener

public void removeSelectionListener(SelectionListener listener)

Deprecated.

Removes the listener from the collection of listeners who will be notified when the user changes the receiver's selection.

Parameters:

listener - the listener which should no longer be notified

Throws:

java.lang.IllegalArgumentException -

• ERROR_NULL_ARGUMENT - if the listener is null

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

See Also:

SelectionListener, addSelectionListener(org.eclipse.swt.events.SelectionListener)

removeTreeListener

public void removeTreeListener(TreeListener listener)

Deprecated.

Removes the listener from the collection of listeners who will be notified when items in the receiver are expanded or collapsed.

Parameters:

listener - the listener which should no longer be notified

Throws:

java.lang.IllegalArgumentException -

• ERROR_NULL_ARGUMENT - if the listener is null

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

See Also:

TreeListener, addTreeListener(org.eclipse.swt.events.TreeListener)

selectAll

public void selectAll()

Deprecated.

Selects all of the items in the receiver.

If the receiver is single-select, do nothing.

Throws:

SWTException -

• ERROR_THREAD_INVALID_ACCESS when called from the wrong thread
• ERROR_WIDGET_DISPOSED when the widget has been disposed

setBackground

public void setBackground(Color color)

Deprecated.

Description copied from class: Control

Sets the receiver's background color to the color specified by the argument, or to the default system color for the control if the argument is null.

Note: This operation is a hint and may be overridden by the platform. For example, on Windows the background of a Button cannot be changed.

Overrides:

setBackground in class Control

Parameters:

color - the new color (or null)

setEnabled

public void setEnabled(boolean enabled)

Deprecated.

Description copied from class: Control

Enables the receiver if the argument is true, and disables it otherwise. A disabled control is typically not selectable from the user interface and draws with an inactive or "grayed" look.

Overrides:

setEnabled in class Control

Parameters:

enabled - the new enabled state

setFont

public void setFont(Font font)

Deprecated.

Description copied from class: Control

Sets the font that the receiver will use to paint textual information to the font specified by the argument, or to the default font for that kind of control if the argument is null.

Overrides:

setFont in class Control

Parameters:

font - the new font (or null)

setForeground

public void setForeground(Color color)

Deprecated.

Description copied from class: Control

Sets the receiver's foreground color to the color specified by the argument, or to the default system color for the control if the argument is null.

Note: This operation is a hint and may be overridden by the platform.

Overrides:

setForeground in class Control

Parameters:

color - the new color (or null)

setMenu

public void setMenu(Menu menu)

Deprecated.

Description copied from class: Control

Sets the receiver's pop up menu to the argument. All controls may optionally have a pop up menu that is displayed when the user requests one for the control. The sequence of key strokes, button presses and/or button releases that are used to request a pop up menu is platform specific.

Note: Disposing of a control that has a pop up menu will dispose of the menu. To avoid this behavior, set the menu to null before the control is disposed.

Overrides:

setMenu in class Control

Parameters:

menu - the new pop up menu

setSelection

public void setSelection(TableTreeItem[] items)

Deprecated.

Sets the receiver's selection to be the given array of items. The current selection is cleared before the new items are selected.

Items that are not in the receiver are ignored. If the receiver is single-select and multiple items are specified, then all items are ignored.

Parameters:

items - the array of items

Throws:

java.lang.IllegalArgumentException -

• ERROR_NULL_ARGUMENT - if the array of items is null
• ERROR_INVALID_ARGUMENT - if one of the item has been disposed

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

See Also:

deselectAll()

setToolTipText

public void setToolTipText(java.lang.String string)

Deprecated.

Description copied from class: Control

Sets the receiver's tool tip text to the argument, which may be null indicating that the default tool tip for the control will be shown. For a control that has a default tool tip, such as the Tree control on Windows, setting the tool tip text to an empty string replaces the default, causing no tool tip text to be shown.

The mnemonic indicator (character '&') is not displayed in a tool tip. To display a single '&' in the tool tip, the character '&' can be escaped by doubling it in the string.

Overrides:

setToolTipText in class Control

Parameters:

string - the new tool tip text (or null)

showItem

public void showItem(TableTreeItem item)

Deprecated.

Shows the item. If the item is already showing in the receiver, this method simply returns. Otherwise, the items are scrolled and expanded until the item is visible.

Parameters:

item - the item to be shown

Throws:

java.lang.IllegalArgumentException -

• ERROR_NULL_ARGUMENT - if the item is null
• ERROR_INVALID_ARGUMENT - if the item has been disposed

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

See Also:

showSelection()

showSelection

public void showSelection()

Deprecated.

Shows the selection.

If there is no selection or the selection is already visible, this method does nothing. If the selection is scrolled out of view, the top index of the widget is changed such that selection becomes visible.

Throws:

SWTException -

• ERROR_THREAD_INVALID_ACCESS when called from the wrong thread
• ERROR_WIDGET_DISPOSED when the widget has been disposed
