org.eclipse.swt.custom

Class TreeCursor

java.lang.Object

org.eclipse.swt.widgets.Widget

org.eclipse.swt.widgets.Control

org.eclipse.swt.widgets.Scrollable

org.eclipse.swt.widgets.Composite

org.eclipse.swt.widgets.Canvas

org.eclipse.swt.custom.TreeCursor

All Implemented Interfaces:

Drawable

public class TreeCursor
extends Canvas

A TreeCursor provides a way for the user to navigate around a Tree with columns using the keyboard. It also provides a mechanism for selecting an individual cell in a tree.

For a detailed example of using a TreeCursor to navigate to a cell and then edit it see http://git.eclipse.org/c/platform/eclipse.platform.swt.git/tree/examples/org.eclipse.swt.snippets/src/org/eclipse/swt/snippets/Snippet360.java .

Styles:

BORDER

Events:

Selection, DefaultSelection

Since:

3.8

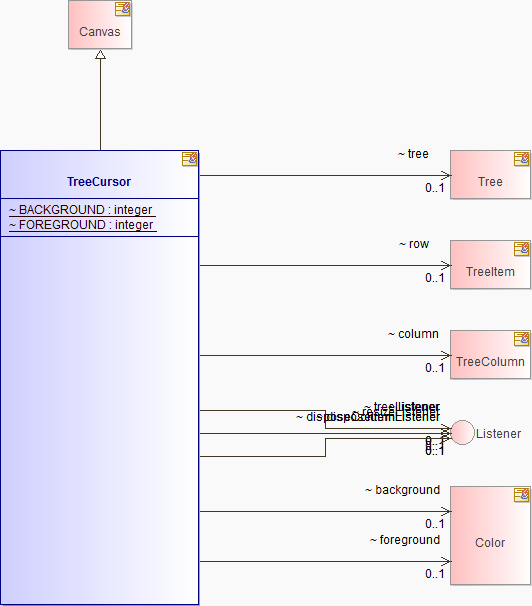

Structure Diagram

Field Summary

Fields

Modifier and Type	Field and Description
(package private) Color	background
(package private) static int	BACKGROUND
(package private) TreeColumn	column
(package private) Listener	disposeColumnListener
(package private) Listener	disposeItemListener
(package private) Color	foreground
(package private) static int	FOREGROUND
(package private) Listener	listener
(package private) Listener	resizeListener
(package private) TreeItem	row
(package private) Tree	tree
(package private) Listener	treeListener

Fields inherited from class org.eclipse.swt.widgets.Control

handle

Constructor Summary

Constructors

Constructor and Description
TreeCursor(Tree parent, int style) Constructs a new instance of this class given its parent tree and a style value describing its behavior and appearance.

Method Summary

Methods

Modifier and Type	Method and Description
(package private) void	_resize()
void	addSelectionListener(SelectionListener listener) Adds the listener to the collection of listeners who will be notified when the receiver's selection changes, by sending it one of the messages defined in the SelectionListener interface.
(package private) int	countSubTreePages(TreeItem root)
(package private) int	findIndex(TreeItem[] items, TreeItem treeItem)
(package private) TreeItem	findItem(TreeItem[] items, Point pt)
Color	getBackground() Returns the background color that the receiver will use to draw.
int	getColumn() Returns the index of the column over which the TreeCursor is positioned.
Color	getForeground() Returns the foreground color that the receiver will use to draw.
(package private) TreeItem	getLastVisibleItem(TreeItem[] items)
(package private) TreeItem	getNextItem(TreeItem item)
(package private) TreeItem	getPreviousItem(TreeItem item)
TreeItem	getRow() Returns the row over which the TreeCursor is positioned.
(package private) void	keyDown(Event event)
(package private) void	onDispose(Event event)
(package private) void	paint(Event event)
void	removeSelectionListener(SelectionListener listener) Removes the listener from the collection of listeners who will be notified when the receiver's selection changes.
void	setBackground(Color color) Sets the receiver's background color to the color specified by the argument, or to the default system color for the control if the argument is null.
void	setForeground(Color color) Sets the receiver's foreground color to the color specified by the argument, or to the default system color for the control if the argument is null.
(package private) void	setRowColumn(int row, int column, boolean notify)
(package private) void	setRowColumn(TreeItem row, TreeColumn column, boolean notify)
void	setSelection(int row, int column) Positions the TreeCursor over the root-level cell at the given row and column in the parent tree.
void	setSelection(TreeItem row, int column) Positions the TreeCursor over the cell at the given row and column in the parent tree.
void	setVisible(boolean visible) Marks the receiver as visible if the argument is true, and marks it invisible otherwise.
(package private) void	treeCollapse(Event event)
(package private) void	treeExpand(Event event)
(package private) void	treeFocusIn(Event event)
(package private) void	treeMouseDown(Event event)
(package private) void	unhookRowColumnListeners()

Methods inherited from class org.eclipse.swt.widgets.Canvas

drawBackground, getCaret, getIME, scroll, setCaret, setFont, setIME

Methods inherited from class org.eclipse.swt.widgets.Composite

changed, checkSubclass, computeSize, drawBackground, getBackgroundMode, getChildren, getLayout, getLayoutDeferred, getTabList, isLayoutDeferred, layout, layout, layout, layout, layout, setBackgroundMode, setFocus, setLayout, setLayoutDeferred, setTabList

Methods inherited from class org.eclipse.swt.widgets.Scrollable

computeTrim, getClientArea, getHorizontalBar, getScrollbarsMode, getVerticalBar

Methods inherited from class org.eclipse.swt.widgets.Control

addControlListener, addDragDetectListener, addFocusListener, addGestureListener, addHelpListener, addKeyListener, addMenuDetectListener, addMouseListener, addMouseMoveListener, addMouseTrackListener, addMouseWheelListener, addPaintListener, addTouchListener, addTraverseListener, computeSize, dragDetect, dragDetect, forceFocus, getAccessible, getBackgroundImage, getBorderWidth, getBounds, getCursor, getDragDetect, getEnabled, getFont, getLayoutData, getLocation, getMenu, getMonitor, getOrientation, getParent, getRegion, getShell, getSize, getToolTipText, getTouchEnabled, getVisible, internal_dispose_GC, internal_new_GC, isEnabled, isFocusControl, isReparentable, isVisible, moveAbove, moveBelow, pack, pack, print, redraw, redraw, removeControlListener, removeDragDetectListener, removeFocusListener, removeGestureListener, removeHelpListener, removeKeyListener, removeMenuDetectListener, removeMouseListener, removeMouseMoveListener, removeMouseTrackListener, removeMouseWheelListener, removePaintListener, removeTouchListener, removeTraverseListener, setBackgroundImage, setBounds, setBounds, setCapture, setCursor, setDragDetect, setEnabled, setLayoutData, setLocation, setLocation, setMenu, setOrientation, setParent, setRedraw, setRegion, setSize, setSize, setToolTipText, setTouchEnabled, toControl, toControl, toDisplay, toDisplay, traverse, traverse, traverse, update

Methods inherited from class org.eclipse.swt.widgets.Widget

addDisposeListener, addListener, checkWidget, dispose, getData, getData, getDisplay, getListeners, getStyle, isDisposed, isListening, notifyListeners, removeDisposeListener, removeListener, removeListener, reskin, setData, setData, toString

Methods inherited from class java.lang.Object

clone, equals, finalize, getClass, hashCode, notify, notifyAll, wait, wait, wait

Field Detail

tree

Tree tree

row

TreeItem row

column

TreeColumn column

listener

Listener listener

treeListener

Listener treeListener

resizeListener

Listener resizeListener

disposeItemListener

Listener disposeItemListener

disposeColumnListener

Listener disposeColumnListener

background

Color background

foreground

Color foreground

BACKGROUND

static final int BACKGROUND

See Also:

Constant Field Values

FOREGROUND

static final int FOREGROUND

See Also:

Constant Field Values

Constructor Detail

TreeCursor

public TreeCursor(Tree parent,
          int style)

Constructs a new instance of this class given its parent tree and a style value describing its behavior and appearance.

The style value is either one of the style constants defined in class SWT which is applicable to instances of this class, or must be built by bitwise OR'ing together (that is, using the int "|" operator) two or more of those SWT style constants. The class description lists the style constants that are applicable to the class. Style bits are also inherited from superclasses.

Parameters:

parent - a Tree control which will be the parent of the new instance (cannot be null)

style - the style of control to construct

Throws:

java.lang.IllegalArgumentException -

• ERROR_NULL_ARGUMENT - if the parent is null

SWTException -

• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the parent
• ERROR_INVALID_SUBCLASS - if this class is not an allowed subclass

See Also:

SWT.BORDER, Widget.checkSubclass(), Widget.getStyle()

Method Detail

addSelectionListener

public void addSelectionListener(SelectionListener listener)

Adds the listener to the collection of listeners who will be notified when the receiver's selection changes, by sending it one of the messages defined in the SelectionListener interface.

When widgetSelected is called, the item field of the event object is valid. If the receiver has SWT.CHECK style set and the check selection changes, the event object detail field contains the value SWT.CHECK. widgetDefaultSelected is typically called when an item is double-clicked.

Parameters:

listener - the listener which should be notified

Throws:

java.lang.IllegalArgumentException -

• ERROR_NULL_ARGUMENT - if the listener is null

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

See Also:

SelectionListener, SelectionEvent, removeSelectionListener(SelectionListener)

countSubTreePages

int countSubTreePages(TreeItem root)

findIndex

int findIndex(TreeItem[] items,
            TreeItem treeItem)

findItem

TreeItem findItem(TreeItem[] items,
                Point pt)

getBackground

public Color getBackground()

Returns the background color that the receiver will use to draw.

Overrides:

getBackground in class Control

Returns:

the receiver's background color

getColumn

public int getColumn()

Returns the index of the column over which the TreeCursor is positioned.

Returns:

the column index for the current position

Throws:

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

getForeground

public Color getForeground()

Returns the foreground color that the receiver will use to draw.

Overrides:

getForeground in class Control

Returns:

the receiver's foreground color

getLastVisibleItem

TreeItem getLastVisibleItem(TreeItem[] items)

getNextItem

TreeItem getNextItem(TreeItem item)

getPreviousItem

TreeItem getPreviousItem(TreeItem item)

getRow

public TreeItem getRow()

Returns the row over which the TreeCursor is positioned.

Returns:

the item for the current position, or null if none

Throws:

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

keyDown

void keyDown(Event event)

onDispose

void onDispose(Event event)

paint

void paint(Event event)

removeSelectionListener

public void removeSelectionListener(SelectionListener listener)

Removes the listener from the collection of listeners who will be notified when the receiver's selection changes.

Parameters:

listener - the listener which should no longer be notified

Throws:

java.lang.IllegalArgumentException -

• ERROR_NULL_ARGUMENT - if the listener is null

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

See Also:

SelectionListener, addSelectionListener(SelectionListener)

_resize

void _resize()

setBackground

public void setBackground(Color color)

Sets the receiver's background color to the color specified by the argument, or to the default system color for the control if the argument is null.

Note: This operation is a hint and may be overridden by the platform. For example, on Windows the background of a Button cannot be changed.

Overrides:

setBackground in class Control

Parameters:

color - the new color (or null)

Throws:

java.lang.IllegalArgumentException -

• ERROR_INVALID_ARGUMENT - if the argument has been disposed

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

setForeground

public void setForeground(Color color)

Sets the receiver's foreground color to the color specified by the argument, or to the default system color for the control if the argument is null.

Note: This operation is a hint and may be overridden by the platform.

Overrides:

setForeground in class Control

Parameters:

color - the new color (or null)

Throws:

java.lang.IllegalArgumentException -

• ERROR_INVALID_ARGUMENT - if the argument has been disposed

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

setRowColumn

void setRowColumn(int row,
                int column,
                boolean notify)

setRowColumn

void setRowColumn(TreeItem row,
                TreeColumn column,
                boolean notify)

setSelection

public void setSelection(int row,
                int column)

Positions the TreeCursor over the root-level cell at the given row and column in the parent tree.

Parameters:

row - the index of the root-level row for the cell to select

column - the index of column for the cell to select

Throws:

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

setSelection

public void setSelection(TreeItem row,
                int column)

Positions the TreeCursor over the cell at the given row and column in the parent tree.

Parameters:

row - the TreeItem of the row for the cell to select

column - the index of column for the cell to select

Throws:

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

setVisible

public void setVisible(boolean visible)

Description copied from class: Control

Marks the receiver as visible if the argument is true, and marks it invisible otherwise.

If one of the receiver's ancestors is not visible or some other condition makes the receiver not visible, marking it visible may not actually cause it to be displayed.

Overrides:

setVisible in class Control

Parameters:

visible - the new visibility state

treeCollapse

void treeCollapse(Event event)

treeExpand

void treeExpand(Event event)

treeFocusIn

void treeFocusIn(Event event)

treeMouseDown

void treeMouseDown(Event event)

unhookRowColumnListeners

void unhookRowColumnListeners()
