org.eclipse.swt.custom

Class ViewForm

java.lang.Object

org.eclipse.swt.widgets.Widget

org.eclipse.swt.widgets.Control

org.eclipse.swt.widgets.Scrollable

org.eclipse.swt.widgets.Composite

org.eclipse.swt.custom.ViewForm

All Implemented Interfaces:

Drawable

public class ViewForm
extends Composite

Instances of this class implement a Composite that positions and sizes children and allows programmatic control of layout and border parameters. ViewForm is used in the workbench to lay out a view's label/menu/toolbar local bar.

Note that although this class is a subclass of Composite, it does not make sense to set a layout on it.

Styles:

BORDER, FLAT

Events:

(None)

IMPORTANT: This class is not intended to be subclassed.

See Also:

Sample code and further information

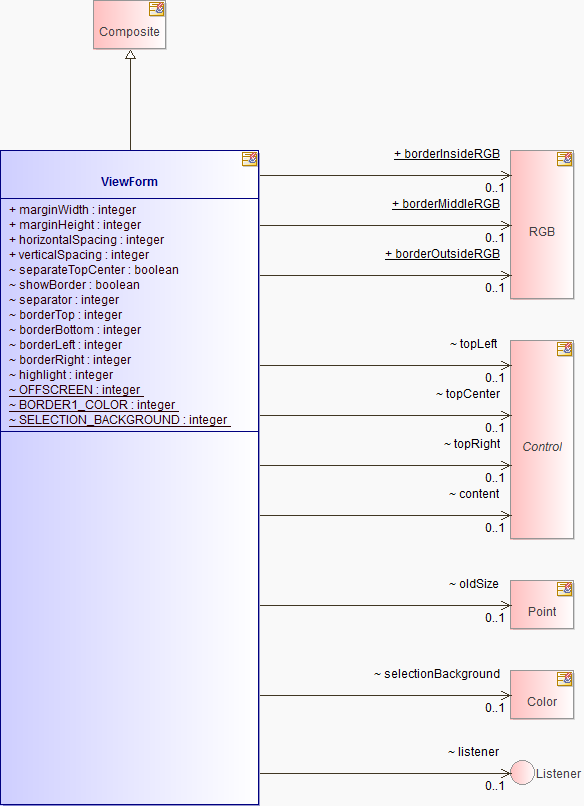

Structure Diagram

Field Summary

Fields

Modifier and Type	Field and Description
(package private) static int	BORDER1_COLOR
(package private) int	borderBottom
static RGB	borderInsideRGB Deprecated.
(package private) int	borderLeft
static RGB	borderMiddleRGB Deprecated.
static RGB	borderOutsideRGB Deprecated.
(package private) int	borderRight
(package private) int	borderTop
(package private) Control	content
(package private) int	highlight
int	horizontalSpacing horizontalSpacing specifies the number of pixels between the right edge of one cell and the left edge of its neighbouring cell to the right.
(package private) Listener	listener
int	marginHeight marginHeight specifies the number of pixels of vertical margin that will be placed along the top and bottom edges of the form.
int	marginWidth marginWidth specifies the number of pixels of horizontal margin that will be placed along the left and right edges of the form.
(package private) static int	OFFSCREEN
(package private) Point	oldSize
(package private) static int	SELECTION_BACKGROUND
(package private) Color	selectionBackground
(package private) boolean	separateTopCenter
(package private) int	separator
(package private) boolean	showBorder
(package private) Control	topCenter
(package private) Control	topLeft
(package private) Control	topRight
int	verticalSpacing verticalSpacing specifies the number of pixels between the bottom edge of one cell and the top edge of its neighbouring cell underneath.

Fields inherited from class org.eclipse.swt.widgets.Control

handle

Constructor Summary

Constructors

Constructor and Description
ViewForm(Composite parent, int style) Constructs a new instance of this class given its parent and a style value describing its behavior and appearance.

Method Summary

Methods

Modifier and Type	Method and Description
(package private) static int	checkStyle(int style)
Rectangle	computeTrim(int x, int y, int width, int height) Given a desired client area for the receiver (as described by the arguments), returns the bounding rectangle which would be required to produce that client area.
Rectangle	getClientArea() Returns a rectangle which describes the area of the receiver which is capable of displaying data (that is, not covered by the "trimmings").
Control	getContent() Returns the content area.
Control	getTopCenter() Returns Control that appears in the top center of the pane.
Control	getTopLeft() Returns the Control that appears in the top left corner of the pane.
Control	getTopRight() Returns the control in the top right corner of the pane.
(package private) void	onDispose(Event event)
(package private) void	onPaint(GC gc)
(package private) void	onResize()
void	setBorderVisible(boolean show) Specify whether the border should be displayed or not.
void	setContent(Control content) Sets the content.
void	setLayout(Layout layout) Sets the layout which is associated with the receiver to be the argument which may be null.
(package private) void	setSelectionBackground(Color color)
void	setTopCenter(Control topCenter) Set the control that appears in the top center of the pane.
void	setTopCenterSeparate(boolean show) If true, the topCenter will always appear on a separate line by itself, otherwise the topCenter will appear in the top row if there is room and will be moved to the second row if required.
void	setTopLeft(Control c) Set the control that appears in the top left corner of the pane.
void	setTopRight(Control c) Set the control that appears in the top right corner of the pane.

Methods inherited from class org.eclipse.swt.widgets.Composite

changed, checkSubclass, computeSize, drawBackground, getBackgroundMode, getChildren, getLayout, getLayoutDeferred, getTabList, isLayoutDeferred, layout, layout, layout, layout, layout, setBackgroundMode, setFocus, setLayoutDeferred, setTabList

Methods inherited from class org.eclipse.swt.widgets.Scrollable

getHorizontalBar, getScrollbarsMode, getVerticalBar

Methods inherited from class org.eclipse.swt.widgets.Control

addControlListener, addDragDetectListener, addFocusListener, addGestureListener, addHelpListener, addKeyListener, addMenuDetectListener, addMouseListener, addMouseMoveListener, addMouseTrackListener, addMouseWheelListener, addPaintListener, addTouchListener, addTraverseListener, computeSize, dragDetect, dragDetect, forceFocus, getAccessible, getBackground, getBackgroundImage, getBorderWidth, getBounds, getCursor, getDragDetect, getEnabled, getFont, getForeground, getLayoutData, getLocation, getMenu, getMonitor, getOrientation, getParent, getRegion, getShell, getSize, getToolTipText, getTouchEnabled, getVisible, internal_dispose_GC, internal_new_GC, isEnabled, isFocusControl, isReparentable, isVisible, moveAbove, moveBelow, pack, pack, print, redraw, redraw, removeControlListener, removeDragDetectListener, removeFocusListener, removeGestureListener, removeHelpListener, removeKeyListener, removeMenuDetectListener, removeMouseListener, removeMouseMoveListener, removeMouseTrackListener, removeMouseWheelListener, removePaintListener, removeTouchListener, removeTraverseListener, setBackground, setBackgroundImage, setBounds, setBounds, setCapture, setCursor, setDragDetect, setEnabled, setFont, setForeground, setLayoutData, setLocation, setLocation, setMenu, setOrientation, setParent, setRedraw, setRegion, setSize, setSize, setToolTipText, setTouchEnabled, setVisible, toControl, toControl, toDisplay, toDisplay, traverse, traverse, traverse, update

Methods inherited from class org.eclipse.swt.widgets.Widget

addDisposeListener, addListener, checkWidget, dispose, getData, getData, getDisplay, getListeners, getStyle, isDisposed, isListening, notifyListeners, removeDisposeListener, removeListener, removeListener, reskin, setData, setData, toString

Methods inherited from class java.lang.Object

clone, equals, finalize, getClass, hashCode, notify, notifyAll, wait, wait, wait

Field Detail

marginWidth

public int marginWidth

marginWidth specifies the number of pixels of horizontal margin that will be placed along the left and right edges of the form. The default value is 0.

marginHeight

public int marginHeight

marginHeight specifies the number of pixels of vertical margin that will be placed along the top and bottom edges of the form. The default value is 0.

horizontalSpacing

public int horizontalSpacing

horizontalSpacing specifies the number of pixels between the right edge of one cell and the left edge of its neighbouring cell to the right. The default value is 1.

verticalSpacing

public int verticalSpacing

verticalSpacing specifies the number of pixels between the bottom edge of one cell and the top edge of its neighbouring cell underneath. The default value is 1.

borderInsideRGB

public static RGB borderInsideRGB

Deprecated.

Color of innermost line of drop shadow border. NOTE This field is badly named and can not be fixed for backwards compatibility. It should be capitalized.

borderMiddleRGB

public static RGB borderMiddleRGB

Deprecated.

Color of middle line of drop shadow border. NOTE This field is badly named and can not be fixed for backwards compatibility. It should be capitalized.

borderOutsideRGB

public static RGB borderOutsideRGB

Deprecated.

Color of outermost line of drop shadow border. NOTE This field is badly named and can not be fixed for backwards compatibility. It should be capitalized.

topLeft

Control topLeft

topCenter

Control topCenter

topRight

Control topRight

content

Control content

separateTopCenter

boolean separateTopCenter

showBorder

boolean showBorder

separator

int separator

borderTop

int borderTop

borderBottom

int borderBottom

borderLeft

int borderLeft

borderRight

int borderRight

highlight

int highlight

oldSize

Point oldSize

selectionBackground

Color selectionBackground

listener

Listener listener

OFFSCREEN

static final int OFFSCREEN

See Also:

Constant Field Values

BORDER1_COLOR

static final int BORDER1_COLOR

See Also:

Constant Field Values

SELECTION_BACKGROUND

static final int SELECTION_BACKGROUND

See Also:

Constant Field Values

Constructor Detail

ViewForm

public ViewForm(Composite parent,
        int style)

Constructs a new instance of this class given its parent and a style value describing its behavior and appearance.

The style value is either one of the style constants defined in class SWT which is applicable to instances of this class, or must be built by bitwise OR'ing together (that is, using the int "|" operator) two or more of those SWT style constants. The class description lists the style constants that are applicable to the class. Style bits are also inherited from superclasses.

Parameters:

parent - a widget which will be the parent of the new instance (cannot be null)

style - the style of widget to construct

Throws:

java.lang.IllegalArgumentException -

• ERROR_NULL_ARGUMENT - if the parent is null

SWTException -

• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the parent

See Also:

SWT.BORDER, SWT.FLAT, Widget.getStyle()

Method Detail

checkStyle

static int checkStyle(int style)

computeTrim

public Rectangle computeTrim(int x,
                    int y,
                    int width,
                    int height)

Description copied from class: Scrollable

Given a desired client area for the receiver (as described by the arguments), returns the bounding rectangle which would be required to produce that client area.

In other words, it returns a rectangle such that, if the receiver's bounds were set to that rectangle, the area of the receiver which is capable of displaying data (that is, not covered by the "trimmings") would be the rectangle described by the arguments (relative to the receiver's parent).

Overrides:

computeTrim in class Scrollable

Parameters:

x - the desired x coordinate of the client area

y - the desired y coordinate of the client area

width - the desired width of the client area

height - the desired height of the client area

Returns:

the required bounds to produce the given client area

See Also:

Scrollable.getClientArea()

getClientArea

public Rectangle getClientArea()

Description copied from class: Scrollable

Returns a rectangle which describes the area of the receiver which is capable of displaying data (that is, not covered by the "trimmings").

Overrides:

getClientArea in class Scrollable

Returns:

the client area

See Also:

Scrollable.computeTrim(int, int, int, int)

getContent

public Control getContent()

Returns the content area.

Returns:

the control in the content area of the pane or null

getTopCenter

public Control getTopCenter()

Returns Control that appears in the top center of the pane. Typically this is a toolbar.

Returns:

the control in the top center of the pane or null

getTopLeft

public Control getTopLeft()

Returns the Control that appears in the top left corner of the pane. Typically this is a label such as CLabel.

Returns:

the control in the top left corner of the pane or null

getTopRight

public Control getTopRight()

Returns the control in the top right corner of the pane. Typically this is a Close button or a composite with a Menu and Close button.

Returns:

the control in the top right corner of the pane or null

onDispose

void onDispose(Event event)

onPaint

void onPaint(GC gc)

onResize

void onResize()

setContent

public void setContent(Control content)

Sets the content. Setting the content to null will remove it from the pane - however, the creator of the content must dispose of the content.

Parameters:

content - the control to be displayed in the content area or null

Throws:

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver
• ERROR_INVALID_ARGUMENT - if the control is not a child of this ViewForm

setLayout

public void setLayout(Layout layout)

Sets the layout which is associated with the receiver to be the argument which may be null.

Note: No Layout can be set on this Control because it already manages the size and position of its children.

Overrides:

setLayout in class Composite

Parameters:

layout - the receiver's new layout or null

Throws:

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

setSelectionBackground

void setSelectionBackground(Color color)

setTopCenter

public void setTopCenter(Control topCenter)

Set the control that appears in the top center of the pane. Typically this is a toolbar. The topCenter is optional. Setting the topCenter to null will remove it from the pane - however, the creator of the topCenter must dispose of the topCenter.

Parameters:

topCenter - the control to be displayed in the top center or null

Throws:

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver
• ERROR_INVALID_ARGUMENT - if the control is not a child of this ViewForm

setTopLeft

public void setTopLeft(Control c)

Set the control that appears in the top left corner of the pane. Typically this is a label such as CLabel. The topLeft is optional. Setting the top left control to null will remove it from the pane - however, the creator of the control must dispose of the control.

Parameters:

c - the control to be displayed in the top left corner or null

Throws:

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver
• ERROR_INVALID_ARGUMENT - if the control is not a child of this ViewForm

setTopRight

public void setTopRight(Control c)

Set the control that appears in the top right corner of the pane. Typically this is a Close button or a composite with a Menu and Close button. The topRight is optional. Setting the top right control to null will remove it from the pane - however, the creator of the control must dispose of the control.

Parameters:

c - the control to be displayed in the top right corner or null

Throws:

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver
• ERROR_INVALID_ARGUMENT - if the control is not a child of this ViewForm

setBorderVisible

public void setBorderVisible(boolean show)

Specify whether the border should be displayed or not.

Parameters:

show - true if the border should be displayed

Throws:

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

setTopCenterSeparate

public void setTopCenterSeparate(boolean show)

If true, the topCenter will always appear on a separate line by itself, otherwise the topCenter will appear in the top row if there is room and will be moved to the second row if required.

Parameters:

show - true if the topCenter will always appear on a separate line by itself

Throws:

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver
