FormAttachment

Fields
Modifier and Type	Field and Description
`int`	`alignment` alignment specifies the alignment of the control side that is attached to a control.
`Control`	`control` control specifies the control to which the control side is attached.
`int`	`denominator` denominator specifies the denominator of the "a" term in the equation, y = ax + b, which defines the attachment.
`int`	`numerator` numerator specifies the numerator of the "a" term in the equation, y = ax + b, which defines the attachment.
`int`	`offset` offset specifies the offset, in pixels, of the control side from the attachment position.

Constructors
Constructor and Description
`FormAttachment()` Constructs a new instance of this class.
`FormAttachment(Control control)` Constructs a new instance of this class given a control.
`FormAttachment(Control control, int offset)` Constructs a new instance of this class given a control and an offset.
`FormAttachment(Control control, int offset, int alignment)` Constructs a new instance of this class given a control, an offset and an alignment.
`FormAttachment(int numerator)` Constructs a new instance of this class given a numerator Since no denominator or offset is specified, the default is to treat the numerator as a percentage of the form, with a denominator of 100.
`FormAttachment(int numerator, int offset)` Constructs a new instance of this class given a numerator and an offset.
`FormAttachment(int numerator, int denominator, int offset)` Constructs a new instance of this class given a numerator and denominator and an offset.

Methods
Modifier and Type	Method and Description
`(package private) FormAttachment`	`divide(int value)`
`(package private) int`	`gcd(int m, int n)`
`(package private) FormAttachment`	`minus(FormAttachment attachment)`
`(package private) FormAttachment`	`minus(int value)`
`(package private) FormAttachment`	`plus(FormAttachment attachment)`
`(package private) FormAttachment`	`plus(int value)`
`(package private) int`	`solveX(int value)`
`(package private) int`	`solveY(int value)`
`java.lang.String`	`toString()` Returns a string containing a concise, human-readable description of the receiver.

java.lang.Object
- org.eclipse.swt.layout.FormAttachment

```
public final class FormAttachment
extends java.lang.Object
```
Instances of this class are used to define the edges of a control within a FormLayout.
FormAttachments are set into the top, bottom, left, and right fields of the FormData for a control. For example:
```
                FormData data = new FormData();
                data.top = new FormAttachment(0,5);
                data.bottom = new FormAttachment(100,-5);
                data.left = new FormAttachment(0,5);
                data.right = new FormAttachment(100,-5);
                button.setLayoutData(data);

```
A FormAttachment defines where to attach the side of a control by using the equation, y = ax + b. The "a" term represents a fraction of the parent composite's width (from the left) or height (from the top). It can be defined using a numerator and denominator, or just a percentage value. If a percentage is used, the denominator is set to 100. The "b" term in the equation represents an offset, in pixels, from the attachment position. For example:
```
                FormAttachment attach = new FormAttachment (20, -5);

```
specifies that the side to which the FormAttachment object belongs will lie at 20% of the parent composite, minus 5 pixels.

Control sides can also be attached to another control. For example:
```
                FormAttachment attach = new FormAttachment (button, 10);

```
specifies that the side to which the FormAttachment object belongs will lie in the same position as the adjacent side of the button control, plus 10 pixels. The control side can also be attached to the opposite side of the specified control. For example:
```
                FormData data = new FormData ();
                data.left = new FormAttachment (button, 0, SWT.LEFT);

```
specifies that the left side of the control will lie in the same position as the left side of the button control. The control can also be attached in a position that will center the control on the specified control. For example:
```
                data.left = new FormAttachment (button, 0, SWT.CENTER);

```
specifies that the left side of the control will be positioned so that it is centered between the left and right sides of the button control. If the alignment is not specified, the default is to attach to the adjacent side.
Since:

2.0

See Also:
FormLayout, FormData, Sample code and further information

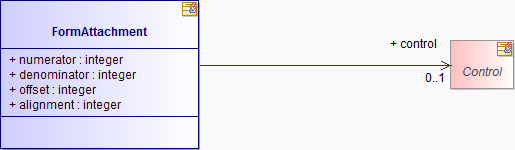

- Structure Diagram

Field Summary

Fields
Modifier and Type Field and Description

int alignment
alignment specifies the alignment of the control side that is attached to a control.

Control control
control specifies the control to which the control side is attached.

int denominator
denominator specifies the denominator of the "a" term in the equation, y = ax + b, which defines the attachment.

int numerator
numerator specifies the numerator of the "a" term in the equation, y = ax + b, which defines the attachment.

int offset
offset specifies the offset, in pixels, of the control side from the attachment position.

Constructor Summary

Constructors
Constructor and Description

FormAttachment()
Constructs a new instance of this class.

FormAttachment(Control control)
Constructs a new instance of this class given a control.

FormAttachment(Control control, int offset)
Constructs a new instance of this class given a control and an offset.

FormAttachment(Control control, int offset, int alignment)
Constructs a new instance of this class given a control, an offset and an alignment.

FormAttachment(int numerator)
Constructs a new instance of this class given a numerator Since no denominator or offset is specified, the default is to treat the numerator as a percentage of the form, with a denominator of 100.

FormAttachment(int numerator, int offset)
Constructs a new instance of this class given a numerator and an offset.

FormAttachment(int numerator, int denominator, int offset)
Constructs a new instance of this class given a numerator and denominator and an offset.

Method Summary

Methods
Modifier and Type Method and Description

(package private) FormAttachment divide(int value)

(package private) int gcd(int m, int n)

(package private) FormAttachment minus(FormAttachment attachment)

(package private) FormAttachment minus(int value)

(package private) FormAttachment plus(FormAttachment attachment)

(package private) FormAttachment plus(int value)

(package private) int solveX(int value)

(package private) int solveY(int value)

java.lang.String toString()
Returns a string containing a concise, human-readable description of the receiver.

Methods inherited from class java.lang.Object
clone, equals, finalize, getClass, hashCode, notify, notifyAll, wait, wait, wait

- Field Detail
  - numerator
```
public int numerator
```
    numerator specifies the numerator of the "a" term in the equation, y = ax + b, which defines the attachment.
  - denominator
```
public int denominator
```
    denominator specifies the denominator of the "a" term in the equation, y = ax + b, which defines the attachment. The default value is 100.
  - offset
```
public int offset
```
    offset specifies the offset, in pixels, of the control side from the attachment position. If the offset is positive, then the control side is offset to the right of or below the attachment position. If it is negative, then the control side is offset to the left of or above the attachment position. This is equivalent to the "b" term in the equation y = ax + b. The default value is 0.
  - control
```
public Control control
```
    control specifies the control to which the control side is attached.
  - alignment
```
public int alignment
```
    alignment specifies the alignment of the control side that is attached to a control.
    For top and bottom attachments, TOP, BOTTOM and CENTER are used. For left and right attachments, LEFT, RIGHT and CENTER are used. If any other case occurs, the default will be used instead.

    Possible values are:
    - SWT.TOP: Attach the side to the top side of the specified control.
    - SWT.BOTTOM: Attach the side to the bottom side of the specified control.
    - SWT.LEFT: Attach the side to the left side of the specified control.
    - SWT.RIGHT: Attach the side to the right side of the specified control.
    - SWT.CENTER: Attach the side at a position which will center the control on the specified control.
    - SWT.DEFAULT: Attach the side to the adjacent side of the specified control.
- Constructor Detail
  - FormAttachment
```
public FormAttachment()
```
    Constructs a new instance of this class. Since no numerator, denominator or offset is specified, the attachment is treated as a percentage of the form. The numerator is zero, the denominator is 100 and the offset is zero.

    Since:

    3.2
  - FormAttachment
```
public FormAttachment(int numerator)
```
    Constructs a new instance of this class given a numerator Since no denominator or offset is specified, the default is to treat the numerator as a percentage of the form, with a denominator of 100. The offset is zero.

    Parameters:
    numerator - the percentage of the position
    Since:

    3.0
  - FormAttachment
```
public FormAttachment(int numerator,
              int offset)
```
    Constructs a new instance of this class given a numerator and an offset. Since no denominator is specified, the default is to treat the numerator as a percentage of the form, with a denominator of 100.

    Parameters:
    numerator - the percentage of the position
    offset - the offset of the side from the position
  - FormAttachment
```
public FormAttachment(int numerator,
              int denominator,
              int offset)
```
    Constructs a new instance of this class given a numerator and denominator and an offset. The position of the side is given by the fraction of the form defined by the numerator and denominator.

    Parameters:
    numerator - the numerator of the position
    denominator - the denominator of the position
    offset - the offset of the side from the position
  - FormAttachment
```
public FormAttachment(Control control)
```
    Constructs a new instance of this class given a control. Since no alignment is specified, the default alignment is to attach the side to the adjacent side of the specified control. Since no offset is specified, an offset of 0 is used.

    Parameters:
    control - the control the side is attached to
  - FormAttachment
```
public FormAttachment(Control control,
              int offset)
```
    Constructs a new instance of this class given a control and an offset. Since no alignment is specified, the default alignment is to attach the side to the adjacent side of the specified control.

    Parameters:
    control - the control the side is attached to
    offset - the offset of the side from the control
  - FormAttachment
```
public FormAttachment(Control control,
              int offset,
              int alignment)
```
    Constructs a new instance of this class given a control, an offset and an alignment. The possible alignment values are:

    SWT.TOP

    the side will be attached to the top side of the specified control

    SWT.BOTTOM

    the side will be attached to the bottom side of the specified control

    SWT.LEFT

    the side will be attached to the left side of the specified control

    SWT.RIGHT

    the side will be attached to the right side of the specified control

    SWT.CENTER

    the side will be centered on the same side of the specified control

    SWT.DEFAULT

    the side will be attached to the adjacent side of the specified control

    Parameters:
    control - the control the side is attached to
    offset - the offset of the side from the control
    alignment - the alignment of the side to the control it is attached to, one of TOP, BOTTOM, LEFT, RIGHT, CENTER, or DEFAULT
- Method Detail
  - divide
```
FormAttachment divide(int value)
```
  - gcd
```
int gcd(int m,
      int n)
```
  - minus
```
FormAttachment minus(FormAttachment attachment)
```
  - minus
```
FormAttachment minus(int value)
```
  - plus
```
FormAttachment plus(FormAttachment attachment)
```
  - plus
```
FormAttachment plus(int value)
```
  - solveX
```
int solveX(int value)
```
  - solveY
```
int solveY(int value)
```
  - toString
```
public java.lang.String toString()
```
    Returns a string containing a concise, human-readable description of the receiver.

    Overrides:

    toString in class java.lang.Object

    Returns:
    a string representation of the FormAttachment
