org.eclipse.swt.layout

Class FormData

java.lang.Object

org.eclipse.swt.layout.FormData

public final class FormData
extends java.lang.Object

Instances of this class are used to define the attachments of a control in a FormLayout.

To set a FormData object into a control, you use the setLayoutData () method. To define attachments for the FormData, set the fields directly, like this:

                FormData data = new FormData();
                data.left = new FormAttachment(0,5);
                data.right = new FormAttachment(100,-5);
                button.setLayoutData(formData);


FormData contains the FormAttachments for each edge of the control that the FormLayout uses to determine the size and position of the control. FormData objects also allow you to set the width and height of controls within a FormLayout.

Since:

2.0

See Also:

FormLayout, FormAttachment, Sample code and further information

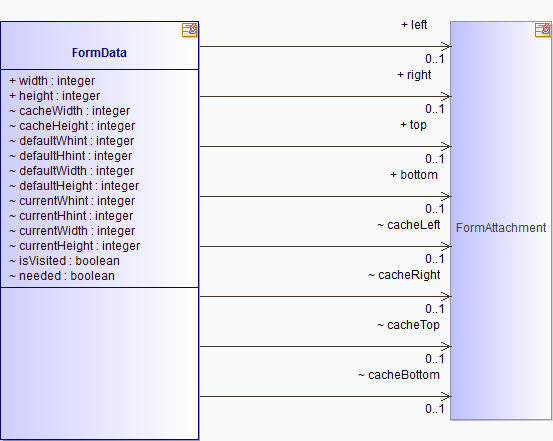

Structure Diagram

Field Summary

Fields

Modifier and Type	Field and Description
FormAttachment	bottom bottom specifies the attachment of the bottom of the control.
(package private) FormAttachment	cacheBottom
(package private) int	cacheHeight
(package private) FormAttachment	cacheLeft
(package private) FormAttachment	cacheRight
(package private) FormAttachment	cacheTop
(package private) int	cacheWidth
(package private) int	currentHeight
(package private) int	currentHhint
(package private) int	currentWhint
(package private) int	currentWidth
(package private) int	defaultHeight
(package private) int	defaultHhint
(package private) int	defaultWhint
(package private) int	defaultWidth
int	height height specifies the preferred height in pixels.
(package private) boolean	isVisited
FormAttachment	left left specifies the attachment of the left side of the control.
(package private) boolean	needed
FormAttachment	right right specifies the attachment of the right side of the control.
FormAttachment	top top specifies the attachment of the top of the control.
int	width width specifies the preferred width in pixels.

Constructor Summary

Constructors

Constructor and Description
FormData() Constructs a new instance of FormData using default values.
FormData(int width, int height) Constructs a new instance of FormData according to the parameters.

Method Summary

Methods

Modifier and Type	Method and Description
(package private) void	computeSize(Control control, int wHint, int hHint, boolean flushCache)
(package private) void	flushCache()
(package private) FormAttachment	getBottomAttachment(Control control, int spacing, boolean flushCache)
(package private) int	getHeight(Control control, boolean flushCache)
(package private) FormAttachment	getLeftAttachment(Control control, int spacing, boolean flushCache)
(package private) java.lang.String	getName()
(package private) FormAttachment	getRightAttachment(Control control, int spacing, boolean flushCache)
(package private) FormAttachment	getTopAttachment(Control control, int spacing, boolean flushCache)
(package private) int	getWidth(Control control, boolean flushCache)
java.lang.String	toString() Returns a string containing a concise, human-readable description of the receiver.

Methods inherited from class java.lang.Object

clone, equals, finalize, getClass, hashCode, notify, notifyAll, wait, wait, wait

Field Detail

width

public int width

width specifies the preferred width in pixels. This value is the wHint passed into Control.computeSize(int, int, boolean) to determine the preferred size of the control. The default value is SWT.DEFAULT.

See Also:

Control.computeSize(int, int, boolean)

height

public int height

height specifies the preferred height in pixels. This value is the hHint passed into Control.computeSize(int, int, boolean) to determine the preferred size of the control. The default value is SWT.DEFAULT.

See Also:

Control.computeSize(int, int, boolean)

left

public FormAttachment left

left specifies the attachment of the left side of the control.

right

public FormAttachment right

right specifies the attachment of the right side of the control.

top

public FormAttachment top

top specifies the attachment of the top of the control.

bottom

public FormAttachment bottom

bottom specifies the attachment of the bottom of the control.

cacheWidth

int cacheWidth

cacheHeight

int cacheHeight

defaultWhint

int defaultWhint

defaultHhint

int defaultHhint

defaultWidth

int defaultWidth

defaultHeight

int defaultHeight

currentWhint

int currentWhint

currentHhint

int currentHhint

currentWidth

int currentWidth

currentHeight

int currentHeight

cacheLeft

FormAttachment cacheLeft

cacheRight

FormAttachment cacheRight

cacheTop

FormAttachment cacheTop

cacheBottom

FormAttachment cacheBottom

isVisited

boolean isVisited

needed

boolean needed

Constructor Detail

FormData

public FormData()

Constructs a new instance of FormData using default values.

FormData

public FormData(int width,
        int height)

Constructs a new instance of FormData according to the parameters. A value of SWT.DEFAULT indicates that no minimum width or no minimum height is specified.

Parameters:

width - a minimum width for the control

height - a minimum height for the control

Method Detail

computeSize

void computeSize(Control control,
               int wHint,
               int hHint,
               boolean flushCache)

flushCache

void flushCache()

getWidth

int getWidth(Control control,
           boolean flushCache)

getHeight

int getHeight(Control control,
            boolean flushCache)

getBottomAttachment

FormAttachment getBottomAttachment(Control control,
                                 int spacing,
                                 boolean flushCache)

getLeftAttachment

FormAttachment getLeftAttachment(Control control,
                               int spacing,
                               boolean flushCache)

getName

java.lang.String getName()

getRightAttachment

FormAttachment getRightAttachment(Control control,
                                int spacing,
                                boolean flushCache)

getTopAttachment

FormAttachment getTopAttachment(Control control,
                              int spacing,
                              boolean flushCache)

toString

public java.lang.String toString()

Returns a string containing a concise, human-readable description of the receiver.

Overrides:

toString in class java.lang.Object

Returns:

a string representation of the FormData object
