RowLayout

Fields
Modifier and Type	Field and Description
`boolean`	`center` center specifies whether the controls in a row should be centered vertically in each cell for horizontal layouts, or centered horizontally in each cell for vertical layouts.
`boolean`	`fill` fill specifies whether the controls in a row should be all the same height for horizontal layouts, or the same width for vertical layouts.
`boolean`	`justify` justify specifies whether the controls in a row should be fully justified, with any extra space placed between the controls.
`int`	`marginBottom` marginBottom specifies the number of pixels of vertical margin that will be placed along the bottom edge of the layout.
`int`	`marginHeight` marginHeight specifies the number of pixels of vertical margin that will be placed along the top and bottom edges of the layout.
`int`	`marginLeft` marginLeft specifies the number of pixels of horizontal margin that will be placed along the left edge of the layout.
`int`	`marginRight` marginRight specifies the number of pixels of horizontal margin that will be placed along the right edge of the layout.
`int`	`marginTop` marginTop specifies the number of pixels of vertical margin that will be placed along the top edge of the layout.
`int`	`marginWidth` marginWidth specifies the number of pixels of horizontal margin that will be placed along the left and right edges of the layout.
`boolean`	`pack` pack specifies whether all controls in the layout take their preferred size.
`int`	`spacing` spacing specifies the number of pixels between the edge of one cell and the edge of its neighbouring cell.
`int`	`type` type specifies whether the layout places controls in rows or columns.
`boolean`	`wrap` wrap specifies whether a control will be wrapped to the next row if there is insufficient space on the current row.

Constructors
Constructor and Description
`RowLayout()` Constructs a new instance of this class.
`RowLayout(int type)` Constructs a new instance of this class given the type.

Methods
Modifier and Type	Method and Description
`protected Point`	`computeSize(Composite composite, int wHint, int hHint, boolean flushCache)` Computes and returns the size of the specified composite's client area according to this layout.
`(package private) Point`	`computeSize(Control control, boolean flushCache)`
`protected boolean`	`flushCache(Control control)` Instruct the layout to flush any cached values associated with the control specified in the argument `control`.
`(package private) java.lang.String`	`getName()`
`protected void`	`layout(Composite composite, boolean flushCache)` Lays out the children of the specified composite according to this layout.
`(package private) Point`	`layoutHorizontal(Composite composite, boolean move, boolean wrap, int width, boolean flushCache)`
`(package private) Point`	`layoutVertical(Composite composite, boolean move, boolean wrap, int height, boolean flushCache)`
`java.lang.String`	`toString()` Returns a string containing a concise, human-readable description of the receiver.

java.lang.Object
- org.eclipse.swt.widgets.Layout
- - org.eclipse.swt.layout.RowLayout

```
public final class RowLayout
extends Layout
```
Instances of this class determine the size and position of the children of a Composite by placing them either in horizontal rows or vertical columns within the parent Composite.
RowLayout aligns all controls in one row if the type is set to horizontal, and one column if it is set to vertical. It has the ability to wrap, and provides configurable margins and spacing. RowLayout has a number of configuration fields. In addition, the height and width of each control in a RowLayout can be specified by setting a RowData object into the control using setLayoutData ().

The following example code creates a RowLayout, sets all of its fields to non-default values, and then sets it into a Shell.
```
                RowLayout rowLayout = new RowLayout();
                rowLayout.wrap = false;
                rowLayout.pack = false;
                rowLayout.justify = true;
                rowLayout.type = SWT.VERTICAL;
                rowLayout.marginLeft = 5;
                rowLayout.marginTop = 5;
                rowLayout.marginRight = 5;
                rowLayout.marginBottom = 5;
                rowLayout.spacing = 0;
                shell.setLayout(rowLayout);

```
If you are using the default field values, you only need one line of code:
```
                shell.setLayout(new RowLayout());

```
See Also:
RowData, RowLayout snippets, SWT Example: LayoutExample, Sample code and further information

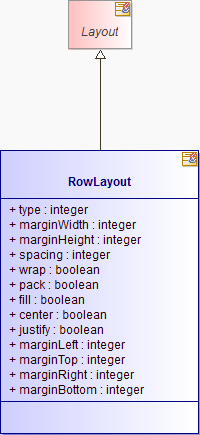

- Structure Diagram

Field Summary

Fields
Modifier and Type Field and Description

boolean center
center specifies whether the controls in a row should be centered vertically in each cell for horizontal layouts, or centered horizontally in each cell for vertical layouts.

boolean fill
fill specifies whether the controls in a row should be all the same height for horizontal layouts, or the same width for vertical layouts.

boolean justify
justify specifies whether the controls in a row should be fully justified, with any extra space placed between the controls.

int marginBottom
marginBottom specifies the number of pixels of vertical margin that will be placed along the bottom edge of the layout.

int marginHeight
marginHeight specifies the number of pixels of vertical margin that will be placed along the top and bottom edges of the layout.

int marginLeft
marginLeft specifies the number of pixels of horizontal margin that will be placed along the left edge of the layout.

int marginRight
marginRight specifies the number of pixels of horizontal margin that will be placed along the right edge of the layout.

int marginTop
marginTop specifies the number of pixels of vertical margin that will be placed along the top edge of the layout.

int marginWidth
marginWidth specifies the number of pixels of horizontal margin that will be placed along the left and right edges of the layout.

boolean pack
pack specifies whether all controls in the layout take their preferred size.

int spacing
spacing specifies the number of pixels between the edge of one cell and the edge of its neighbouring cell.

int type
type specifies whether the layout places controls in rows or columns.

boolean wrap
wrap specifies whether a control will be wrapped to the next row if there is insufficient space on the current row.

Constructor Summary

Constructors
Constructor and Description

RowLayout()
Constructs a new instance of this class.

RowLayout(int type)
Constructs a new instance of this class given the type.

Method Summary

Methods
Modifier and Type Method and Description

protected Point computeSize(Composite composite, int wHint, int hHint, boolean flushCache)
Computes and returns the size of the specified composite's client area according to this layout.

(package private) Point computeSize(Control control, boolean flushCache)

protected boolean flushCache(Control control)
Instruct the layout to flush any cached values associated with the control specified in the argument control.

(package private) java.lang.String getName()

protected void layout(Composite composite, boolean flushCache)
Lays out the children of the specified composite according to this layout.

(package private) Point layoutHorizontal(Composite composite, boolean move, boolean wrap, int width, boolean flushCache)

(package private) Point layoutVertical(Composite composite, boolean move, boolean wrap, int height, boolean flushCache)

java.lang.String toString()
Returns a string containing a concise, human-readable description of the receiver.

Methods inherited from class java.lang.Object
clone, equals, finalize, getClass, hashCode, notify, notifyAll, wait, wait, wait

- Field Detail
  - type
```
public int type
```
    type specifies whether the layout places controls in rows or columns. The default value is HORIZONTAL. Possible values are:
    - HORIZONTAL: Position the controls horizontally from left to right
    - VERTICAL: Position the controls vertically from top to bottom
    Since:

    2.0
  - marginWidth
```
public int marginWidth
```
    marginWidth specifies the number of pixels of horizontal margin that will be placed along the left and right edges of the layout. The default value is 0.

    Since:

    3.0
  - marginHeight
```
public int marginHeight
```
    marginHeight specifies the number of pixels of vertical margin that will be placed along the top and bottom edges of the layout. The default value is 0.

    Since:

    3.0
  - spacing
```
public int spacing
```
    spacing specifies the number of pixels between the edge of one cell and the edge of its neighbouring cell. The default value is 3.
  - wrap
```
public boolean wrap
```
    wrap specifies whether a control will be wrapped to the next row if there is insufficient space on the current row. The default value is true.
  - pack
```
public boolean pack
```
    pack specifies whether all controls in the layout take their preferred size. If pack is false, all controls will have the same size which is the size required to accommodate the largest preferred height and the largest preferred width of all the controls in the layout. The default value is true.
  - fill
```
public boolean fill
```
    fill specifies whether the controls in a row should be all the same height for horizontal layouts, or the same width for vertical layouts. The default value is false.

    Since:

    3.0
  - center
```
public boolean center
```
    center specifies whether the controls in a row should be centered vertically in each cell for horizontal layouts, or centered horizontally in each cell for vertical layouts. The default value is false.

    Since:

    3.4
  - justify
```
public boolean justify
```
    justify specifies whether the controls in a row should be fully justified, with any extra space placed between the controls. The default value is false.
  - marginLeft
```
public int marginLeft
```
    marginLeft specifies the number of pixels of horizontal margin that will be placed along the left edge of the layout. The default value is 3.
  - marginTop
```
public int marginTop
```
    marginTop specifies the number of pixels of vertical margin that will be placed along the top edge of the layout. The default value is 3.
  - marginRight
```
public int marginRight
```
    marginRight specifies the number of pixels of horizontal margin that will be placed along the right edge of the layout. The default value is 3.
  - marginBottom
```
public int marginBottom
```
    marginBottom specifies the number of pixels of vertical margin that will be placed along the bottom edge of the layout. The default value is 3.
- Constructor Detail
  - RowLayout
```
public RowLayout()
```
    Constructs a new instance of this class.
  - RowLayout
```
public RowLayout(int type)
```
    Constructs a new instance of this class given the type.

    Parameters:
    type - the type of row layout
    Since:

    2.0
- Method Detail
  - computeSize
```
protected Point computeSize(Composite composite,
                int wHint,
                int hHint,
                boolean flushCache)
```
    Description copied from class: Layout

    Computes and returns the size of the specified composite's client area according to this layout.
    This method computes the size that the client area of the composite must be in order to position all children at their preferred size inside the composite according to the layout algorithm encoded by this layout.

    When a width or height hint is supplied, it is used to constrain the result. For example, if a width hint is provided that is less than the width of the client area, the layout may choose to wrap and increase height, clip, overlap, or otherwise constrain the children.

    Specified by:

    computeSize in class Layout

    Parameters:
    composite - a composite widget using this layout
    wHint - width (SWT.DEFAULT for preferred size)
    hHint - height (SWT.DEFAULT for preferred size)
    flushCache - true means flush cached layout values

    Returns:
    a point containing the computed size (width, height)
    See Also:
    Layout.layout(org.eclipse.swt.widgets.Composite, boolean), Control.getBorderWidth(), Control.getBounds(), Control.getSize(), Control.pack(boolean), "computeTrim, getClientArea for controls that implement them"
  - computeSize
```
Point computeSize(Control control,
                boolean flushCache)
```
  - flushCache
```
protected boolean flushCache(Control control)
```
    Description copied from class: Layout

    Instruct the layout to flush any cached values associated with the control specified in the argument control.

    Overrides:

    flushCache in class Layout

    Parameters:
    control - a control managed by this layout

    Returns:
    true if the Layout has flushed all cached information associated with control
  - getName
```
java.lang.String getName()
```
  - layout
```
protected void layout(Composite composite,
          boolean flushCache)
```
    Description copied from class: Layout

    Lays out the children of the specified composite according to this layout.
    This method positions and sizes the children of a composite using the layout algorithm encoded by this layout. Children of the composite are positioned in the client area of the composite. The position of the composite is not altered by this method.

    When the flush cache hint is true, the layout is instructed to flush any cached values associated with the children. Typically, a layout will cache the preferred sizes of the children to avoid the expense of computing these values each time the widget is laid out.

    When layout is triggered explicitly by the programmer the flush cache hint is true. When layout is triggered by a resize, either caused by the programmer or by the user, the hint is false.

    Specified by:

    layout in class Layout

    Parameters:
    composite - a composite widget using this layout
    flushCache - true means flush cached layout values
  - layoutHorizontal
```
Point layoutHorizontal(Composite composite,
                     boolean move,
                     boolean wrap,
                     int width,
                     boolean flushCache)
```
  - layoutVertical
```
Point layoutVertical(Composite composite,
                   boolean move,
                   boolean wrap,
                   int height,
                   boolean flushCache)
```
  - toString
```
public java.lang.String toString()
```
    Returns a string containing a concise, human-readable description of the receiver.

    Overrides:

    toString in class java.lang.Object

    Returns:
    a string representation of the layout
