org.eclipse.swt.ole.win32

Class OleControlSite

java.lang.Object

org.eclipse.swt.widgets.Widget

org.eclipse.swt.widgets.Control

org.eclipse.swt.widgets.Scrollable

org.eclipse.swt.widgets.Composite

org.eclipse.swt.ole.win32.OleClientSite

org.eclipse.swt.ole.win32.OleControlSite

All Implemented Interfaces:

Drawable

Direct Known Subclasses:

WebSite

public class OleControlSite
extends OleClientSite

OleControlSite provides a site to manage an embedded ActiveX Control within a container.

In addition to the behaviour provided by OleClientSite, this object provides the following:

• events from the ActiveX control
• notification of property changes from the ActiveX control
• simplified access to well known properties of the ActiveX Control (e.g. font, background color)
• expose ambient properties of the container to the ActiveX Control

This object implements the OLE Interfaces IOleControlSite, IDispatch, and IPropertyNotifySink.

Note that although this class is a subclass of Composite, it does not make sense to add Control children to it, or set a layout on it.

Styles

BORDER

Events

Dispose, Move, Resize

See Also:

OLE and ActiveX snippets, SWT Examples: OLEExample, OleWebBrowser

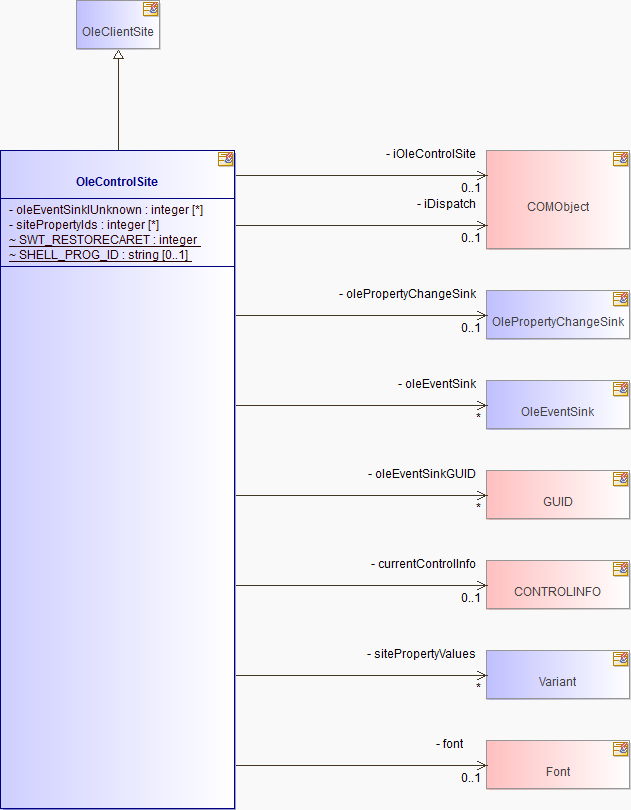

Structure Diagram

Field Summary

Fields

Modifier and Type	Field and Description
private CONTROLINFO	currentControlInfo
private Font	font
private COMObject	iDispatch
private COMObject	iOleControlSite
private OleEventSink[]	oleEventSink
private GUID[]	oleEventSinkGUID
private int[]	oleEventSinkIUnknown
private OlePropertyChangeSink	olePropertyChangeSink
(package private) static java.lang.String	SHELL_PROG_ID
private int[]	sitePropertyIds
private Variant[]	sitePropertyValues
(package private) static int	SWT_RESTORECARET

Fields inherited from class org.eclipse.swt.ole.win32.OleClientSite

appClsid, frame, iOleClientSite, isActivated, objDocumentView, objIOleCommandTarget, objIOleInPlaceObject, objIOleObject, objIUnknown, objIViewObject2, state, STATE_ACTIVE, STATE_INPLACEACTIVE, STATE_NONE, STATE_RUNNING, STATE_UIACTIVE, tempStorage

Fields inherited from class org.eclipse.swt.widgets.Control

handle

Constructor Summary

Constructors

Constructor and Description
OleControlSite(Composite parent, int style, java.io.File file) Create an OleControlSite child widget using the OLE Document type associated with the specified file.
OleControlSite(Composite parent, int style, java.lang.String progId) Create an OleControlSite child widget using style bits to select a particular look or set of properties.
OleControlSite(Composite parent, int style, java.lang.String progId, java.io.File file) Create an OleClientSite child widget to edit the specified file using the specified OLE Document application.

Method Summary

Methods

Modifier and Type	Method and Description
(package private) void	addEventListener(int iunknown, GUID guid, int eventID, OleListener listener)
void	addEventListener(int eventID, OleListener listener) Adds the listener to receive events.
void	addEventListener(OleAutomation automation, int eventID, OleListener listener) Adds the listener to receive events.
void	addEventListener(OleAutomation automation, java.lang.String eventSinkId, int eventID, OleListener listener) Adds the listener to receive events.
protected void	addObjectReferences()
void	addPropertyListener(int propertyID, OleListener listener) Adds the listener to receive events.
private void	connectPropertyChangeSink()
protected void	createCOMInterfaces()
private void	disconnectEventSinks()
private void	disconnectPropertyChangeSink()
protected void	disposeCOMInterfaces()
Color	getBackground() Returns the receiver's background color.
(package private) static GUID	getDefaultEventSinkGUID(IUnknown unknown)
Font	getFont() Returns the font that the receiver will use to paint textual information.
Color	getForeground() Returns the foreground color that the receiver will use to draw.
protected int	getLicenseInfo(GUID clsid)
Variant	getSiteProperty(int dispId) Get the control site property specified by the dispIdMember, or null if the dispId is not recognised.
protected int	GetWindow(int phwnd)
private int	Invoke(int dispIdMember, int riid, int lcid, int dwFlags, int pDispParams, int pVarResult, int pExcepInfo, int pArgErr)
private int	OnControlInfoChanged()
private int	OnFocus(int fGotFocus)
(package private) void	onFocusIn(Event e)
(package private) void	onFocusOut(Event e)
protected int	OnUIDeactivate(int fUndoable)
protected int	QueryInterface(int riid, int ppvObject)
protected int	Release()
protected void	releaseObjectInterfaces()
(package private) void	removeEventListener(int iunknown, GUID guid, int eventID, OleListener listener)
void	removeEventListener(int eventID, OleListener listener) Removes the listener.
void	removeEventListener(OleAutomation automation, GUID guid, int eventID, OleListener listener) Deprecated. - use OleControlSite.removeEventListener(OleAutomation, int, OleListener)
void	removeEventListener(OleAutomation automation, int eventID, OleListener listener) Removes the listener.
void	removePropertyListener(int propertyID, OleListener listener) Removes the listener.
void	setBackground(Color color) Sets the receiver's background color to the color specified by the argument, or to the default system color for the control if the argument is null.
void	setFont(Font font) Sets the font that the receiver will use to paint textual information to the font specified by the argument, or to the default font for that kind of control if the argument is null.
void	setForeground(Color color) Sets the receiver's foreground color to the color specified by the argument, or to the default system color for the control if the argument is null.
void	setSiteProperty(int dispId, Variant value) Sets the control site property specified by the dispIdMember to a new value.

Methods inherited from class org.eclipse.swt.ole.win32.OleClientSite

ActivateMe, AddRef, createTempStorage, deactivateInPlaceClient, doVerb, exec, getAutomationObject, getClassID, getIndent, getProgID, getProgramID, getRect, isDirty, isFocusControl, isICAClient, OleCreate, queryStatus, save, setBorderSpace, setBounds, setIndent, showProperties

Methods inherited from class org.eclipse.swt.widgets.Composite

changed, checkSubclass, computeSize, drawBackground, getBackgroundMode, getChildren, getLayout, getLayoutDeferred, getTabList, isLayoutDeferred, layout, layout, layout, layout, layout, setBackgroundMode, setFocus, setLayout, setLayoutDeferred, setTabList

Methods inherited from class org.eclipse.swt.widgets.Scrollable

computeTrim, getClientArea, getHorizontalBar, getScrollbarsMode, getVerticalBar

Methods inherited from class org.eclipse.swt.widgets.Control

addControlListener, addDragDetectListener, addFocusListener, addGestureListener, addHelpListener, addKeyListener, addMenuDetectListener, addMouseListener, addMouseMoveListener, addMouseTrackListener, addMouseWheelListener, addPaintListener, addTouchListener, addTraverseListener, computeSize, dragDetect, dragDetect, forceFocus, getAccessible, getBackgroundImage, getBorderWidth, getBounds, getCursor, getDragDetect, getEnabled, getLayoutData, getLocation, getMenu, getMonitor, getOrientation, getParent, getRegion, getShell, getSize, getToolTipText, getTouchEnabled, getVisible, internal_dispose_GC, internal_new_GC, isEnabled, isReparentable, isVisible, moveAbove, moveBelow, pack, pack, print, redraw, redraw, removeControlListener, removeDragDetectListener, removeFocusListener, removeGestureListener, removeHelpListener, removeKeyListener, removeMenuDetectListener, removeMouseListener, removeMouseMoveListener, removeMouseTrackListener, removeMouseWheelListener, removePaintListener, removeTouchListener, removeTraverseListener, setBackgroundImage, setBounds, setBounds, setCapture, setCursor, setDragDetect, setEnabled, setLayoutData, setLocation, setLocation, setMenu, setOrientation, setParent, setRedraw, setRegion, setSize, setSize, setToolTipText, setTouchEnabled, setVisible, toControl, toControl, toDisplay, toDisplay, traverse, traverse, traverse, update

Methods inherited from class org.eclipse.swt.widgets.Widget

addDisposeListener, addListener, checkWidget, dispose, getData, getData, getDisplay, getListeners, getStyle, isDisposed, isListening, notifyListeners, removeDisposeListener, removeListener, removeListener, reskin, setData, setData, toString

Methods inherited from class java.lang.Object

clone, equals, finalize, getClass, hashCode, notify, notifyAll, wait, wait, wait

Field Detail

iOleControlSite

private COMObject iOleControlSite

iDispatch

private COMObject iDispatch

olePropertyChangeSink

private OlePropertyChangeSink olePropertyChangeSink

oleEventSink

private OleEventSink[] oleEventSink

oleEventSinkGUID

private GUID[] oleEventSinkGUID

oleEventSinkIUnknown

private int[] oleEventSinkIUnknown

currentControlInfo

private CONTROLINFO currentControlInfo

sitePropertyIds

private int[] sitePropertyIds

sitePropertyValues

private Variant[] sitePropertyValues

font

private Font font

SWT_RESTORECARET

static int SWT_RESTORECARET

SHELL_PROG_ID

static final java.lang.String SHELL_PROG_ID

See Also:

Constant Field Values

Constructor Detail

OleControlSite

public OleControlSite(Composite parent,
              int style,
              java.io.File file)

Create an OleControlSite child widget using the OLE Document type associated with the specified file. The OLE Document type is determined either through header information in the file or through a Registry entry for the file extension. Use style bits to select a particular look or set of properties.

Parameters:

parent - a composite widget; must be an OleFrame

style - the bitwise OR'ing of widget styles

file - the file that is to be opened in this OLE Document

Throws:

java.lang.IllegalArgumentException -

• ERROR_NULL_ARGUMENT when the parent is null
• ERROR_INVALID_ARGUMENT when the parent is not an OleFrame

SWTException -

• ERROR_THREAD_INVALID_ACCESS when called from the wrong thread
• ERROR_CANNOT_CREATE_OBJECT when failed to create OLE Object
• ERROR_CANNOT_OPEN_FILE when failed to open file
• ERROR_INTERFACE_NOT_FOUND when unable to create callbacks for OLE Interfaces
• ERROR_INVALID_CLASSID

Since:

3.5

OleControlSite

public OleControlSite(Composite parent,
              int style,
              java.lang.String progId)

Create an OleControlSite child widget using style bits to select a particular look or set of properties.

Parameters:

parent - a composite widget; must be an OleFrame

style - the bitwise OR'ing of widget styles

progId - the unique program identifier which has been registered for this ActiveX Control; the value of the ProgID key or the value of the VersionIndependentProgID key specified in the registry for this Control (for example, the VersionIndependentProgID for Internet Explorer is Shell.Explorer)

Throws:

java.lang.IllegalArgumentException -

• ERROR_NULL_ARGUMENT when the parent is null

SWTException -

• ERROR_THREAD_INVALID_ACCESS when called from the wrong thread
• ERROR_INVALID_CLASSID when the progId does not map to a registered CLSID
• ERROR_CANNOT_CREATE_OBJECT when failed to create OLE Object
• ERROR_CANNOT_ACCESS_CLASSFACTORY when Class Factory could not be found
• ERROR_CANNOT_CREATE_LICENSED_OBJECT when failed to create a licensed OLE Object

OleControlSite

public OleControlSite(Composite parent,
              int style,
              java.lang.String progId,
              java.io.File file)

Create an OleClientSite child widget to edit the specified file using the specified OLE Document application. Use style bits to select a particular look or set of properties.

IMPORTANT: This method is not part of the public API for OleClientSite. It is marked public only so that it can be shared within the packages provided by SWT. It is not available on all platforms, and should never be called from application code.

Parameters:

parent - a composite widget; must be an OleFrame

style - the bitwise OR'ing of widget styles

progId - the unique program identifier of am OLE Document application; the value of the ProgID key or the value of the VersionIndependentProgID key specified in the registry for the desired OLE Document (for example, the VersionIndependentProgID for Word is Word.Document)

file - the file that is to be opened in this OLE Document

Throws:

java.lang.IllegalArgumentException -

• ERROR_NULL_ARGUMENT when the parent is null
• ERROR_INVALID_ARGUMENT when the parent is not an OleFrame

SWTException -

• ERROR_THREAD_INVALID_ACCESS when called from the wrong thread
• ERROR_INVALID_CLASSID when the progId does not map to a registered CLSID
• ERROR_CANNOT_CREATE_OBJECT when failed to create OLE Object
• ERROR_CANNOT_OPEN_FILE when failed to open file

Since:

3.5

Method Detail

addEventListener

public void addEventListener(int eventID,
                    OleListener listener)

Adds the listener to receive events.

Parameters:

eventID - the id of the event

listener - the listener

Throws:

java.lang.IllegalArgumentException -

• ERROR_NULL_ARGUMENT when listener is null

getDefaultEventSinkGUID

static GUID getDefaultEventSinkGUID(IUnknown unknown)

addEventListener

public void addEventListener(OleAutomation automation,
                    int eventID,
                    OleListener listener)

Adds the listener to receive events.

Parameters:

automation - the automation object that provides the event notification

eventID - the id of the event

listener - the listener

Throws:

java.lang.IllegalArgumentException -

• ERROR_NULL_ARGUMENT when listener is null

Since:

2.0

addEventListener

public void addEventListener(OleAutomation automation,
                    java.lang.String eventSinkId,
                    int eventID,
                    OleListener listener)

Adds the listener to receive events.

Parameters:

automation - the automation object that provides the event notification

eventSinkId - the GUID of the event sink

eventID - the id of the event

listener - the listener

Throws:

java.lang.IllegalArgumentException -

• ERROR_NULL_ARGUMENT when listener is null

Since:

3.2

addEventListener

void addEventListener(int iunknown,
                    GUID guid,
                    int eventID,
                    OleListener listener)

addObjectReferences

protected void addObjectReferences()

Overrides:

addObjectReferences in class OleClientSite

addPropertyListener

public void addPropertyListener(int propertyID,
                       OleListener listener)

Adds the listener to receive events.

Parameters:

propertyID - the identifier of the property

listener - the listener

Throws:

java.lang.IllegalArgumentException -

• ERROR_NULL_ARGUMENT when listener is null

connectPropertyChangeSink

private void connectPropertyChangeSink()

createCOMInterfaces

protected void createCOMInterfaces()

Overrides:

createCOMInterfaces in class OleClientSite

disconnectEventSinks

private void disconnectEventSinks()

disconnectPropertyChangeSink

private void disconnectPropertyChangeSink()

disposeCOMInterfaces

protected void disposeCOMInterfaces()

Overrides:

disposeCOMInterfaces in class OleClientSite

getBackground

public Color getBackground()

Description copied from class: Control

Returns the receiver's background color.

Note: This operation is a hint and may be overridden by the platform. For example, on some versions of Windows the background of a TabFolder, is a gradient rather than a solid color.

Overrides:

getBackground in class Control

Returns:

the background color

getFont

public Font getFont()

Description copied from class: Control

Returns the font that the receiver will use to paint textual information.

Overrides:

getFont in class Control

Returns:

the receiver's font

getForeground

public Color getForeground()

Description copied from class: Control

Returns the foreground color that the receiver will use to draw.

Overrides:

getForeground in class Control

Returns:

the receiver's foreground color

getLicenseInfo

protected int getLicenseInfo(GUID clsid)

getSiteProperty

public Variant getSiteProperty(int dispId)

Get the control site property specified by the dispIdMember, or null if the dispId is not recognised.

Parameters:

dispId - the dispId

Returns:

the property value or null

Since:

2.1

GetWindow

protected int GetWindow(int phwnd)

Overrides:

GetWindow in class OleClientSite

Invoke

private int Invoke(int dispIdMember,
         int riid,
         int lcid,
         int dwFlags,
         int pDispParams,
         int pVarResult,
         int pExcepInfo,
         int pArgErr)

OnControlInfoChanged

private int OnControlInfoChanged()

OnUIDeactivate

protected int OnUIDeactivate(int fUndoable)

Overrides:

OnUIDeactivate in class OleClientSite

onFocusIn

void onFocusIn(Event e)

Overrides:

onFocusIn in class OleClientSite

onFocusOut

void onFocusOut(Event e)

Overrides:

onFocusOut in class OleClientSite

OnFocus

private int OnFocus(int fGotFocus)

QueryInterface

protected int QueryInterface(int riid,
                 int ppvObject)

Overrides:

QueryInterface in class OleClientSite

Release

protected int Release()

Overrides:

Release in class OleClientSite

releaseObjectInterfaces

protected void releaseObjectInterfaces()

Overrides:

releaseObjectInterfaces in class OleClientSite

removeEventListener

public void removeEventListener(int eventID,
                       OleListener listener)

Removes the listener.

Parameters:

eventID - the event identifier

listener - the listener which should no longer be notified

Throws:

java.lang.IllegalArgumentException -

• ERROR_NULL_ARGUMENT when listener is null

removeEventListener

public void removeEventListener(OleAutomation automation,
                       GUID guid,
                       int eventID,
                       OleListener listener)

Deprecated. - use OleControlSite.removeEventListener(OleAutomation, int, OleListener)

Removes the listener.

Parameters:

automation - the automation object that provides the event notification

guid - the identifier of the events COM interface

eventID - the event identifier

listener - the listener

Throws:

java.lang.IllegalArgumentException -

• ERROR_NULL_ARGUMENT when listener is null

Since:

2.0

removeEventListener

public void removeEventListener(OleAutomation automation,
                       int eventID,
                       OleListener listener)

Removes the listener.

Parameters:

automation - the automation object that provides the event notification

eventID - the event identifier

listener - the listener which should no longer be notified

Throws:

java.lang.IllegalArgumentException -

• ERROR_NULL_ARGUMENT when listener is null

Since:

2.0

removeEventListener

void removeEventListener(int iunknown,
                       GUID guid,
                       int eventID,
                       OleListener listener)

removePropertyListener

public void removePropertyListener(int propertyID,
                          OleListener listener)

Removes the listener.

Parameters:

propertyID - the identifier of the property

listener - the listener which should no longer be notified

Throws:

java.lang.IllegalArgumentException -

• ERROR_NULL_ARGUMENT when listener is null

setBackground

public void setBackground(Color color)

Description copied from class: Control

Sets the receiver's background color to the color specified by the argument, or to the default system color for the control if the argument is null.

Note: This operation is a hint and may be overridden by the platform. For example, on Windows the background of a Button cannot be changed.

Overrides:

setBackground in class Control

Parameters:

color - the new color (or null)

setFont

public void setFont(Font font)

Description copied from class: Control

Sets the font that the receiver will use to paint textual information to the font specified by the argument, or to the default font for that kind of control if the argument is null.

Overrides:

setFont in class Control

Parameters:

font - the new font (or null)

setForeground

public void setForeground(Color color)

Description copied from class: Control

Sets the receiver's foreground color to the color specified by the argument, or to the default system color for the control if the argument is null.

Note: This operation is a hint and may be overridden by the platform.

Overrides:

setForeground in class Control

Parameters:

color - the new color (or null)

setSiteProperty

public void setSiteProperty(int dispId,
                   Variant value)

Sets the control site property specified by the dispIdMember to a new value. The value will be disposed by the control site when it is no longer required using Variant.dispose. Passing a value of null will clear the dispId value.

Parameters:

dispId - the ID of the property as specified by the IDL of the ActiveX Control

value - The new value for the property as expressed in a Variant.

Since:

2.1
