org.eclipse.swt.widgets

Class Group

java.lang.Object

org.eclipse.swt.widgets.Widget

org.eclipse.swt.widgets.Control

org.eclipse.swt.widgets.Scrollable

org.eclipse.swt.widgets.Composite

org.eclipse.swt.widgets.Group

All Implemented Interfaces:

Drawable

public class Group
extends Composite

Instances of this class provide an etched border with an optional title.

Shadow styles are hints and may not be honoured by the platform. To create a group with the default shadow style for the platform, do not specify a shadow style.

Styles:

SHADOW_ETCHED_IN, SHADOW_ETCHED_OUT, SHADOW_IN, SHADOW_OUT, SHADOW_NONE

Events:

(none)

Note: Only one of the above styles may be specified.

IMPORTANT: This class is not intended to be subclassed.

See Also:

SWT Example: ControlExample, Sample code and further information

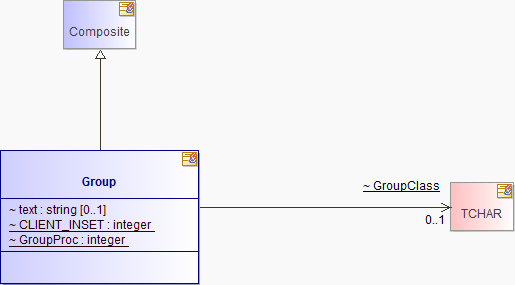

Structure Diagram

Field Summary

Fields

Modifier and Type	Field and Description
(package private) static int	CLIENT_INSET
(package private) static TCHAR	GroupClass
(package private) static int	GroupProc
(package private) java.lang.String	text

Fields inherited from class org.eclipse.swt.widgets.Composite

backgroundMode, layout, layoutCount, lpwp, tabList

Fields inherited from class org.eclipse.swt.widgets.Scrollable

horizontalBar, verticalBar

Fields inherited from class org.eclipse.swt.widgets.Control

accessible, background, backgroundImage, cursor, drawCount, font, foreground, handle, layoutData, menu, parent, region, toolTipText

Fields inherited from class org.eclipse.swt.widgets.Widget

CANVAS, data, DEFAULT_HEIGHT, DEFAULT_WIDTH, DISABLED, display, DISPOSE_SENT, DISPOSED, DRAG_DETECT, DRAW_BACKGROUND, eventTable, FOREIGN_HANDLE, HIDDEN, IGNORE_WM_CHANGEUISTATE, KEYED_DATA, LAYOUT_CHANGED, LAYOUT_CHILD, LAYOUT_NEEDED, MAJOR, MINOR, MOVE_DEFERRED, MOVE_OCCURRED, PARENT_BACKGROUND, RELEASED, RESIZE_DEFERRED, RESIZE_OCCURRED, SKIN_NEEDED, state, style, THEME_BACKGROUND, TRACK_MOUSE

Constructor Summary

Constructors

Constructor and Description
Group(Composite parent, int style) Constructs a new instance of this class given its parent and a style value describing its behavior and appearance.

Method Summary

Methods

Modifier and Type	Method and Description
(package private) int	callWindowProc(int hwnd, int msg, int wParam, int lParam)
(package private) static int	checkStyle(int style)
protected void	checkSubclass() Checks that this class can be subclassed.
Point	computeSize(int wHint, int hHint, boolean changed) Returns the preferred size of the receiver.
Rectangle	computeTrim(int x, int y, int width, int height) Given a desired client area for the receiver (as described by the arguments), returns the bounding rectangle which would be required to produce that client area.
(package private) void	createHandle()
(package private) void	enableWidget(boolean enabled)
Rectangle	getClientArea() Returns a rectangle which describes the area of the receiver which is capable of displaying data (that is, not covered by the "trimmings").
(package private) java.lang.String	getNameText()
java.lang.String	getText() Returns the receiver's text, which is the string that the is used as the title.
(package private) boolean	mnemonicHit(char key)
(package private) boolean	mnemonicMatch(char key)
(package private) void	printWidget(int hwnd, int hdc, GC gc)
(package private) void	releaseWidget()
void	setFont(Font font) Sets the font that the receiver will use to paint textual information to the font specified by the argument, or to the default font for that kind of control if the argument is null.
void	setText(java.lang.String string) Sets the receiver's text, which is the string that will be displayed as the receiver's title, to the argument, which may not be null.
(package private) int	widgetStyle()
(package private) TCHAR	windowClass()
(package private) int	windowProc()
(package private) LRESULT	WM_ERASEBKGND(int wParam, int lParam)
(package private) LRESULT	WM_MOUSEMOVE(int wParam, int lParam)
(package private) LRESULT	WM_NCHITTEST(int wParam, int lParam)
(package private) LRESULT	WM_PRINTCLIENT(int wParam, int lParam)
(package private) LRESULT	WM_UPDATEUISTATE(int wParam, int lParam)
(package private) LRESULT	WM_WINDOWPOSCHANGING(int wParam, int lParam)

Methods inherited from class org.eclipse.swt.widgets.Composite

_getChildren, _getTabList, changed, checkBuffered, checkComposited, computeTabList, copyArea, drawBackground, findDeferredControl, findMenus, fixChildren, fixTabList, getBackgroundMode, getChildren, getChildrenCount, getLayout, getLayoutDeferred, getTabList, hooksKeys, isLayoutDeferred, layout, layout, layout, layout, layout, markLayout, minimumSize, redrawChildren, releaseChildren, releaseParent, removeControl, resizeChildren, resizeChildren, resizeEmbeddedHandle, reskinChildren, sendResize, setBackgroundMode, setBounds, setFocus, setLayout, setLayoutDeferred, setResizeChildren, setTabGroupFocus, setTabList, toolTipText, translateMnemonic, translateTraversal, updateBackgroundColor, updateBackgroundImage, updateBackgroundMode, updateFont, updateLayout, updateLayout, updateOrientation, updateUIState, WM_GETDLGCODE, WM_GETFONT, WM_LBUTTONDOWN, WM_PAINT, WM_PARENTNOTIFY, WM_SETFONT, WM_SIZE, WM_SYSCOLORCHANGE, WM_SYSCOMMAND, wmNCPaint, wmNotify

Methods inherited from class org.eclipse.swt.widgets.Scrollable

createScrollBar, createWidget, destroyScrollBar, getHorizontalBar, getScrollbarsMode, getVerticalBar, scrolledHandle, widgetExtStyle, WM_HSCROLL, WM_MOUSEWHEEL, WM_VSCROLL, wmScroll, wmScrollWheel

Methods inherited from class org.eclipse.swt.widgets.Control

addControlListener, addDragDetectListener, addFocusListener, addGestureListener, addHelpListener, addKeyListener, addMenuDetectListener, addMouseListener, addMouseMoveListener, addMouseTrackListener, addMouseWheelListener, addPaintListener, addTouchListener, addTraverseListener, binarySearch, borderHandle, checkBackground, checkBorder, checkGesture, checkHandle, checkMirrored, computeSize, computeTabGroup, computeTabRoot, defaultBackground, defaultFont, defaultForeground, deregister, destroyWidget, dragDetect, dragDetect, dragDetect, drawBackground, drawBackground, drawBackground, drawImageBackground, drawThemeBackground, enableDrag, fillBackground, fillImageBackground, fillThemeBackground, findBackgroundControl, findBrush, findCursor, findImageControl, findMnemonic, findThemeControl, fixFocus, forceFocus, forceResize, getAccessible, getBackground, getBackgroundImage, getBackgroundPixel, getBorderWidth, getBounds, getClipboardText, getCodePage, getCursor, getDragDetect, getDrawing, getEnabled, getFont, getForeground, getForegroundPixel, getLayoutData, getLocation, getMenu, getMonitor, getOrientation, getParent, getPath, getRegion, getShell, getSize, getToolTipText, getTouchEnabled, getVisible, hasCursor, hasFocus, internal_dispose_GC, internal_new_GC, isActive, isEnabled, isFocusAncestor, isFocusControl, isReparentable, isShowing, isTabGroup, isTabItem, isVisible, mapEvent, menuShell, moveAbove, moveBelow, new_Accessible, new_GC, pack, pack, print, redraw, redraw, redraw, register, releaseHandle, removeControlListener, removeDragDetectListener, removeFocusListener, removeGestureListener, removeHelpListener, removeKeyListener, removeMenuDetectListener, removeMouseListener, removeMouseMoveListener, removeMouseTrackListener, removeMouseWheelListener, removePaintListener, removeTouchListener, removeTraverseListener, sendFocusEvent, sendGestureEvent, sendMove, sendTouchEvent, setBackground, setBackground, setBackgroundImage, setBackgroundImage, setBackgroundPixel, setBounds, setBounds, setBounds, setCapture, setCursor, setCursor, setDefaultFont, setDragDetect, setEnabled, setForeground, setForegroundPixel, setLayoutData, setLocation, setLocation, setMenu, setOrientation, setParent, setRadioFocus, setRadioSelection, setRedraw, setRegion, setSavedFocus, setSize, setSize, setTabItemFocus, setToolTipText, setToolTipText, setTouchEnabled, setVisible, showWidget, sort, subclass, toControl, toControl, toDisplay, toDisplay, topHandle, translateAccelerator, translateMnemonic, traverse, traverse, traverse, traverse, traverse, traverseEscape, traverseGroup, traverseItem, traverseMnemonic, traversePage, traverseReturn, unsubclass, update, update, updateImages, widgetCreateStruct, widgetParent, windowProc, WM_ACTIVATE, WM_CAPTURECHANGED, WM_CHANGEUISTATE, WM_CHAR, WM_CLEAR, WM_CLOSE, WM_COMMAND, WM_CONTEXTMENU, WM_CTLCOLOR, WM_CUT, WM_DESTROY, WM_DRAWITEM, WM_ENDSESSION, WM_ENTERIDLE, WM_GESTURE, WM_GETMINMAXINFO, WM_GETOBJECT, WM_HELP, WM_HOTKEY, WM_IME_CHAR, WM_IME_COMPOSITION_START, WM_IME_COMPOSITION, WM_IME_ENDCOMPOSITION, WM_INITMENUPOPUP, WM_INPUTLANGCHANGE, WM_KEYDOWN, WM_KEYUP, WM_KILLFOCUS, WM_LBUTTONDBLCLK, WM_LBUTTONUP, WM_MBUTTONDBLCLK, WM_MBUTTONDOWN, WM_MBUTTONUP, WM_MEASUREITEM, WM_MENUCHAR, WM_MENUSELECT, WM_MOUSEACTIVATE, WM_MOUSEHOVER, WM_MOUSEHWHEEL, WM_MOUSELEAVE, WM_MOVE, WM_NCACTIVATE, WM_NCCALCSIZE, WM_NCLBUTTONDOWN, WM_NCPAINT, WM_NOTIFY, WM_PALETTECHANGED, WM_PASTE, WM_PRINT, WM_QUERYENDSESSION, WM_QUERYNEWPALETTE, WM_QUERYOPEN, WM_RBUTTONDBLCLK, WM_RBUTTONDOWN, WM_RBUTTONUP, WM_SETCURSOR, WM_SETFOCUS, WM_SETREDRAW, WM_SETTINGCHANGE, WM_SHOWWINDOW, WM_SYSCHAR, WM_SYSKEYDOWN, WM_SYSKEYUP, WM_TABLET_FLICK, WM_TIMER, WM_TOUCH, WM_UNDO, WM_UNINITMENUPOPUP, WM_WINDOWPOSCHANGED, WM_XBUTTONDBLCLK, WM_XBUTTONDOWN, WM_XBUTTONUP, wmColorChild, wmCommandChild, wmDrawChild, wmMeasureChild, wmNotifyChild, wmScrollChild

Methods inherited from class org.eclipse.swt.widgets.Widget

_addListener, addDisposeListener, addListener, checkBits, checkOpened, checkOrientation, checkParent, checkWidget, DeferWindowPos, dispose, dragDetect, error, filters, findItem, fixMnemonic, fixMnemonic, getData, getData, getDisplay, getListeners, getName, getStyle, hooks, isDisposed, isListening, isValidSubclass, isValidThread, notifyListeners, postEvent, postEvent, release, removeDisposeListener, removeListener, removeListener, reskin, reskinWidget, sendDragEvent, sendDragEvent, sendEvent, sendEvent, sendEvent, sendEvent, sendKeyEvent, sendKeyEvent, sendMouseEvent, sendMouseEvent, sendMouseWheelEvent, sendSelectionEvent, sendSelectionEvent, setData, setData, setInputState, setKeyState, setLocationMask, SetWindowPos, showMenu, showMenu, toString, updateMenuLocation, wmCaptureChanged, wmChar, wmContextMenu, wmIMEChar, wmKeyDown, wmKeyUp, wmKillFocus, wmLButtonDblClk, wmLButtonDown, wmLButtonUp, wmMButtonDblClk, wmMButtonDown, wmMButtonUp, wmMouseHover, wmMouseHWheel, wmMouseLeave, wmMouseMove, wmMouseWheel, wmPaint, wmPrint, wmRButtonDblClk, wmRButtonDown, wmRButtonUp, wmSetFocus, wmSysChar, wmSysKeyDown, wmSysKeyUp, wmXButtonDblClk, wmXButtonDown, wmXButtonUp

Methods inherited from class java.lang.Object

clone, equals, finalize, getClass, hashCode, notify, notifyAll, wait, wait, wait

Field Detail

text

java.lang.String text

CLIENT_INSET

static final int CLIENT_INSET

See Also:

Constant Field Values

GroupProc

static final int GroupProc

GroupClass

static final TCHAR GroupClass

Constructor Detail

Group

public Group(Composite parent,
     int style)

Constructs a new instance of this class given its parent and a style value describing its behavior and appearance.

The style value is either one of the style constants defined in class SWT which is applicable to instances of this class, or must be built by bitwise OR'ing together (that is, using the int "|" operator) two or more of those SWT style constants. The class description lists the style constants that are applicable to the class. Style bits are also inherited from superclasses.

Parameters:

parent - a composite control which will be the parent of the new instance (cannot be null)

style - the style of control to construct

Throws:

java.lang.IllegalArgumentException -

• ERROR_NULL_ARGUMENT - if the parent is null

SWTException -

• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the parent
• ERROR_INVALID_SUBCLASS - if this class is not an allowed subclass

See Also:

SWT.SHADOW_ETCHED_IN, SWT.SHADOW_ETCHED_OUT, SWT.SHADOW_IN, SWT.SHADOW_OUT, SWT.SHADOW_NONE, Widget.checkSubclass(), Widget.getStyle()

Method Detail

callWindowProc

int callWindowProc(int hwnd,
                 int msg,
                 int wParam,
                 int lParam)

Overrides:

callWindowProc in class Scrollable

checkStyle

static int checkStyle(int style)

checkSubclass

protected void checkSubclass()

Description copied from class: Widget

Checks that this class can be subclassed.

The SWT class library is intended to be subclassed only at specific, controlled points (most notably, Composite and Canvas when implementing new widgets). This method enforces this rule unless it is overridden.

IMPORTANT: By providing an implementation of this method that allows a subclass of a class which does not normally allow subclassing to be created, the implementer agrees to be fully responsible for the fact that any such subclass will likely fail between SWT releases and will be strongly platform specific. No support is provided for user-written classes which are implemented in this fashion.

The ability to subclass outside of the allowed SWT classes is intended purely to enable those not on the SWT development team to implement patches in order to get around specific limitations in advance of when those limitations can be addressed by the team. Subclassing should not be attempted without an intimate and detailed understanding of the hierarchy.

Overrides:

checkSubclass in class Composite

computeSize

public Point computeSize(int wHint,
                int hHint,
                boolean changed)

Description copied from class: Control

Returns the preferred size of the receiver.

The preferred size of a control is the size that it would best be displayed at. The width hint and height hint arguments allow the caller to ask a control questions such as "Given a particular width, how high does the control need to be to show all of the contents?" To indicate that the caller does not wish to constrain a particular dimension, the constant SWT.DEFAULT is passed for the hint.

If the changed flag is true, it indicates that the receiver's contents have changed, therefore any caches that a layout manager containing the control may have been keeping need to be flushed. When the control is resized, the changed flag will be false, so layout manager caches can be retained.

Overrides:

computeSize in class Composite

Parameters:

wHint - the width hint (can be SWT.DEFAULT)

hHint - the height hint (can be SWT.DEFAULT)

changed - true if the control's contents have changed, and false otherwise

Returns:

the preferred size of the control.

See Also:

Layout, Control.getBorderWidth(), Control.getBounds(), Control.getSize(), Control.pack(boolean), "computeTrim, getClientArea for controls that implement them"

computeTrim

public Rectangle computeTrim(int x,
                    int y,
                    int width,
                    int height)

Description copied from class: Scrollable

Given a desired client area for the receiver (as described by the arguments), returns the bounding rectangle which would be required to produce that client area.

In other words, it returns a rectangle such that, if the receiver's bounds were set to that rectangle, the area of the receiver which is capable of displaying data (that is, not covered by the "trimmings") would be the rectangle described by the arguments (relative to the receiver's parent).

Overrides:

computeTrim in class Scrollable

Parameters:

x - the desired x coordinate of the client area

y - the desired y coordinate of the client area

width - the desired width of the client area

height - the desired height of the client area

Returns:

the required bounds to produce the given client area

See Also:

Scrollable.getClientArea()

createHandle

void createHandle()

Overrides:

createHandle in class Composite

enableWidget

void enableWidget(boolean enabled)

Overrides:

enableWidget in class Control

getClientArea

public Rectangle getClientArea()

Description copied from class: Scrollable

Returns a rectangle which describes the area of the receiver which is capable of displaying data (that is, not covered by the "trimmings").

Overrides:

getClientArea in class Scrollable

Returns:

the client area

See Also:

Scrollable.computeTrim(int, int, int, int)

getNameText

java.lang.String getNameText()

Overrides:

getNameText in class Widget

getText

public java.lang.String getText()

Returns the receiver's text, which is the string that the is used as the title. If the text has not previously been set, returns an empty string.

Returns:

the text

Throws:

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

mnemonicHit

boolean mnemonicHit(char key)

Overrides:

mnemonicHit in class Control

mnemonicMatch

boolean mnemonicMatch(char key)

Overrides:

mnemonicMatch in class Control

printWidget

void printWidget(int hwnd,
               int hdc,
               GC gc)

Overrides:

printWidget in class Control

releaseWidget

void releaseWidget()

Overrides:

releaseWidget in class Composite

setFont

public void setFont(Font font)

Description copied from class: Control

Sets the font that the receiver will use to paint textual information to the font specified by the argument, or to the default font for that kind of control if the argument is null.

Overrides:

setFont in class Control

Parameters:

font - the new font (or null)

setText

public void setText(java.lang.String string)

Sets the receiver's text, which is the string that will be displayed as the receiver's title, to the argument, which may not be null. The string may include the mnemonic character.

Mnemonics are indicated by an '&' that causes the next character to be the mnemonic. When the user presses a key sequence that matches the mnemonic, focus is assigned to the first child of the group. On most platforms, the mnemonic appears underlined but may be emphasised in a platform specific manner. The mnemonic indicator character '&' can be escaped by doubling it in the string, causing a single '&' to be displayed.

Parameters:

string - the new text

Throws:

java.lang.IllegalArgumentException -

• ERROR_NULL_ARGUMENT - if the text is null

SWTException -

• ERROR_WIDGET_DISPOSED - if the receiver has been disposed
• ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

widgetStyle

int widgetStyle()

Overrides:

widgetStyle in class Composite

windowClass

TCHAR windowClass()

Overrides:

windowClass in class Scrollable

windowProc

int windowProc()

Overrides:

windowProc in class Scrollable

WM_ERASEBKGND

LRESULT WM_ERASEBKGND(int wParam,
                    int lParam)

Overrides:

WM_ERASEBKGND in class Composite

WM_NCHITTEST

LRESULT WM_NCHITTEST(int wParam,
                   int lParam)

Overrides:

WM_NCHITTEST in class Composite

WM_MOUSEMOVE

LRESULT WM_MOUSEMOVE(int wParam,
                   int lParam)

Overrides:

WM_MOUSEMOVE in class Control

WM_PRINTCLIENT

LRESULT WM_PRINTCLIENT(int wParam,
                     int lParam)

Overrides:

WM_PRINTCLIENT in class Composite

WM_UPDATEUISTATE

LRESULT WM_UPDATEUISTATE(int wParam,
                       int lParam)

Overrides:

WM_UPDATEUISTATE in class Composite

WM_WINDOWPOSCHANGING

LRESULT WM_WINDOWPOSCHANGING(int wParam,
                           int lParam)

Overrides:

WM_WINDOWPOSCHANGING in class Control
