CTabFolder

Fields
Modifier and Type	Field and Description
`(package private) static int`	`BACKGROUND`
`static RGB`	`borderInsideRGB` Deprecated. drop shadow border is no longer drawn in 3.0
`static RGB`	`borderMiddleRGB` Deprecated. drop shadow border is no longer drawn in 3.0
`static RGB`	`borderOutsideRGB` Deprecated. drop shadow border is no longer drawn in 3.0
`(package private) boolean`	`borderVisible`
`(package private) int`	`chevronCount`
`(package private) Image`	`chevronImage`
`(package private) ToolItem`	`chevronItem`
`(package private) ToolBar`	`chevronTb`
`(package private) boolean`	`chevronVisible`
`(package private) int[]`	`controlAlignments`
`(package private) Image[]`	`controlBkImages`
`(package private) Rectangle[]`	`controlRects`
`(package private) Control[]`	`controls`
`(package private) static int`	`DEFAULT_HEIGHT`
`(package private) static int`	`DEFAULT_WIDTH`
`(package private) int`	`firstIndex`
`(package private) int`	`fixedTabHeight`
`(package private) CTabFolder2Listener[]`	`folderListeners`
`(package private) static int`	`FOREGROUND`
`(package private) Color[]`	`gradientColors`
`(package private) int[]`	`gradientPercents`
`(package private) boolean`	`gradientVertical`
`(package private) boolean`	`hovering`
`(package private) Rectangle`	`hoverRect`
`(package private) boolean`	`hoverTb`
`(package private) boolean`	`hoverTimerRunning`
`(package private) boolean`	`ignoreResize`
`(package private) boolean`	`ignoreTraverse`
`(package private) boolean`	`inDispose`
`(package private) CTabItem[]`	`items`
`(package private) Listener`	`listener`
`int`	`marginHeight` marginHeight specifies the number of pixels of vertical margin that will be placed along the top and bottom edges of the form.
`int`	`marginWidth` marginWidth specifies the number of pixels of horizontal margin that will be placed along the left and right edges of the form.
`(package private) Image`	`maxImage`
`(package private) boolean`	`maximized`
`(package private) ToolItem`	`maxItem`
`int`	`MIN_TAB_WIDTH` Deprecated. This field is no longer used. See setMinimumCharacters(int)
`(package private) int`	`minChars`
`(package private) Image`	`minImage`
`(package private) boolean`	`minimized`
`(package private) ToolItem`	`minItem`
`(package private) ToolBar`	`minMaxTb`
`(package private) boolean`	`mru`
`(package private) Font`	`oldFont`
`(package private) Point`	`oldSize`
`(package private) boolean`	`onBottom`
`(package private) int[]`	`priority`
`(package private) CTabFolderRenderer`	`renderer`
`(package private) int`	`selectedIndex`
`(package private) static int`	`SELECTION_BACKGROUND`
`(package private) static int`	`SELECTION_FOREGROUND`
`(package private) Color`	`selectionBackground`
`(package private) Image`	`selectionBgImage`
`(package private) Color`	`selectionForeground`
`(package private) Color[]`	`selectionGradientColors`
`(package private) int[]`	`selectionGradientPercents`
`(package private) boolean`	`selectionGradientVertical`
`(package private) boolean`	`showChevron`
`(package private) boolean`	`showClose`
`(package private) boolean`	`showMax`
`(package private) Menu`	`showMenu`
`(package private) boolean`	`showMin`
`(package private) boolean`	`showUnselectedClose`
`(package private) boolean`	`showUnselectedImage`
`(package private) boolean`	`simple`
`(package private) boolean`	`single`
`(package private) static int`	`SPACING`
`(package private) int`	`tabHeight`
`(package private) CTabFolderListener[]`	`tabListeners`
`(package private) Control`	`topRight`
`(package private) int`	`topRightAlignment`

Constructors
Constructor and Description
`CTabFolder(Composite parent, int style)` Constructs a new instance of this class given its parent and a style value describing its behavior and appearance.

Methods
Modifier and Type	Method and Description
`(package private) char`	`_findMnemonic(java.lang.String string)`
`(package private) java.lang.String`	`_getToolTip(int x, int y)`
`(package private) void`	`_setToolTipText(int x, int y)`
`void`	`addCTabFolder2Listener(CTabFolder2Listener listener)` Adds the listener to the collection of listeners who will be notified when a tab item is closed, minimized, maximized, restored, or to show the list of items that are not currently visible.
`void`	`addCTabFolderListener(CTabFolderListener listener)` Deprecated. use addCTabFolder2Listener(CTabFolder2Listener)
`void`	`addSelectionListener(SelectionListener listener)` Adds the listener to the collection of listeners who will be notified when the user changes the receiver's selection, by sending it one of the messages defined in the `SelectionListener` interface.
`(package private) void`	`addTabControl(Control control, int flags)` Set a control that can appear to the left or to the right of the folder tabs.
`(package private) void`	`addTabControl(Control control, int flags, int index, boolean update)`
`(package private) static int`	`checkStyle(Composite parent, int style)`
`(package private) Rectangle[]`	`computeControlBounds(Point size, boolean[][] position)`
`Rectangle`	`computeTrim(int x, int y, int width, int height)` Given a desired client area for the receiver (as described by the arguments), returns the bounding rectangle which would be required to produce that client area.
`(package private) Image`	`createButtonImage(Display display, int button)`
`(package private) void`	`createItem(CTabItem item, int index)`
`(package private) void`	`destroyItem(CTabItem item)`
`boolean`	`getBorderVisible()` Returns `true` if the receiver's border is visible.
`(package private) ToolBar`	`getChevron()`
`(package private) boolean`	`getChevronVisible()` Returns `true` if the chevron button is visible when necessary.
`Rectangle`	`getClientArea()` Returns a rectangle which describes the area of the receiver which is capable of displaying data (that is, not covered by the "trimmings").
`(package private) int`	`getControlHeight(Point ctrlSize)`
`(package private) int`	`getControlY(Point size, Rectangle[] rects, int borderBottom, int borderTop, int i)`
`CTabItem`	`getItem(int index)` Return the tab that is located at the specified index.
`CTabItem`	`getItem(Point pt)` Gets the item at a point in the widget.
`int`	`getItemCount()` Return the number of tabs in the folder.
`CTabItem[]`	`getItems()` Return the tab items.
`(package private) int`	`getLeftItemEdge(GC gc, int part)`
`boolean`	`getMaximized()` Returns `true` if the receiver is maximized.
`boolean`	`getMaximizeVisible()` Returns `true` if the maximize button is visible.
`boolean`	`getMinimized()` Returns `true` if the receiver is minimized.
`boolean`	`getMinimizeVisible()` Returns `true` if the minimize button is visible.
`int`	`getMinimumCharacters()` Returns the number of characters that will appear in a fully compressed tab.
`boolean`	`getMRUVisible()` Returns `true` if the receiver displays most recently used tabs and `false` otherwise.
`CTabFolderRenderer`	`getRenderer()` Returns the receiver's renderer.
`(package private) int`	`getRightItemEdge(GC gc)`
`CTabItem`	`getSelection()` Return the selected tab item, or null if there is no selection.
`Color`	`getSelectionBackground()` Returns the receiver's selection background color.
`Color`	`getSelectionForeground()` Returns the receiver's selection foreground color.
`int`	`getSelectionIndex()` Return the index of the selected tab item, or -1 if there is no selection.
`boolean`	`getSimple()` Returns `true` if the CTabFolder is rendered with a simple, traditional shape.
`boolean`	`getSingle()` Returns `true` if the CTabFolder only displays the selected tab and `false` if the CTabFolder displays multiple tabs.
`int`	`getStyle()` Returns the receiver's style information.
`int`	`getTabHeight()` Returns the height of the tab
`int`	`getTabPosition()` Returns the position of the tab.
`Control`	`getTopRight()` Returns the control in the top right corner of the tab folder.
`int`	`getTopRightAlignment()` Returns the alignment of the top right control.
`boolean`	`getUnselectedCloseVisible()` Returns `true` if the close button appears when the user hovers over an unselected tabs.
`boolean`	`getUnselectedImageVisible()` Returns `true` if an image appears in unselected tabs.
`(package private) int`	`getWrappedHeight(Point size)`
`int`	`indexOf(CTabItem item)` Return the index of the specified tab or -1 if the tab is not in the receiver.
`(package private) void`	`init(int style)`
`(package private) void`	`initAccessible()`
`(package private) void`	`initAccessibleChevronTb()`
`(package private) void`	`initAccessibleMinMaxTb()`
`(package private) void`	`onDispose(Event event)`
`(package private) void`	`onDragDetect(Event event)`
`(package private) void`	`onFocus(Event event)`
`(package private) void`	`onKeyDown(Event event)`
`(package private) boolean`	`onMnemonic(Event event, boolean doit)`
`(package private) void`	`onMouse(Event event)`
`(package private) void`	`onMouseDoubleClick(Event event)`
`(package private) void`	`onPageTraversal(Event event)`
`(package private) void`	`onPaint(Event event)`
`(package private) void`	`onResize(Event event)`
`(package private) void`	`onSelection(Event event)`
`(package private) void`	`onTraverse(Event event)`
`(package private) void`	`redrawTabs()`
`void`	`removeCTabFolder2Listener(CTabFolder2Listener listener)` Removes the listener.
`void`	`removeCTabFolderListener(CTabFolderListener listener)` Deprecated. see removeCTabFolderCloseListener(CTabFolderListener)
`void`	`removeSelectionListener(SelectionListener listener)` Removes the listener from the collection of listeners who will be notified when the user changes the receiver's selection.
`(package private) void`	`removeTabControl(Control control)` Removes the control from the list of tab controls.
`(package private) void`	`removeTabControl(Control control, boolean update)`
`void`	`reskin(int flags)` Marks the widget to be skinned.
`void`	`setBackground(Color color)` Sets the receiver's background color to the color specified by the argument, or to the default system color for the control if the argument is null.
`void`	`setBackground(Color[] colors, int[] percents)` Specify a gradient of colors to be drawn in the background of the unselected tabs.
`void`	`setBackground(Color[] colors, int[] percents, boolean vertical)` Specify a gradient of colors to be drawn in the background of the unselected tab.
`void`	`setBackgroundImage(Image image)` Sets the receiver's background image to the image specified by the argument, or to the default system color for the control if the argument is null.
`void`	`setBorderVisible(boolean show)` Toggle the visibility of the border
`(package private) void`	`setButtonBounds(GC gc)`
`(package private) void`	`setChevronVisible(boolean visible)` Sets whether a chevron is shown when there are more items to be displayed.
`void`	`setFont(Font font)` Sets the font that the receiver will use to paint textual information to the font specified by the argument, or to the default font for that kind of control if the argument is null.
`void`	`setForeground(Color color)` Sets the receiver's foreground color to the color specified by the argument, or to the default system color for the control if the argument is null.
`void`	`setInsertMark(CTabItem item, boolean after)` Display an insert marker before or after the specified tab item.
`void`	`setInsertMark(int index, boolean after)` Display an insert marker before or after the specified tab item.
`(package private) boolean`	`setItemLocation(GC gc)`
`(package private) void`	`setItemOrder(int[] indices)` Reorder the items of the receiver.
`(package private) boolean`	`setItemSize(GC gc)`
`void`	`setLayout(Layout layout)` Sets the layout which is associated with the receiver to be the argument which may be null.
`void`	`setMaximized(boolean maximize)` Sets the maximized state of the receiver.
`void`	`setMaximizeVisible(boolean visible)` Marks the receiver's maximize button as visible if the argument is `true`, and marks it invisible otherwise.
`void`	`setMinimized(boolean minimize)` Sets the minimized state of the receiver.
`void`	`setMinimizeVisible(boolean visible)` Marks the receiver's minimize button as visible if the argument is `true`, and marks it invisible otherwise.
`void`	`setMinimumCharacters(int count)` Sets the minimum number of characters that will be displayed in a fully compressed tab.
`void`	`setMRUVisible(boolean show)` When there is not enough horizontal space to show all the tabs, by default, tabs are shown sequentially from left to right in order of their index.
`void`	`setRenderer(CTabFolderRenderer renderer)` Sets the renderer which is associated with the receiver to be the argument which may be null.
`void`	`setSelection(CTabItem item)` Set the selection to the tab at the specified item.
`void`	`setSelection(int index)` Set the selection to the tab at the specified index.
`(package private) void`	`setSelection(int index, boolean notify)`
`void`	`setSelectionBackground(Color color)` Sets the receiver's selection background color to the color specified by the argument, or to the default system color for the control if the argument is null.
`void`	`setSelectionBackground(Color[] colors, int[] percents)` Specify a gradient of colours to be draw in the background of the selected tab.
`void`	`setSelectionBackground(Color[] colors, int[] percents, boolean vertical)` Specify a gradient of colours to be draw in the background of the selected tab.
`void`	`setSelectionBackground(Image image)` Set the image to be drawn in the background of the selected tab.
`void`	`setSelectionForeground(Color color)` Set the foreground color of the selected tab.
`(package private) void`	`setSelectionHighlightGradientColor(Color start)`
`void`	`setSimple(boolean simple)` Sets the shape that the CTabFolder will use to render itself.
`void`	`setSingle(boolean single)` Sets the number of tabs that the CTabFolder should display
`void`	`setTabHeight(int height)` Specify a fixed height for the tab items.
`void`	`setTabPosition(int position)` Specify whether the tabs should appear along the top of the folder or along the bottom of the folder.
`void`	`setTopRight(Control control)` Set the control that appears in the top right corner of the tab folder.
`void`	`setTopRight(Control control, int alignment)` Set the control that appears in the top right corner of the tab folder.
`void`	`setUnselectedCloseVisible(boolean visible)` Specify whether the close button appears when the user hovers over an unselected tabs.
`void`	`setUnselectedImageVisible(boolean visible)` Specify whether the image appears on unselected tabs.
`void`	`showItem(CTabItem item)` Shows the item.
`(package private) void`	`showList(Rectangle rect)`
`void`	`showSelection()` Shows the selection.
`(package private) java.lang.String`	`stripMnemonic(java.lang.String string)`
`(package private) void`	`updateBkImages()`
`(package private) boolean`	`updateItems()`
`(package private) boolean`	`updateItems(int showIndex)`
`(package private) boolean`	`updateTabHeight(boolean force)`

java.lang.Object
- org.eclipse.swt.widgets.Widget
- - org.eclipse.swt.widgets.Control
  - - org.eclipse.swt.widgets.Scrollable
    - - org.eclipse.swt.widgets.Composite
      - org.eclipse.swt.custom.CTabFolder

All Implemented Interfaces:

Drawable
```
public class CTabFolder
extends Composite
```
Instances of this class implement the notebook user interface metaphor. It allows the user to select a notebook page from set of pages.
The item children that may be added to instances of this class must be of type CTabItem. Control children are created and then set into a tab item using CTabItem#setControl.
Note that although this class is a subclass of Composite, it does not make sense to set a layout on it.

Styles:

CLOSE, TOP, BOTTOM, FLAT, BORDER, SINGLE, MULTI

Events:

Selection

"CTabFolder2"

Note: Only one of the styles TOP and BOTTOM may be specified.
IMPORTANT: This class is not intended to be subclassed.

See Also:
CTabFolder, CTabItem snippets, SWT Example: CustomControlExample, Sample code and further information

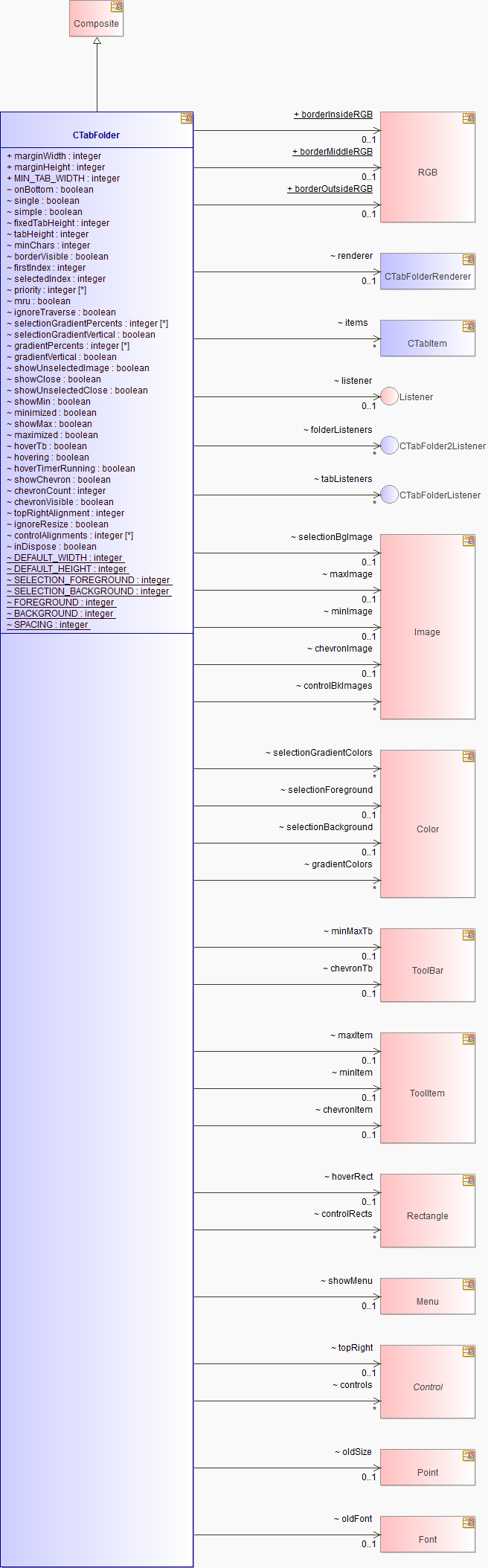

- Structure Diagram

Field Summary

Fields
Modifier and Type Field and Description

(package private) static int BACKGROUND

static RGB borderInsideRGB
Deprecated.
drop shadow border is no longer drawn in 3.0

static RGB borderMiddleRGB
Deprecated.
drop shadow border is no longer drawn in 3.0

static RGB borderOutsideRGB
Deprecated.
drop shadow border is no longer drawn in 3.0

(package private) boolean borderVisible

(package private) int chevronCount

(package private) Image chevronImage

(package private) ToolItem chevronItem

(package private) ToolBar chevronTb

(package private) boolean chevronVisible

(package private) int[] controlAlignments

(package private) Image[] controlBkImages

(package private) Rectangle[] controlRects

(package private) Control[] controls

(package private) static int DEFAULT_HEIGHT

(package private) static int DEFAULT_WIDTH

(package private) int firstIndex

(package private) int fixedTabHeight

(package private) CTabFolder2Listener[] folderListeners

(package private) static int FOREGROUND

(package private) Color[] gradientColors

(package private) int[] gradientPercents

(package private) boolean gradientVertical

(package private) boolean hovering

(package private) Rectangle hoverRect

(package private) boolean hoverTb

(package private) boolean hoverTimerRunning

(package private) boolean ignoreResize

(package private) boolean ignoreTraverse

(package private) boolean inDispose

(package private) CTabItem[] items

(package private) Listener listener

int marginHeight
marginHeight specifies the number of pixels of vertical margin that will be placed along the top and bottom edges of the form.

int marginWidth
marginWidth specifies the number of pixels of horizontal margin that will be placed along the left and right edges of the form.

(package private) Image maxImage

(package private) boolean maximized

(package private) ToolItem maxItem

int MIN_TAB_WIDTH
Deprecated.
This field is no longer used. See setMinimumCharacters(int)

(package private) int minChars

(package private) Image minImage

(package private) boolean minimized

(package private) ToolItem minItem

(package private) ToolBar minMaxTb

(package private) boolean mru

(package private) Font oldFont

(package private) Point oldSize

(package private) boolean onBottom

(package private) int[] priority

(package private) CTabFolderRenderer renderer

(package private) int selectedIndex

(package private) static int SELECTION_BACKGROUND

(package private) static int SELECTION_FOREGROUND

(package private) Color selectionBackground

(package private) Image selectionBgImage

(package private) Color selectionForeground

(package private) Color[] selectionGradientColors

(package private) int[] selectionGradientPercents

(package private) boolean selectionGradientVertical

(package private) boolean showChevron

(package private) boolean showClose

(package private) boolean showMax

(package private) Menu showMenu

(package private) boolean showMin

(package private) boolean showUnselectedClose

(package private) boolean showUnselectedImage

(package private) boolean simple

(package private) boolean single

(package private) static int SPACING

(package private) int tabHeight

(package private) CTabFolderListener[] tabListeners

(package private) Control topRight

(package private) int topRightAlignment

Fields inherited from class org.eclipse.swt.widgets.Control
handle

Constructor Summary

Constructors
Constructor and Description

CTabFolder(Composite parent, int style)
Constructs a new instance of this class given its parent and a style value describing its behavior and appearance.

Method Summary

Methods
Modifier and Type Method and Description

(package private) char _findMnemonic(java.lang.String string)

(package private) java.lang.String _getToolTip(int x, int y)

(package private) void _setToolTipText(int x, int y)

void addCTabFolder2Listener(CTabFolder2Listener listener)
Adds the listener to the collection of listeners who will be notified when a tab item is closed, minimized, maximized, restored, or to show the list of items that are not currently visible.

void addCTabFolderListener(CTabFolderListener listener)
Deprecated.
use addCTabFolder2Listener(CTabFolder2Listener)

void addSelectionListener(SelectionListener listener)
Adds the listener to the collection of listeners who will be notified when the user changes the receiver's selection, by sending it one of the messages defined in the SelectionListener interface.

(package private) void addTabControl(Control control, int flags)
Set a control that can appear to the left or to the right of the folder tabs.

(package private) void addTabControl(Control control, int flags, int index, boolean update)

(package private) static int checkStyle(Composite parent, int style)

(package private) Rectangle[] computeControlBounds(Point size, boolean[][] position)

Rectangle computeTrim(int x, int y, int width, int height)
Given a desired client area for the receiver (as described by the arguments), returns the bounding rectangle which would be required to produce that client area.

(package private) Image createButtonImage(Display display, int button)

(package private) void createItem(CTabItem item, int index)

(package private) void destroyItem(CTabItem item)

boolean getBorderVisible()
Returns true if the receiver's border is visible.

(package private) ToolBar getChevron()

(package private) boolean getChevronVisible()
Returns true if the chevron button is visible when necessary.

Rectangle getClientArea()
Returns a rectangle which describes the area of the receiver which is capable of displaying data (that is, not covered by the "trimmings").

(package private) int getControlHeight(Point ctrlSize)

(package private) int getControlY(Point size, Rectangle[] rects, int borderBottom, int borderTop, int i)

CTabItem getItem(int index)
Return the tab that is located at the specified index.

CTabItem getItem(Point pt)
Gets the item at a point in the widget.

int getItemCount()
Return the number of tabs in the folder.

CTabItem[] getItems()
Return the tab items.

(package private) int getLeftItemEdge(GC gc, int part)

boolean getMaximized()
Returns true if the receiver is maximized.

boolean getMaximizeVisible()
Returns true if the maximize button is visible.

boolean getMinimized()
Returns true if the receiver is minimized.

boolean getMinimizeVisible()
Returns true if the minimize button is visible.

int getMinimumCharacters()
Returns the number of characters that will appear in a fully compressed tab.

boolean getMRUVisible()
Returns true if the receiver displays most recently used tabs and false otherwise.

CTabFolderRenderer getRenderer()
Returns the receiver's renderer.

(package private) int getRightItemEdge(GC gc)

CTabItem getSelection()
Return the selected tab item, or null if there is no selection.

Color getSelectionBackground()
Returns the receiver's selection background color.

Color getSelectionForeground()
Returns the receiver's selection foreground color.

int getSelectionIndex()
Return the index of the selected tab item, or -1 if there is no selection.

boolean getSimple()
Returns true if the CTabFolder is rendered with a simple, traditional shape.

boolean getSingle()
Returns true if the CTabFolder only displays the selected tab and false if the CTabFolder displays multiple tabs.

int getStyle()
Returns the receiver's style information.

int getTabHeight()
Returns the height of the tab

int getTabPosition()
Returns the position of the tab.

Control getTopRight()
Returns the control in the top right corner of the tab folder.

int getTopRightAlignment()
Returns the alignment of the top right control.

boolean getUnselectedCloseVisible()
Returns true if the close button appears when the user hovers over an unselected tabs.

boolean getUnselectedImageVisible()
Returns true if an image appears in unselected tabs.

(package private) int getWrappedHeight(Point size)

int indexOf(CTabItem item)
Return the index of the specified tab or -1 if the tab is not in the receiver.

(package private) void init(int style)

(package private) void initAccessible()

(package private) void initAccessibleChevronTb()

(package private) void initAccessibleMinMaxTb()

(package private) void onDispose(Event event)

(package private) void onDragDetect(Event event)

(package private) void onFocus(Event event)

(package private) void onKeyDown(Event event)

(package private) boolean onMnemonic(Event event, boolean doit)

(package private) void onMouse(Event event)

(package private) void onMouseDoubleClick(Event event)

(package private) void onPageTraversal(Event event)

(package private) void onPaint(Event event)

(package private) void onResize(Event event)

(package private) void onSelection(Event event)

(package private) void onTraverse(Event event)

(package private) void redrawTabs()

void removeCTabFolder2Listener(CTabFolder2Listener listener)
Removes the listener.

void removeCTabFolderListener(CTabFolderListener listener)
Deprecated.
see removeCTabFolderCloseListener(CTabFolderListener)

void removeSelectionListener(SelectionListener listener)
Removes the listener from the collection of listeners who will be notified when the user changes the receiver's selection.

(package private) void removeTabControl(Control control)
Removes the control from the list of tab controls.

(package private) void removeTabControl(Control control, boolean update)

void reskin(int flags)
Marks the widget to be skinned.

void setBackground(Color color)
Sets the receiver's background color to the color specified by the argument, or to the default system color for the control if the argument is null.

void setBackground(Color[] colors, int[] percents)
Specify a gradient of colors to be drawn in the background of the unselected tabs.

void setBackground(Color[] colors, int[] percents, boolean vertical)
Specify a gradient of colors to be drawn in the background of the unselected tab.

void setBackgroundImage(Image image)
Sets the receiver's background image to the image specified by the argument, or to the default system color for the control if the argument is null.

void setBorderVisible(boolean show)
Toggle the visibility of the border

(package private) void setButtonBounds(GC gc)

(package private) void setChevronVisible(boolean visible)
Sets whether a chevron is shown when there are more items to be displayed.

void setFont(Font font)
Sets the font that the receiver will use to paint textual information to the font specified by the argument, or to the default font for that kind of control if the argument is null.

void setForeground(Color color)
Sets the receiver's foreground color to the color specified by the argument, or to the default system color for the control if the argument is null.

void setInsertMark(CTabItem item, boolean after)
Display an insert marker before or after the specified tab item.

void setInsertMark(int index, boolean after)
Display an insert marker before or after the specified tab item.

(package private) boolean setItemLocation(GC gc)

(package private) void setItemOrder(int[] indices)
Reorder the items of the receiver.

(package private) boolean setItemSize(GC gc)

void setLayout(Layout layout)
Sets the layout which is associated with the receiver to be the argument which may be null.

void setMaximized(boolean maximize)
Sets the maximized state of the receiver.

void setMaximizeVisible(boolean visible)
Marks the receiver's maximize button as visible if the argument is true, and marks it invisible otherwise.

void setMinimized(boolean minimize)
Sets the minimized state of the receiver.

void setMinimizeVisible(boolean visible)
Marks the receiver's minimize button as visible if the argument is true, and marks it invisible otherwise.

void setMinimumCharacters(int count)
Sets the minimum number of characters that will be displayed in a fully compressed tab.

void setMRUVisible(boolean show)
When there is not enough horizontal space to show all the tabs, by default, tabs are shown sequentially from left to right in order of their index.

void setRenderer(CTabFolderRenderer renderer)
Sets the renderer which is associated with the receiver to be the argument which may be null.

void setSelection(CTabItem item)
Set the selection to the tab at the specified item.

void setSelection(int index)
Set the selection to the tab at the specified index.

(package private) void setSelection(int index, boolean notify)

void setSelectionBackground(Color color)
Sets the receiver's selection background color to the color specified by the argument, or to the default system color for the control if the argument is null.

void setSelectionBackground(Color[] colors, int[] percents)
Specify a gradient of colours to be draw in the background of the selected tab.

void setSelectionBackground(Color[] colors, int[] percents, boolean vertical)
Specify a gradient of colours to be draw in the background of the selected tab.

void setSelectionBackground(Image image)
Set the image to be drawn in the background of the selected tab.

void setSelectionForeground(Color color)
Set the foreground color of the selected tab.

(package private) void setSelectionHighlightGradientColor(Color start)

void setSimple(boolean simple)
Sets the shape that the CTabFolder will use to render itself.

void setSingle(boolean single)
Sets the number of tabs that the CTabFolder should display

void setTabHeight(int height)
Specify a fixed height for the tab items.

void setTabPosition(int position)
Specify whether the tabs should appear along the top of the folder or along the bottom of the folder.

void setTopRight(Control control)
Set the control that appears in the top right corner of the tab folder.

void setTopRight(Control control, int alignment)
Set the control that appears in the top right corner of the tab folder.

void setUnselectedCloseVisible(boolean visible)
Specify whether the close button appears when the user hovers over an unselected tabs.

void setUnselectedImageVisible(boolean visible)
Specify whether the image appears on unselected tabs.

void showItem(CTabItem item)
Shows the item.

(package private) void showList(Rectangle rect)

void showSelection()
Shows the selection.

(package private) java.lang.String stripMnemonic(java.lang.String string)

(package private) void updateBkImages()

(package private) boolean updateItems()

(package private) boolean updateItems(int showIndex)

(package private) boolean updateTabHeight(boolean force)

Methods inherited from class org.eclipse.swt.widgets.Composite
changed, checkSubclass, computeSize, drawBackground, getBackgroundMode, getChildren, getLayout, getLayoutDeferred, getTabList, isLayoutDeferred, layout, layout, layout, layout, layout, setBackgroundMode, setFocus, setLayoutDeferred, setTabList

Methods inherited from class org.eclipse.swt.widgets.Scrollable
getHorizontalBar, getScrollbarsMode, getVerticalBar

Methods inherited from class org.eclipse.swt.widgets.Control
addControlListener, addDragDetectListener, addFocusListener, addGestureListener, addHelpListener, addKeyListener, addMenuDetectListener, addMouseListener, addMouseMoveListener, addMouseTrackListener, addMouseWheelListener, addPaintListener, addTouchListener, addTraverseListener, computeSize, dragDetect, dragDetect, forceFocus, getAccessible, getBackground, getBackgroundImage, getBorderWidth, getBounds, getCursor, getDragDetect, getEnabled, getFont, getForeground, getLayoutData, getLocation, getMenu, getMonitor, getOrientation, getParent, getRegion, getShell, getSize, getToolTipText, getTouchEnabled, getVisible, internal_dispose_GC, internal_new_GC, isEnabled, isFocusControl, isReparentable, isVisible, moveAbove, moveBelow, pack, pack, print, redraw, redraw, removeControlListener, removeDragDetectListener, removeFocusListener, removeGestureListener, removeHelpListener, removeKeyListener, removeMenuDetectListener, removeMouseListener, removeMouseMoveListener, removeMouseTrackListener, removeMouseWheelListener, removePaintListener, removeTouchListener, removeTraverseListener, setBounds, setBounds, setCapture, setCursor, setDragDetect, setEnabled, setLayoutData, setLocation, setLocation, setMenu, setOrientation, setParent, setRedraw, setRegion, setSize, setSize, setToolTipText, setTouchEnabled, setVisible, toControl, toControl, toDisplay, toDisplay, traverse, traverse, traverse, update

Methods inherited from class org.eclipse.swt.widgets.Widget
addDisposeListener, addListener, checkWidget, dispose, getData, getData, getDisplay, getListeners, isDisposed, isListening, notifyListeners, removeDisposeListener, removeListener, removeListener, setData, setData, toString

Methods inherited from class java.lang.Object
clone, equals, finalize, getClass, hashCode, notify, notifyAll, wait, wait, wait

- Field Detail
  - marginWidth
```
public int marginWidth
```
    marginWidth specifies the number of pixels of horizontal margin that will be placed along the left and right edges of the form. The default value is 0.
  - marginHeight
```
public int marginHeight
```
    marginHeight specifies the number of pixels of vertical margin that will be placed along the top and bottom edges of the form. The default value is 0.
  - MIN_TAB_WIDTH
```
public int MIN_TAB_WIDTH
```
    Deprecated. This field is no longer used. See setMinimumCharacters(int)

    A multiple of the tab height that specifies the minimum width to which a tab will be compressed before scrolling arrows are used to navigate the tabs. NOTE This field is badly named and can not be fixed for backwards compatibility. It should not be capitalized.
  - borderInsideRGB
```
public static RGB borderInsideRGB
```
    Deprecated. drop shadow border is no longer drawn in 3.0

    Color of innermost line of drop shadow border. NOTE This field is badly named and can not be fixed for backwards compatibility. It should be capitalized.
  - borderMiddleRGB
```
public static RGB borderMiddleRGB
```
    Deprecated. drop shadow border is no longer drawn in 3.0

    Color of middle line of drop shadow border. NOTE This field is badly named and can not be fixed for backwards compatibility. It should be capitalized.
  - borderOutsideRGB
```
public static RGB borderOutsideRGB
```
    Deprecated. drop shadow border is no longer drawn in 3.0

    Color of outermost line of drop shadow border. NOTE This field is badly named and can not be fixed for backwards compatibility. It should be capitalized.
  - onBottom
```
boolean onBottom
```
  - single
```
boolean single
```
  - simple
```
boolean simple
```
  - fixedTabHeight
```
int fixedTabHeight
```
  - tabHeight
```
int tabHeight
```
  - minChars
```
int minChars
```
  - borderVisible
```
boolean borderVisible
```
  - renderer
```
CTabFolderRenderer renderer
```
  - items
```
CTabItem[] items
```
  - firstIndex
```
int firstIndex
```
  - selectedIndex
```
int selectedIndex
```
  - priority
```
int[] priority
```
  - mru
```
boolean mru
```
  - listener
```
Listener listener
```
  - ignoreTraverse
```
boolean ignoreTraverse
```
  - folderListeners
```
CTabFolder2Listener[] folderListeners
```
  - tabListeners
```
CTabFolderListener[] tabListeners
```
  - selectionBgImage
```
Image selectionBgImage
```
  - selectionGradientColors
```
Color[] selectionGradientColors
```
  - selectionGradientPercents
```
int[] selectionGradientPercents
```
  - selectionGradientVertical
```
boolean selectionGradientVertical
```
  - selectionForeground
```
Color selectionForeground
```
  - selectionBackground
```
Color selectionBackground
```
  - gradientColors
```
Color[] gradientColors
```
  - gradientPercents
```
int[] gradientPercents
```
  - gradientVertical
```
boolean gradientVertical
```
  - showUnselectedImage
```
boolean showUnselectedImage
```
  - showClose
```
boolean showClose
```
  - showUnselectedClose
```
boolean showUnselectedClose
```
  - showMin
```
boolean showMin
```
  - minimized
```
boolean minimized
```
  - showMax
```
boolean showMax
```
  - maximized
```
boolean maximized
```
  - minMaxTb
```
ToolBar minMaxTb
```
  - maxItem
```
ToolItem maxItem
```
  - minItem
```
ToolItem minItem
```
  - maxImage
```
Image maxImage
```
  - minImage
```
Image minImage
```
  - hoverTb
```
boolean hoverTb
```
  - hoverRect
```
Rectangle hoverRect
```
  - hovering
```
boolean hovering
```
  - hoverTimerRunning
```
boolean hoverTimerRunning
```
  - showChevron
```
boolean showChevron
```
  - showMenu
```
Menu showMenu
```
  - chevronTb
```
ToolBar chevronTb
```
  - chevronItem
```
ToolItem chevronItem
```
  - chevronImage
```
Image chevronImage
```
  - chevronCount
```
int chevronCount
```
  - chevronVisible
```
boolean chevronVisible
```
  - topRight
```
Control topRight
```
  - topRightAlignment
```
int topRightAlignment
```
  - ignoreResize
```
boolean ignoreResize
```
  - controls
```
Control[] controls
```
  - controlAlignments
```
int[] controlAlignments
```
  - controlRects
```
Rectangle[] controlRects
```
  - controlBkImages
```
Image[] controlBkImages
```
  - inDispose
```
boolean inDispose
```
  - oldSize
```
Point oldSize
```
  - oldFont
```
Font oldFont
```
  - DEFAULT_WIDTH
```
static final int DEFAULT_WIDTH
```
    See Also:
    Constant Field Values
  - DEFAULT_HEIGHT
```
static final int DEFAULT_HEIGHT
```
    See Also:
    Constant Field Values
  - SELECTION_FOREGROUND
```
static final int SELECTION_FOREGROUND
```
    See Also:
    Constant Field Values
  - SELECTION_BACKGROUND
```
static final int SELECTION_BACKGROUND
```
    See Also:
    Constant Field Values
  - FOREGROUND
```
static final int FOREGROUND
```
    See Also:
    Constant Field Values
  - BACKGROUND
```
static final int BACKGROUND
```
    See Also:
    Constant Field Values
  - SPACING
```
static final int SPACING
```
    See Also:
    Constant Field Values
- Constructor Detail
  - CTabFolder
```
public CTabFolder(Composite parent,
          int style)
```
    Constructs a new instance of this class given its parent and a style value describing its behavior and appearance.
    The style value is either one of the style constants defined in class SWT which is applicable to instances of this class, or must be built by bitwise OR'ing together (that is, using the int "|" operator) two or more of those SWT style constants. The class description lists the style constants that are applicable to the class. Style bits are also inherited from superclasses.
    Parameters:
    parent - a widget which will be the parent of the new instance (cannot be null)
    style - the style of widget to construct

    Throws:
    java.lang.IllegalArgumentException -

    ERROR_NULL_ARGUMENT - if the parent is null
    SWTException -

    ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the parent
    See Also:
    SWT.TOP, SWT.BOTTOM, SWT.FLAT, SWT.BORDER, SWT.SINGLE, SWT.MULTI, getStyle()
- Method Detail
  - init
```
void init(int style)
```
  - checkStyle
```
static int checkStyle(Composite parent,
             int style)
```
  - addCTabFolder2Listener
```
public void addCTabFolder2Listener(CTabFolder2Listener listener)
```
    Adds the listener to the collection of listeners who will be notified when a tab item is closed, minimized, maximized, restored, or to show the list of items that are not currently visible.
    Parameters:
    listener - the listener which should be notified

    Throws:
    java.lang.IllegalArgumentException -

    ERROR_NULL_ARGUMENT - if the listener is null
    SWTException -

    ERROR_THREAD_INVALID_ACCESS when called from the wrong thread

    ERROR_WIDGET_DISPOSED when the widget has been disposed
    Since:

    3.0

    See Also:
    CTabFolder2Listener, removeCTabFolder2Listener(CTabFolder2Listener)
  - addCTabFolderListener
```
public void addCTabFolderListener(CTabFolderListener listener)
```
    Deprecated. use addCTabFolder2Listener(CTabFolder2Listener)

    Adds the listener to the collection of listeners who will be notified when a tab item is closed.
    Parameters:
    listener - the listener which should be notified

    Throws:
    java.lang.IllegalArgumentException -

    ERROR_NULL_ARGUMENT - if the listener is null
    SWTException -

    ERROR_THREAD_INVALID_ACCESS when called from the wrong thread

    ERROR_WIDGET_DISPOSED when the widget has been disposed
    See Also:
    CTabFolderListener, removeCTabFolderListener(CTabFolderListener)
  - addSelectionListener
```
public void addSelectionListener(SelectionListener listener)
```
    Adds the listener to the collection of listeners who will be notified when the user changes the receiver's selection, by sending it one of the messages defined in the SelectionListener interface.
    widgetSelected is called when the user changes the selected tab. widgetDefaultSelected is not called.
    Parameters:
    listener - the listener which should be notified when the user changes the receiver's selection

    Throws:
    java.lang.IllegalArgumentException -

    ERROR_NULL_ARGUMENT - if the listener is null
    SWTException -

    ERROR_WIDGET_DISPOSED - if the receiver has been disposed

    ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver
    See Also:
    SelectionListener, removeSelectionListener(org.eclipse.swt.events.SelectionListener), SelectionEvent
  - computeControlBounds
```
Rectangle[] computeControlBounds(Point size,
                               boolean[][] position)
```
  - getControlHeight
```
int getControlHeight(Point ctrlSize)
```
  - computeTrim
```
public Rectangle computeTrim(int x,
                    int y,
                    int width,
                    int height)
```
    Description copied from class: Scrollable

    Given a desired client area for the receiver (as described by the arguments), returns the bounding rectangle which would be required to produce that client area.
    In other words, it returns a rectangle such that, if the receiver's bounds were set to that rectangle, the area of the receiver which is capable of displaying data (that is, not covered by the "trimmings") would be the rectangle described by the arguments (relative to the receiver's parent).

    Overrides:

    computeTrim in class Scrollable

    Parameters:
    x - the desired x coordinate of the client area
    y - the desired y coordinate of the client area
    width - the desired width of the client area
    height - the desired height of the client area

    Returns:
    the required bounds to produce the given client area
    See Also:
    Scrollable.getClientArea()
  - createButtonImage
```
Image createButtonImage(Display display,
                      int button)
```
  - createItem
```
void createItem(CTabItem item,
              int index)
```
  - destroyItem
```
void destroyItem(CTabItem item)
```
  - getBorderVisible
```
public boolean getBorderVisible()
```
    Returns true if the receiver's border is visible.
    Returns:
    the receiver's border visibility state

    Throws:
    SWTException -

    ERROR_WIDGET_DISPOSED - if the receiver has been disposed

    ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver
    Since:

    3.0
  - getChevron
```
ToolBar getChevron()
```
  - getChevronVisible
```
boolean getChevronVisible()
```
    Returns true if the chevron button is visible when necessary.
    Returns:
    the visibility of the chevron button

    Throws:
    SWTException -

    ERROR_WIDGET_DISPOSED - if the receiver has been disposed

    ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver
  - getClientArea
```
public Rectangle getClientArea()
```
    Description copied from class: Scrollable

    Returns a rectangle which describes the area of the receiver which is capable of displaying data (that is, not covered by the "trimmings").

    Overrides:

    getClientArea in class Scrollable

    Returns:
    the client area
    See Also:
    Scrollable.computeTrim(int, int, int, int)
  - getItem
```
public CTabItem getItem(int index)
```
    Return the tab that is located at the specified index.
    Parameters:
    index - the index of the tab item

    Returns:
    the item at the specified index

    Throws:
    java.lang.IllegalArgumentException -

    ERROR_INVALID_RANGE - if the index is out of range
    SWTException -

    ERROR_THREAD_INVALID_ACCESS when called from the wrong thread

    ERROR_WIDGET_DISPOSED when the widget has been disposed
  - getItem
```
public CTabItem getItem(Point pt)
```
    Gets the item at a point in the widget.
    Parameters:
    pt - the point in coordinates relative to the CTabFolder

    Returns:
    the item at a point or null

    Throws:
    SWTException -

    ERROR_THREAD_INVALID_ACCESS when called from the wrong thread

    ERROR_WIDGET_DISPOSED when the widget has been disposed
  - getItemCount
```
public int getItemCount()
```
    Return the number of tabs in the folder.
    Returns:
    the number of tabs in the folder

    Throws:
    SWTException -

    ERROR_THREAD_INVALID_ACCESS when called from the wrong thread

    ERROR_WIDGET_DISPOSED when the widget has been disposed
  - getItems
```
public CTabItem[] getItems()
```
    Return the tab items.
    Returns:
    the tab items

    Throws:
    SWTException -

    ERROR_THREAD_INVALID_ACCESS when called from the wrong thread

    ERROR_WIDGET_DISPOSED when the widget has been disposed
  - getLeftItemEdge
```
int getLeftItemEdge(GC gc,
                  int part)
```
  - _findMnemonic
```
char _findMnemonic(java.lang.String string)
```
  - stripMnemonic
```
java.lang.String stripMnemonic(java.lang.String string)
```
  - getMinimized
```
public boolean getMinimized()
```
    Returns true if the receiver is minimized.
    Returns:
    the receiver's minimized state

    Throws:
    SWTException -

    ERROR_WIDGET_DISPOSED - if the receiver has been disposed

    ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver
    Since:

    3.0
  - getMinimizeVisible
```
public boolean getMinimizeVisible()
```
    Returns true if the minimize button is visible.
    Returns:
    the visibility of the minimized button

    Throws:
    SWTException -

    ERROR_WIDGET_DISPOSED - if the receiver has been disposed

    ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver
    Since:

    3.0
  - getMinimumCharacters
```
public int getMinimumCharacters()
```
    Returns the number of characters that will appear in a fully compressed tab.

    Returns:
    number of characters that will appear in a fully compressed tab
    Since:

    3.0
  - getMaximized
```
public boolean getMaximized()
```
    Returns true if the receiver is maximized.
    Returns:
    the receiver's maximized state

    Throws:
    SWTException -

    ERROR_WIDGET_DISPOSED - if the receiver has been disposed

    ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver
    Since:

    3.0
  - getMaximizeVisible
```
public boolean getMaximizeVisible()
```
    Returns true if the maximize button is visible.
    Returns:
    the visibility of the maximized button

    Throws:
    SWTException -

    ERROR_WIDGET_DISPOSED - if the receiver has been disposed

    ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver
    Since:

    3.0
  - getMRUVisible
```
public boolean getMRUVisible()
```
    Returns true if the receiver displays most recently used tabs and false otherwise.
    When there is not enough horizontal space to show all the tabs, by default, tabs are shown sequentially from left to right in order of their index. When the MRU visibility is turned on, the tabs that are visible will be the tabs most recently selected. Tabs will still maintain their left to right order based on index but only the most recently selected tabs are visible.
    For example, consider a CTabFolder that contains "Tab 1", "Tab 2", "Tab 3" and "Tab 4" (in order by index). The user selects "Tab 1" and then "Tab 3". If the CTabFolder is now compressed so that only two tabs are visible, by default, "Tab 2" and "Tab 3" will be shown ("Tab 3" since it is currently selected and "Tab 2" because it is the previous item in index order). If MRU visibility is enabled, the two visible tabs will be "Tab 1" and "Tab 3" (in that order from left to right).
    Returns:
    the receiver's header's visibility state

    Throws:
    SWTException -

    ERROR_WIDGET_DISPOSED - if the receiver has been disposed

    ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver
    Since:

    3.1
  - getRenderer
```
public CTabFolderRenderer getRenderer()
```
    Returns the receiver's renderer.
    Returns:
    the receiver's renderer

    Throws:
    SWTException -

    ERROR_THREAD_INVALID_ACCESS when called from the wrong thread

    ERROR_WIDGET_DISPOSED when the widget has been disposed
    Since:

    3.6

    See Also:
    setRenderer(CTabFolderRenderer), CTabFolderRenderer
  - getRightItemEdge
```
int getRightItemEdge(GC gc)
```
  - getSelection
```
public CTabItem getSelection()
```
    Return the selected tab item, or null if there is no selection.
    Returns:
    the selected tab item, or null if none has been selected

    Throws:
    SWTException -

    ERROR_THREAD_INVALID_ACCESS when called from the wrong thread

    ERROR_WIDGET_DISPOSED when the widget has been disposed
  - getSelectionBackground
```
public Color getSelectionBackground()
```
    Returns the receiver's selection background color.
    Returns:
    the selection background color of the receiver

    Throws:
    SWTException -

    ERROR_WIDGET_DISPOSED - if the receiver has been disposed

    ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver
    Since:

    3.0
  - getSelectionForeground
```
public Color getSelectionForeground()
```
    Returns the receiver's selection foreground color.
    Returns:
    the selection foreground color of the receiver

    Throws:
    SWTException -

    ERROR_WIDGET_DISPOSED - if the receiver has been disposed

    ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver
    Since:

    3.0
  - getSelectionIndex
```
public int getSelectionIndex()
```
    Return the index of the selected tab item, or -1 if there is no selection.
    Returns:
    the index of the selected tab item or -1

    Throws:
    SWTException -

    ERROR_THREAD_INVALID_ACCESS when called from the wrong thread

    ERROR_WIDGET_DISPOSED when the widget has been disposed
  - getSimple
```
public boolean getSimple()
```
    Returns true if the CTabFolder is rendered with a simple, traditional shape.

    Returns:
    true if the CTabFolder is rendered with a simple shape
    Since:

    3.0
  - getSingle
```
public boolean getSingle()
```
    Returns true if the CTabFolder only displays the selected tab and false if the CTabFolder displays multiple tabs.

    Returns:
    true if the CTabFolder only displays the selected tab and false if the CTabFolder displays multiple tabs
    Since:

    3.0
  - getStyle
```
public int getStyle()
```
    Description copied from class: Widget

    Returns the receiver's style information.
    Note that the value which is returned by this method may not match the value which was provided to the constructor when the receiver was created. This can occur when the underlying operating system does not support a particular combination of requested styles. For example, if the platform widget used to implement a particular SWT widget always has scroll bars, the result of calling this method would always have the SWT.H_SCROLL and SWT.V_SCROLL bits set.

    Overrides:

    getStyle in class Widget

    Returns:
    the style bits
  - getTabHeight
```
public int getTabHeight()
```
    Returns the height of the tab
    Returns:
    the height of the tab

    Throws:
    SWTException -

    ERROR_THREAD_INVALID_ACCESS when called from the wrong thread

    ERROR_WIDGET_DISPOSED when the widget has been disposed
  - getTabPosition
```
public int getTabPosition()
```
    Returns the position of the tab. Possible values are SWT.TOP or SWT.BOTTOM.
    Returns:
    the position of the tab

    Throws:
    SWTException -

    ERROR_THREAD_INVALID_ACCESS when called from the wrong thread

    ERROR_WIDGET_DISPOSED when the widget has been disposed
  - getTopRight
```
public Control getTopRight()
```
    Returns the control in the top right corner of the tab folder. Typically this is a close button or a composite with a menu and close button.
    Returns:
    the control in the top right corner of the tab folder or null

    Throws:
    SWTException -

    ERROR_THREAD_INVALID_ACCESS when called from the wrong thread

    ERROR_WIDGET_DISPOSED when the widget has been disposed
    Since:

    2.1
  - getTopRightAlignment
```
public int getTopRightAlignment()
```
    Returns the alignment of the top right control.
    Returns:
    the alignment of the top right control which is either SWT.RIGHT or SWT.FILL

    Throws:
    SWTException -

    ERROR_THREAD_INVALID_ACCESS when called from the wrong thread

    ERROR_WIDGET_DISPOSED when the widget has been disposed
    Since:

    3.6
  - getUnselectedCloseVisible
```
public boolean getUnselectedCloseVisible()
```
    Returns true if the close button appears when the user hovers over an unselected tabs.

    Returns:
    true if the close button appears on unselected tabs
    Since:

    3.0
  - getUnselectedImageVisible
```
public boolean getUnselectedImageVisible()
```
    Returns true if an image appears in unselected tabs.

    Returns:
    true if an image appears in unselected tabs
    Since:

    3.0
  - indexOf
```
public int indexOf(CTabItem item)
```
    Return the index of the specified tab or -1 if the tab is not in the receiver.
    Parameters:
    item - the tab item for which the index is required

    Returns:
    the index of the specified tab item or -1

    Throws:
    java.lang.IllegalArgumentException -

    ERROR_NULL_ARGUMENT - if the listener is null
    SWTException -

    ERROR_THREAD_INVALID_ACCESS when called from the wrong thread

    ERROR_WIDGET_DISPOSED when the widget has been disposed
  - initAccessible
```
void initAccessible()
```
  - initAccessibleMinMaxTb
```
void initAccessibleMinMaxTb()
```
  - initAccessibleChevronTb
```
void initAccessibleChevronTb()
```
  - onKeyDown
```
void onKeyDown(Event event)
```
  - onDispose
```
void onDispose(Event event)
```
  - onDragDetect
```
void onDragDetect(Event event)
```
  - onFocus
```
void onFocus(Event event)
```
  - onMnemonic
```
boolean onMnemonic(Event event,
                 boolean doit)
```
  - onMouseDoubleClick
```
void onMouseDoubleClick(Event event)
```
  - onMouse
```
void onMouse(Event event)
```
  - onPageTraversal
```
void onPageTraversal(Event event)
```
  - onPaint
```
void onPaint(Event event)
```
  - onResize
```
void onResize(Event event)
```
  - onSelection
```
void onSelection(Event event)
```
  - onTraverse
```
void onTraverse(Event event)
```
  - redrawTabs
```
void redrawTabs()
```
  - removeCTabFolder2Listener
```
public void removeCTabFolder2Listener(CTabFolder2Listener listener)
```
    Removes the listener.
    Parameters:
    listener - the listener which should no longer be notified

    Throws:
    java.lang.IllegalArgumentException -

    ERROR_NULL_ARGUMENT - if the listener is null
    SWTException -

    ERROR_THREAD_INVALID_ACCESS when called from the wrong thread

    ERROR_WIDGET_DISPOSED when the widget has been disposed
    Since:

    3.0

    See Also:
    addCTabFolder2Listener(CTabFolder2Listener)
  - removeCTabFolderListener
```
public void removeCTabFolderListener(CTabFolderListener listener)
```
    Deprecated. see removeCTabFolderCloseListener(CTabFolderListener)

    Removes the listener.
    Parameters:
    listener - the listener which should no longer be notified

    Throws:
    java.lang.IllegalArgumentException -

    ERROR_NULL_ARGUMENT - if the listener is null
    SWTException -

    ERROR_THREAD_INVALID_ACCESS when called from the wrong thread

    ERROR_WIDGET_DISPOSED when the widget has been disposed
  - removeSelectionListener
```
public void removeSelectionListener(SelectionListener listener)
```
    Removes the listener from the collection of listeners who will be notified when the user changes the receiver's selection.
    Parameters:
    listener - the listener which should no longer be notified

    Throws:
    java.lang.IllegalArgumentException -

    ERROR_NULL_ARGUMENT - if the listener is null
    SWTException -

    ERROR_WIDGET_DISPOSED - if the receiver has been disposed

    ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver
    See Also:
    SelectionListener, addSelectionListener(org.eclipse.swt.events.SelectionListener)
  - reskin
```
public void reskin(int flags)
```
    Description copied from class: Widget

    Marks the widget to be skinned.
    The skin event is sent to the receiver's display when appropriate (usually before the next event is handled). Widgets are automatically marked for skinning upon creation as well as when its skin id or class changes. The skin id and/or class can be changed by calling Display.setData(String, Object) with the keys SWT.SKIN_ID and/or SWT.SKIN_CLASS. Once the skin event is sent to a widget, it will not be sent again unless reskin(int) is called on the widget or on an ancestor while specifying the SWT.ALL flag.

    The parameter flags may be either:

    SWT.ALL

    all children in the receiver's widget tree should be skinned

    SWT.NONE

    only the receiver should be skinned

    Overrides:

    reskin in class Widget

    Parameters:
    flags - the flags specifying how to reskin
  - setBackground
```
public void setBackground(Color color)
```
    Description copied from class: Control

    Sets the receiver's background color to the color specified by the argument, or to the default system color for the control if the argument is null.
    Note: This operation is a hint and may be overridden by the platform. For example, on Windows the background of a Button cannot be changed.

    Overrides:

    setBackground in class Control

    Parameters:
    color - the new color (or null)
  - setBackground
```
public void setBackground(Color[] colors,
                 int[] percents)
```
    Specify a gradient of colors to be drawn in the background of the unselected tabs. For example to draw a gradient that varies from dark blue to blue and then to white, use the following call to setBackground:
```
        cfolder.setBackground(new Color[]{display.getSystemColor(SWT.COLOR_DARK_BLUE),
                                           display.getSystemColor(SWT.COLOR_BLUE),
                                           display.getSystemColor(SWT.COLOR_WHITE),
                                           display.getSystemColor(SWT.COLOR_WHITE)},
                               new int[] {25, 50, 100});

```
    Parameters:
    colors - an array of Color that specifies the colors to appear in the gradient in order of appearance left to right. The value null clears the background gradient. The value null can be used inside the array of Color to specify the background color.
    percents - an array of integers between 0 and 100 specifying the percent of the width of the widget at which the color should change. The size of the percents array must be one less than the size of the colors array.

    Throws:
    SWTException -

    ERROR_THREAD_INVALID_ACCESS when called from the wrong thread

    ERROR_WIDGET_DISPOSED when the widget has been disposed
    Since:

    3.6
  - setBackground
```
public void setBackground(Color[] colors,
                 int[] percents,
                 boolean vertical)
```
    Specify a gradient of colors to be drawn in the background of the unselected tab. For example to draw a vertical gradient that varies from dark blue to blue and then to white, use the following call to setBackground:
```
        cfolder.setBackground(new Color[]{display.getSystemColor(SWT.COLOR_DARK_BLUE),
                                           display.getSystemColor(SWT.COLOR_BLUE),
                                           display.getSystemColor(SWT.COLOR_WHITE),
                                           display.getSystemColor(SWT.COLOR_WHITE)},
                                  new int[] {25, 50, 100}, true);

```
    Parameters:
    colors - an array of Color that specifies the colors to appear in the gradient in order of appearance left to right. The value null clears the background gradient. The value null can be used inside the array of Color to specify the background color.
    percents - an array of integers between 0 and 100 specifying the percent of the width of the widget at which the color should change. The size of the percents array must be one less than the size of the colors array.
    vertical - indicate the direction of the gradient. True is vertical and false is horizontal.

    Throws:
    SWTException -

    ERROR_THREAD_INVALID_ACCESS when called from the wrong thread

    ERROR_WIDGET_DISPOSED when the widget has been disposed
    Since:

    3.6
  - setBackgroundImage
```
public void setBackgroundImage(Image image)
```
    Description copied from class: Control

    Sets the receiver's background image to the image specified by the argument, or to the default system color for the control if the argument is null. The background image is tiled to fill the available space.
    Note: This operation is a hint and may be overridden by the platform. For example, on Windows the background of a Button cannot be changed.

    Overrides:

    setBackgroundImage in class Control

    Parameters:
    image - the new image (or null)
  - setBorderVisible
```
public void setBorderVisible(boolean show)
```
    Toggle the visibility of the border
    Parameters:
    show - true if the border should be displayed

    Throws:
    SWTException -

    ERROR_WIDGET_DISPOSED - if the receiver has been disposed

    ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver
  - setButtonBounds
```
void setButtonBounds(GC gc)
```
  - setFont
```
public void setFont(Font font)
```
    Description copied from class: Control

    Sets the font that the receiver will use to paint textual information to the font specified by the argument, or to the default font for that kind of control if the argument is null.

    Overrides:

    setFont in class Control

    Parameters:
    font - the new font (or null)
  - setForeground
```
public void setForeground(Color color)
```
    Description copied from class: Control

    Sets the receiver's foreground color to the color specified by the argument, or to the default system color for the control if the argument is null.
    Note: This operation is a hint and may be overridden by the platform.

    Overrides:

    setForeground in class Control

    Parameters:
    color - the new color (or null)
  - setInsertMark
```
public void setInsertMark(CTabItem item,
                 boolean after)
```
    Display an insert marker before or after the specified tab item. A value of null will clear the mark.
    Parameters:
    item - the item with which the mark is associated or null
    after - true if the mark should be displayed after the specified item

    Throws:
    SWTException -

    ERROR_WIDGET_DISPOSED - if the receiver has been disposed

    ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver
  - setInsertMark
```
public void setInsertMark(int index,
                 boolean after)
```
    Display an insert marker before or after the specified tab item. A value of -1 will clear the mark.
    Parameters:
    index - the index of the item with which the mark is associated or null
    after - true if the mark should be displayed after the specified item

    Throws:
    IllegalArgumentException
    -
    SWTException -

    ERROR_WIDGET_DISPOSED - if the receiver has been disposed

    ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver
  - setItemLocation
```
boolean setItemLocation(GC gc)
```
  - setItemOrder
```
void setItemOrder(int[] indices)
```
    Reorder the items of the receiver.
    Parameters:
    indices - an array containing the new indices for all items

    Throws:
    java.lang.IllegalArgumentException -

    ERROR_NULL_ARGUMENT - if the indices array is null

    ERROR_INVALID_ARGUMENT - if the indices array is not the same length as the number of items, if there are duplicate indices or an index is out of range.
    SWTException -

    ERROR_WIDGET_DISPOSED - if the receiver has been disposed

    ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver
  - setItemSize
```
boolean setItemSize(GC gc)
```
  - setMaximizeVisible
```
public void setMaximizeVisible(boolean visible)
```
    Marks the receiver's maximize button as visible if the argument is true, and marks it invisible otherwise.
    Parameters:
    visible - the new visibility state

    Throws:
    SWTException -

    ERROR_WIDGET_DISPOSED - if the receiver has been disposed

    ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver
    Since:

    3.0
  - setLayout
```
public void setLayout(Layout layout)
```
    Sets the layout which is associated with the receiver to be the argument which may be null.
    Note: No Layout can be set on this Control because it already manages the size and position of its children.
    Overrides:

    setLayout in class Composite

    Parameters:
    layout - the receiver's new layout or null

    Throws:
    SWTException -

    ERROR_WIDGET_DISPOSED - if the receiver has been disposed

    ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver
  - setMaximized
```
public void setMaximized(boolean maximize)
```
    Sets the maximized state of the receiver.
    Parameters:
    maximize - the new maximized state

    Throws:
    SWTException -

    ERROR_WIDGET_DISPOSED - if the receiver has been disposed

    ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver
    Since:

    3.0
  - setMinimizeVisible
```
public void setMinimizeVisible(boolean visible)
```
    Marks the receiver's minimize button as visible if the argument is true, and marks it invisible otherwise.
    Parameters:
    visible - the new visibility state

    Throws:
    SWTException -

    ERROR_WIDGET_DISPOSED - if the receiver has been disposed

    ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver
    Since:

    3.0
  - setMinimized
```
public void setMinimized(boolean minimize)
```
    Sets the minimized state of the receiver.
    Parameters:
    minimize - the new minimized state

    Throws:
    SWTException -

    ERROR_WIDGET_DISPOSED - if the receiver has been disposed

    ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver
    Since:

    3.0
  - setMinimumCharacters
```
public void setMinimumCharacters(int count)
```
    Sets the minimum number of characters that will be displayed in a fully compressed tab.
    Parameters:
    count - the minimum number of characters that will be displayed in a fully compressed tab

    Throws:
    SWTException -

    ERROR_WIDGET_DISPOSED - if the receiver has been disposed

    ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

    ERROR_INVALID_RANGE - if the count is less than zero
    Since:

    3.0
  - setMRUVisible
```
public void setMRUVisible(boolean show)
```
    When there is not enough horizontal space to show all the tabs, by default, tabs are shown sequentially from left to right in order of their index. When the MRU visibility is turned on, the tabs that are visible will be the tabs most recently selected. Tabs will still maintain their left to right order based on index but only the most recently selected tabs are visible.
    For example, consider a CTabFolder that contains "Tab 1", "Tab 2", "Tab 3" and "Tab 4" (in order by index). The user selects "Tab 1" and then "Tab 3". If the CTabFolder is now compressed so that only two tabs are visible, by default, "Tab 2" and "Tab 3" will be shown ("Tab 3" since it is currently selected and "Tab 2" because it is the previous item in index order). If MRU visibility is enabled, the two visible tabs will be "Tab 1" and "Tab 3" (in that order from left to right).
    Parameters:
    show - the new visibility state

    Throws:
    SWTException -

    ERROR_WIDGET_DISPOSED - if the receiver has been disposed

    ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver
    Since:

    3.1
  - setRenderer
```
public void setRenderer(CTabFolderRenderer renderer)
```
    Sets the renderer which is associated with the receiver to be the argument which may be null. In the case of null, the default renderer is used.
    Parameters:
    renderer - a new renderer

    Throws:
    SWTException -

    ERROR_THREAD_INVALID_ACCESS when called from the wrong thread

    ERROR_WIDGET_DISPOSED when the widget has been disposed
    Since:

    3.6

    See Also:
    CTabFolderRenderer
  - setSelection
```
public void setSelection(CTabItem item)
```
    Set the selection to the tab at the specified item.
    Parameters:
    item - the tab item to be selected

    Throws:
    java.lang.IllegalArgumentException -

    ERROR_NULL_ARGUMENT - if the item is null
    SWTException -

    ERROR_THREAD_INVALID_ACCESS when called from the wrong thread

    ERROR_WIDGET_DISPOSED when the widget has been disposed
  - setSelection
```
public void setSelection(int index)
```
    Set the selection to the tab at the specified index.
    Parameters:
    index - the index of the tab item to be selected

    Throws:
    SWTException -

    ERROR_WIDGET_DISPOSED - if the receiver has been disposed

    ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver
  - setSelection
```
void setSelection(int index,
                boolean notify)
```
  - setSelectionBackground
```
public void setSelectionBackground(Color color)
```
    Sets the receiver's selection background color to the color specified by the argument, or to the default system color for the control if the argument is null.
    Parameters:
    color - the new color (or null)

    Throws:
    java.lang.IllegalArgumentException -

    ERROR_INVALID_ARGUMENT - if the argument has been disposed
    SWTException -

    ERROR_WIDGET_DISPOSED - if the receiver has been disposed

    ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver
    Since:

    3.0
  - setSelectionBackground
```
public void setSelectionBackground(Color[] colors,
                          int[] percents)
```
    Specify a gradient of colours to be draw in the background of the selected tab. For example to draw a gradient that varies from dark blue to blue and then to white, use the following call to setBackground:
```
        cfolder.setBackground(new Color[]{display.getSystemColor(SWT.COLOR_DARK_BLUE),
                                           display.getSystemColor(SWT.COLOR_BLUE),
                                           display.getSystemColor(SWT.COLOR_WHITE),
                                           display.getSystemColor(SWT.COLOR_WHITE)},
                               new int[] {25, 50, 100});

```
    Parameters:
    colors - an array of Color that specifies the colors to appear in the gradient in order of appearance left to right. The value null clears the background gradient. The value null can be used inside the array of Color to specify the background color.
    percents - an array of integers between 0 and 100 specifying the percent of the width of the widget at which the color should change. The size of the percents array must be one less than the size of the colors array.

    Throws:
    SWTException -

    ERROR_THREAD_INVALID_ACCESS when called from the wrong thread

    ERROR_WIDGET_DISPOSED when the widget has been disposed
  - setSelectionBackground
```
public void setSelectionBackground(Color[] colors,
                          int[] percents,
                          boolean vertical)
```
    Specify a gradient of colours to be draw in the background of the selected tab. For example to draw a vertical gradient that varies from dark blue to blue and then to white, use the following call to setBackground:
```
        cfolder.setBackground(new Color[]{display.getSystemColor(SWT.COLOR_DARK_BLUE),
                                           display.getSystemColor(SWT.COLOR_BLUE),
                                           display.getSystemColor(SWT.COLOR_WHITE),
                                           display.getSystemColor(SWT.COLOR_WHITE)},
                                  new int[] {25, 50, 100}, true);

```
    Parameters:
    colors - an array of Color that specifies the colors to appear in the gradient in order of appearance left to right. The value null clears the background gradient. The value null can be used inside the array of Color to specify the background color.
    percents - an array of integers between 0 and 100 specifying the percent of the width of the widget at which the color should change. The size of the percents array must be one less than the size of the colors array.
    vertical - indicate the direction of the gradient. True is vertical and false is horizontal.

    Throws:
    SWTException -

    ERROR_THREAD_INVALID_ACCESS when called from the wrong thread

    ERROR_WIDGET_DISPOSED when the widget has been disposed
    Since:

    3.0
  - setSelectionHighlightGradientColor
```
void setSelectionHighlightGradientColor(Color start)
```
  - setSelectionBackground
```
public void setSelectionBackground(Image image)
```
    Set the image to be drawn in the background of the selected tab. Image is stretched or compressed to cover entire selection tab area.
    Parameters:
    image - the image to be drawn in the background

    Throws:
    SWTException -

    ERROR_WIDGET_DISPOSED - if the receiver has been disposed

    ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver
  - setSelectionForeground
```
public void setSelectionForeground(Color color)
```
    Set the foreground color of the selected tab.
    Parameters:
    color - the color of the text displayed in the selected tab

    Throws:
    SWTException -

    ERROR_WIDGET_DISPOSED - if the receiver has been disposed

    ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver
  - setSimple
```
public void setSimple(boolean simple)
```
    Sets the shape that the CTabFolder will use to render itself.
    Parameters:
    simple - true if the CTabFolder should render itself in a simple, traditional style

    Throws:
    SWTException -

    ERROR_WIDGET_DISPOSED - if the receiver has been disposed

    ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver
    Since:

    3.0
  - setSingle
```
public void setSingle(boolean single)
```
    Sets the number of tabs that the CTabFolder should display
    Parameters:
    single - true if only the selected tab should be displayed otherwise, multiple tabs will be shown.

    Throws:
    SWTException -

    ERROR_WIDGET_DISPOSED - if the receiver has been disposed

    ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver
    Since:

    3.0
  - getControlY
```
int getControlY(Point size,
              Rectangle[] rects,
              int borderBottom,
              int borderTop,
              int i)
```
  - setTabHeight
```
public void setTabHeight(int height)
```
    Specify a fixed height for the tab items. If no height is specified, the default height is the height of the text or the image, whichever is greater. Specifying a height of -1 will revert to the default height.
    Parameters:
    height - the pixel value of the height or -1

    Throws:
    SWTException -

    ERROR_WIDGET_DISPOSED - if the receiver has been disposed

    ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

    ERROR_INVALID_ARGUMENT - if called with a height of less than 0
  - setTabPosition
```
public void setTabPosition(int position)
```
    Specify whether the tabs should appear along the top of the folder or along the bottom of the folder.
    Parameters:
    position - SWT.TOP for tabs along the top or SWT.BOTTOM for tabs along the bottom

    Throws:
    SWTException -

    ERROR_WIDGET_DISPOSED - if the receiver has been disposed

    ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

    ERROR_INVALID_ARGUMENT - if the position value is not either SWT.TOP or SWT.BOTTOM
    Since:

    3.0
  - setTopRight
```
public void setTopRight(Control control)
```
    Set the control that appears in the top right corner of the tab folder. Typically this is a close button or a composite with a Menu and close button. The topRight control is optional. Setting the top right control to null will remove it from the tab folder.
    Parameters:
    control - the control to be displayed in the top right corner or null

    Throws:
    SWTException -

    ERROR_WIDGET_DISPOSED - if the receiver has been disposed

    ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

    ERROR_INVALID_ARGUMENT - if the control is not a child of this CTabFolder
    Since:

    2.1
  - setTopRight
```
public void setTopRight(Control control,
               int alignment)
```
    Set the control that appears in the top right corner of the tab folder. Typically this is a close button or a composite with a Menu and close button. The topRight control is optional. Setting the top right control to null will remove it from the tab folder.
    The alignment parameter sets the layout of the control in the tab area. SWT.RIGHT will cause the control to be positioned on the far right of the folder and it will have its default size. SWT.FILL will size the control to fill all the available space to the right of the last tab. If there is no available space, the control will not be visible.
    Parameters:
    control - the control to be displayed in the top right corner or null
    alignment - SWT.RIGHT or SWT.FILL

    Throws:
    SWTException -

    ERROR_WIDGET_DISPOSED - if the receiver has been disposed

    ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

    ERROR_INVALID_ARGUMENT - if the control is not a child of this CTabFolder
    Since:

    3.0
  - setUnselectedCloseVisible
```
public void setUnselectedCloseVisible(boolean visible)
```
    Specify whether the close button appears when the user hovers over an unselected tabs.
    Parameters:
    visible - true makes the close button appear

    Throws:
    SWTException -

    ERROR_WIDGET_DISPOSED - if the receiver has been disposed

    ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver
    Since:

    3.0
  - setUnselectedImageVisible
```
public void setUnselectedImageVisible(boolean visible)
```
    Specify whether the image appears on unselected tabs.
    Parameters:
    visible - true makes the image appear

    Throws:
    SWTException -

    ERROR_WIDGET_DISPOSED - if the receiver has been disposed

    ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver
    Since:

    3.0
  - showItem
```
public void showItem(CTabItem item)
```
    Shows the item. If the item is already showing in the receiver, this method simply returns. Otherwise, the items are scrolled until the item is visible.
    Parameters:
    item - the item to be shown

    Throws:
    java.lang.IllegalArgumentException -

    ERROR_NULL_ARGUMENT - if the item is null

    ERROR_INVALID_ARGUMENT - if the item has been disposed
    SWTException -

    ERROR_WIDGET_DISPOSED - if the receiver has been disposed

    ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver
    Since:

    2.0

    See Also:
    showSelection()
  - showList
```
void showList(Rectangle rect)
```
  - showSelection
```
public void showSelection()
```
    Shows the selection. If the selection is already showing in the receiver, this method simply returns. Otherwise, the items are scrolled until the selection is visible.
    Throws:
    SWTException -

    ERROR_WIDGET_DISPOSED - if the receiver has been disposed

    ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver
    Since:

    2.0

    See Also:
    showItem(CTabItem)
  - _setToolTipText
```
void _setToolTipText(int x,
                   int y)
```
  - updateItems
```
boolean updateItems()
```
  - updateItems
```
boolean updateItems(int showIndex)
```
  - updateTabHeight
```
boolean updateTabHeight(boolean force)
```
  - updateBkImages
```
void updateBkImages()
```
  - _getToolTip
```
java.lang.String _getToolTip(int x,
                           int y)
```
  - addTabControl
```
void addTabControl(Control control,
                 int flags)
```
    Set a control that can appear to the left or to the right of the folder tabs. This method can also be used instead of #setTopRight(Control). To remove a tab control, see#removeTabControl(Control);
    The flags parameter sets the layout of the control in the tab area. SWT.LEAD will cause the control to be positioned on the left of the tabs. SWT.TRAIL will cause the control to be positioned on the far right of the folder and it will have its default size. SWT.TRAIL can be combined with SWT.FILLto fill all the available space to the right of the last tab. SWT.WRAP can also be added to SWT.TRAIL only to cause a control to wrap if there is not enough space to display it in its entirety.
    Parameters:
    control - the control to be displayed in the top right corner or null
    flags - valid combinations are:
    SWT.LEAD
    SWT.TRAIL (| SWT.FILL | SWT.WRAP)
    Throws:
    SWTException -

    ERROR_WIDGET_DISPOSED - if the receiver has been disposed

    ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

    ERROR_INVALID_ARGUMENT - if the control is not a child of this CTabFolder
  - addTabControl
```
void addTabControl(Control control,
                 int flags,
                 int index,
                 boolean update)
```
  - removeTabControl
```
void removeTabControl(Control control)
```
    Removes the control from the list of tab controls.
    Parameters:
    control - the control to be removed

    Throws:
    SWTException -

    ERROR_WIDGET_DISPOSED - if the receiver has been disposed

    ERROR_THREAD_INVALID_ACCESS - if not called from the thread that created the receiver

    ERROR_INVALID_ARGUMENT - if the control is not a child of this CTabFolder
  - removeTabControl
```
void removeTabControl(Control control,
                    boolean update)
```
  - getWrappedHeight
```
int getWrappedHeight(Point size)
```
  - setChevronVisible
```
void setChevronVisible(boolean visible)
```
    Sets whether a chevron is shown when there are more items to be displayed.
    Throws:
    java.lang.IllegalArgumentException -

    ERROR_INVALID_RANGE - if the index is out of range
    SWTException -

    ERROR_THREAD_INVALID_ACCESS when called from the wrong thread

    ERROR_WIDGET_DISPOSED when the widget has been disposed

Class CTabFolder

Structure Diagram

Field Summary

Fields inherited from class org.eclipse.swt.widgets.Control

Constructor Summary

Method Summary

Methods inherited from class org.eclipse.swt.widgets.Composite

Methods inherited from class org.eclipse.swt.widgets.Scrollable

Methods inherited from class org.eclipse.swt.widgets.Control

Methods inherited from class org.eclipse.swt.widgets.Widget

Methods inherited from class java.lang.Object

Field Detail

marginWidth

marginHeight

MIN_TAB_WIDTH

borderInsideRGB

borderMiddleRGB

borderOutsideRGB

onBottom

single

simple

fixedTabHeight

tabHeight

minChars

borderVisible

renderer

items

firstIndex

selectedIndex

priority

mru

listener

ignoreTraverse

folderListeners

tabListeners

selectionBgImage

selectionGradientColors

selectionGradientPercents

selectionGradientVertical

selectionForeground

selectionBackground

gradientColors

gradientPercents

gradientVertical

showUnselectedImage

showClose

showUnselectedClose

showMin

minimized

showMax

maximized

minMaxTb

maxItem

minItem

maxImage

minImage

hoverTb

hoverRect

hovering

hoverTimerRunning

showChevron

showMenu

chevronTb

chevronItem

chevronImage

chevronCount

chevronVisible

topRight

topRightAlignment

ignoreResize

controls

controlAlignments

controlRects

controlBkImages

inDispose

oldSize

oldFont

DEFAULT_WIDTH

DEFAULT_HEIGHT

SELECTION_FOREGROUND
