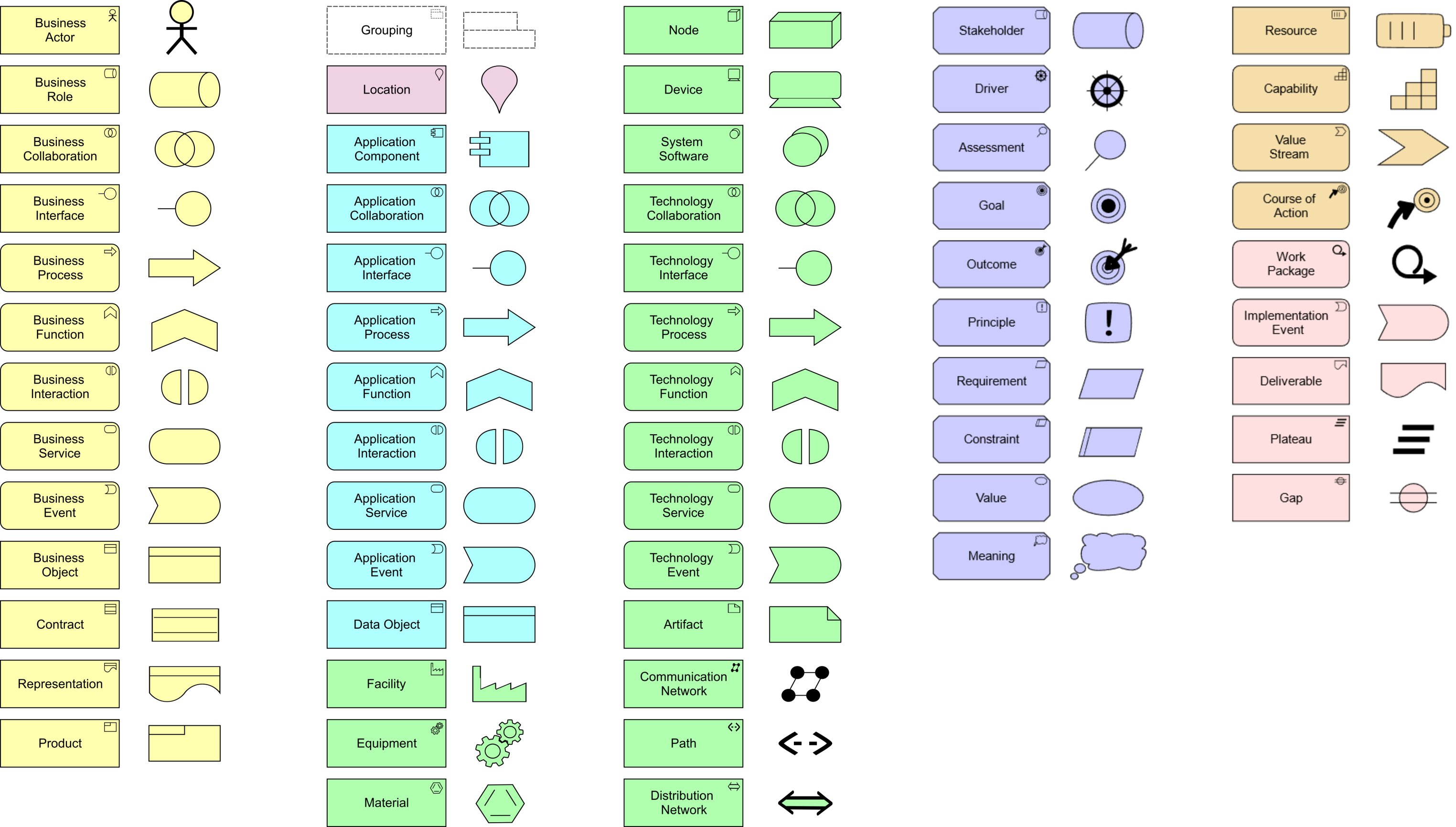

Model with ArchiMate 3.2

Modelio is compliant to the latest version of the ArchiMate standard. This new iteration of the standard offers an evolution of the relationships between ArchiMate elements and a standardization of element representation modes. ArchiMate 3.2 support comes with the availability of new auditing rules to facilitate the detection of errors in enterprise architecture models.

presentation archimate 3.2 2

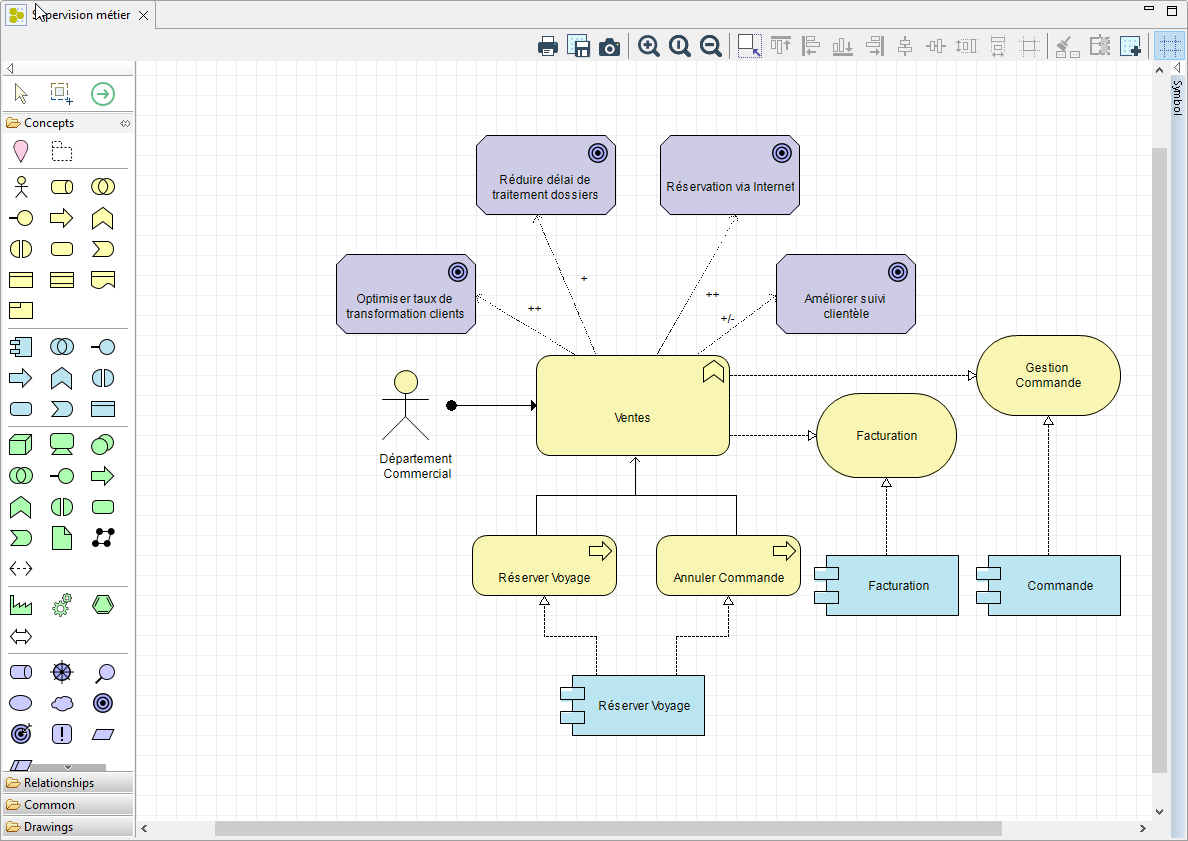

Easily reuse existing elements in new diagrams

The new model element creation mode is available in all diagrams and formalisms. It allows the reuse of existing concepts by:
  • A targeted search among elements of the same type,
  • Unmasking the selected element instead of creating a new concept.
This function is simply activated by pressing the "CTRL" key when creating an element. It provides a search window for selecting an existing item or creating a new one.


elements archimate 32

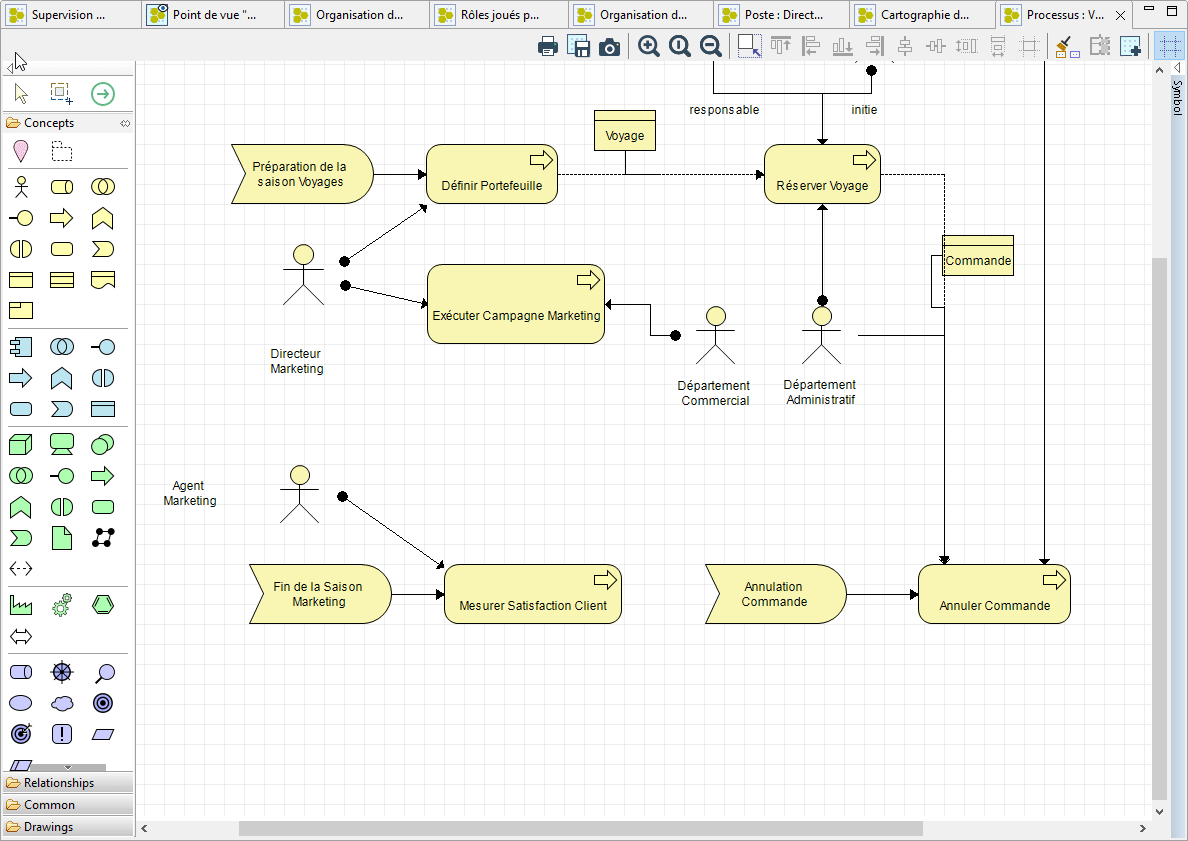

Merge similar concepts within the repository

This new tool allows you to automatically merge elements of the same type within the model repository. When merging, all relationships of the merged elements are preserved. The diagrams, in which the merged concepts appear, are updated automatically; this ensures the quality of the resulting models.

fusion archimate 32

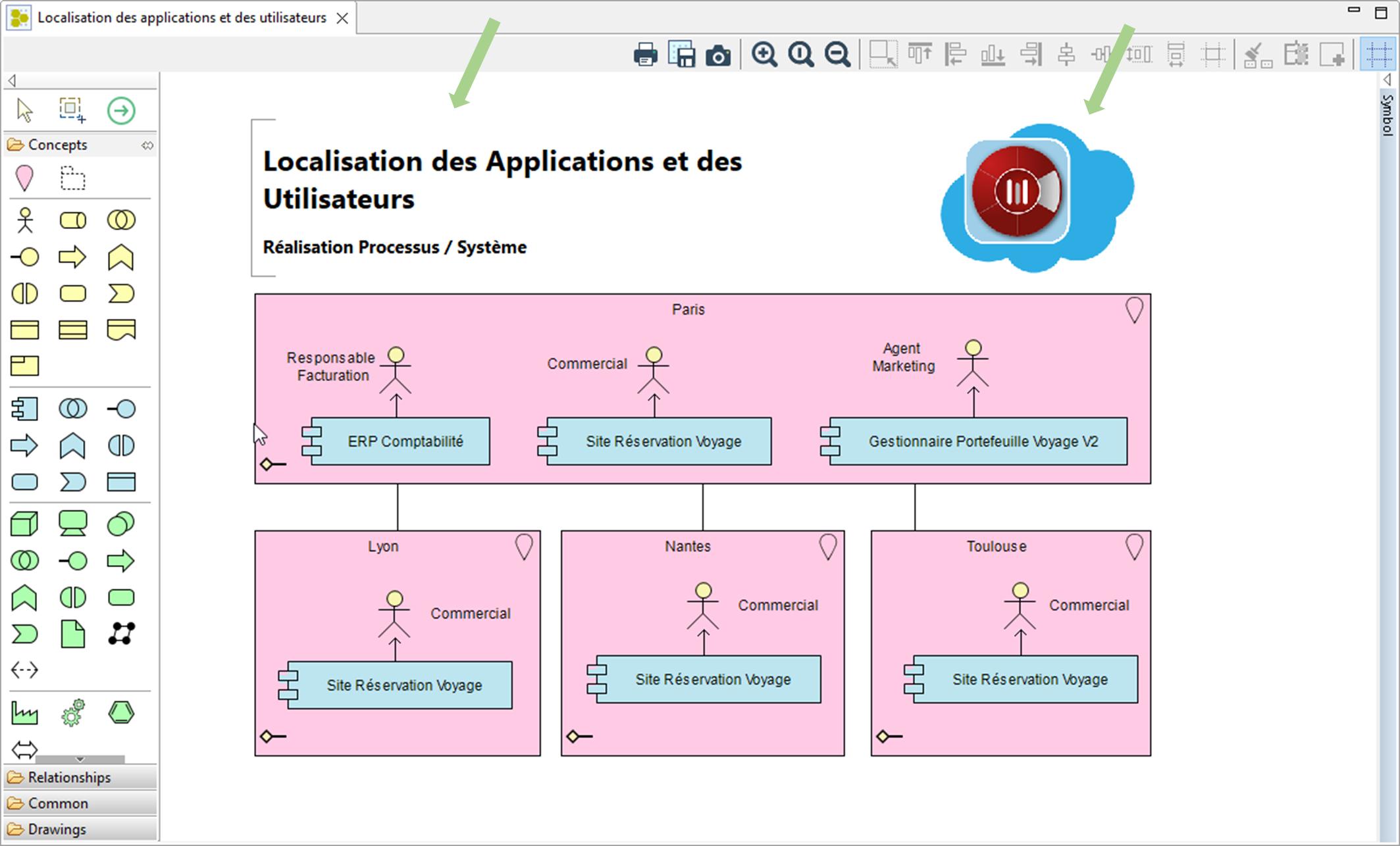

Customize your diagrams with new document elements

You can now insert formatted text and custom images directly into your diagrams. This allows you to meet specific needs or to use a more friendly representation for business teams.

 localisation applis

ArchiMate Model

  • ArchiMate elements are sorted alphabetically in the model explorer.
  • In the view creation interface, views are separated into two categories in order to facilitate access to essential views: basic views and specialized views.
  • ArchiMate Import/Export: Specific properties associated to ArchiMate elements are now imported and exported.
  • ArchiMate Import/Export: ArchiMate view descriptions are now imported and exported correctly.
  • ArchiMate views: the graphical option "Show labels" now allows to show or hide labels of ArchiMate relations.
  • New audit rules have been made available to facilitate the detection of errors in enterprise architecture models.

BPMN model

  • Changed colors of Gateways to make them more visible in the "Cobalt" style
  • At the time of its creation, a new BPMN process diagram is blank, without the start and end.
  • The Exclusive Gateways are represented in the most used form by default: the diamond with a cross.
  • When using the element type transformation services in BPMN diagrams, the associated notes remain visible.
  • Labels associated with gateways and events are fully displayed after editing in the "Properties" view.
  • A set of issues related to the resizing of Lanes is fixed.
  • Any Lane of a participant can be resized, not just the first one.
  • When using the BPMN elements grouping service in a sub-process, the associated Sequences Flows remain the same.

Ergonomic evolutions

  • The link anchor system for all diagrams allows relationships to be aligned on the diagram grid. This improves the presentation of your diagrams.
  • When creating a model element in a diagram, it is now possible to edit its name directly.
  • A new command allows you to select all the elements of the same type in a diagram. It can be accessed from the contextual menu and the diagram toolbar.
  • Modelio Server features a new REST API that allows you to monitor project composition, profiles and the list of users with access to the project.
  • To speed up Modelio startup, the update check is no longer imposed at startup. Checking for updates is now launched at the user's initiative by using the "Help \ Check for updates..." menu entry.
  • Jython macros are now executable from the diagram context menu.
  • The Search function is simply accessible via the keyboard shortcut <CTRL>+F
  • Diagrams: improved behavior when moving an element with a "U" link to another element.
  • Diagrams: it is now possible to precisely move the guards of Sequences Flows.
  • The icon for exporting diagrams to Image format is now different from the icon for saving a project, to avoid confusion between the two functions.
  • Improved management of timeouts related to the user authentication system and the license management system.
  • Floating descriptions in HTML format are taken into account when the mouse is moved over the tab of a diagram.

Collaborative work

  • A project configuration option allows to automatically update a shared project when opening it.
  • A project configuration option allows to automatically launch an audit on the whole model when opening the project.
  • It is now possible to take a recursive lock on a sub-project.
  • In collaborative work, you can add contextual information when taking a lock. You can easily find out in which context a lock has been reserved by a project member.
  • In collaborative work, a command allows you to reload a model fragment when loading has failed, especially due to network problems. This option saves a lot of time.
  • Fixed a problem requiring a project to be reopened when changing the lock management work mode on a collaborative model.

Modelio Studio

  • At creation, the names of stereotypes, matrices and other elements are checked to ensure that they comply with Java naming rules.
